Dixon BLOUNT 3O4 Manuel d'instructions

TECHNICAL DATA BROCHURE

Mode1 3O4

IMPORTANT -READ OPERATOR'S MANUAL BEFORE OPERATING OR MAKING ADJUSTMENTS

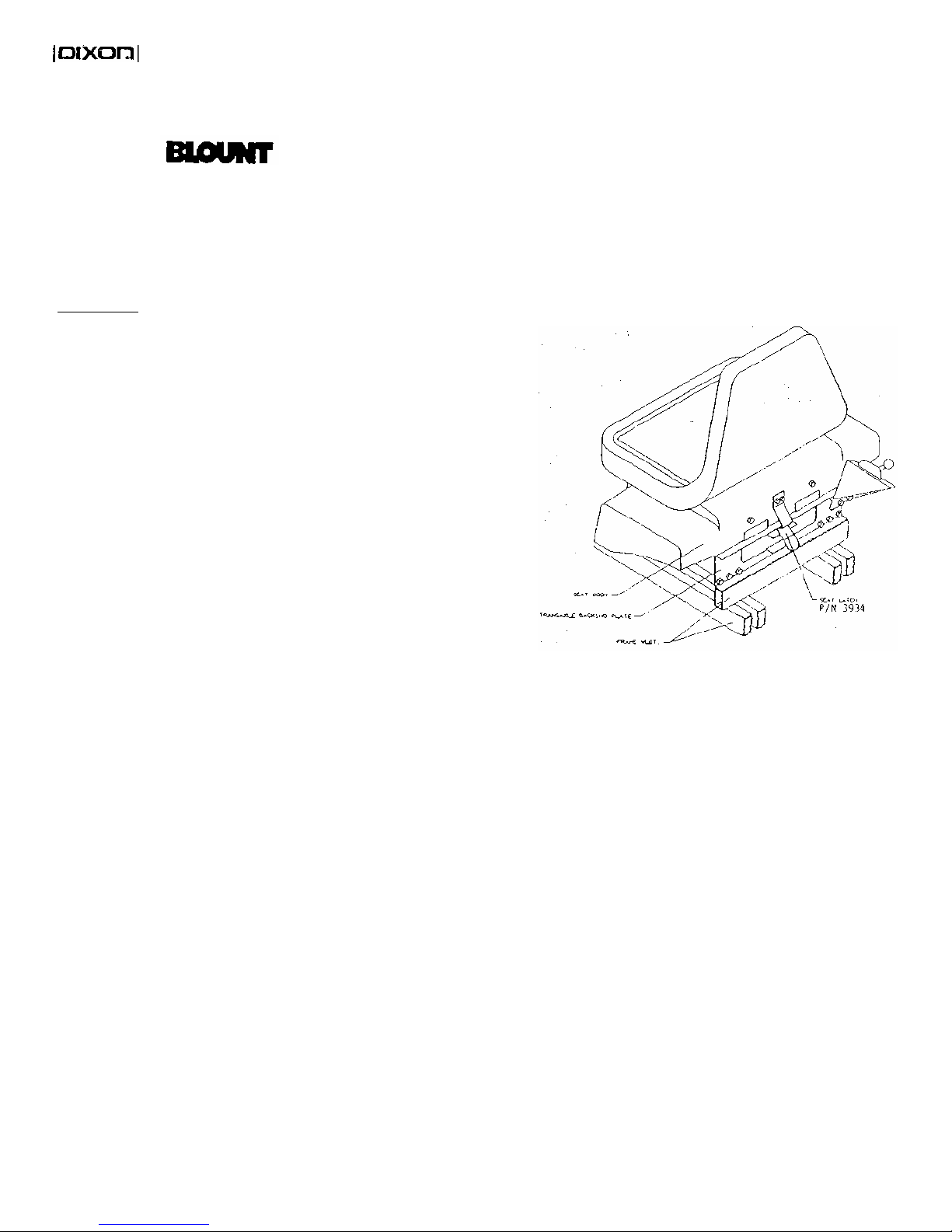

SEAT ADJUSTMENT

1. Pull or lift body retention latch (P/N 3934)

from transaxle backing plate, raise and push

body and seat assembly forward.

2. Loosen four seat bolts (P/N 3006) and slide

seat forward or backward to desired position.

3. Re-tighten bolts. DO NOT operate mower

without seat retention bolts properly

tightened.

4. Close upper body and push retention

latch (P/N 3934) over transaxle backing plate.

BODY REMOVAL

'-•'i " £

1. The 304 has a (2) piece polyethelene body. The upper body can be folded

forward to expose the transaxle. In some cases, it may be necessary to

remove the upper body to service the transaxle.

2. To remove upper body, remove two bolts (P/N 3080) from the front

of upper body hinge located on the brake shaft (P/N 9283). Disconnect seat

switch (P/N 4761) at plug-in.

3. Reverse above procedure to reinstall.

ADJUSTMENT OF MOWER DECK DRIVE BELT

1. The mower deck drive belt is tensioned by a spring loaded engagement idler

quadrant.

2. This system is designed to maintain the proper belt tension at all times.

3. Belt tension can be adjusted by moving the engaging rod (P/N 7013) into the

outside hole of engagement handle (P/N 7020).

4. After, belt tension is adjusted, check to assure that the mower blade will not

turn freely when the engaging rod is in the "OFF" position.

5. If the mower blade turns freely, adjust the blade by loosening nut (P/N 3205)

at end of the brake rod (P/N 2988).

6. After adjustment is achieved, perform the safety checks listed below.

Page 1 of 7

IXON INDUSTRIES, INC

A BLOUNT COMPANY

AIRPORT INDUSTRIAL PARK

PO BOX 1569

COFFEYVILLE KS 67337 O945

316 251 2OOO

FAX 316 251 4117

REMOVING THE MOWER BLADE

Secure blade (P/N 2483) from turning. Remove blade bolt from center

(P/N 3268) and blade washer (P/N 6260), then blade (P/N 2483). To reinstall,

reverse above procedure.

WARNING: Sharp edges on blade can cause injury!

Caution should be exercised when service is required on blade.

REMOVING MOWER DECK

1. Loosen the belt keeper (P/N 7026 & 7027), located under the engine, by

loosing two rear engine mounting bolt's, allowing the deck drive belt to cone

free of the rear pulley.

2. Disconnect the wiring loom at the deck safety switch (P/N 4242).

3. Remove the two clevis pins (P/N 3072) from the two rear L-rods (P/N 1355) and

slide from slots.

4. Remove clevis pins (P/N 3072) L-rod attached to lift handle and slide from slot.

5. Remove clevis pin (P/N 3072) from front deck hanger shaft (P/N 1332), located at

from of mower deck on slide plates welded at battery box and remove.

6. Lift front of mower chassis and roll free of the deck.

7. To install, reverse the above procedure.

MOWER BLADE OPERATION

To engage the mower blades, turn lever on floor slowly to the "ON" position. To

disengage mower blades, turn lever slowly to the "OFF" position.

"IMPORTANT" -PERFORM SAFETY CHECKS AFTER MAKING ANY REPAIRS OR ADJUSTMENTS

1. After reassembly, while seated on mower, attempt to start engine with sower

deck engaged. Engine should not start. If engine does start, return the mower to

an Authorized Dixon Dealer for adjustment or repair.

2. Disengage mower deck and start engine. With the operator in the normal

seated position, engage mower deck and remove weight from seat. The engine should

stop. If the engine does not stop when operator rises from seat, return the mower

to an Authorized Dixon Dealer for adjustment or repair.

3. Engage, then disengage, mower blade in each cutting height. Insure that blade

disengages and comes to a stop within (5) seconds in each height position.

If blade does not disengage properly, contact your Authorized Dixon Dealer.

PARKING BRAKE ADJUSTMENT

1. Raise upper body to the open position.

2. Tighten nut on brake rod (P/N 2533) located in front of the transaxle on

each side, just enough to prevent brake from slipping when engaged. :

CAUTION: Over tightening may cause premature wear on the brake band (P/N

5085).

Page 2 of 7

Revised 1/92

(P/N 8112)

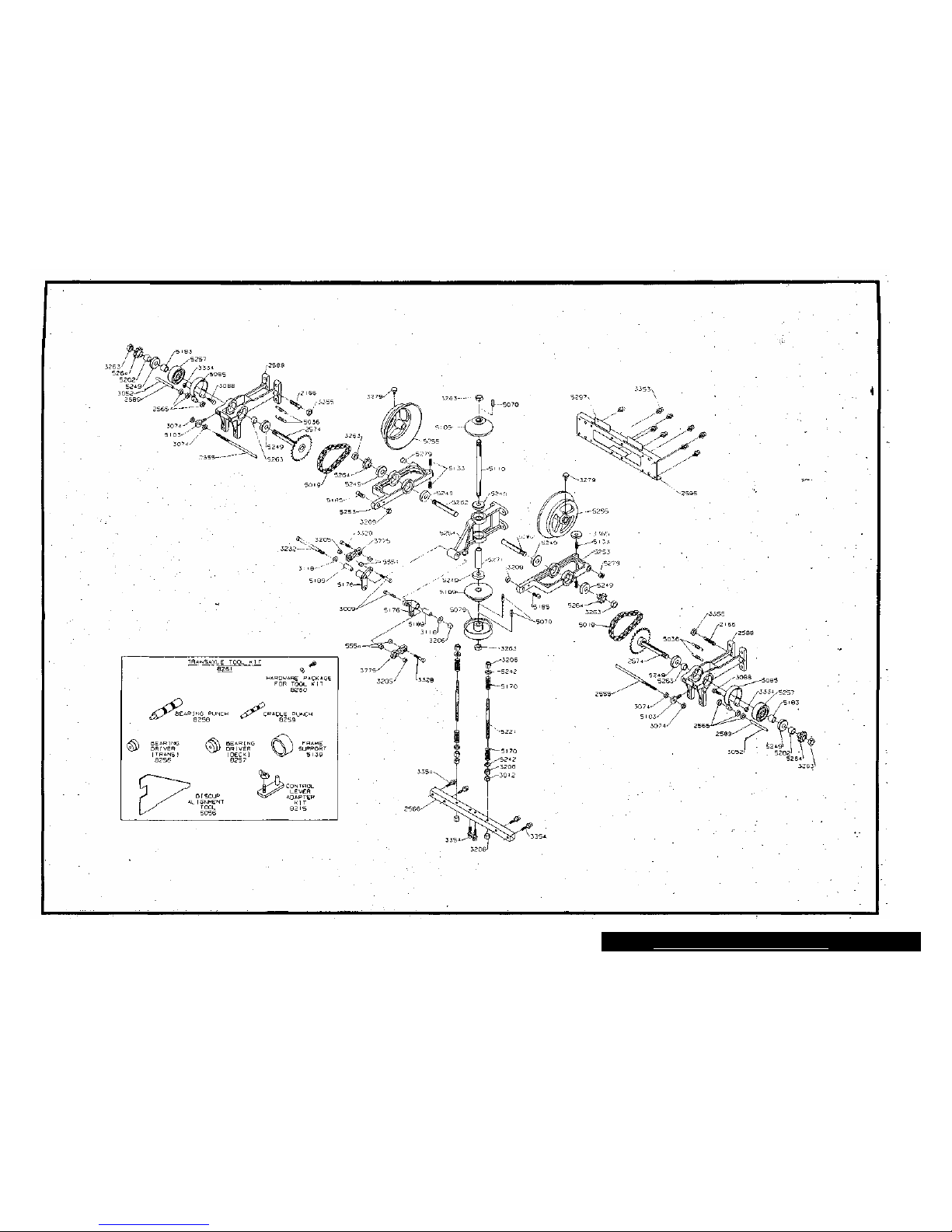

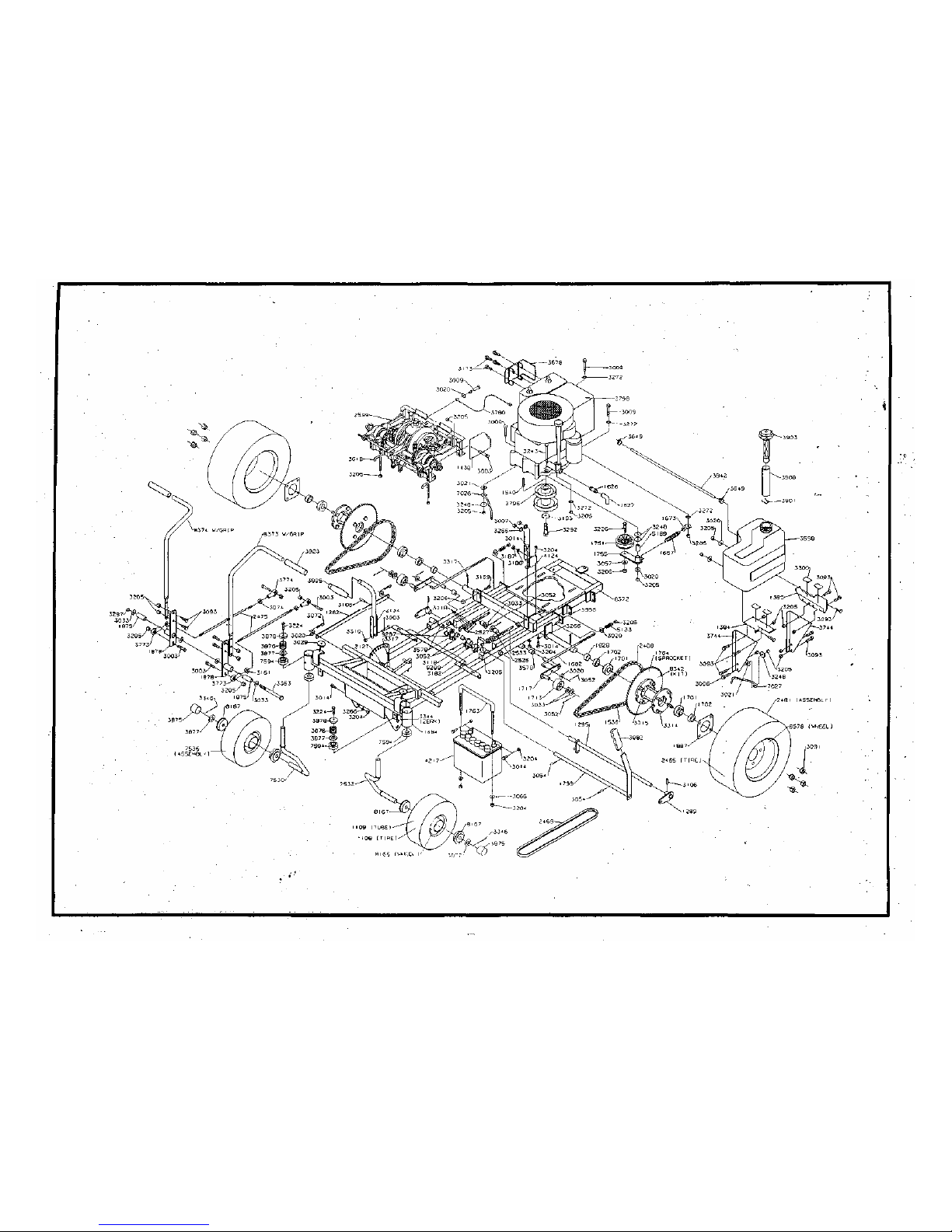

1304 Transaxle Assembly__________I

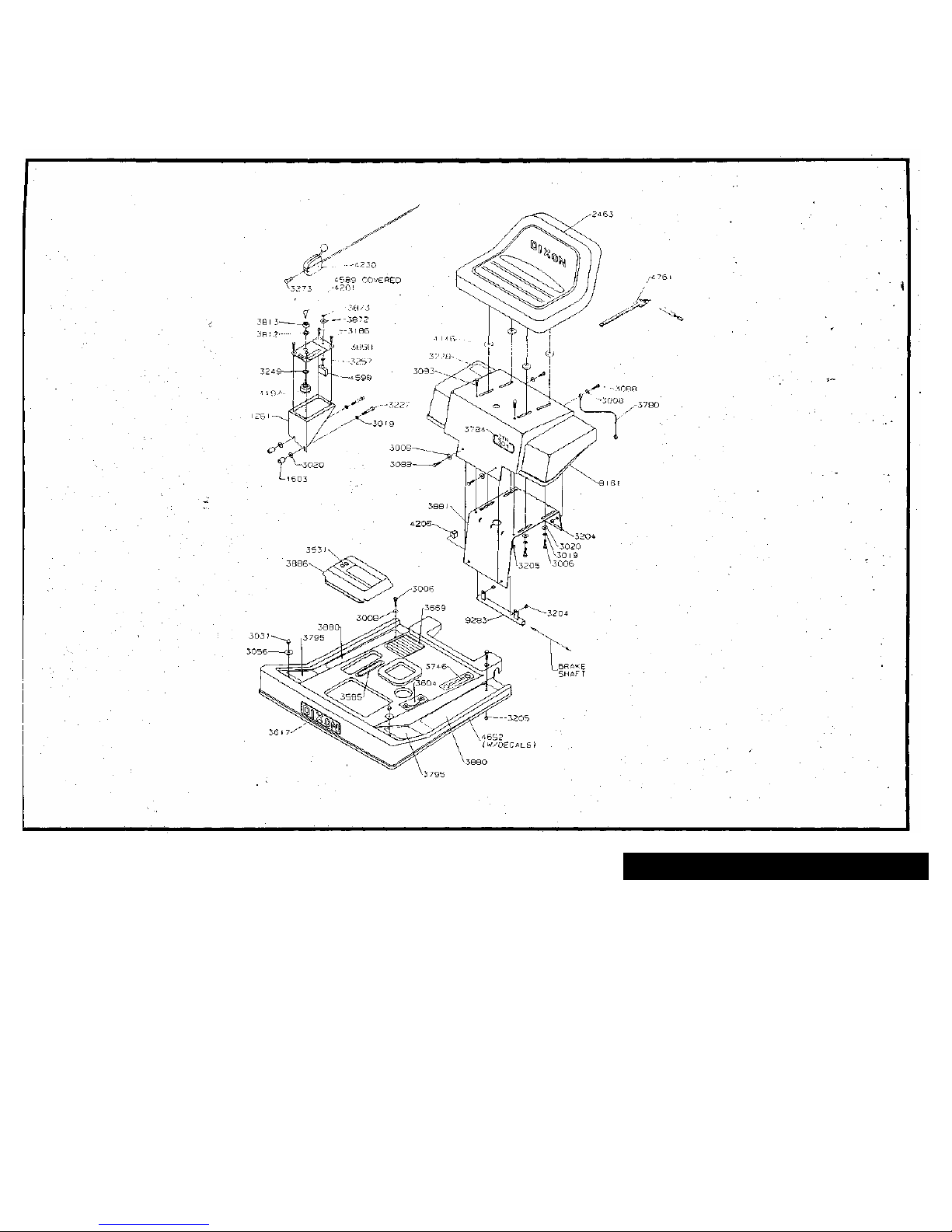

304 Body Assembly

____
