Displays2go DSTAND2BK Manuel utilisateur
User Manual
DUAL TV STAND
WITH TWO
ROTATING
BRACKETS FITS
TVS32” – 70”
SKU: DSTAND2BK, CDSTAND2BK
Scan the QR
code to visit the
product page.
Safety and Warning
• Tighten screws firmly, but do not over-tighten. Over-tightening can cause damage to the items,
which greatly reduces their holding power.
• Make sure that the supporting surface will safely support the combined weight of the equipment
and all attached hardware and components.
• This product is intended for indoor use only. Using this product outdoors could lead to product
failure and personal injury.
• Always use an assistant or mechanical lifting equipment to safely lift and position the equipment.
• Do not use this product for anything other than the original design.
• This product contains moving parts, please use with caution.
• The manufacturer disclaims any liability for the modifications, improper installation, or
installation over the specified weight range. The manufacturer will not be liable for any
damages arising out of the use of, or inability to use, the product.
CAUTION: Severe personal injury and property damage can result from improper installation
or assembly. Read the following warning carefully before assembly. If you have any questions
regarding any of the instructions or warnings, please contact Displays2go.
Base Assembly
Parts List (Base Package)
PART QUANTITY
A: User Manual..........................................................................................................................................1
B: Metal Base.............................................................................................................................................1
C1: Lower Tubing (Left) ............................................................................................................................1
C2: Lower Tubing (Right)...........................................................................................................................1
D1: Upper Tubing (Left).............................................................................................................................1
D2: Upper Tubing (Right).........................................................................................................................4
E: Tubing Connector .................................................................................................................................2
F: Pan Head Screw .................................................................................................................................. 12
*Hex Wrench for Part F can be found inside the TV Bracket box. (DUOPOLEBK, DUOPOLESL)
If you have any questions regarding our products, please visit us at www.displays2go.com or
contact Displays2go customer service at 844-221-3388.
CAUTION: Heavy metal base can cause muscle strain or back injury! Two people required for
assembling and moving unit.
4
Identify Parts
1. Identify all parts and lay out 4 tubings (C1, C2, D1, D2) on a flat surface. See picture below to
identify position of each tubing (upper or lower, left or right).
• Confirm each tubing has at least one pair of 2 holes facing outward (see detail 2).
• Arrange tubings with one pair holes (see detail 3a), then sort tubings with two pairs holes
(see detail 3b).
i bc q=s f bt
_^` h=s f bt
Lower Left Tubing
i bc q=s f bt
_^` h=s f bt
Upper Left Tubing
Lower Right Tubing
_^` h=s f bt
of de q=s f bt
Upper Right Tubing
_^` h=s f bt
of de q=s f bt
2
2
3a 3b
NOTE: One or more upper/lower tubing may have holes on both sides.
5
4. Secure lower tubings to base using
screws (F). Tighten with hex wrench.
Place Lower Tubings
Fasten Lower Tubings
F
B
C1 C2
2. Carefully place the metal base (B) on
hard, flat ground.
3. Insert left and right lower tubings (C)
into the left and right upright slot on
the metal base. Holes at top of lower
tubings should face outward to align
with the holes of tubing connectors later
in assembly.
6
D1
D2

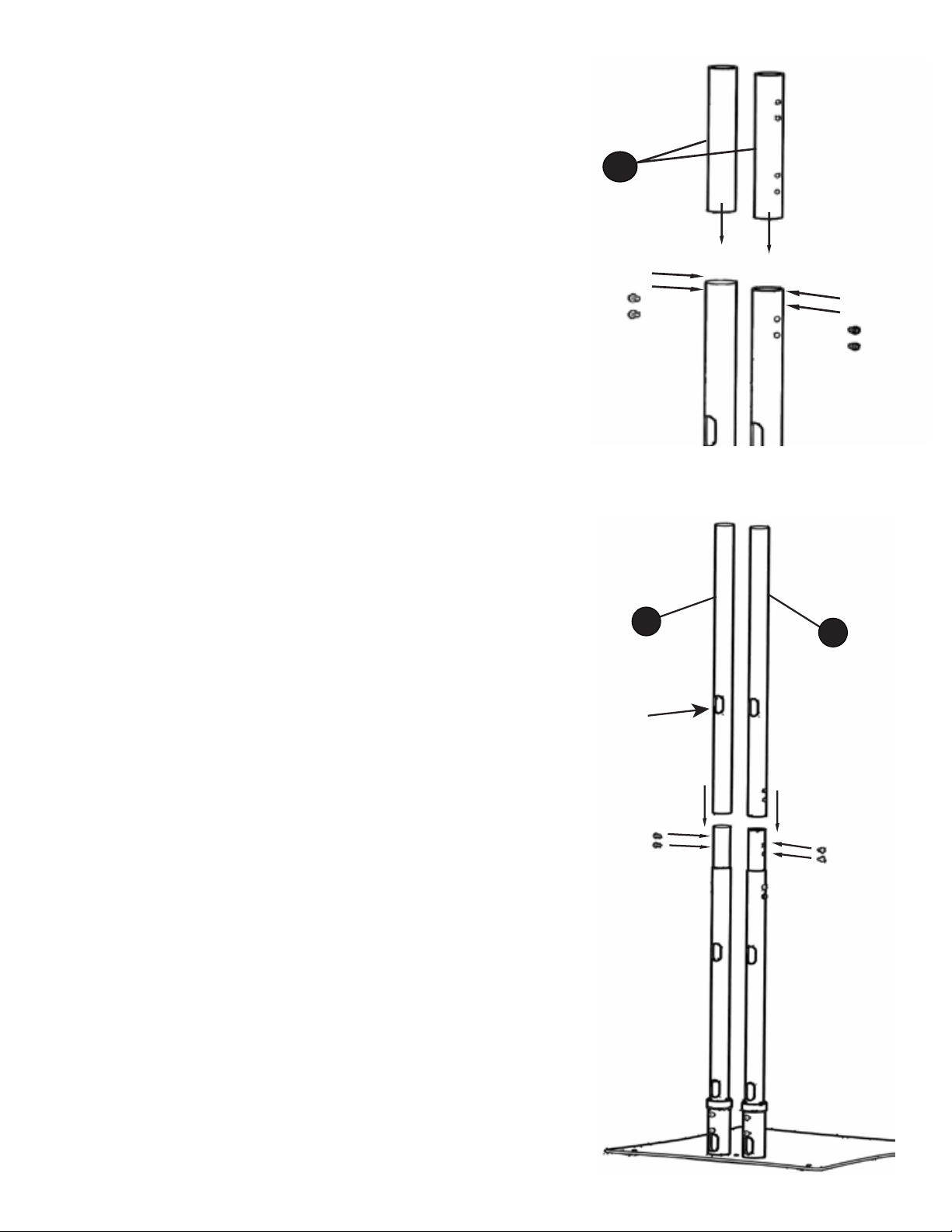

5. Insert tubing connectors (E) into the lower
tubings, aligning screw holes.
6. Secure tubing connectors to lower tubings
using screws (F). Tighten with hex wrench.
Place Upper Tubings
Upper Tubings with Connectors
7. Insert left and right upper tubings (D) into tubing
connectors, aligning screw holes.
8. Secure to tubing connectors using screws (F). Tighten
with hex wrench.
E
7
Secure Mount to Floor
The metal base must be bolted to the floor to safely
support the weight of both TVs.
NOTE: Do not use casters. Holes in the base are for
mounting to floor only.
To install rotating bracket, refer to assembly instructions
enclosed in the Mounting Bracket package (DUOPOLEBK).
NOTE: The bracket locks the weight of all compatible
TVs in horizontal orientation. The bracket will only
support TVs in portrait mode if the weight is under 15
pounds (6.8 kg).
Installing Dual Rotating Brackets
CAUTION
• DSTAND2BK can hold dual flat TVs up to 70”, depending on
different layouts and orientation. TVs cannot be rotated while 2
TVs are mounted at the same time.
• Be careful when using ladders or standing above the ground.
• Do not adjust the position of extrusion while TV is on the bracket.
8
Lay the TVs in their intended position and
measure the distance between the first VESA
mount holes of each unit. This measurement
is the minimum distance between each
connector to ensure TVs will not interfere with
each other.
Measure TVs
Add Dual Connectors
Use your measurements to determine
position of 2nd connector set and attach the
additional connectors at the marked location.
NOTE: Do not place connectors
over screws on poles.
Screws
Connector
Distance between TVs
9
Mount the lower TV to the lower bracket. Feed
power cord into pole and pull out through
bottom slot.
(Refer to complete instructions in Mounting
Bracket User Manual.)
Adjust spacing of upper bracket as necessary, then
mount upper TV. Feed power cord into pole and pull out
through bottom slot.
Mount Lower TV
Mount Upper TV
If you have any questions regarding our products, please visit us at www.displays2go.com or
contact Displays2go customer service at 844-221-3388.
NOTE: The bracket can be
adjusted up and down on the
TV to best fit the location of
both TVs on the stand.
Do NOT adjust the bracket
position while the TV is
mounted to the pole.
