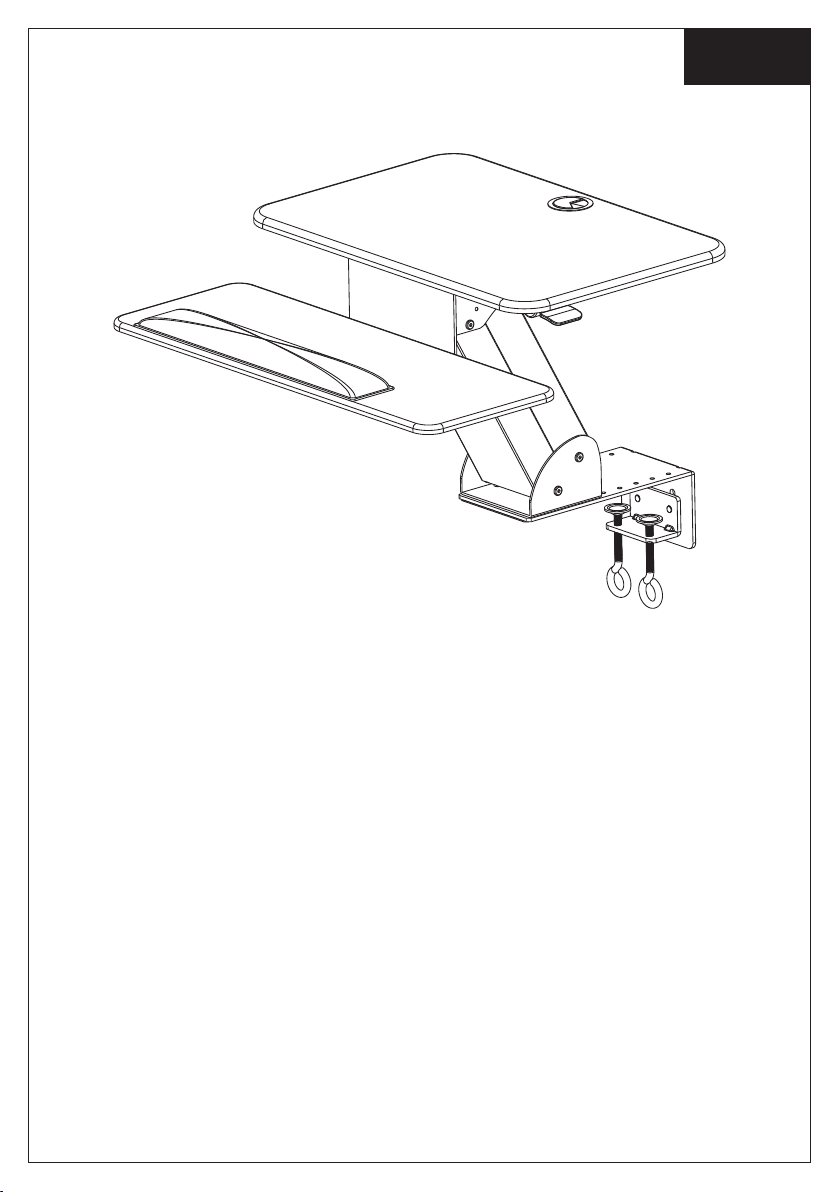

Installation Instruction

UNPACKING INSTRUCTIONS

! Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

! Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

! Carefully read all instructions before attempting installation.

IMPORTANT SAFETY INFORMATION

! Install and operate this device with care. Please read this instruction before

installation, and carefully follow all instructions contained herein. Use proper safety

equipment during installation.

! Please call a qualified installation contractor for help if you don't understand these

directions or have any doubts about the safety of the installation.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage arising

from incorrect assembly, incorrect mounting, or incorrect use of this product.

Supplied Par ts List

(1)Gas Spring Arm-c

(1)L Plate-e

(1)Wrist Pad-d(1) Platform-a (1) Keyboard Tray-b

(2)Spacer-l

(4)M6 Washer-m (4)M6 Nut-n

(1)Allen Key-q

(2)Square Pad-o

5mm thickness

(1)Wrench-r

(2)M6x35 Bolt-k

(8)M6x12 Bolt-i (4)M6x12 Bolt-j

(1) C-clamp-f (1) C-clamp Brace-g (2)M10x15 Bolt-h

(2)Square Pad-p

2mm thickness

Step 1 Connecting L Plate to Keyboard Tray

Warning:

Ensure screws are

secured firmly.

Step 2 Attaching Square Pads to the Back of Keyboard Tray

Step 3 Connecting L Plate to Gas Spring Arm

Warning:

Ensure screws are

secured firmly.

Warning:

Ensure screws are

secured firmly.

Step 4 Connecting Gas Spring Arm to Monitor Platform

Warning:

Don’t operate the lever until the

workstation is fully assembled.

Lever

“L” plate can be installed in two positions.

1. Install in a high position for fitting the keyboard

tray to the surface of desktop directly.

2. Install in a low position for fitting the keyboard tray

below the surface of desktop.

Step 5 Attaching Lever to the Back of Monitor Platform

Warning:

Ensure screws are

secured firmly.

Warning:

Ensure screws are

secured firmly.

Step 6 Connecting the C-clamp Brace to Gas Spring Arm

Note: The lever can be installed

eigher on the right or the left

side of monitor platform.

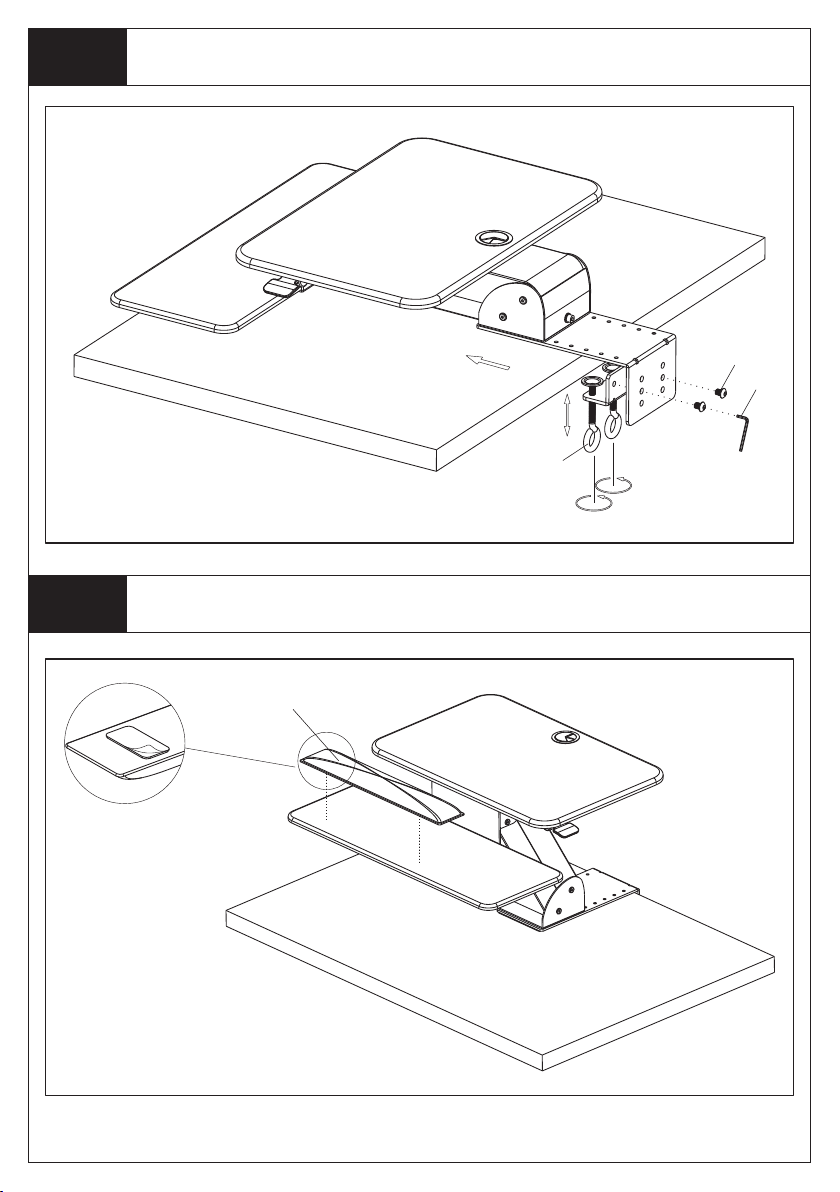

Step 7 Attaching the C-clamp to the Edge of Desktop

Step 8 Attaching Wrist Pad to Keyboard Tray

Step 9 Operating the Lever to Lift or Lower the WorkStation

Step 10 Adjusting the Tension of Workstation

• If the weight of the monitor(s) makes it difficult to lift the workstation, adjust the screw

at the back of the gas spring arm counterclockwise.

• If the workstation lowers too quickly, adjust the screw at the back of gas spring arm

counterclockwise.

• If the workstation doesn’t easily lower down, adjust the screw at the back of gas

spring arm clockwise.
