RECEIVER SET UP GUIDE
RECEIVER SET UP GUIDE
222
1.
Labeling Your Cables
Use the labels provided to complete this step. Do not remove any cables from the receiver
being replaced until Step 2.

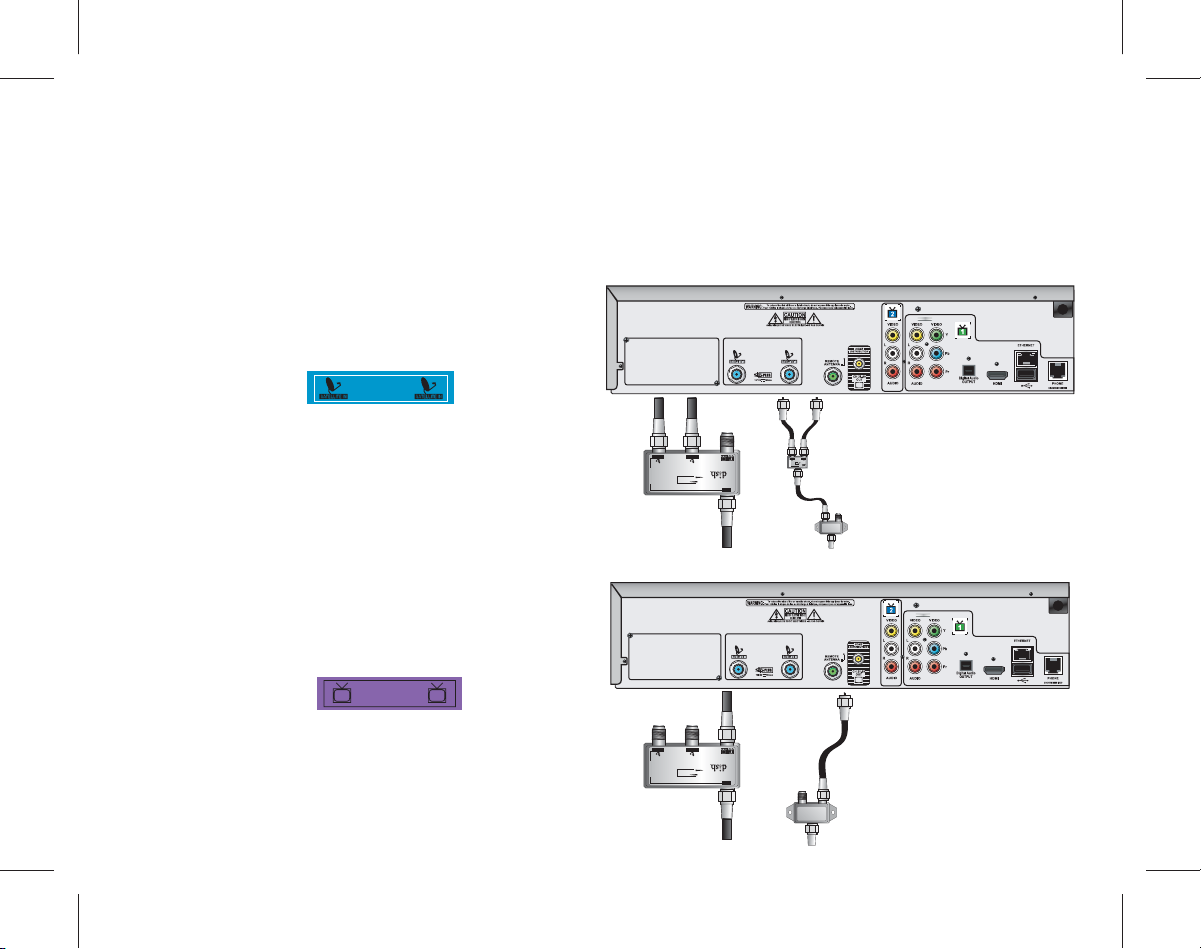

a.
Attach the blue labels to the
cables connected to the
"Satellite In" ports .
Your Satellite In connection will look
like one of the following images.
b.
Attach the purple label to the
cable connected to the
"Home Distribution" port.
Your Home Distribution connection will
look like one of the following images.
SATELLITEINSATELLITEIN
P
P
PLUS
INPUT
TRIPLEXER
175284
DC& DiSEqC PASS
950-1450MHz1650-2150MHzUHF/VHF
54-2150MHz
SATELLITEINSATELLITEIN
P
P
PLUS
INPUT
SEPARATOR
123254
DC&DiSEqCPASS
SATELLITEINSATELLITEIN
P
P
PLUS
INPUT
TRIPLEXER
175284
DC& DiSEqC PASS
950-1450MHz1650-2150MHzUHF/VHF
54-2150MHz
or
or
TV2TV2
1.
Labeling Your Cables (Cont’d)
c.
For your audio/video connection,
you will either use an HDMI cable,
YPbPr cables, or RCA cables. Attach
either the black label to the cable
connected to the“HDMI” port, the
orange label to the cables connected
to the RCA ports, or the red label to
the cables connected to the YPbPr
ports.
d.
Attach the yellow label to the cable
connected to the "Ethernet" port.
You may not have this cable.
e.
Attach the white label to the cable
connected to the "Phone" port.
You may not have this cable.
YPbPr
COMPONENT
YPbPr
COMPONENT
RCA
COMPOSITE
RCA
COMPOSITE
PHONEPHONE
1.
Labeling Your Cables (Cont’d)
2.
Disconnecting Your Cables
a.
Disconnect the cables from the receiver being replaced. Only disconnect the cables at
the end connected to the receiver. Do not disconnect the cables from the wall or TV.
f.
Attach the green label to the
cable or antenna connected to
the "Remote Antenna" port.
Wall Receiver
3.
Connecting the Cables to Your Replacement Receiver
a.
Connect the Satellite In cables to
the "Satellite In" ports and connect
the Home Distribution cables to the
"Home Distribution" port on the
replacement receiver.
Your Satellite In and Home Distribution
connection will look like one of the
following images.
b.
Connect either the HDMI cable,
YPbPR cables, or RCA cables from
the TV to the corresponding port(s)
on the replacement receiver.
c.
Connect the Ethernet cable to the
"Ethernet" port on the replacement
receiver.
You may not have this cable.
YPbPr
COMPONENT
YPbPr
COMPONENT
RCA
COMPOSITE
RCA
COMPOSITE
SATELLITEINSATELLITEIN
P
P
PLUS
INPUT
TRIPLEXER
175284
DC& DiSEqC PASS
950-1450MHz1650-2150MHzUHF/VHF
54-2150MHz
SATELLITEINSATELLITEIN
P
P
PLUS
INPUT
SEPARATOR
123254
DC&DiSEqCPASS
HOME
DISTRIBUTION
HOME
DISTRIBUTION
or
TV2TV2
3.
Connecting the Cables to Your Replacement Receiver (Cont’d)
d.
Connect the Phone cable to the
"Phone" port on the replacement
receiver.
You may not have this cable.
e.
Connect the remote antenna to
the "Remote Antenna" port on
the replacement receiver.
f.
Open the panel on the front of
the new receiver and make sure
the Smart Card is secured rmly
in the slot.
Not all receivers will have a Smart
Card. If your receiver does not have
a Smart Card, go to Step 4.
PHONEPHONE
PHONEPHONE
INSERT CARD FIRMLY
THIS SIDE UP
Inserte firmemente
con este lado hacia arriba
4.
Powering Your Equipment
a.
Make sure your TV cord is plugged
into the wall outlet and turn on
your TV.
b.
Plug the power cord from the
new receiver into a wall outlet.
d.
Your screen should now be displaying
the Point Dish screen. If you do not see
the Point Dish screen, conrm that you
are on the correct input for watching
your DISH receiver.
Press Menu -> press (button 6) ->
press (button 1) -> press (button 1).
c.
Conrm that you are on the correct
input for watching DISH. Check the
input by pressing the Source/Input
button located on the side, back, or
front of your TV.
5.
Pairing Your Remote Control
a.
Point the remote control at the receiver.
Press and hold the SAT button until all of
the buttons at the top of the remote
control light up.
b.
While the SAT button light is blinking,
press the number one (1) button.
c.
Press the pound (#) button. The SAT
button will ash three times to signal
the remote control is paired.
SAT
AUX
DVD
TV
SAT
a
c
b
6.
Activating Your Replacement Receiver
Use your remote control to follow the on-screen instructions.
a.
Using the arrow buttons on your
remote, highlight Check Switch on
the “Point Dish” screen and press
the SELECT button on your remote.
b.
Conrm that your TV is displaying
the “*nstallation Summary” screen.
Using the arrow buttons on your
remote, highlight Test and press the
Select button on your remote to begin
the test. The Attention 058 pop-up
will appear while the test is running.
6.
Activating Your Replacement Receiver (Cont’d)
e.
Using the arrows buttons on your
remote, highlight and select Done to
exit the “Installation Summary” screen.
Allow up to 1 minute to verify that the
signal bar shows“Locked Echostar...” at
the bottom of the screen.
d.
When the test is complete, look at the
“Installation Summary”screen and verify
that you see “Reception Veried” in the
Status box. If you do not see “Reception
Veried”, make sure your cables are
connected correctly and then repeat
Step 6b.
c.
Wait for the test to complete and the
Attention 058 pop-up to disappear.
