Dirt Devil UP04 Manuel utilisateur

LIGHTWEIGHT

PET UPRIGHT

UP04

USER

MANUAL

USER MANUAL

DIRTDEVIL.CO.UK

0333 400 0653

DIRTDEVIL.CO.UK2

CONTENTS

Safety instructions ........................................................................................ 3

Getting to know your Dirt Devil vacuum cleaner ..................................... 7

Assembling your vacuum cleaner ............................................................... 8

Using your vacuum cleaner ..........................................................................9

Maintaining your vacuum cleaner .............................................................. 11

Removing and emptying the dust bin

Checking for blockages

Cleaning the lters

Cleaning the brush roll

Maintaining the brush roll

Replacing the drive belt

Changing the fuse

Troubleshooting ............................................................................................ 16

Specication .................................................................................................. 17

Parts list and contact details........................................................................ 20

WELCOME!

Congratulations on your purchase. Use this user manual to learn about your new

vacuum’s great features. Find out how to assemble, use and maintain your vacuum

cleaner in this easy to follow manual.

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

If you have any questions, please email [email protected] to get in contact.

USER MANUAL 3

IMPORTANT SAFETY INSTRUCTIONS

FOR INDOOR USE ONLY

WARNING

When using an electrical appliance, basic precautions should

always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

Failure to follow the warnings and instructions may result in

electric shock, re and/or serious injury.

USING THE VACUUM CLEANER

•DO NOT use the vacuum

cleaner outdoors. For

household use only. Store

indoors.

•DO NOT vacuum up hard or

sharp objects such as glass,

nails, screws or coins that

could damage the vacuum

cleaner.

•DO NOT vacuum liquids, use

on wet surfaces or immerse

in water as this could cause

damage to the vacuum

cleaner.

•DO NOT vacuum anything

ammable, burning or

smoking such as cigarette

ends, matchsticks or ashes.

•DO NOT use the vacuum

cleaner to clean your pets or

any animal.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

•Keep the vacuum cleaner

moving over the carpet surface

at all times to avoid damaging

the carpet bres.

•Keep the vacuum cleaner and

accessories away from hot

surfaces like hobs, cookers or

microwave ovens.

•Always unplug the vacuum

cleaner immediately if it

malfunctions.

•DO NOT use this vacuum

cleaner if it has been dropped,

damaged, left outdoors,

submerged in water or is not

working as it should.

•DO NOT use the vacuum

cleaner in an enclosed space

lled with explosive, toxic or

ammable vapours.

DIRTDEVIL.CO.UK4

IMPORTANT SAFETY INSTRUCTIONS

FOR INDOOR USE ONLY

PLUG AND CORD

•DO NOT use with a damaged

cord or plug.

•DO NOT pick up or pull the

vacuum cleaner by the cord.

•Take care that the cord is not

kinked, pinched, pulled around

sharp corners or run over.

•Ensure the cord does not

come into contact with heat

sources or become a trip

hazard.

•When unplugging the vacuum

cleaner from the wall socket,

pull by the plug, not the cord,

holding the socket with your

other hand.

AIRFLOW, FILTERS AND

ATTACHMENTS

•DO NOT use without lters

and bin in place.

•Always turn o and

unplug the vacuum cleaner

before changing lters or

attachments.

•If when using, suction

appears to be reduced, turn

o and unplug the vacuum

cleaner and clean all of the

lters.

•DO NOT use if the airow

is restricted. If the air paths

or the oor nozzle become

blocked, turn o and unplug

the vacuum cleaner. Clear all

obstructions before powering

on again.

•Use genuine Dirt Devil lters

and attachments only. Using

non-genuine accessories may

cause damage to the vacuum

cleaner.

•When cleaning lters, ensure

that they are completely

dry and undamaged before

replacing them back into the

vacuum cleaner.

PERSONAL SAFETY

•This machine is not intended

to be used or cleaned by

persons with reduced physical,

sensory or mental capabilities,

or lack of experience or

knowledge, unless they

have been given instructions

concerning the machine by

a person legally responsible

for their safety. They should

be supervised whilst using

the machine. Children shall

not use, clean or play with

this machine, which when

not in use should be secured

out of their reach. Keep the

vacuum cleaner out of reach

of children.

•Packing material must not

be used for playing. There is a

danger of suocation.

USER MANUAL 5

IMPORTANT SAFETY INSTRUCTIONS

FOR INDOOR USE ONLY

•Never leave the vacuum

cleaner connected to the

mains without supervision.

•Keep the oor nozzle away

from hair, face, ngers,

uncovered feet or loose

clothing when the vacuum

cleaner is working or plugged

in.

•DO NOT use with wet hands.

USER MANUAL GUIDANCE

•Keep this user manual in a

safe place.

•Failure to comply with this

user manual can lead to

serious injuries or damage to

the vacuum cleaner. We take

no responsibility for damage

due to failure to comply with

this user manual.

AUTOMATIC THERMAL CUT OUT

A safety thermostat inside

the cleaner protects the

motor from overheating if the

airways or lters are clogged.

If the appliance suddenly stops

working during operation,

switch o and unplug

immediately. Allow the motor

to cool for an hour, empty the

dust bin and thoroughly clean

the lters and airways. Plug in

the vacuum again and switch

on. The vacuum should now

operate normally.

DIRTDEVIL.CO.UK6

WHAT TO EXPECT FROM YOUR

USER MANUAL

Your user manual contains lots of handy information about your Dirt Devil appliance. Please have a read and

keep it somewhere safe for future reference. Here’s what you can expect from the dierent user manual

sections.

GETTING TO KNOW YOUR

DIRT DEVIL APPLIANCE

The diagrams of your appliance on this page

allow you to familiarise yourself with your

machine. Doing so will make the information in

the rest of the user manual clearer and help you

to source the right replacement spare parts or

accessories.

ASSEMBLING YOUR

APPLIANCE

When you rst take your appliance out of its box,

there will be some simple setup required to get it

ready to use. The information in this section tells

you the steps you need to take before using your

new machine for the rst time.

USING YOUR

APPLIANCE

It’s important to use your machine correctly to

avoid any damage to either the appliance itself

or your oors. Get to know features, settings and

the dos and don’ts of using your machine so it’s

cleaning to its maximum potential.

MAINTAINING YOUR

APPLIANCE

Every appliance needs a bit of routine

maintenance from time to time. Learning how to

recognise the dierent parts of your machine to

maintain and how to look after them will enable

your appliance to last longer.

TROUBLESHOOTING

If you encounter any issues with your appliance,

the troubleshooting section in this user manual

is the rst place you can turn. Here you will nd

information about potential problems as well as

the solutions to resolve them.

SPECIFICATION

If you want to know any of the specics about

your machine including model number, weight,

capacity and input voltage, head over to the

specication page in this user manual for a

full list.

PARTS LIST AND CONTACT DETAILS

Need a replacement part for your machine? The list on this page shows you all of the spare parts

available for your model. You’ll also nd our full contact information here in case you need to get in

touch for any reason.

USER MANUAL 7

GETTING TO KNOW YOUR VACUUM

CLEANER

FEATURES

SPARE PARTS

Main hose

Part no. DVLS00035

3-in-1 tool

Part no. DVLS00036

HEPA pre-motor lter

Part no. DVLS00041

Brush roll

Part no. DVLS00046

Drive belt

Part no. DVLS00032

Pet tool

Part no. DVLS00023

Visit dirtdevil.co.uk

to order

Handle

Dust Bin

Main Hose

Pet Tool

3-in-1 Tool

Main Hose Handle

Internal Hose

HEPA Pre-Motor Filter

Top Cable Latch

Dust Bin Release Button

Air Outlet

Floor Head

Power Button Wheel

Power Cord

DIRTDEVIL.CO.UK8

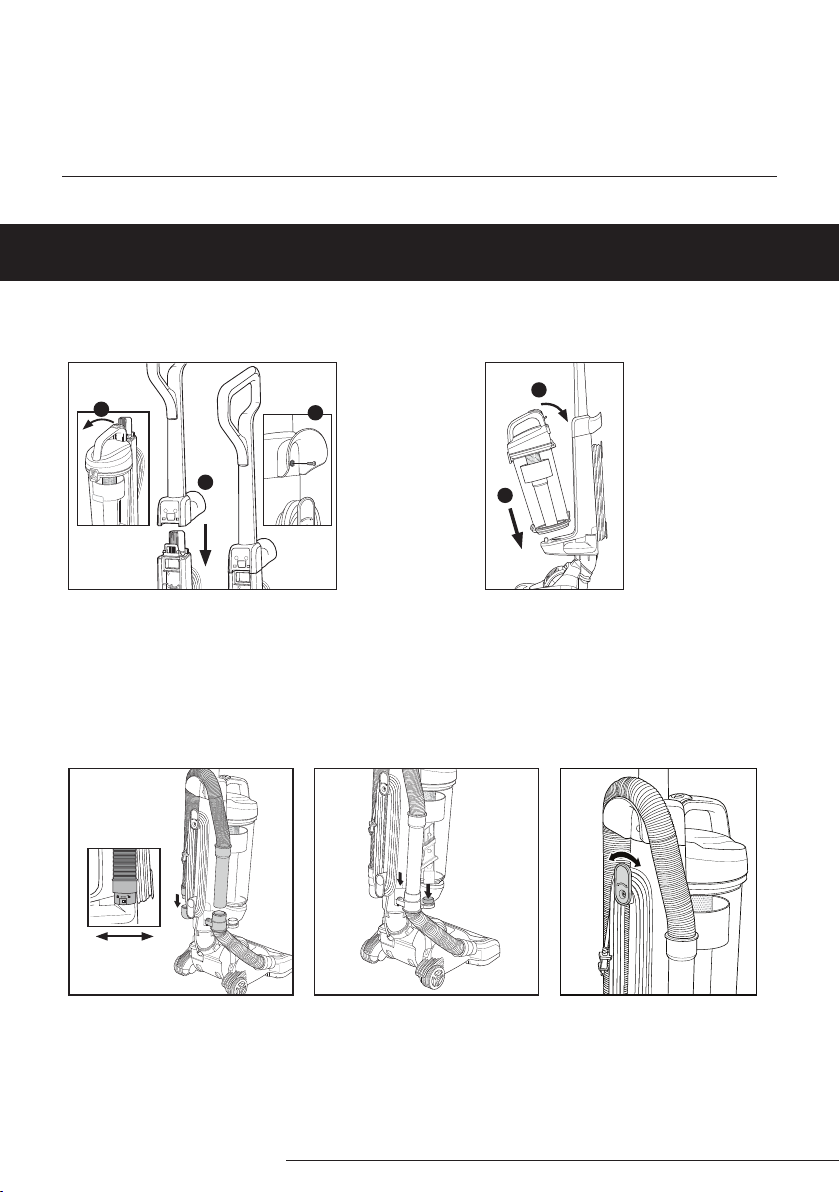

Before assembling or disassembling attachments, ensure the upright vacuum is not plugged into the mains

supply and is switched o.

1. Remove the dust bin before installing handle.

Push the handle onto the vacuum body, and use

a Phillips screwdriver to secure it with the screw

provided. IMPORTANT: The handle must be

inserted rst before replacing dust bin.

3. Place the short hose end

onto the connector (left hand

side if looking at the back of the

vacuum), and rotate clockwise

to lock.

4. Push the main hose handle

into the connector, and place

the 3-in-1 tool onto the storage

holder in front of the main hose

handle.

5. Twist the quick release cord

hook to release the power cord.

2. Place the dust bin back onto the machine

and push until it clicks into place.

ASSEMBLING YOUR VACUUM

CLEANER

ASSEMBLING YOUR LIGHTWEIGHT PET UPRIGHT

USER MANUAL 9

2. Step on the brush cover and

pull back on handle, to engage for

operation.

3-in-1 tool Pet tool

When changing the attachments ensure the upright vacuum is switched o.

1. The 3-in-1 tool with brush allows for vacuuming

in narrow and hard-to-reach places. Push the

locking tab in to remove the brush accessory. Use

the soft bristles for dusting surfaces, and reverse

the attachment to use as an upholstery tool.

2. The pet tool gives oors and furniture a deeper

clean in homes with pets. It is specically designed

to tackle areas heavily soiled with pet hair.

1. Plug in your machine and push

power button to switch ON/OFF.

3. To maintain optimal

performance, please empty dust

bin when debris reaches MAX

FILL line.

USING YOUR VACUUM

CLEANER

USING YOUR LIGHTWEIGHT PET UPRIGHT

USING THE ATTACHMENTS

DIRTDEVIL.CO.UK10

USING THE ATTACHMENTS

1. Remove the main hose handle from the

machine. Always ensure the vacuum is in upright

(parked position) when using the main hose.

2. The rotating brush is lifted clear of the oor

surface while the vacuum is parked upright. To

prevent possible ooring damage, do not tilt the

vacuum forwards or sideways while using the

main hose.

3. For stairs, position the cleaner with the rear

wheels against the stair tread (vacuum cleaner

facing away from the stairs), and use the

attachments to clean each step.

4. The main hose is ready to use alone, or t the

3-in-1 tool or pet tool to suit the cleaning tasks.

Remove the hose handle from

the machine. Always ensure the

vacuum is in upright (parked

position) when using the hose.

The rotating brush is lifted clear

of the ﬂoor surface while the

vacuum is parked upright. To

prevent possible ﬂooring damage,

do not tilt the vacuum forwards

or sideways while using the hose.

For stairs, position the cleaner with

the rear wheels against the stair

tread (vacuum cleaner facing away

from the stairs), and use the

attachments to clean each step.

The hose is ready to use alone, or ﬁt

the 3-in-1 crevice tool to suit the

cleaning task.

Remove the hose handle from

the machine. Always ensure the

vacuum is in upright (parked

position) when using the hose.

The rotating brush is lifted clear

of the ﬂoor surface while the

vacuum is parked upright. To

prevent possible ﬂooring damage,

do not tilt the vacuum forwards

or sideways while using the hose.

For stairs, position the cleaner with

the rear wheels against the stair

tread (vacuum cleaner facing away

from the stairs), and use the

attachments to clean each step.

The hose is ready to use alone, or ﬁt

the 3-in-1 crevice tool to suit the

cleaning task.

USING YOUR VACUUM

CLEANER

Table des matières

Autres manuels Dirt Devil Aspirateur

Dirt Devil

Dirt Devil Infinity VS8 Turbo M5037 Manuel utilisateur

Dirt Devil

Dirt Devil DD7375 Manuel utilisateur

Dirt Devil

Dirt Devil DQC-DVB-HKA Manuel utilisateur

Dirt Devil

Dirt Devil gator m138 Manuel utilisateur

Dirt Devil

Dirt Devil M085610 Manuel utilisateur

Dirt Devil

Dirt Devil DDW01-E01 Manuel utilisateur

Dirt Devil

Dirt Devil 299e Manuel utilisateur

Dirt Devil

Dirt Devil CP24 Black Manuel utilisateur

Dirt Devil

Dirt Devil Black Label CP-2 Manuel utilisateur

Dirt Devil

Dirt Devil rebel 70 Manuel utilisateur

Dirt Devil

Dirt Devil Spider M607 Manuel utilisateur

Dirt Devil

Dirt Devil Lifty PLUS Manuel utilisateur

Dirt Devil

Dirt Devil 1-113225-000 Manuel utilisateur

Dirt Devil

Dirt Devil M7003 Manuel utilisateur

Dirt Devil

Dirt Devil REBEL 3.0 Manuel utilisateur

Dirt Devil

Dirt Devil UD70180 Manuel utilisateur

Dirt Devil

Dirt Devil QUICK FLIP Manuel utilisateur

Dirt Devil

Dirt Devil Infinity MCC Manuel utilisateur

Dirt Devil

Dirt Devil featherlite Carpet Shampooer Guide de l'utilisateur

Dirt Devil

Dirt Devil M086020 Manuel utilisateur

Dirt Devil

Dirt Devil M083410 Manuel utilisateur

Dirt Devil

Dirt Devil fusion Manuel utilisateur

Dirt Devil

Dirt Devil Swift DDST12V Manuel utilisateur

Dirt Devil

Dirt Devil M608 Navigator Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
