Dimplex SIL48 Manuel utilisateur

Service Manual

IMPORTANT SAFETY INFORMATION:

Read this manual first before attempting to install or use this electric fireplace. Always comply with the

warnings and safety instructions contained in this manual to prevent personal injury or property damage.

7401090000R00

Models

SIL48/SIL48M

SIL60/SIL60M

SIL72

SIL96

2www.dimplex.com

Exploded Parts Diagrams ......................................................3

Wiring Diagrams ..............................................................4

SIL48......................................................................4

SIL48M ....................................................................4

SIL60......................................................................5

SIL72......................................................................5

SIL96......................................................................5

Replacement Part Procedures ..................................................6

Preparing the Firebox for Service ................................................6

Heater Assembly Replacement .................................................7

Touch Pad Replacement.......................................................8

Flicker Motor Replacement ....................................................9

Heater Assembly Replacement ................................................10

Flame LED Replacement .....................................................11

Color LED Replacement ......................................................11

Temperature Sensor (NTC) Replacement .........................................11

Troubleshooting .............................................................12

Conventions used in this manual:

!NOTE: Procedures and techniques that are considered important enough to emphasize.

CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment.

WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of re,

serious injury, or death.

Table of Contents

Exploded Parts Diagrams

1. Main Control Board

SIL48 MOD 0 ....................9602330100RP

SIL48 MOD A ....................9602332400RP

SIL48M MOD 0 ...................9602330200RP

SIL48M MOD A...................9602332500RP

SIL60 & SIL72 MOD 0. . . . . . . . . . . . . .9602332300RP

SIL60 & SIL72 MOD A. . . . . . . . . . . . . . 9602332600RP

SIL96 MOD 0 ....................9602330300RP

SIL96 MOD A ....................9602332700RP

2. Remote Control

MOD 0. . . . . . . . . . . . . . . . . . . . . . . . . .9602110200RP

MOD A .........................9602332800RP

3. Touch Pad (with IR sensor) . . . . . . . . . . 9602110300RP

4. Flicker Motor. . . . . . . . . . . . . . . . . . . . .9602110400RP

5. Heater Assembly. . . . . . . . . . . . . . . . . . 9602332200RP

6. Flame LEDs

SIL48 & SIL48M ..................9602110600RP

SIL60...........................9602330400RP

SIL72...........................9602330500RP

SIL96...........................9602330600RP

7. Color LEDs

SIL48 & SIL48M ..................9602110700RP

SIL60...........................9602330700RP

SIL72...........................9602330800RP

SIL96...........................9602330900RP

8. Temperature Sensor (NTC)

SIL48 & SIL48M ..................9602110800RP

SIL60 & SIL72 . . . . . . . . . . . . . . . . . . . . 9602331000RP

SIL96...........................9602331100RP

9. Front Glass

SIL48 & SIL48M ..................9602331200RP

SIL60...........................9602331300RP

SIL72...........................9602331400RP

SIL96...........................9602331500RP

10. Power Cord. . . . . . . . . . . . . . . . . . . . . .9602111000RP

11. Wall Mounting Hardware. . . . . . . . . . . . 9602331600RP

12. Feet

MOD 0 .........................9602331700RP

MOD A .........................9602332900RP

13. Log Set

SIL48 & SIL48M ..................9602331800RP

SIL60...........................9602331900RP

SIL72...........................9602332000RP

SIL96...........................9602332100RP

911

MOD 0 MOD A

4www.dimplex.com

Wiring Diagrams

SIL48

SIL48M

Flame

Thermistor

Thermal Cutout

Ground

L (Hot)

N (Neutral)

Touch Pad

Flicker

Motor

Fan

Fuse

IR Receiver

Ember Bed Lights

Flame

Thermistor

Thermal Cutout

Ground

L (Hot)

N (Neutral)

Touch Pad

Flicker

Motor

Fan

Fuse

IR Receiver

Ember Bed Lights

Heat Toggle Switch

SIL60

SIL72

SIL96

Wiring Diagrams

Ember Bed Lights

Flame

Thermistor

Touch Pad

IR Receiver

Fuse

Thermal Cutout

Flicker

Motor

Fan

Ground

L (Hot)

N (Neutral)

Thermistor

Touch Pad

IR Receiver

Ground

L (Hot)

N (Neutral)

Flame

Ember Bed Lights

Thermal Cutout

Fuse

Flicker

Motor

Fan

6www.dimplex.com

Replacement Part Procedures

WARNING: If the the replace was operating prior to servicing, allow at least 10 minutes for the

heating elements to cool off to avoid accidental burning of skin.

WARNING: Disconnect power before attempting any maintenance to reduce the risk of electric

shock or injury to persons.

Tools Required: Phillips Head Screwdriver

1. Unplug the unit.

2. Undo the latch at the top and unhook the front glass to remove it (Figure 1).

3. Remove the logs, rocks, or glass chunks and put them in a safe place.

4. If the unit is mounted to the wall, remove the two screws that secure the wall mounting bracket.

(Figure 2)

5. Place replace on a work surface.

6. Remove the screws that secure the back panel. The number of screws will vary depending on the

size of the replace. Put the back panel aside (Figure 3).

7. Remove the 2 screws on each side of the top panel. Unplug the connector from the main control

board, and put the top panel aside (Figure 4).

Preparing the Firebox for Service

Figure 1

Figure 2

Figure 3

Figure 4

Heater Assembly Replacement

Tools Required: Phillips Head Screwdriver

Side Cutters

Pliers

1. Follow the steps of “Preparing for Service” on page 6 of this manual before continuing.

2. Using pliers, disconnect the wires from the main control board, making note of their original locations.

3. Remove the screws on the main control board (Figure 5). For units with arrowhead standoffs, pinch each of the two

standoffs, one at a time, while lifting the board to release it (Figure 6).

4. Put the new main control board in place, and secure with the screws / standoffs.

5. Connect the wires to the new board, following the picture previously taken.

6. Reassemble the replace by reinstalling the top panel, followed by the back panel.

①

②

Figure 5 Figure 6

8www.dimplex.com

Tools Required: Phillips Head Screwdriver

Side Cutters (to cut wire ties)

1. Follow the steps of “Preparing for Service” on page 6 of this manual before continuing.

2. Remove the screws that hold the ame panel retaining bracket (Figure 7).

3. Flex the ame panel carefully to remove it.

4. Remove the two screws that secure the main board (you can leave the standoffs connected) in order to access the

screw underneath.

5. Remove the screws that hold the touch pad bracket.

6. Trace the wires from the touch pad to the main control board. Disconnect them, while making note of their original

locations.

7. Put the screwdriver in the guide holes on the touch pad bracket to unscrew the touchpad. There are two small

screws to remove.

8. Place the new touchpad in the bracket, ensuring that the components go into the corresponding spaces. Screw it

into place with the previously removed screws.

9. Secure the touch pad bracket into place, as well as the main board.

10. Put the ame panel back into place, making sure that the screw holes are oriented toward the bottom, and that it is

inserted into the slots at the top.

11. Secure the ame panel retaining bracket.

12. Reassemble the replace by reinstalling the top panel, followed by the back panel.

Touch Pad Replacement

Flame Panel

Retaining Bracket

Remove these screws

(on both sides)

Figure 7

Flicker Motor Replacement

Tools Required: Phillips Head Screwdriver

Wire Cutter/Stripper

1. Follow steps 1-6 of “Preparing for Service” on page 6 of this manual before continuing.

2. Remove the icker rod by rst taking it out from the middle brackets, then pulling it from the side opposite the icker

motor, and nally pulling it away from the icker motor (Figure 8).

3. Remove the two screws that hold the icker motor bracket to the rebox (Figure 9).

4. Using a wire cutting tool, cut off the factory-installed wire connectors.

5. Using a wire stripping tool, strip the purple and white wires approximately 13 mm (1/2”).

6. Using the twist-on wire connectors, connect the white wire from the icker motor to the white wire from the rebox,

and the black white from the icker motor to the purple wire from the rebox (Figure 10).

7. Install the icker motor on the bracket.

8. Secure the bracket to the replace.

9. Reassemble the replace by reinstalling the top panel, followed by the back panel.

motor bracket

motor

white

purple black

new motor

Figure 8

Figure 9

Figure 10

10 www.dimplex.com

Heater Assembly Replacement

Tools Required: Phillips Head Screwdriver

Pliers

Side Cutters

Wire Cutter/Stripper

1. Follow the steps of “Preparing for Service” on page 6 of this manual before continuing.

2. Disconnect the wires from the heater assembly, making note of their original locations. Snip the zip ties as needed.

For the connections that are made with wire nuts that cannot be screwed off, cut them off using wire cutters.

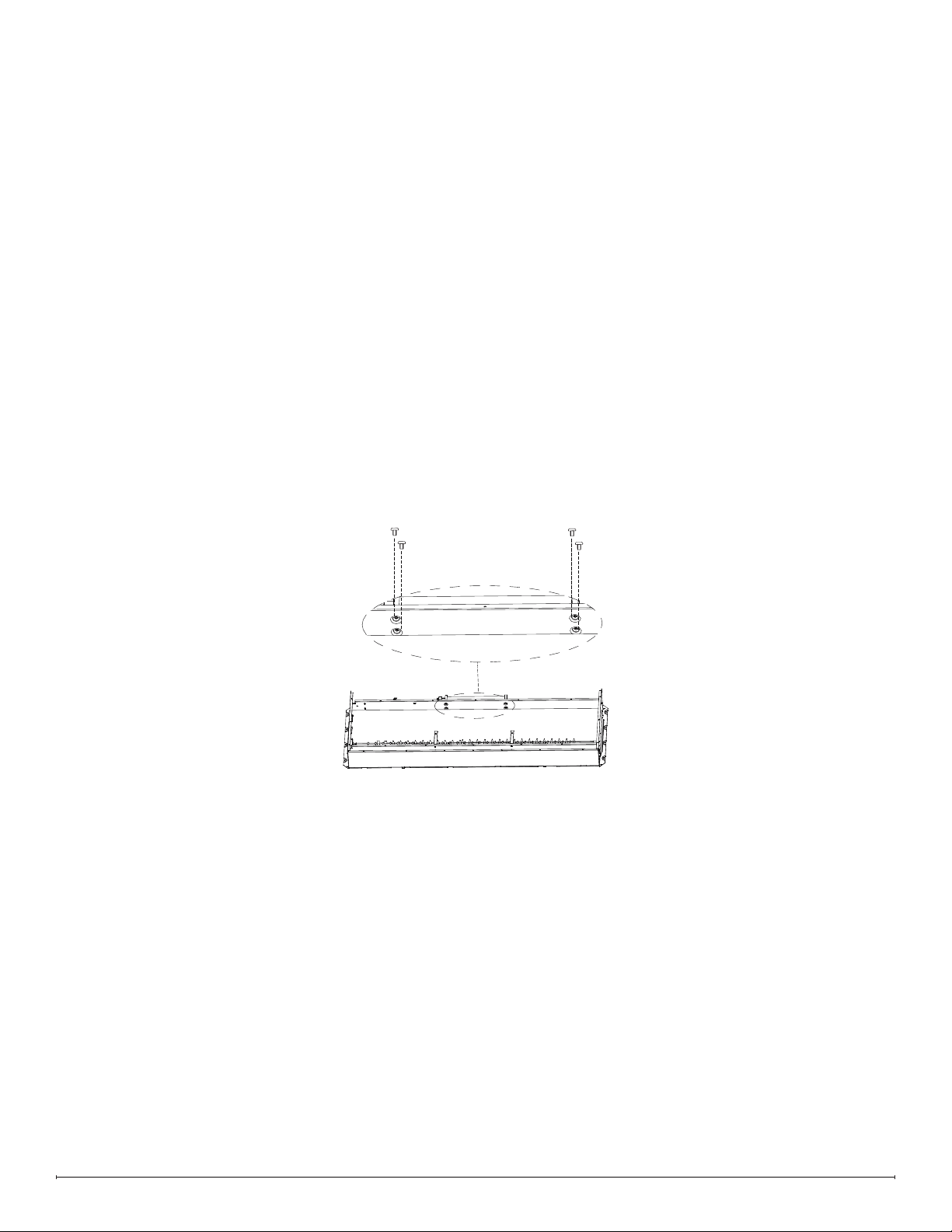

3. Remove the 4 screws that secure the heater assembly to the top panel (Figure 11).

4. Install the new heater assembly using the four screws previously removed.

5. Connect the wires to the new heater assembly, using the picture you took before as a guide.

6. Strip the wires that were cut using wire strippers. Connect them in their original location using the provided wire nuts,

ensuring a strong enough connection that individual wires cannot be pulled out from the wire nut. Use the provided

zip ties to secure them out of the way of other components.

7. Reassemble the replace by reinstalling the top panel, followed by the back panel.

Figure 11
