INSTRUCTION MANUAL

For domestic household use only.

Osbourne, Strata & Windelsham

2kW Revillusion Suites

Model: OSB20C-AU, WDS20-AU, STA20C-AU

08/53702/0 Issue 9

OCN 11996

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND

RETAINED FOR FUTURE REFERENCE.

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/

OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY

Please read the operating instructions carefully before using your product for

the first time and keep them in a safe place.

• When using electrical appliances, basic precautions should always be

followed to reduce the risk of fire, electrical shock and injury to persons,

including the following:

• If the appliance is damaged, check with the supplier before installation and

operation.

- Do not use outdoors.

- Do not use in the immediate surroundings of a bath, shower or a

swimming pool.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heater on a horizontal and stable surface, or fix it to the

wall, as applicable.

• Do not locate the appliance immediately below a fixed socket outlet or

connection box.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the

appliance.

• Do not use this appliance in series with a thermal control, a program

controller, a timer or any other device that switches on the heat

automatically, since a fire risk exists when the appliance is accidentally

covered or dis-placed.

• In the event of a fault, unplug the appliance.

• Unplug the appliance when not required for long periods.

• This product is only intended for INDOOR RESIDENTIAL applications only.

• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.

• DO NOT route cord under furniture or appliances. Take care to position the

cord away from traffic areas and where it will not be a tripping hazard.

• This appliance must not be used in a bathroom.

• Although this appliance complies with safety standards, we do not

recommend its use on deep pile carpets or on long hair type of rugs

• The appliance must be positioned so that the plug is accessible.

• If the supply cord is damaged it must be replaced by the manufacturer or

service agent or a similarly qualified person in order to avoid a hazard.

• Keep the supply cord away from the front of the appliance.

• Do not use this heater in small rooms when they are occupied by persons

not capable of leaving the room on their own, unless constant supervision is

provided.

• To reduce the risk of fire, keep textiles, curtains and or flammable material a

minimum distance of 1m from the air outlet.

• In order to avoid overheating, DO NOT COVER the appliance. Do not place

material or garments on the appliance, or obstruct the air circulation around

the appliance, for instance by curtains or furniture, as this could cause

overheating and a fire risk.

• This Heater carries the warning symbol indicating that it must not

be covered.

• In order to avoid a hazard due to inadvertent resetting of the thermal cut-

out, this appliance must not be supplied through an external switching

device, such as a timer, or connected to a circuit that is regularly switched

on and off by the utility.

• CAUTION Some parts of this product can become very hot and cause

burns. Particular attention has to be given where children and vulnerable

people are present.

• Children shall not turn on/off the appliance.

• Ensure that furniture, curtains or other combustible material are positioned

no closer than 1 metre from the appliance.

• Unplug the appliance when not required for long periods.

• Keep the supply cord away from the front of the appliance.

• This product is only suitable for well insulated rooms or occasional use.

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN

• Swallowing may lead to serious injury in as little as 2 hours or death, due to

chemical burns and potential perforation of the oesophagus.

• If you suspect your child has swallowed or inserted a button battery

immediately call the 24-hour Poisons Information Centre on 13 11 26 (in

Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.

• Examine devices and make sure the battery compartment is correctly secured,

e.g. that the screw or other mechanical fastener is tightened. Do not use if the

compartment is not secure.

• Dispose of used button batteries immediately and safely. Flat batteries can

still be dangerous.

CAUTION: No obvious symptoms

Unfortunately, it is not obvious when a button or coin battery is stuck in a

child's oesophagus (food pipe).

There are no specific symptoms associated with this. The child might:

• cough, gag or drool a lot

• appear to have a stomach upset or virus

• be sick

• point to their throat or stomach

• have a pain in their abdomen, chest or throat

• be tired or lethargic

• be quieter or more clingy than usual or otherwise 'not themselves'

• lose their appetite or have a reduced appetite

• not want to eat solid food/be unable to eat solid food

These types of symptoms vary or fluctuate. with the pain increasing and then

subsiding.

A specific symptom to button and coin battery ingestion is vomiting fresh

(bright red) blood. If the child does this seek immediate help. The lack of clear

symptoms is why it is important to be vigilant with 'flat' or spare button or

coin batteries in the home and the products that contain them.

Exposed to the

weather outdoors

Near water If the power cable

wires are frayed or cut

Where small children

may be left unattended

No extension leads or

power boards

Where there is risk

of fire or close to

a naked flame

Where the power

cable may be

damaged

On a slope or

uneven surface

Where it may be

damaged by

chemicals

If there is a risk

of water falling on

the unit

Where there is a risk

of interference by

foreign objects

This product is not

made for DIY repair

Model no. OSB20C-AU WDS20-AU STA20C-AU

Colour/Finish White

Wattage

2000

Heat Settings

Thermostat Control Y

Remote Control Y

Warranty 2 years

Dimensions (w x d x h) 1378 x 407 x 1184 1410 x 410 x 1210 1355 x 334 x 1228

Specifications

For greater precision, please always refer to the rating label placed on the product.

Product Dimensions

Operating Temperature

-20°-40°C

Fixed Wiring

In some jurisdictions this appliance is supplied without a plug. This is to comply with

local regulations. In such instances, this appliance must be installed by a suitably

qualified installer and the means for disconnection must be incorporated in the fixed

wiring in accordance to the local wiring rules.

WARNING: Electrical outlet wiring must comply with local building codes and other

applicable regulations to reduce the risk of fire, electric shock or injury.

Note: 10Amp circuit is required. A dedicated circuit is preferred, but not essential in

all cases. A dedicated circuit will be required if, after installation, the circuit breaker

trips or the fuse blows on a regular basis when the heater is operating. Additional

appliances on the same circuit may exceed the current rating of the circuit breaker.

Unpacking the Unit

The unit comes packed with a protective sheet covering the front of the unit. This sheet

is intended to prevent dust and debris from entering during construction. This sheet

is designed so that it can be partially removed to complete the wiring and unpacking

and can be reinstalled until the final installation is complete.

The log set was installed on the grate and the grate permanently fixed to the firebox

at the factory.

Carefully remove the packaging from around the log set. Make sure the wires from

the log set are connected securely to the grate box.

CAUTION: The Realogs contain LEDs to create a unique pulse and glow effect. Handle

the log set carefully. They are fragile and can crack or break if dropped.

Setup

WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF

YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND

ON THIS PRODUCT.

WARNING: THIS APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT. THIS

RESTRAINT IS NOT A SUBSTITUTE FOR PROPER ADULT SUPERVISION. THIS

RESTRAINT MAY PROVIDE PROTECTION AGAINST TIPPING FURNITURE. DO NOT

ALLOW CHILDREN TO CLIMB ON FURNITURE. FAILURE TO DETACH THIS RESTRAINT

BEFORE MOVING FURNITURE MAY RESULT IN INJURY AND DAMAGE.

Tipping Restraint Kit

This product is provided with a 'Tipping Restraint Kit,' to prevent the product

accidentally tipping over. Fitting instructions are supplied with this kit. Please follow

these instructions carefully.

Thermal Safety Cut-out

A thermal safety cut-out is incorporated in the fan heater to prevent damage due

to overheating. This can happen if the heat outlet was restricted in any way. If the

cut-out operates, unplug the heater from the socket outlet and allow approximately

10 minutes before reconnecting. Before switching the heater back on remove any

obstruction that may be restricting the heat outlet, then continue normal operation.

WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-

out, this appliance must not be supplied through an external switching device, such

as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Setup

Tipping restraint kit

WARNING:

FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY

RESULT IN INJURY AND/OR DAMAGE.

WARNING: The Revillusion Built-in Electric Firebox must be installed properly before

usage.

CAUTION: Except for installation and cleaning described in the manual, an authorised

service representative should perform any other servicing.

The manual controls for the Revillusion Built-in Electric Firebox are located on the

front panel. Touch an icon to activate. The selected setting displays on the left side of

the panel.

Remote control

The maximum range of use is ~ 9 metres.

WARNING: It takes time for the receiver to respond to the transmitter. Do not press

the buttons more than once within two seconds for correct operation.

NOTE: The receiver for the remote control is located in the display, aim the remote

control in this direction when inputting demands.

1. To activate the remote control remove the battery isolation strip, which is used to

ensure your remote control reaches you fully charged.

2. To replace the remote control battery, turn over the remote control, and follow the

diagram embossed on the remote control

3. Only use CR2032 size batteries.

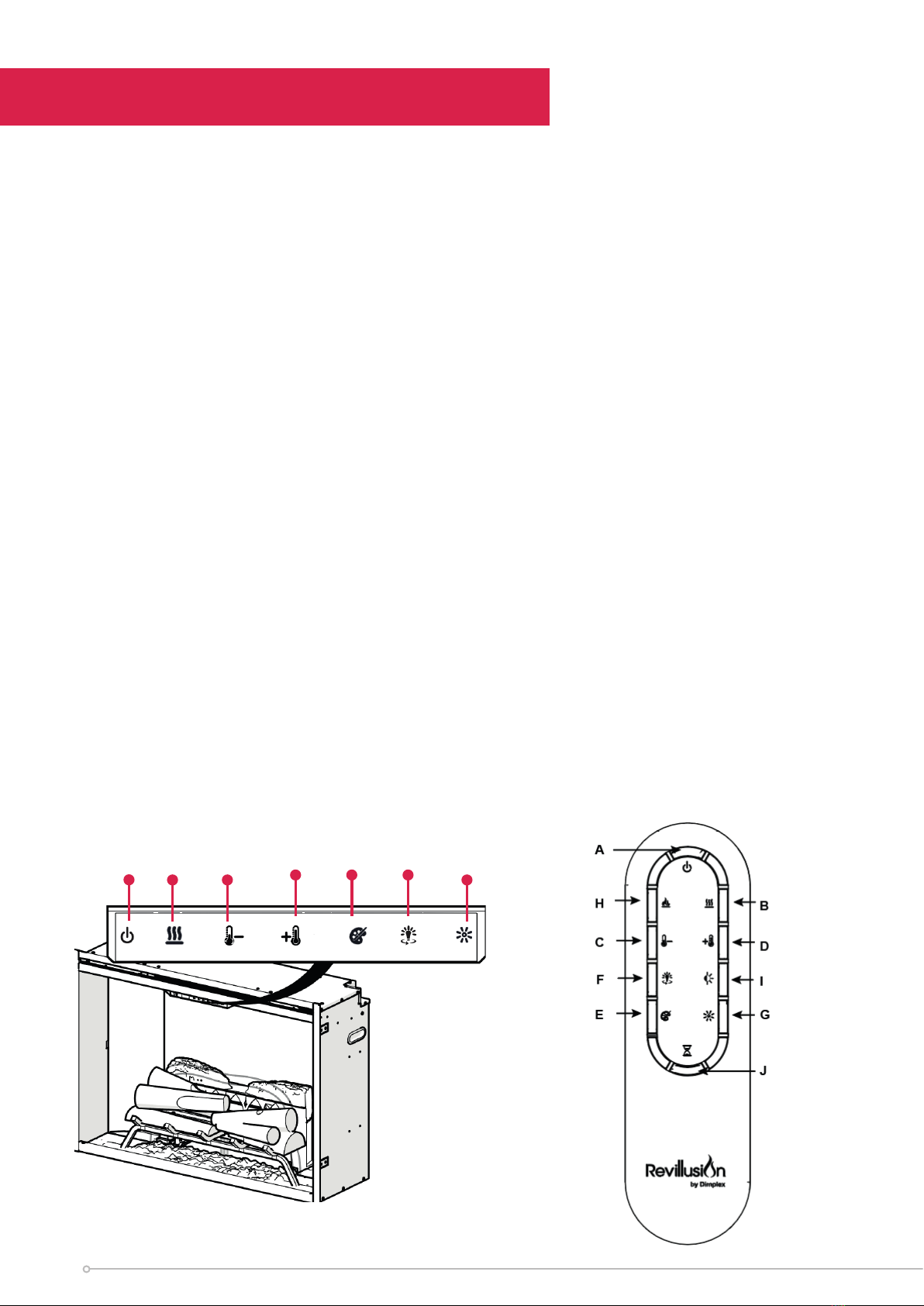

Control Panel & Remote

A B C D E F G

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dimplex Cheminée intérieure

Dimplex

Dimplex Cavendish CSH20 Manuel utilisateur

Dimplex

Dimplex Mini Mozar DFP15-1131 Manuel utilisateur

Dimplex

Dimplex CDN20-AU Manuel utilisateur

Dimplex

Dimplex CDFI1000P Manuel utilisateur

Dimplex

Dimplex Vivente VVT775 Mode d’emploi

Dimplex

Dimplex Optisuite2Go Manuel utilisateur

Dimplex

Dimplex EWMC-CC-SS Manuel utilisateur

Dimplex

Dimplex Romero de Luxe Manuel utilisateur

Dimplex

Dimplex Revillusion Haydn Manuel utilisateur

Dimplex

Dimplex DF2608 Manuel utilisateur

Dimplex

Dimplex TOLUCA DELUXE-EU Manuel utilisateur

Dimplex

Dimplex SP16UK-E Manuel utilisateur

Dimplex

Dimplex DC700 Manuel utilisateur

Dimplex

Dimplex Eltham Mantel 2kW Manuel utilisateur

Dimplex

Dimplex DF2524L Manuel utilisateur

Dimplex

Dimplex Atherton ATH20-INT Manuel utilisateur

Dimplex

Dimplex MULTIFIRE DF3215 Manuel utilisateur

Dimplex

Dimplex Nardini NDN20 Manuel utilisateur

Dimplex

Dimplex DF2608 Manuel utilisateur

Dimplex

Dimplex ENG56-400 Manuel technique

Dimplex

Dimplex 690932 Series Manuel utilisateur

Dimplex

Dimplex BLF50-UK Manuel utilisateur

Dimplex

Dimplex DNV20AB Manuel utilisateur

Dimplex

Dimplex Opti-Myst Cassette 500 Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
