Dimplex BF5000NT Guide de démarrage rapide

PARTS & SERVICE MANUAL

FOR THE 26” FIREPLACE

MODEL NUMBER:

BF5000NT

BF5000

EF2604

SF2603

DF2603

7400520000R03

TABLE OF CONTENTS

TableofContents

OPERATION.............................................................................................................................................. 2

EXPLODED DIAGRAM ........................................................................................................................... 4

WIRING DIAGRAM.................................................................................................................................. 5

REPLACEMENT PARTS.......................................................................................................................... 6

UPPER BULB REPLACEMENT .............................................................................................................. 7

LOWER BULB REPLACEMENT............................................................................................................. 8

TO REPLACE MAIN ON/OFF SWITCH................................................................................................. 9

TO REPLACE LIGHT DIMMER SWITCH............................................................................................ 10

TO REPLACE FLAME SPEED CONTROL SWITCH .......................................................................... 11

TO REPLACE FLAME MOTOR/FLAME ROD .................................................................................... 12

TO REPLACE HEATER ON/OFF SWITCH.......................................................................................... 14

TO REPLACE HEATER THERMOSTAT CONTROL.......................................................................... 15

TO REPLACE HEATER ASSEMBLY ................................................................................................... 16

TO REPLACE THE CORD SET ............................................................................................................. 17

TROUBLESHOOTING GUIDE.............................................................................................................. 18

BF5000NT, BF5000, EF2604, SF2603, DF2603

OPERATION

This section will explain the function of each convent control.

To access the controls, open the upper grill by pulling near the top, forward and down.

A. MAIN ON/OFF SWITCH

The on/off switch supplies power to all fireplace functions (heater & flame).

B. FLAME SPEED CONTROL (not available on some models)

Turn the flame speed control knob to adjust the flame speed to the desired level.

C. FLAME LIGHT DIMMER CONTROL

Turn the flame brightness control to increase or decrease the brightness of the flame

and embers.

D. HEATER ON/OFF SWITCH

The heater on/off switch supplies power to the heating unit when the main on/off

switch (A) is in the on position.

E. HEATER THERMOSTAT CONTROL

To adjust the temperature to your individual requirements, turn the thermostat

control clockwise all the way to turn in the heater. When the room reaches the

desired temperature, turn the thermostat knob counter clockwise until you hear a

click. Leave in this position to maintain the room temperature at its setting. For

additional heat, turn clockwise until you hear the click again and the heater will turn

on. To turn the heater off, rotate the knob fully counter clockwise.

RESETTING THE TEMPERATURE CUTOFF

This unit is equipped with a thermostat which controls the temperature of the room.

It does this by turning the heater on and off. The heater is protected with a safety

device to prevent overheating. Should the heater overheat, an automatic cut out will

turn the heater off and it will not come back on without being reset. It can be reset

by switching the ON/OFF SWITCH to OFF and waiting 5 minutes before switching

the unit back on.

CAUTION

If you need to continuously reset the heater, unplug the unit and call your local

dealer.

D E

BF5000NT, BF5000, EF2604, SF2603, DF2603

REMOTE CONTROL INSTRUCTIONS

(Optional Accessory)

1. Plug firebox into the outlet located on the side of the receiver.

2. Plug receiver into the wall outlet.

3. Install a 9 volt battery into the transmitter.

4. Turn the firebox main power switch to the on position prior to using the remote

control.

5. Push the ON button to turn the firebox on. Push the OFF button to turn the firebox

OFF.

NOTE

To prevent the risk of fire, the stove plug must be inserted fully into the receiver

NOTE

For indoor use in dry areas only

NOTE

For use on electrical devices with 15 amp resistive load or 1/3 HP inductive load

120 VOLT AC only

NOTE

The remote control and receiver has a range of approximately 50ft. (15.25m) it does not

have to be pointed at the fireplace and can pass through most obstacles (including

walls). The remote control and receiver use one of 243 independent frequencies.

When replacing the remote control or the receiver they must be replaced as a set to

ensure proper operation. The frequency of the remote is located on the back of the

remote on a label.

NOTE

ON/OFF Remote Control may be used to control most other electrical devices including

T.V.’s, stereos and lamps.

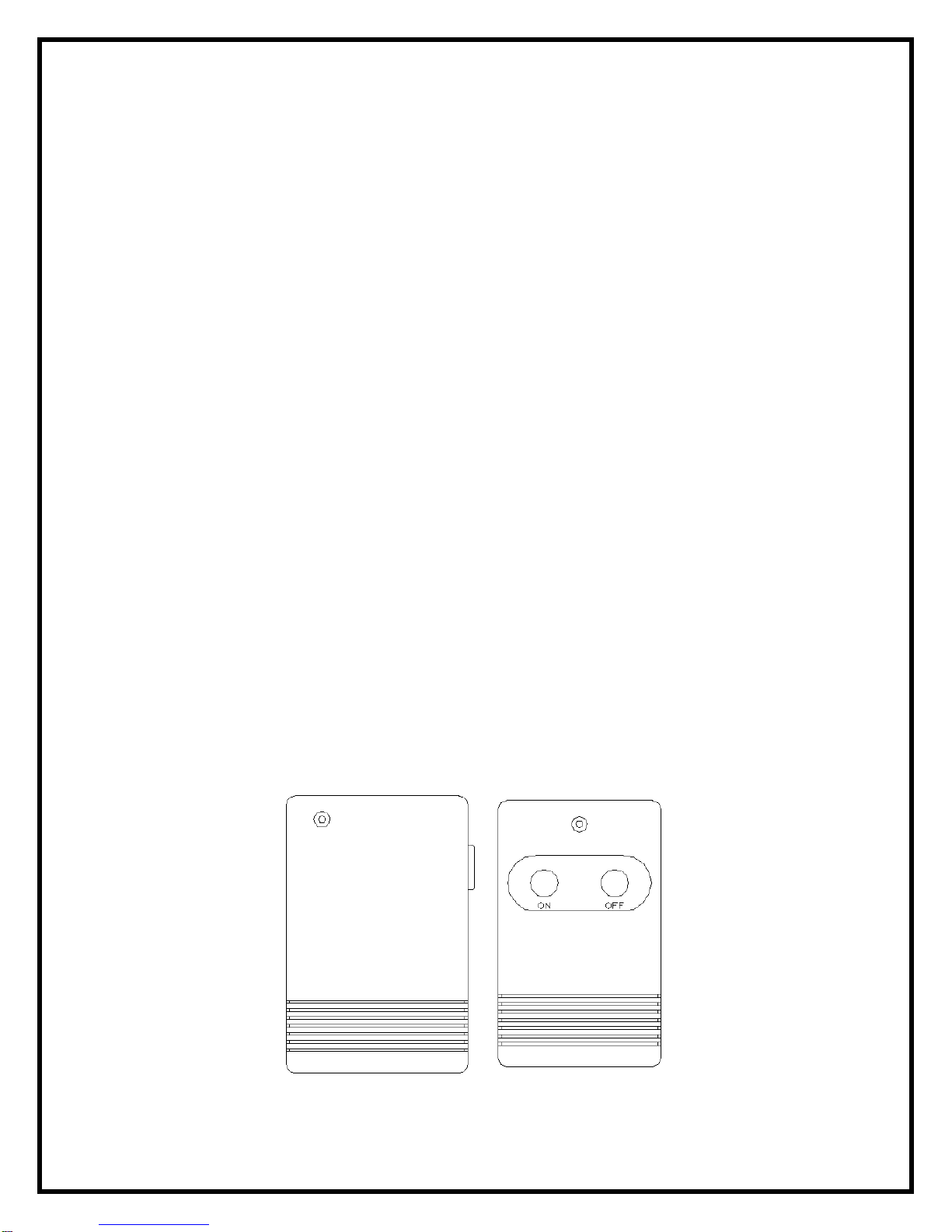

RECEIVER TRANSMITTER

BF5000NT, BF5000, EF2604, SF2603, DF2603

EXPLODED DIAGRAM

BF5000NT, BF5000, EF2604, SF2603, DF2603

WIRING DIAGRAM

BF5000NT, BF5000, EF2604, SF2603, DF2603

REPLACEMENT PARTS

REPLACEMENT PART

BF5000 BF5000NT BF5000NTRH EF2604 SF2603 DF2603

1.Front Glass, Tempered

Bronze 6900100400RP

2.Partially Reflective Glass 6900100200RP 5900060300RP

3.Log Set 0437960100RP

4.On/Off Switch 2800070200RP (MOD 0-C)

28000210100RP (MOD D)

2800070200RP (MOD E)

2800210100RP 2800070200RP (MOD 0-C)

28000210100RP (MOD D)

2800070200RP (MOD E)

5.Heater On/Off Switch 2800210100RP 2800070200RP 2800071100RP

6.Thermostat 2300150100RP

7.Control Knob 8800000300RP

8.Heater Assembly 2200490900RP

9.Grill Louvered Assembly 1006720159RP

10.Light Bulb Holder 4200121000RP

11.Flicker Motor 3000240200KIT

12.Flicker Rod Assembly 6900190400RP

13.Power Cord 4100040200RP

14.Speed Control 3000240100RP

15.Light Dimmer 3000250100RP

16.Heyco Strain Relief 8500260003RP

17.Flame Panel 0437970100RP

18.Remote Control Receiver

3000380200RP

(Added MOD

19.Terminal Block 4000070100RP

20.Remote Control Transmitter 3000370500RP

(Added MOD C)

21.Foot 8800090100RP

BF5000NT, BF5000, EF2604, SF2603, DF2603

UPPER BULB REPLACEMENT

Light bulbs need to be replaced when you notice a dark section in the flame or when the

clarity and detail of the log exterior disappears. There are two bulbs at the top of the

opening that illuminates the log set exterior and four bulbs under the log set which

generate the flames and embers.

WARNING

Allow at least 10 minutes for light bulbs to cool off before touching bulbs to avoid

accidental burning of skin.

HELPFUL HINTS

It is a good idea to replace all light bulbs at one time if they are close to the end of their

rated life. Group replacement will reduce the number of times you need to open the unit

to replace light bulbs.

TOOL REQUIREMENTS

Slot screwdriver

UPPER BULB REPLACEMENT

1. Remove the trim by pulling straight forward.

2. Hold the glass in place while removing the retaining clip from the upper center of the

firebox.

3. Lift glass out and store in a safe place.

4. Locate the two upper bulbs inside the firebox at the top.

5. Examine the bulbs to determine which bulb(s) require(s) replacement.

6. Hold the socket while unscrewing the bulb.

7. Hold the socket while screwing in the new bulb.

8. Reassemble in the reverse order.

UPPER LIGHT BULB REQUIREMENTS

Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 15

watt rating.

BF5000NT, BF5000, EF2604, SF2603, DF2603

LOWER BULB REPLACEMENT

1. Remove the trim by pulling straight forward.

2. Hold the glass in place while removing the retaining clip from the upper center of the

firebox.

3. Lift glass out and store in a safe place.

4. Lift up the front edge of the log until it clears the front tabs. Pull out until the rear tab

clears the back ledge, and then lift out.

5. Examine the bulbs to determine which bulb(s) require(s) replacement.

6. Hold the socket while unscrewing the bulb.

7. Hold the socket while screwing in the new bulb.

8. Replace the log ember bed by placing the back lip of the log ember bed under the

mirror then push the front of the log ember bed down into the recess.

9. Reassemble in the reverse order.

LOWER LIGHT BULB REQUIREMENTS

Quantity of 4 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60

watt rating.

BF5000NT, BF5000, EF2604, SF2603, DF2603

If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs

and heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

TO REPLACE MAIN ON/OFF SWITCH

1. Remove the firebox trim by placing your hand on the grill section, grasping the sides

of the trim and pulling outwards releasing the retainer clips.

2. Remove the firebox from the mantel.

3. Lower the grill covering the controls.

4. Remove the (4) retaining screws on the top cover and remove the top, placing it

upside down on the top of the unit being careful not to damage any of the wiring.

5. Locate the main on/off switch mounted on the top panel and disconnect the wiring

clips and connections noting their original locations.

6. Depress the retainer clips on the rear of the switch and push the switch out of the

rear cover.

7. Properly orient the new switch and connect all of the wiring clips and connections.

8. Align the top cover with the cabinet assembly and secure with (4) retaining screws.

9. Place the firebox in the mantel.

10.Place trim back on firebox by pushing ball studs on trim into the retainer clips on the

firebox.
