Dimplex XLE050 Guide de référence

XLE•Storage•Heater•Reporting•Screen•Guide 08/82056/0-1 ISSUE: 1

XLE•Series•Heater

1. Desired Room temperature set point (set by pressing

‘Arrow•Up’ / ‘Arrow•Down’ to increase / decrease the

temperature set point respectively. The temperature range

is from 7 to 26°C.)

2. Timer Mode, e.g. ‘User•Timer’, or ‘Out•All•Day’, (set by

the customer from within the ‘Mode’ -> ‘Timer’ menu.

3. Comfort On = Fan Enabled / Comfort Oﬀ = Fan Disabled.

This text line only indicates if the heater is within the Programmed time period (Comfort

period), or outside it. Controlled by the programmed On / Oﬀ (Comfort On / Oﬀ) times (in

‘Timer’ settings). Fan is only enabled during the ‘Comfort•On’ times, and only when the room

temperature is below the ‘Set•Point’ set on the display.

User Timer

Comfort On

1. Current Time

2. Comfort On = Fan Enabled / Comfort Oﬀ = fan Disabled.

This text line only indicates if the heater is within the

Programmed time period (Comfort period), or outside

it. Controlled by the programmed On / Oﬀ (Comfort

On / Oﬀ) times (in ‘Timer’ settings). Fan is only enabled

during the ‘Comfort•On’ times, and only when the room

temperature is below the ‘Set•Point’ set on the display.

3. The time when the next Comfort•On period is due.

10:12

Comfort Off

Next on at

17:30

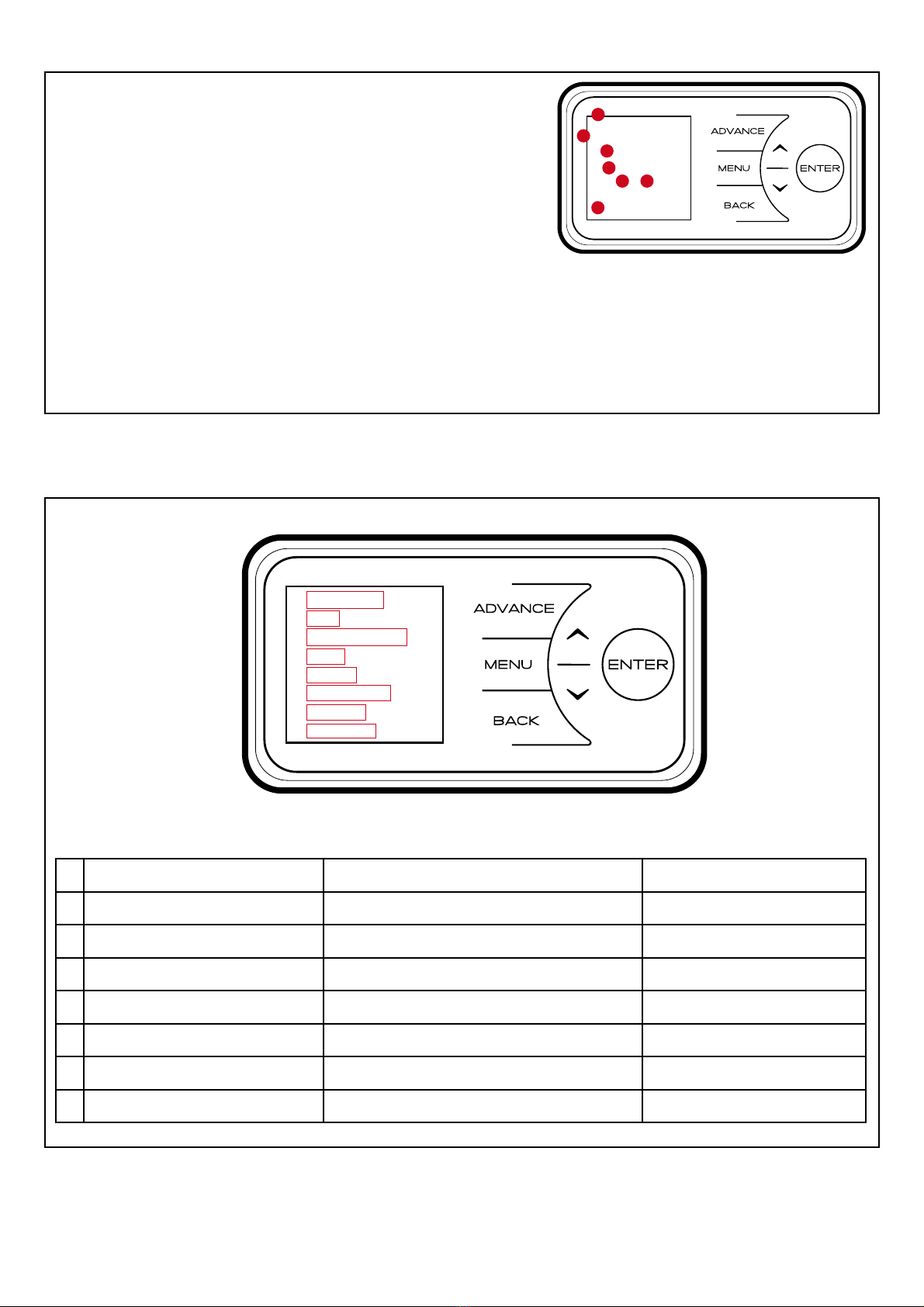

1. Functions Currently Enabled: BT (Bluetooth) / SL (Slave

Mode) / OW (Open Window detection ) / LL (Landlord

Lock).

2. Firmware revision.

3. Brand name on screen (optional).

4. Heater ID.

5. The counter of available Oﬀ-Peak supply to the heater, in minutes. NOT the heater charge

time.

6. Run (Charge) Time calculated, in minutes. The time XLE heater charged the current day.

7. Timer Mode, e.g. ‘User•Timer’, or ‘Out•All•Day’, (set by the customer from within the ‘Mode’ ->

‘Timer’ menu.

BT SL OW

UI:061 C C : 0 17

Dimple x

AL2724

(5)(11 8 )

User Tim e r

1. Functions Currently Enabled: BT (Bluetooth) / SL (Slave

Mode) / OW (Open Window detection ) / LL (Landlord

Lock).

2. Firmware revision.

3. Brand name on screen (optional).

4. Heater ID.

5. The counter of available Oﬀ-Peak supply to the heater, in minutes. NOT the heater charge

time.

6. Run (Charge) Time calculated, in minutes. The time XLE heater charged the current day.

7. Timer Mode, e.g. ‘User Timer’, or ‘Out All Day’, (set by the customer from within the ‘Mode’ ->

‘Timer’ menu.

BT SL OW

UI:061 C C : 0 17

Dimple x

AL2724

(5)(11 8 )

User Tim e r

Aseasonal band heater size extra charge hours

Bdaily run time not used not used

Ccurrent room temp room temp at midnight room temp. oﬀset

Dprogrammed heating hours not used not used

Ecurrent setpoint setpoint at mid night not used

Fcurrent core temperature core temperature at midnight not used

Gadaptive run time fan duty run time residual energy run time

Hruntime history yesterday runtime history day before yesterday

A 1 2 760 0

B 448 17 4097

C 17.7 17.5 0

D 12.0 1274 15.9

E 21 21 17.5

F 54.8 49.8 0 .0

G 78 0 0

H 503 531

7d.Usag e,Kwh

21/2/20 18 13.8

22/2/20 18 13.8

23/2/20 18 13.6

24/2/20 18 13.9

25/2/20 18 14.7

26/2/20 18 15.2

27/2/20 18 14.3

1. 7-Day History of estimated Daily

energy used by the heater, in

kilowatt-hours.

7d.Dail y run time

21/2/20 18 403

22/2/20 18 397

23/2/20 18 396

24/2/20 18 402

25/2/20 18 423

26/2/20 18 440

27/2/20 18 442

2. 7-Day History of Daily Run (Charge)

time, in minutes.

7d.Max Co re T

21/2/20 18 103

22/2/20 18 103

23/2/20 18 102

24/2/20 18 102

25/2/20 18 101

26/2/20 18 103

27/2/20 18 94

3. 7-Day History of maximum Daily

Core Sensor temperature recorded,

in degrees Celsius

Dimplex UK, a division of GDC Group, Millbrook House, Hedge End, Southampton, SO30 2DF

For further assistance please contact Dimplex Customer Services on 0344•879•3588 or go to www.dimplex.co.uk

7d.Max Ro om T

21/2/20 18 19.6

22/2/20 18 19.4

23/2/20 18 19.1

24/2/20 18 18.4

25/2/20 18 18.8

26/2/20 18 17.8

27/2/20 18 18.2

4. 7-Day History of maximum Daily

Room Sensor temperature recorded,

in degrees Celsius

7d.Min Ro om T

21/2/20 18 17.5

22/2/20 18 17.7

23/2/20 18 16.9

24/2/20 18 15.6

25/2/20 18 15.6

26/2/20 18 15.1

27/2/20 18 14.6

5. 7-Day History of minimum Daily

Room Sensor temperature recorded,

in degrees Celsius

7d.off peak coun t

21/2/20 18 468

22/2/20 18 468

23/2/20 18 468

24/2/20 18 468

25/2/20 18 468

26/2/20 18 468

27/2/20 18 468

6. 7-Day History of Daily Oﬀ-Peak

supply presence counter value, in

minutes.
