08/82570/0 ISSUE: 1 Series: A

Q-Rad Electric Radiator

Models: QRAD050E / QRAD075E / QRAD100E

QRAD150E / QRAD200E

INSTRUCTION MANUAL

Installation and Operating

Warnings in this document are identiﬁed by a warning triangle against a

grey backgound.

Keywords at the start of a warning indicate the type and seriousness of

the ensuing risk if measures to prevent the risk are not taken.

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR

FUTURE REFERENCE. Note also the information presented on the appliance

The following keywords are deﬁned and can be used in this document:

○DANGER indicates a hazardous situation which, if not avoided, will result in

death or serious injury.

○WARNING indicates a hazardous situation which, if not avoided, could result

in death or serious injury.

○CAUTION indicates a hazardous situation which, if not avoided, could result in

minor to moderate injury.

○NOTICE is used to address practices not related to personal injury.

CAUTION

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR

DAMAGE AND MAY INVALIDATE YOUR GUARANTEE

IMPORTANT SAFETY ADVICE

When using electrical heaters, basic precautions should always be followed to reduce

the risk of ﬁre, electrical shock, and injury to persons, including the following:

IMPORTANT – The wall bracket supplied with the heater must be used.

IMPORTANT – All packaging should be disposed of in an appropriate manner.

OVERHEATING WARNING

WARNING - In order to avoid overheating, do not cover or obstruct the heater. Do

not place material or garments on the heater, or obstruct the air circulation around the

heater, for instance by curtains or furniture, as this could cause overheating and a ﬁre

risk. NEVER cover or obstruct in any way the heat outlet slots at the top of the heater

or the air outlet slots in the base of the heater.

WARNING - THE SURFACES ON THIS HEATER CAN BE HOT.

The heater carries a warning ‘DO NOT COVER’ to alert the user to the risk of ﬁre

that exists if the heater is accidentally covered.

CAUTION - Some parts of this product can become very hot and cause burns.

Particular attention has to be given where children and vulnerable people are present.

For your safety this heater is ﬁtted with a thermal cut-out. In the event that the product

overheats for some reason, the cut-out prevents excessive temperatures on the

product by cutting the power to the heater. Once the heater has cooled down, it will

reset automatically, it will continue to cycle on and o automatically until the reason for

overheating is removed.

The display screen may ﬂash red to indicate the product has overheated. To reset the

display, remove the obstruction and hold Enter for 10 seconds.

SUITABLE APPLICATIONS

WARNING - This heater is suitable for normal dwelling purposes and should not be

used in any other type of environment. This product should only be used in the country

where it was purchased from by a recognised commercial retailer. Do not use outdoors.

SERVICING AND REPAIRS

WARNING - Servicing and product repairs should only be undertaken by the

manufacturers approved service agent or a similarly trained or qualiﬁed person, using

only exact manufacturer approved spare parts.

PLEASE NOTE: Household dust, lit cigarettes, candles and oil burners, combined with

the convection eect of electric heaters can cause signiﬁcant soot deposits to build

up on the surface directly above and to the sides of the heater. This is not a fault of the

heater. Extensive burning of candles or smoking in the operating environment of this

product can produce heavy discolouration within a few months of use.

OPERATING WARNINGS

IMPORTANT:Remember to observe all safety warnings and precautions when

operating the heater on the automatic or timer modes, either attended or unattended

since a ﬁre risk exists when the heater is accidentally covered, obstructed or displaced.

CAUTION:Do not use if either of the heater’s mains power leads become damaged. If

the supply cord is damaged it must be replaced by the installer or an approved Dimplex

service partner.

Do not sit or stand on the heater.

Ensure minimum clearances between the heater and other objects / surfaces are

maintained.

ELECTRICAL INSTALLATION

WARNING - Minimum clearances and IP zone requirements must be adhered to in

accordance with the current wiring regulations.

Mains cables are not provided with this heater.

WARNING - The electrical installation of this heater must be carried out by a suitably

qualiﬁed or trained electrician, and be in strict accordance with current wiring regulations

BS 7671. DO NOT INSTALL IF PRODUCT IS DAMAGED.

The supply must be connected via a switched fused spur with a fuse rated suitably for

the appliances ﬂex.

Failure to follow these instructions will mean that the manufacturer’s instructions have

not been adhered to. THERE ARE NO EXCEPTIONS.

The wires in this mains lead are coloured in accordance with the following code:

GREEN AND YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE

• This heater must be earthed

• Not suitable for connection via a plug top

• Do not locate the heater immediately above, below or in front of a ﬁxed electrical point

i.e. socket outlet.

The heater is ﬁtted with a length of ﬂexible cable type H05VV-F size 3 x 1.0mm² for

500W to 2kW and 3 x 1.5mm² on 3.0kW models for connection to the ﬁxed wiring of the

premises through a suitable connection box positioned adjacent to the heater. A means for

disconnection must be incorporated in the ﬁxed wiring of the premises in accordance with

the current wiring regulations. The supply circuit to the heater must incorporate a double

pole isolating switch having a contact separation of at least 3mm. Products that are supplied

without a plug are for installation into the ﬁxed wiring of the property, via a suitable double

pole switched fused spur with a fuse rated suitably for the appliances ﬂex. Typical fuse ratings

for 230V equipment - Up to 700W = 3A, over 700W = 13A.

In installation the supply cord may be cut to the appropriate length for the electrical

connection point. Excess cable should not be inserted and stored behind the heater.

CHILD SAFETY

WARNING - Fixing kit screws are a potential choking hazard.

WARNING - This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning use of

appliance by a person responsible for their safety.

This appliance can be used by children from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning use of the appliance.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/o the appliance

provided that it has been placed or installed in its intended normal operating position

and they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not regulate and clean the

appliance or perform user maintenance.

WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN

WARNING - Packaging should be disposed of responsibly as the EPS used could

be a potential choking hazard for children.

iThis document is customer property and is to remain with this unit.

These instructions do not cover all the dierent variations of systems nor

does it provide for every possible contingency to be met in connection

with installation.

This appliance must be earthed in accordance with the manufacturers

recommendations and in accordance with IEE regulations for electrical

equipment.

Failure to adequately earth the appliance can result in electrical shock

causing severe personal injury or death.

WARNING: EARTHING

Disconnect all power to unit before installing or servicing.

Hazardous voltage can cause severe personal injury or death.

WARNING: HAZARDOUS VOLTAGE

If the supply cables to the appliance are damaged in anyway, they

must be immediately replaced by a competent person in order to avoid

electrocution which could cause severe personal injury or death.

WARNING: ACCESS TO LIVE PARTS

Product information according to Ecodesign Regulation (EU) 2015/1188

Energy Related Product Directive

Model Identiﬁer(s):

QRAD050E

QRAD075E

QRAD100E QRAD150E

QRAD200E

Height (mm) 546 546 546 546 546

Width (mm) 513 513 675 756 918

Depth (mm) 105 105 105 105 105

Model Identiﬁer(s):

QRAD050E

QRAD075E QRAD100E QRAD150E

QRAD200E

Heat Output

Nominal heat output Pnom 0.50kW 0.75kW 1.00kW 1.50kW 2.00kW

Minimum heat output (indicative)

Pmin N.A N.A N.A N.A N.A

Maximum heat output Pmax,c 0.50kW 0.75kW 1.00kW 1.50kW 2.00kW

Auxiliary electricity consumption

At nominal heat output elmax 0.00 0.00 0.00 0.00

0.00

At minimum heat output elmin

0.00 0.00 0.00 0.00 0.00

In standby mode elSB

<0.0005 <0.0005 <0.0005 <0.0005 <0.0005

Type of heat output / room temperature control

Electronic heat charge control with room

and / or outdoor temperature feedback Yes

Other control options

Room temperature control, with open

window detection Yes

With adaptive start control Yes

Technical Details

Contact details

Glen Dimplex Heating and Ventilation

Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF

Tel: 0344 879 3588

This product meets the Ecodesign requirements for an electric storage local space heater. Commission

Regulation (EU) 2015/1188.

All Models

Controls

Digitally controlled, Electronic Thermostat accurate to (±0.2°C)

Timer modes:

7 Day Programmable User Timer, Out All Day, Home All Day,

Continuous heat modes:

Eco, Manual, Frost Protect, Runback

Additional Modes:

Away, Boost, Setback

Controller UI

• Graphical display with RGB backlight

• Capacitive buttons with audio feedback

• User replaceable battery (Coin-Type)

• Open window detection, Adaptive-start, Advance time period

• Wide SP range (7-30°C)

• Bluetooth for software updates

• Child Lock & Heater Lock (PIN-based)

Construction • Durable epoxy-polyester powder coated steel casing with louvered forward facing grille

• Advanced controls with capacitive sense technology for total ﬂexibility of heating

Element Compact, ﬁnned, mineral ﬁlled sheathed element

Installation • H-frame wall bracket

Safety • Thermal cut-out. Auto reset type

• Overheat detection

IP Rating IP24

Battery

3V coin cell battery to backup real time clock. Battery life >5 years.

Supply

1.3 metres ﬁtted, 3 core for fused spur installation, 1/N/PE ~230-240 V, 50Hz

Class I, with earth wire

Colour / Finish Metal Chassis, Air Outlet Grille & Control Moulding - Trac White (RAL 9016)

Approvals CE, BEAB

Guarantee 2 years

Country of Origin United Kingdom

Manufacturer Glen Dimplex Heating & Ventilation

(GDC Group Ltd.)

The heater is designed for wall mounting using the wall bracket supplied. It should only be

operated when in the upright position as shown - see Fig. 1 and Fig. 2. All models are splash

proof to IP24. Before connecting the heater check that the supply voltage is the same as that

stated on the heater.

General

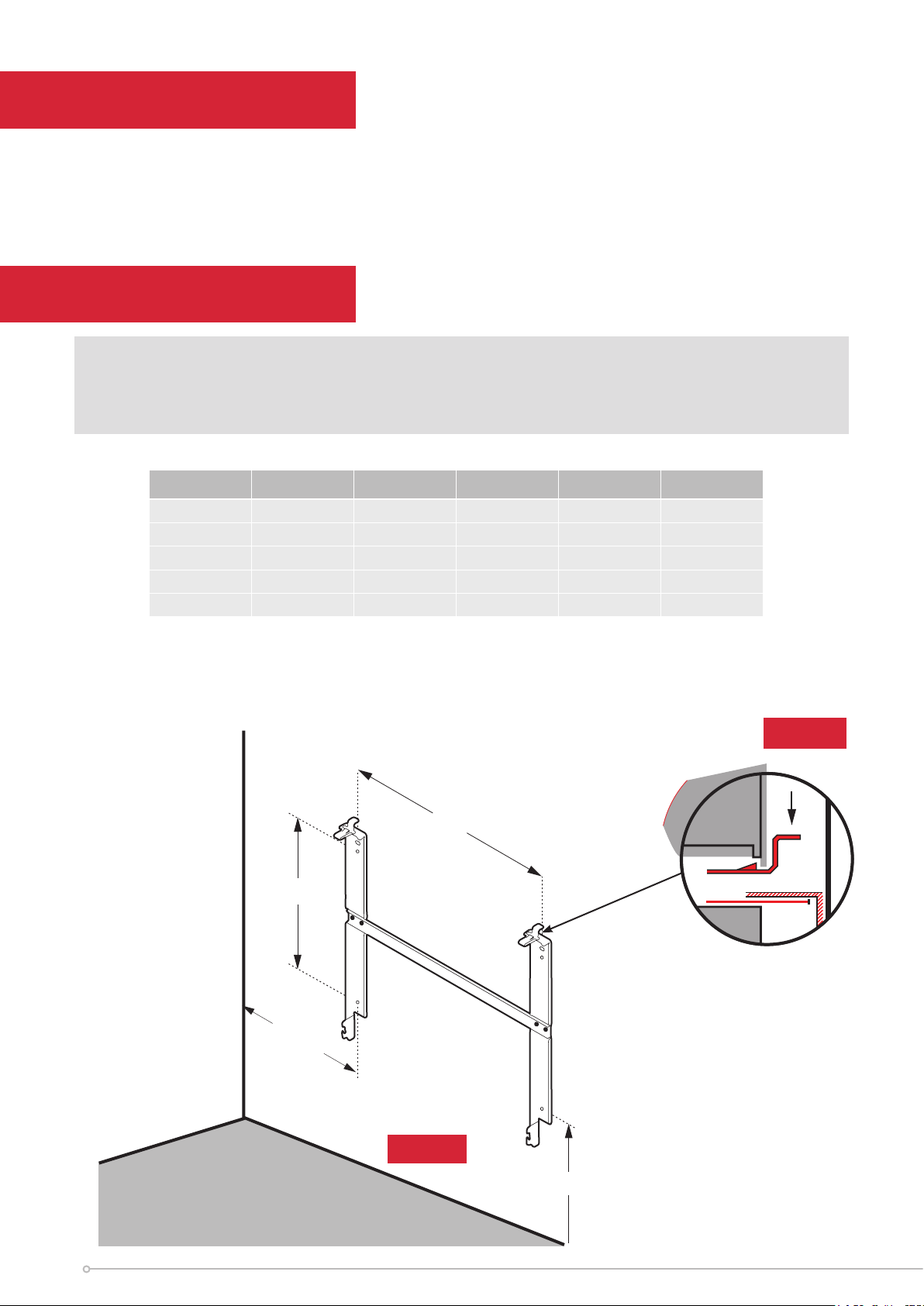

Wall Mounting

IMPORTANT - The wall bracket supplied with the heater must be used and the heater must be installed in

the correct orientation. The ﬁxings should be used to secure the bracket to the particular wall on which the

heater will be installed. The heater should be positioned observing the minimum clearances stated around the

heater - see Fig. 2, Fig. 3 and Fig. 4.

Fig. 2

MODEL A B C D E

QRAD050E 225 294 513 546 105

QRAD075E 225 294 513 546 105

QRAD100E 387 294 675 546 105

QRAD150E 468 294 756 546 105

QRAD200E 630 294 918 546 105

260 mm (Min)

‘A’

275 mm

‘B’

Minimum

mounting

clearance

Fig. 1

To mount the heater to the wall:

1. Remove wall mounting bracket from the back of the heater by depressing the spring latch at the side of each

bracket - see Fig.2.

2. Fix the wall bracket securely to the wall through the four screw holes. Ensure only screw ﬁttings provided are

used for the particular wall type.

3. Present the heater to the wall bracket and engage bottom slots in the back with bracket hooks.

4. Press heater into locked position and ensure the clips on the top are engaged.

5. Remove protective ﬁlm from the user interface

WARNING:

This product is heavy and care

should be taken in installation

150 mm (Min)

‘D’

‘C’

150 mm (Min)

Shelf / Obstruction

‘E’

Fig. 3 Fig. 4

A setup wizard will display when the product is powered on for

the ﬁrst time. This will set the following:

• Time, Date, Daylight Savings Time

• Sound On/O

For information on using the Heaters controls, refer to page 11.

The Heater will then take the User to the Home Screen with the

‘Out All Day’ Timer Mode active.

First Time Power-On

Important

During initial heat-up, some odour may be

emitted due to the newness of materials

used in manufacture. This is normal and will

disappear after a short period of use. It is

however advisable to keep the room well

ventilated.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dimplex Chauffage

Dimplex

Dimplex EMC4240 Manuel utilisateur

Dimplex

Dimplex QM070 Quantum Manuel utilisateur

Dimplex

Dimplex ML Series Manuel utilisateur

Dimplex

Dimplex CTHK 630 Manuel utilisateur

Dimplex

Dimplex RFF-800 Series Manuel utilisateur

Dimplex

Dimplex PLX050E Manuel utilisateur

Dimplex

Dimplex Evo Rad Manuel utilisateur

Dimplex

Dimplex NELSON DELUXE NLS20RC Manuel utilisateur

Dimplex

Dimplex KBE 50 Manuel utilisateur

Dimplex

Dimplex PLX 500 Manuel utilisateur

Dimplex

Dimplex WFC 3NB Manuel utilisateur

Dimplex

Dimplex EF 12/20 TI Manuel utilisateur

Dimplex

Dimplex DHCER20 Manuel utilisateur

Dimplex

Dimplex FX 20 IPX4 Manuel utilisateur

Dimplex

Dimplex Comfort 2NC6 L Series Guide de l'utilisateur

Dimplex

Dimplex OFRC10ECCb Manuel utilisateur

Dimplex

Dimplex Compact Series Manuel utilisateur

Dimplex

Dimplex FXL18N Manuel utilisateur

Dimplex

Dimplex Cadiz Eco CDR2T Manuel utilisateur

Dimplex

Dimplex SmartRad SRX80 Manuel utilisateur

Dimplex

Dimplex TRP 150 X Manuel utilisateur

Dimplex

Dimplex QRAD150 Manuel utilisateur

Dimplex

Dimplex DPH1563 Manuel utilisateur

Dimplex

Dimplex FX 20VL Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
