INSTRUCTION MANUAL

Oil Filled Column Heaters

Models: OCR15FA, OCR15TIF, OCR24FA &

OCR24TIF

08/54538/0 Issue 2

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND

RETAINED FOR FUTURE REFERENCE.

Note also the information presented on the appliance

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/

OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY

Please read the operating instructions carefully before using your product

for the first time and keep them in a safe place.

• When using electrical appliances, basic precautions should always be

followed to reduce the risk of fire, electrical shock and injury to persons,

including the following:

• If the appliance is damaged, check with the supplier before installation

and operation.

- Do not use outdoors.

- Do not use in the immediate surroundings of a bath, shower or

a swimming pool.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heater on a horizontal and stable surface, or fix it to

the wall, as applicable.

• Do not locate the appliance immediately below a fixed socket outlet or

connection box.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the

appliance.

• CAUTION: Some parts of this product can become very hot and cause

burns. Particular attention must be given where children and vulnerable

people are present.

• IMPORTANT: Only use this heater on a horizontal and stable surface

with the castors attached.

• WARNING: In order to avoid overheating, do not cover the heater.

• The Heater carries this warning symbol indicating that it must

not be covered.

• Do not use this appliance in series with a thermal control, a program

controller, a timer or any other device that switches on the heat

automatically, since a fire risk exists when the appliance is accidentally

covered or displaced.

• In the event of a fault, unplug the appliance.

• Unplug the appliance when not required for long periods.

• This product is intended for INDOOR RESIDENTIAL applications only.

• DO NOT cover cord with carpeting, throw rugs, runners, or similar

coverings.

• DO NOT route cord under furniture or appliances. Take care to position

the cord away from traffic areas and where it will not be a tripping

hazard.

• This appliance must not be used in a bathroom.

• Although this appliance complies with safety standards, we do not

recommend its use on deep pile carpets or on long hair type of rugs

• The appliance must be positioned so that the plug is accessible.

• If the supply cord is damaged it must be replaced by the manufacturer

or service agent or a similarly qualified person in order to avoid a hazard.

• Keep the supply cord away from the front of the appliance.

• Do not use this heater in small rooms when they are occupied by

persons not capable of leaving the room on their own, unless constant

supervision is provided.

• To reduce the risk of fire, keep textiles, curtains and or flammable material

a minimum distance of 1m from the air outlet.

• DO NOT place material or garments on the appliance, or obstruct the

air circulation around the appliance, for instance by curtains or furniture,

as this could cause overheating and a fire risk.

• In order to avoid a hazard due to inadvertent resetting of the thermal cut-

out, this appliance must not be supplied through an external switching

device, such as a timer, or connected to a circuit that is regularly switched

on and off by the utility.

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND

RETAINED FOR FUTURE REFERENCE.

Note also the information presented on the appliance

Exposed to the

weather outdoors

Near water If the power cable

wires are frayed or cut

Where small children

may be left unattended

No extension leads or

power boards

Where there is risk

of fire or close to

a naked flame

Where the power

cable may be

damaged

On a slope or

uneven surface

Where it may be

damaged by

chemicals

If there is a risk

of water falling on

the unit

Where there is a risk

of interference by

foreign objects

This product is not

made for DIY repair

Model no. OCR15FA OCR15TIF OCR24FA OCR24TIF

Power supply

230-240V~, 50Hz

Rated power

1500W

2400W

Heat settings

Thermostat Y

Timer N Y N Y

Turbo Fan Y Y Y Y

Weight (net)

8.2kg

8.46kg

12.6kg

12.33kg

Dimensions (w x d x h)

310 x 280 x

635mm

310 x 280 x

635mm

470 x 280 x

635mm

470 x 280 x

635mm

Specifications

For greater precision, please always refer to the rating label placed on the product.

WARNING THIS APPLIANCE MUST BE EARTHED

Fitting The Castors

WARNING The radiator must only be operated with the wheels and castors fitted and

in an upright position. The castors must be fitted to the control panel and between the

last and second last fin on the opposite end, as shown in Fig.1.

1. To fit the castors, turn the radiator upside down on a carpet or other soft surface

to avoid damage. Warning: The radiator is heavy – ensure that it is supported to

prevent it from toppling. Ask a second person to help with this if necessary.

2. Locate the wire clamp (A) and remove the winged nut (C). Insert the non threaded

end of the wire clamp into one of the holes in the castor plate (B) as shown. Feed

the threaded end of the wire clamp between the last and second last column fins

ensuring the wire clamp wraps around the column body (sump). Some manipulation

of the plate and clamp will be required. The threaded end should then be passed

through the castor plate and secured using the wing nut.

3. To fit the castor to the control end, position the castor plate in position and secure

using the wing bolts (D). There are guides to ensure the correct positioning and

orientation of the caster plate.

4. Return the radiator to the correct orientation so it rests on the castors. The product

is now ready for use.

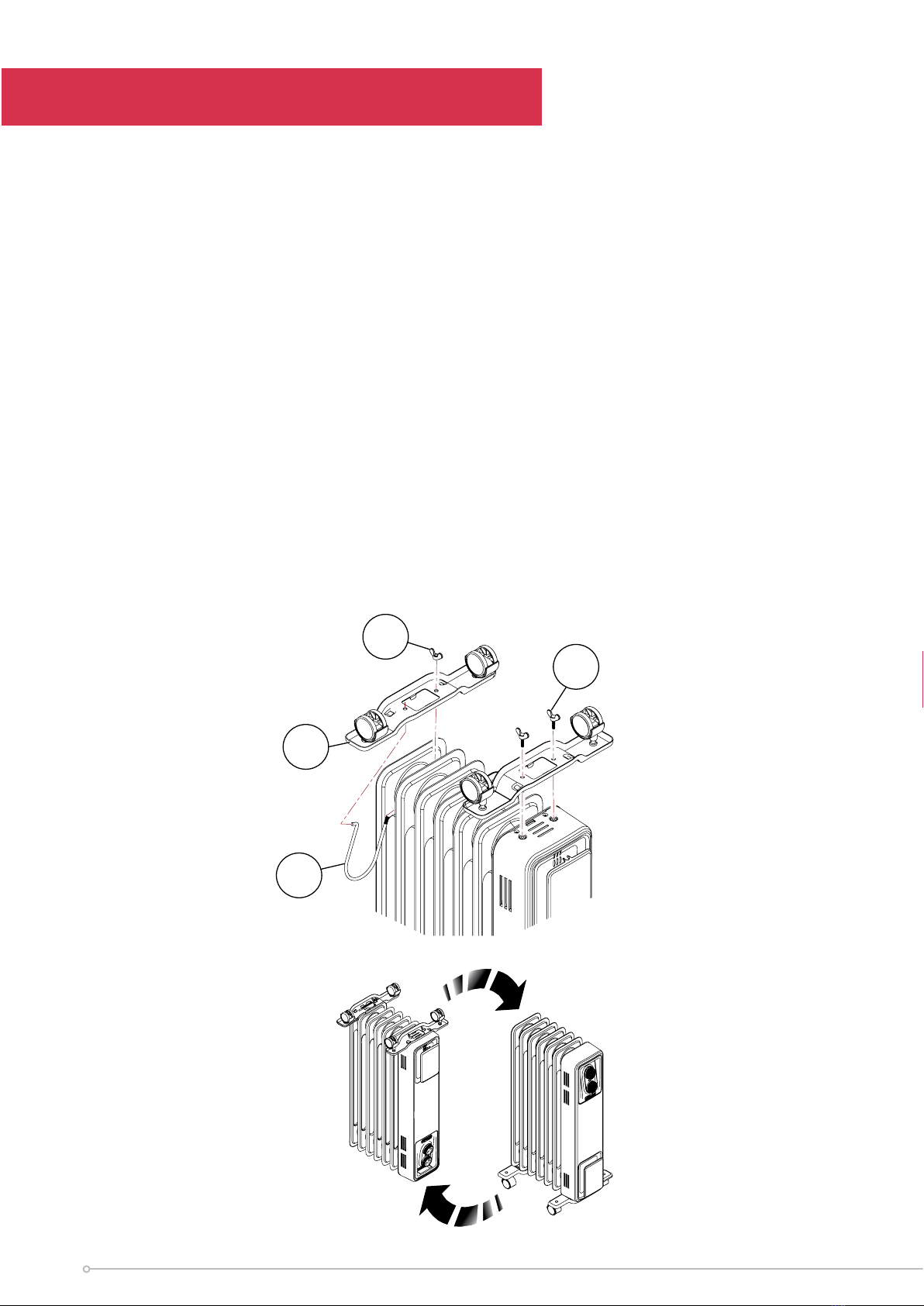

Fig. 1

Positioning

Select the position for the heater ensuring there is clearance from any furniture and

fittings of at least 300mm above the heater and 150mm each side and 300mm from

the control and end panel. We recommend maximising the clearance where possible.

NOTE: The radiator is designed for operation on an AC electricity supply, and is only

suitable for domestic use and similar indoor locations.

Tips

• The radiator is fitted with castors and a handle for ease of movement.

• A rotary selector switch provides the ability to choose an available heat output

and an adjustable thermostat enables the room temperature to be controlled

accordingly.

• Once the castors have been correctly fitted, no other assembly is required, just

plug and play!

Safety Features

This appliance incorporates a number of safety devices. In addition to the ‘Important

Safety Advice’ section your attention is drawn to the following;

Tilt Switch

The tilt switch will prevent the heater from working if it is accidentally tipped over on

its side.

If the radiator is tipped over while it is hot, disconnect the power and allow it to cool,

then stand the radiator back upright. Reconnect the power - normal operation should

be resumed.

Overheat Protection

The heater is fitted with a temperature limiter which will reduce the output of the heater

should it overheat for any reason. The product will return to normal operation after the

cause of the over heating has been rectified.

Thermostat

Off/Heat selection

switch

Neon Indicator

Turbo

Cable Wrap

Timer

Turbo

Switch

Operation

IMPORTANT - OBJECTS OR CLOTHING MUST NOT BE PLACED ON THIS HEATER.

Before using the heater ensure that all warnings and instructions have been read

carefully. To activate the heater simply plug it in. Neon indicator lights located at

the control area will illuminate when the appliance is plugged into the mains. This

indicates the appliance is energised and ready to use.

Please note – The element has been coated with a protective film which will burn off

during the first few minutes of use, this may cause a small amount of fuming. This is

quite normal – the fumes are non-toxic and will quickly disappear.

We recommend that you open a window to ventilate the room when using the heater

for the first time.

CONTROLS

Fig. 2

Fig. 3

Operation

Thermostat

The Thermostat, see Fig.2 controls the heat output according to the room temperature.

This ensures that the heater will not produce heat unnecessarily when the room is

warm.

1. To set the temperature you require, turn the thermostat knob clockwise until the

required setting is reached. Alternatively to heat a cold room quickly, turn the

thermostat knob up fully.

2. When the room has reached the desired temperature, turn the thermostat knob

anti-clockwise until the thermostat just clicks off. The heater will now automatically

operate at this temperature.

3. The thermostat also has a frost protection setting marked '*' This setting is useful

in areas such as garages, to prevent frost damage. If the thermostat is set to its

minimum setting '*' the heater will cycle on and off to maintain a temperature of

approximately 5° to help protect against frost.

Note – Should the heater fail to come on when the thermostat is at a low setting, this

may be due to the room temperature being higher than the thermostat setting.

Heat Selector Switches (see Fig.3)

Heat selection is provided via a rotary switch offering four settings. The heat output

can be altered to suit the application, conditions and for improve the economy of

operation.

Available output options are as follows:

Switch setting With

Turbo

Only

Turbo

Model O I II III

0CR15FA

Off 500W 700W 1200W 1500W 300W

OCF15TIF

Off 500W 700W 1200W 1500W 300W

OCR24FA

Off 900W 1200W 2100W 2400W 300W

OCR24TIF

Off 900W 1200W 2100W 2400W 300W

Timer Model

ELECTROMECHANICAL TIMER (TIF models)

Setting the time of day

To set the time of day, rotate the timer dial clockwise (indicated by the arrow) until the

correct time of day is opposite the reference mark

see

Fig.4. The 24-hour clock is

used; e.g. time shown for 4pm is '16' (16:00hrs).

Operation Modes

Set the operation mode using the slide switch on the timer - see Fig.5:

Position I - Manual operation

This setting allows power to the heater uninterrupted by the timer settings. The

heat selector switch and thermostat will control the output (see 'Controls').

Position - 'Auto' operation

This setting allows the heater to be switched ON and OFF according to a set 24

hour program period.

DO NOT disconnect this heater from the mains supply unless it is being taken out of

use (e.g. in summer or for storage), otherwise the timer clock will stop.

Fig. 4

Fig. 5

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dimplex Chauffage

Dimplex

Dimplex AC3RN Manuel utilisateur

Dimplex

Dimplex BK 1202 S Manuel utilisateur

Dimplex

Dimplex FX 20VL Manuel utilisateur

Dimplex

Dimplex MH NO Series Manuel utilisateur

Dimplex

Dimplex DXC20 Manuel utilisateur

Dimplex

Dimplex Studio G DXSTG25 Manuel utilisateur

Dimplex

Dimplex FFCH5000W Series Manuel utilisateur

Dimplex

Dimplex 403BTB Manuel utilisateur

Dimplex

Dimplex DHCER24M Manuel utilisateur

Dimplex

Dimplex DEUF2N Manuel utilisateur

Dimplex

Dimplex DHCER20WIFI Manuel utilisateur

Dimplex

Dimplex CMH Series Manuel utilisateur

Dimplex

Dimplex CPTS Manuel utilisateur

Dimplex

Dimplex CXD2000H-NA Series Manuel utilisateur

Dimplex

Dimplex DuoHeat Duo300i Manuel utilisateur

Dimplex

Dimplex CXL N Instructions de montage

Dimplex

Dimplex IRM 320W Manuel utilisateur

Dimplex

Dimplex Firefly FIF20 Manuel utilisateur

Dimplex

Dimplex WFC 3NB Manuel utilisateur

Dimplex

Dimplex Canfield Canfield Canfield CFD20 Manuel utilisateur

Dimplex

Dimplex DHCER20 Manuel utilisateur

Dimplex

Dimplex DGP1000-B Manuel utilisateur

Dimplex

Dimplex DXUCTW2B Manuel utilisateur

Dimplex

Dimplex B48 Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
