Dimplex PFH30E Manuel utilisateur

08/53942/0 ISSUE: 1

Garage Fan Heater

Model: PFH30E

INSTRUCTION MANUAL

Installation and Operating

This product is supplied and operated with a Bluetooth Remote Control handset

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR

FUTURE REFERENCE. Note also the information presented on the appliance

IMPORTANT SAFETY ADVICE

DO NOT use the heater in the immediate surroundings of a bath, a shower or a swimming

pool.

DO NOT place the heater directly below a ﬁxed socket outlet.

DO NOT use the heater for continuous space heating.

DO NOT COVER or obstruct the air inlet and outlet openings in any way.

DO NOT operate the heater with the mains lead overhanging the front outlet grille.

WARNING: In order to avoid overheating DO NOT COVER or obstruct the air inlet and

outlet openings in any way.

IMPORTANT: If the mains lead of this appliance is damaged, it must be replaced by

the manufacturer or its service agent or a similarly qualiﬁed person in order to avoid

a hazard.

WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-

out, this appliance must not be supplied through an external switching device, such

as a timer, or connected to a circuit that is regularly switched on and o by the utility.

This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience or knowledge if

they have been given supervision or instruction concerning the use of the appliance in a

safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/o the appliance

provided that it has been placed or installed in its intended normal operating position

and they have been given supervision or instruction concerning the use of the appliance

in a safe way and understand the hazards involved. Children aged from 3 years and

less than 8 years shall not plug in, regulate and clean the appliance or perform user

maintenance.

CAUTION: Some parts of this product can become very hot and cause burns. Particular

attention has to be given where children and vulnerable people are present.

CAUTION: The instruciton leaﬂet belongs to the appliance and must be kept in a safe

place. If changing owners, the leaﬂet must be surrendered to the new owner.

Always disconnect the supply before working on the product.

Always ensure combustible materials such as drapes or other furnishings are kept clear

of the air inlet and air outlet.

This product should be mounted vertically and securely ﬁxed to a solid wall location

at a minimum height of 1.8m.

WARNING: The supply circuit to the heater must incorporate a double pole isolating

switch having a contact separation of at least 3mm in all poles.

Ensure the supply cables are of adequate current carrying capacity and are protected

by a suitable fuse.

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN

• Swallowing may lead to serious injury in as little as 2 hours or death, due to

chemical burns and potential perforation of the oesophagus.

• If you suspect your child has swallowed or inserted a battery go straight to a

hospital emergency room.

• Examine devices and make sure the battery compartment is correctly

secured, i.e. that the battery cover is ﬁtted securely. Do not use if the

compartment is not secure.

• Dispose of used batteries immediately and safely. Flat batteries can still be

dangerous.

Model Identiﬁer(s): PFH30E

Nominal heat output Pnom 3.0 kW

Height (mm) 378

Width (mm) 230

Depth (mm) 226

Minimum heat

output (indicative) Pmin 1.5kW

Maximum continuous heat output Pmax,c 3.0kW

Auxiliary electricity Consumption

At nominal heat output elmax 0.00

At minimum heat output elmin 0.00

In standby mode elSB <0.0005

Type of heat output/ room temperature control

Electronic room temperature control plus week timer Yes

With open window detection No

With adaptive start control Yes

This product complies with Lot20 of the Energy Eciency Directive (2015/1188).

Energy Related Product Directive

Technical Details

All Models

Controls

Digitally controlled, Electronic Thermostat

Timer modes:

7 Day Programmable User Timer

Continuous heat modes:

Frost Protect, Runback, Fan Only, Comfort O

Controller UI

Button to initiate pairing with Bluetooth remote

Controller Functions

• Heat Selection: High, Low, Fan Only

• Adaptive-Start

• Advance time period

• Adjustable SP range (7-30°C)

• Bluetooth for control

Construction Injection moulded PA6 nylon chassis, connected via ball and socket wall

ﬁxing bracket

Fan Type

Axial

Element 2 stage radial stitched element (1500/1500)

Installation Supplied with wall mounting bracket. Wall bracket allowing 120

° adjust-

ment horizontally, 40° vertically

Safety Thermal cut-out. Electrical reset type over-heat detection

IP Rating No Rating

Battery Backup

None. However all programmed timer proﬁles will be retained during

short term power losses. In order to ensure their correct operation, it is

necessary to restore the time and date settings, this happens automatically

once paired with the remote.

Supply

~230-240 V, 50Hz Class II

Colour / Finish Grey

Approvals CE, BEAB

Warranty 2 years

Country of Origin British Isles

Manufacturer Glen Dimplex Heating & Ventilation (GDC Group Ltd.)

250 Min.

281

1.8m Min

Fig. 1

Fig. 2

‘x’

Fig. 3

(A)

(B)

‘z’

‘y’

(C)

Fig. 4

General

This heater is designed to provide intermittent spot heating for small domestic

environments such as garages and workshops.

The heater works by gradually raising the air temperature in a garage or workshop

and should be positioned above head height approximately 1.8m - 2.3m - (see Fig. 2).

The PFH30E heater has an output of 3kW.

The angle the appliance is mounted at may be adjusted horizontally and vertically -

see Fig. 1 and Fig. 4.

Electrical

Wall Mounting

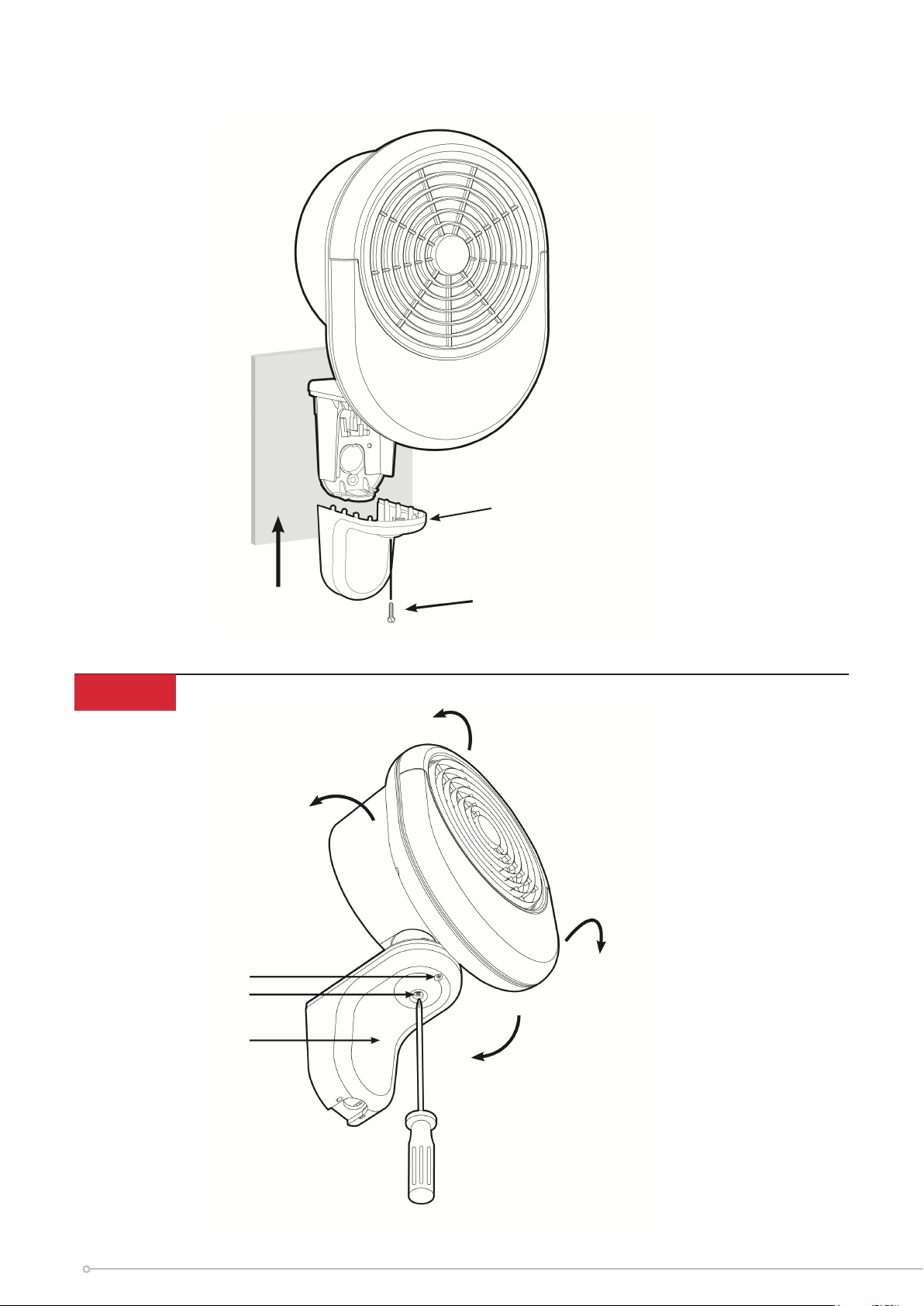

• Remove the screw (see ‘z’ in Fig. 3C) to remove the cover bracket.

• Use the wall mounting bracket (see ‘x’ in Fig. 3A) as a guide to mark the hole

positions on a suitable wall (a minimum height of 1.8 metres is required from the

ﬂoor level to the bottom hole of the bracket - see Fig. 2).

• Solid brick or concrete block walls must be drilled and plugged using the screws

and wall plugs provided. Fix the wall mounting bracket to the wall and slide the

heater down on to the bracket as shown in Fig. 3A.

• The heater is held in place to the wall mounting bracket with 2 screws - see Fig. 3B.

• Once electrical connections have been completed - see ‘Electrical Installation’, re-

attach the bracket cover (see ‘y’ in Fig. 3C) by sliding into place and secure with

the screw - see ‘z’ in Fig. 3C.

• Pivot and rotate the heater into the desired position and tighten the screw to secure

- see ‘w’ in Fig. 4.

The installation of this appliance should be carried out by a competent electrician

and be in accordance with the current IEE wiring regulations. The supply cable is not

supplied with the appliance.

Before undertaking electrical installation, ensure the electricity supply is disconnected

from any relevant ﬁxed wiring.

With the bracket cover removed proceed to feed the supply cord through the cable

entry at the bottom of the mounting bracket (drill knock-out to suit). Connect the wires

to proper live and neutral of the internal termonal block.

NOTE:

Ensure there is enough clearance above the wall mounting bracket for

the user to slide the heater onto the bracket

The product is supplied with a Bluetooth remote control which should be contained in the

carrier bag along with these instructions. This remote control is required to operate the

appliance. When paired with the remote control various operational modes and features

can be accessed.

Remote Control

1Display Screen

2‘Menu’ Button

3‘Back’ Button

4‘Advance’ Button

5‘Up and Down’ Arrows

6‘Enter’ Button

IMPORTANT NOTE:

The remote control is required to operate the appliance. It is important

that the remote control remains near the appliance at all times.
