For domestic household use only.

INSTRUCTION MANUAL

Oil Free Column Heaters

Models: OFRC15FA & OFRC24FA

08/55085/0 Issue 1

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND

RETAINED FOR FUTURE REFERENCE.

Note also the information presented on the appliance

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/

OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY

Please read the operating instructions carefully before using your product

for the first time and keep them in a safe place.

• When using electrical appliances, basic precautions should always be

followed to reduce the risk of fire, electrical shock and injury to persons,

including the following:

• If the appliance is damaged, check with the supplier before installation

and operation.

- Do not use outdoors.

- Do not use in the immediate surroundings of a bath, shower or

a swimming pool.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heater on a horizontal and stable surface, or fix it to

the wall, as applicable.

• Do not locate the appliance immediately below a fixed socket outlet or

connection box.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the

appliance.

• CAUTION: Some parts of this product can become very hot and cause

burns. Particular attention must be given where children and vulnerable

people are present.

• IMPORTANT: Only use this heater on a horizontal and stable surface

with the castors attached.

• WARNING: In order to avoid overheating, do not cover the heater.

• The Heater carries this warning symbol indicating that it must

not be covered.

• Do not use this appliance in series with a thermal control, a program

controller, a timer or any other device that switches on the heat

automatically, since a fire risk exists when the appliance is accidentally

covered or displaced.

• In the event of a fault, unplug the appliance.

• Unplug the appliance when not required for long periods.

• This product is intended for INDOOR RESIDENTIAL applications only.

• DO NOT cover cord with carpeting, throw rugs, runners, or similar

coverings.

• DO NOT route cord under furniture or appliances. Take care to position

the cord away from traffic areas and where it will not be a tripping

hazard.

• This appliance must not be used in a bathroom.

• Although this appliance complies with safety standards, we do not

recommend its use on deep pile carpets or on long hair type of rugs

• The appliance must be positioned so that the plug is accessible.

• If the supply cord is damaged it must be replaced by the manufacturer

or service agent or a similarly qualified person in order to avoid a hazard.

• Keep the supply cord away from the front of the appliance.

• Do not use this heater in small rooms when they are occupied by

persons not capable of leaving the room on their own, unless constant

supervision is provided.

• To reduce the risk of fire, keep textiles, curtains and or flammable material

a minimum distance of 1m from the air outlet.

• DO NOT place material or garments on the appliance, or obstruct the

air circulation around the appliance, for instance by curtains or furniture,

as this could cause overheating and a fire risk.

• In order to avoid a hazard due to inadvertent resetting of the thermal cut-

out, this appliance must not be supplied through an external switching

device, such as a timer, or connected to a circuit that is regularly switched

on and off by the utility.

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND

RETAINED FOR FUTURE REFERENCE.

Note also the information presented on the appliance

Exposed to the

weather outdoors

Near water If the power cable

wires are frayed or cut

Where small children

may be left unattended

No extension leads or

power boards

Where there is risk

of fire or close to

a naked flame

Where the power

cable may be

damaged

On a slope or

uneven surface

Where it may be

damaged by

chemicals

If there is a risk

of water falling on

the unit

Where there is a risk

of interference by

foreign objects

This product is not

made for DIY repair

Model no. OFRC15FA OFRC24FA

Power supply

230-240V~, 50Hz

Rated power

1500W

2400W

Heat settings

Thermostat Y Y

Timer N N

Turbo Fan Y Y

Weight (net) 8.7kg 11.1kg

Dimensions (w x d x h) 280 x 375 x 622mm 280 x 555 x 622mm

Specifications

For greater precision, please always refer to the rating label placed on the product.

WARNING THIS APPLIANCE MUST BE EARTHED

Fitting The Castors

WARNING: The column heater must only be operated with the wheels and castors

fitted and in an upright position. The castors must be fitted to the control panel and

on the bracket between the last and second last fin on the opposite end, as shown

in Fig.1.

Fitting the castors

1. Remove the box containing the castor assemblies from the packaging.

2. Fit the castors to the stub axles by applying hand pressure until each castor

clicks into position - see below Fig. 2. Note that the castors are designed to be a

tight fit on the axles but will rotate in use.

3. The castors can only be fitted between the outer fins (as shown in Fig. 1).

4. Turn the heater upside down on a carpet or other soft surface to avoid damage.

Ask a second person to help with this if necessary.

WARNING: THE HEATER IS HEAVY – ENSURE THAT IT IS SUPPORTED TO

PREVENT IT FROM TOPPLING.

5. Position the castor bracket 'A' (see Fig. 2) onto the threaded pins on the control

panel. Place the winged nut ‘C’ on the thread and tighten it securely.

6. Repeat the process for castor bracket ‘B’ onto the last fin.

7. Lift the heater clear off the floor, then turn it back upright and stand it on its

castors. It is now ready for use.

Fig 1. Fig 2.

OFRC15/OFRC15TI

OFRC25/OFRC25TI

On/O see

Table 1

OFRC15FA

OFRC24FA

Positioning

Select the position for the heater ensuring there is clearance from any furniture

and fittings of at least 300mm above the heater and 150mm each side. The heater

should only be operated on a flat stable surface. We recommend maximising the

clearance where possible.

NOTE: The radiator is designed for operation on an AC electricity supply, and is only

suitable for domestic use and similar indoor locations.

Tips

• The radiator is fitted with castors and a handle for ease of movement.

• A rocket switch provides the ability to choose an available heat output and

an adjustable thermostat enables the room temperature to be controlled

accordingly.

• Once the castors have been correctly fitted, no other assembly is required, just

plug and play!

Safety Features

This appliance incorporates a number of safety devices. In addition to the ‘Important

Safety Advice’ section your attention is drawn to the following;

Tilt Switch

The tilt switch will prevent the heater from working if it is accidentally tipped over on

its side.

If the radiator is tipped over while it is hot, disconnect the power and allow it to cool,

then stand the radiator back upright. Reconnect the power - normal operation should

be resumed.

Overheat Protection

The heater is fitted with a temperature limiter which will reduce the output of the heater

should it overheat for any reason. The product will return to normal operation after the

cause of the over heating has been rectified.

Cable Wrap

Turbo Switch

On/Off &

Heat Selection Switch

Thermostat

Neon

Operation

IMPORTANT - OBJECTS OR CLOTHING MUST NOT BE PLACED ON THIS HEATER.

Before using the heater ensure that all warnings and instructions have been read

carefully. To activate the heater simply plug it in. Neon indicator lights located at

the control area will illuminate when the appliance is plugged into the mains. This

indicates the appliance is energised and ready to use.

Please note – The element has been coated with a protective film which will burn off

during the first few minutes of use, this may cause a small amount of fuming. This is

quite normal – the fumes are non-toxic and will quickly disappear.

We recommend that you open a window to ventilate the room when using the

heater for the first time.

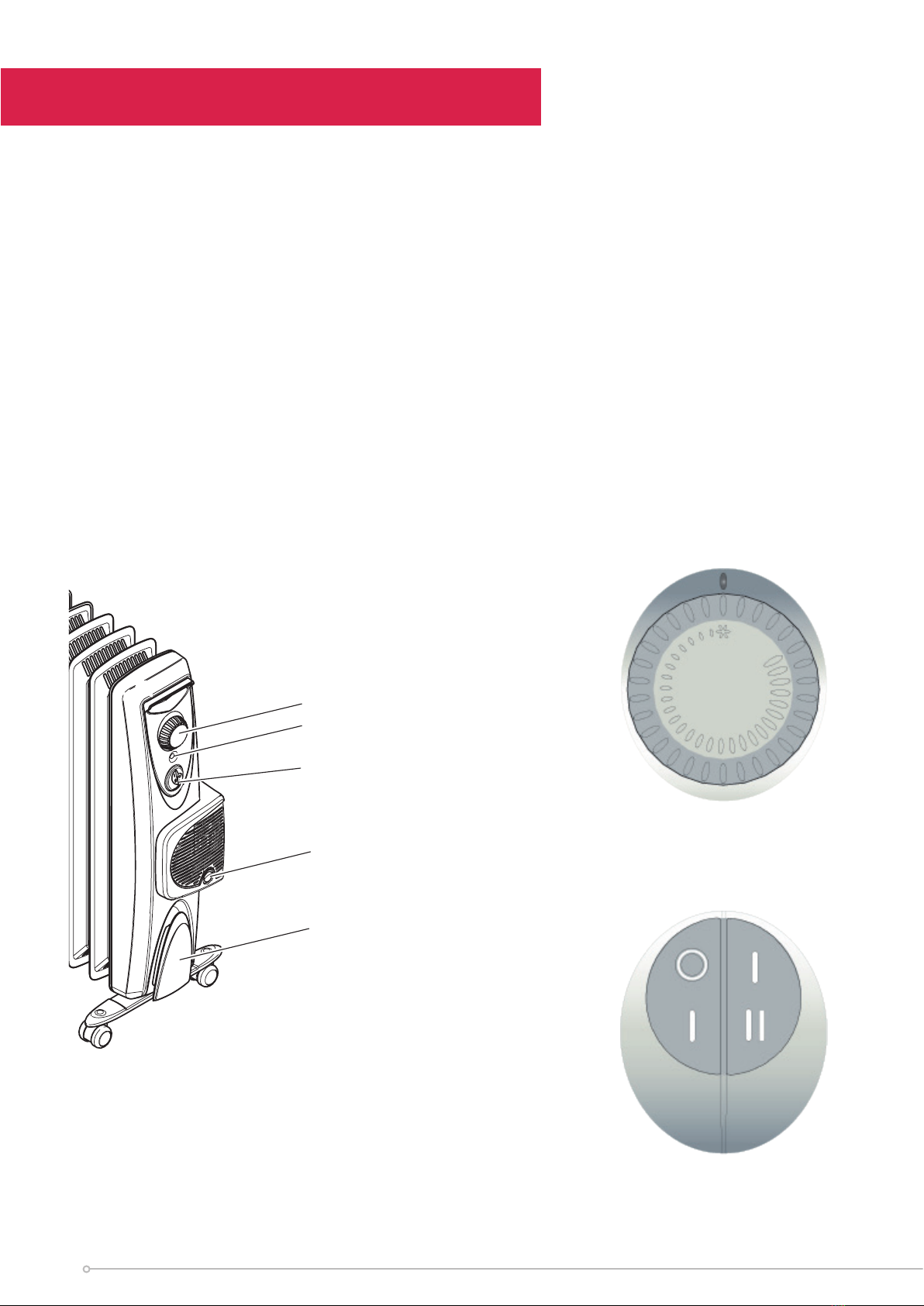

CONTROLS

Fig. 3

Fig. 4

Thermostat Dial

On/Off & Heat Switches

Operation

Thermostat

The Thermostat Dial Fig. 3 controls the heat output according to the room

temperature. This ensures that the column heater will not produce heat

unnecessarily when the room is already warm.

1. To set the temperature, turn the thermostat dial clockwise until the required

setting is reached. Alternatively to heat a cold room quickly, turn the thermostat

dial up fully.

2. When the room has reached the desired temperature, turn the thermostat

dial anti-clockwise until the thermostat just clicks off. The heater will now

automatically operate at this temperature.

3. The thermostat also has a frost protection setting marked '*' This setting is useful

in areas such as garages, or other cold indoor rooms, to prevent frost damage. If

the thermostat is set to its minimum setting '*' the heater will cycle on and off to

maintain a temperature of approximately 5°C to help protect against frost.

Note – If the heater fails to turn ON when the thermostat is at a low setting, this may

be due to the room temperature being higher than the thermostat setting.

On/Off & Heat Switches Fig. 4

Selector switches located on the control panel provide a choice of heat output to

suit varying conditions and for economy of operation.

Available output options are as follows:

Switch setting With

Turbo

Only

Turbo

Model O I II

0FRC15FA

Off 800W 1200W 1500W 300W

OFRC24FA

Off 1400W 2100W 2400W 300W

Turbo Fan

The turbo fan is used to boost the heat output and

also the airflow around the room. This circulates

the heat and results in a reduced heat up time

and a more even heat distribution. The turbo fan

is controlled by the switch on the front of the

product - see Fig 5.

The turbo can be turned on independently of the

heat.

Fig. 5

WARNING - ALWAYS DISCONNECT THE POWER SUPPLY BEFORE CLEANING THE

HEATER.

• Do not use detergents, abrasive cleaning powder or polish of any kind on the

body of the column heater.

• Allow the column heater to cool, then wipe with a dry cloth to remove dust and

a damp cloth (not wet) to clean off any marks. Be careful not to allow moisture

into to the heater.

Storage

If the heater is not required for long periods, for example during the summer, it should

be stored in a dry place and preferably covered to prevent the accumulation of dirt

and dust. The supply cord should be neatly coiled around the cable wrap ensuring that

the plug does not trail on the floor.

Cleaning

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dimplex Chauffage

Dimplex

Dimplex FPE 050E Manuel utilisateur

Dimplex

Dimplex DXC20 Manuel utilisateur

Dimplex

Dimplex LYDON Manuel utilisateur

Dimplex

Dimplex Studio G DXSTG25 Manuel utilisateur

Dimplex

Dimplex ECW 934 Manuel utilisateur

Dimplex

Dimplex Cadiz Eco CDR2T Manuel utilisateur

Dimplex

Dimplex CXLS12N Manuel utilisateur

Dimplex

Dimplex Q-Rad Series Manuel utilisateur

Dimplex

Dimplex DuoHeat Duo300i Manuel utilisateur

Dimplex

Dimplex DHCERA15M Manuel utilisateur

Dimplex

Dimplex XT12 Manuel utilisateur

Dimplex

Dimplex HAW1000N Manuel utilisateur

Dimplex

Dimplex B075E Manuel utilisateur

Dimplex

Dimplex LC Series Manuel utilisateur

Dimplex

Dimplex ARLWP800TI Manuel utilisateur

Dimplex

Dimplex Calidou CAL075 Manuel utilisateur

Dimplex

Dimplex DESC2T Manuel utilisateur

Dimplex

Dimplex DXDAI2 Manuel utilisateur

Dimplex

Dimplex GFP200 W Manuel utilisateur

Dimplex

Dimplex Studio G DXSTG25 Manuel utilisateur

Dimplex

Dimplex XMX706N Manuel utilisateur

Dimplex

Dimplex OFC12 Manuel utilisateur

Dimplex

Dimplex BFH24BWSR Manuel

Dimplex

Dimplex ROF2T Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
