Dimplex DHCER20HUM Manuel utilisateur

2kW Ceramic Heater

with Humidifier

Model: DHCER20HUM

INSTRUCTION MANUAL

PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT

TABLE OF CONTENTS

WARNINGS AND PRECAUTIONS.......................................................1

STRUCTURE ...................................................................................3

OPERATION....................................................................................4

CLEANING AND MAINTENANCE .......................................................9

TECHNICAL REFERENCE DATA ........................................................12

WARRANTY ....................................................................................12

WARNINGS AND PRECAUTIONS

Warnings

Never place the unit near gas appliances, flames or

flammable liquids.

Never hit or shake the unit. Doing so may cause damage.

Never cover or obstruct the air inlet or outlet.

Doing so may cause overheating.

Never spray water on or place the unit near water.

Doing so may cause electric shock.

Never connect other appliances to the same power outlet.

Never connect or disconnect the power plug with wet hands.

Doing so may cause electric shock.

Never insert fingers or objects through the guards when the unit

is operating.

Never use an extension cord.

Always have a professional technician, manufacturer or service agent

replace a damaged power cord.

Precautions

This appliance is for indoor use only.

Do not use the unit near windows or where water collects. Rain and

water collection may lead to a risk of fire or electric shock.

Do not place the unit in a damp place or where humidity is high

(such as a bathroom).

Do not leave the unit operating while unattended.

Do not place the unit in direct sunlight to avoid surface

discolouration.

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person

responsible for their safety.

Children should be supervised to ensure they do not play with the

appliance.

Avoid electromagnetic interference. Keep the unit at least 1 metre

away from electric appliances such as televisions and radios.

Avoid scratching and damaging the surface. Do not use chemical

solvents (i.e. Benzene, alcohol) to clean the surface.

Place the unit on a stable surface when operating.

Unplug the unit before cleaning, servicing or maintenance.

Electrical connections must be in accordance with National or

Local Codes.

The rear of the unit must be at least 50cm away from the wall.

Do not place the appliance on its side, back or front while in storage

or transport. The unit must be left in an upright position 2 hours

before operation.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order

to avoid a hazard.

WARNING: do not cover the heater. This may cause the unit to

overheat.

Do not use the heater in the immediate surroundings of bathtubs,

showers, washing stands or swimming pools.

The heater must not be located immediately below a socket‐outlet.

STRUCTURE

1. Touch control

2. Silver circle

3. Display panel

4. Front grille

5. Front cover

6. Back filter cover

7. Filter

8. Water tank nut

9. Water tank

10. Back cover plug

11. Mist output nozzle

12. Back cover

13. Water outlet cover

14. Base

15. Wing nuts (for base)

16. ON/OFF Switch

17. Power Cord

18. Humidifier indicator

19. Humidifier dial

OPERATION

DISPLAY PANEL

Power indicator

Temperature indicator

ECO function indicator

Timer indicator

High power indicator

Swing indicator

Low power indicator

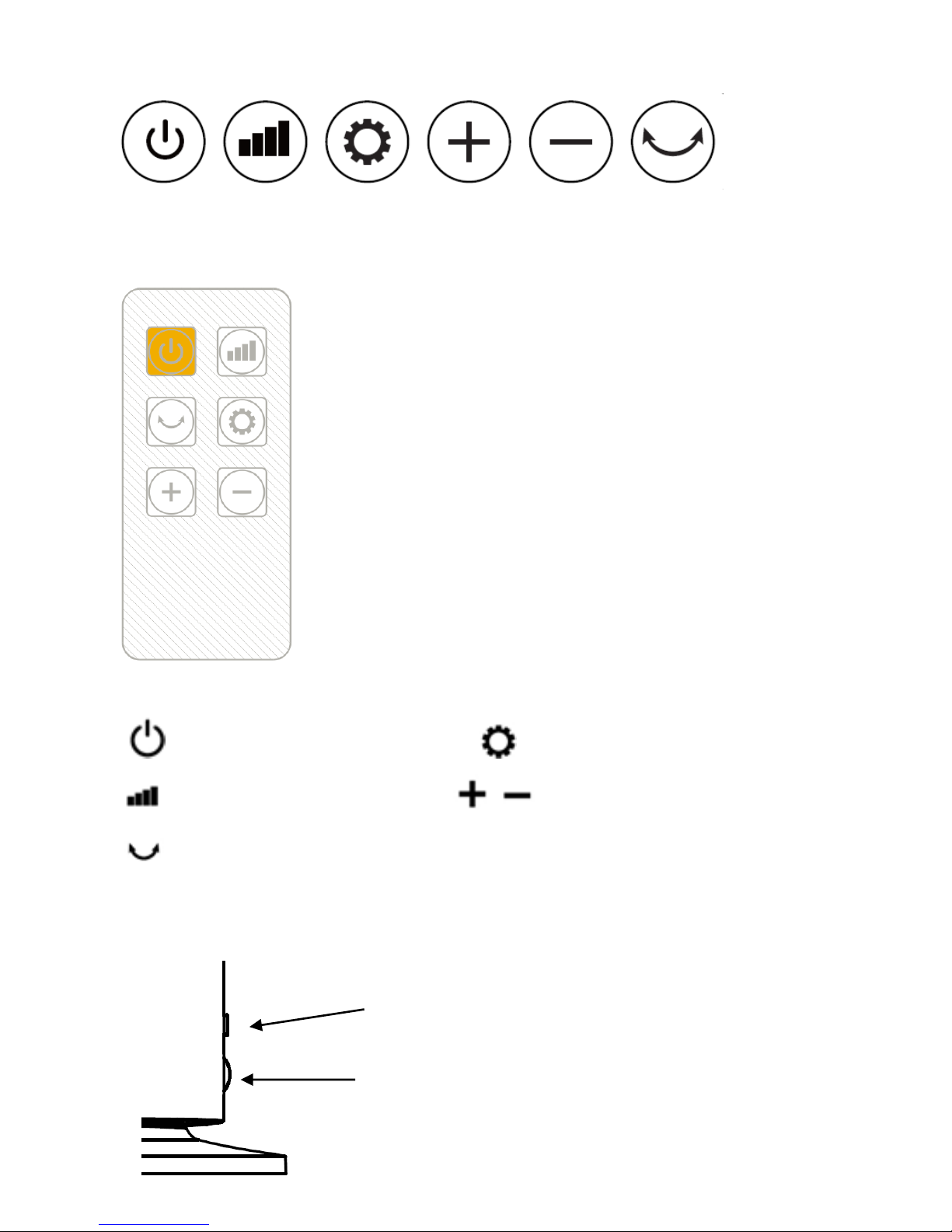

CONTROL PANEL

REMOTE CONTROL

ON/OFF button

Timer/temperature set button

Mode button

Timer/temperature button

Swing button

HUMIDIFIER INDICATORS

Indicator light

Dial to adjust

mist output

PRODUCT ASSEMBLY

1. Remove the unit from the packaging. There are 3 x parts –the main

body, base & remote control.

2. Insert the base into the main body, and secure with the 2 wing nuts

provided.

3. Place the unit upright on an even stable surface.

ON / OFF

This button is used to switch the unit ON and OFF.

TIMER

A timer can be set so the unit turns off automatically after a set period.

When Pressing the TIMER button once, the ‘h’ indicator will illuminate. Press

the ‘+/-’button to set the timer between 0-12 hours. Each press of the ‘+/-’

button increases/decreases the set time in 1 hour increments. If a time isn’t

set within 5 seconds, the unit will exit the timer function and revert to

displaying the room temperature.

MODE

This button is used to switch between pre-set operating modes. By simply

pressing the button, you can regulate the mode from LOW Power to HIGH

Main body

Base

Wing nuts

Power or ECO mode depending on your needs. The unit automatically starts

in LOW Power mode.

SWING

The unit will begin to oscillate after pressing the SWING button, and the

indicator light will illuminate. To turn off the SWING function, press the

swing button again, and the swing will stop and the indicator light will switch

off.

ECO MODE

When ECO Mode is selected, the unit will automatically adjust to suitable

settings according to the room temperature. When the room temperature is

below 18°C, the unit will operate in HIGH Power, and when the room is

above 18°C, the machine will operate in LOW Power. When the room

reaches 22°C the unit will stop working, until the room temperature

decreases, and will then start working again.

HUMIDIFIER

This heater has an inbuilt humidifier function. Humidifiers put moisture back

into the air, helping reduce allergens and allergies. Humidifiers are great for

those with skin conditions such as eczema. The water tank in the unit will

need to be filled in order to use this function.

REMOTE CONTROL

The remote control can be used to operate all functions.

1. Remove the battery cover at the back of remote control (Picture

2).

2. Insert the battery (included) [Picture 3].

3. Replace the battery cover.

Operation

1. Connect the unit to a power supply and switch on.

2. The unit will be in standby mode and sound a ‘beep beep’once

connected to the power supply. The ON/OFF indicator light will

illuminate.

3. Press the ON/OFF button to turn the unit ON.

4. The unit defaults to: Low Power, no swing and a temperature setting

of 25°C.

5. Press the Mode button to change the setting. The mode is changed

in sequence: Low Power, High Power & Eco mode. The respective

indicator light will illuminate to show what mode is selected.

6. Press the Timer/Temperature button once, to set a time for the unit

to turn off automatically. The number will flash on the LED display

when the time is ready to be set. Time is set in 1 hour increments,

and can be set up to 12 hours. Press the ‘+/-’buttons to set the

desired time.
