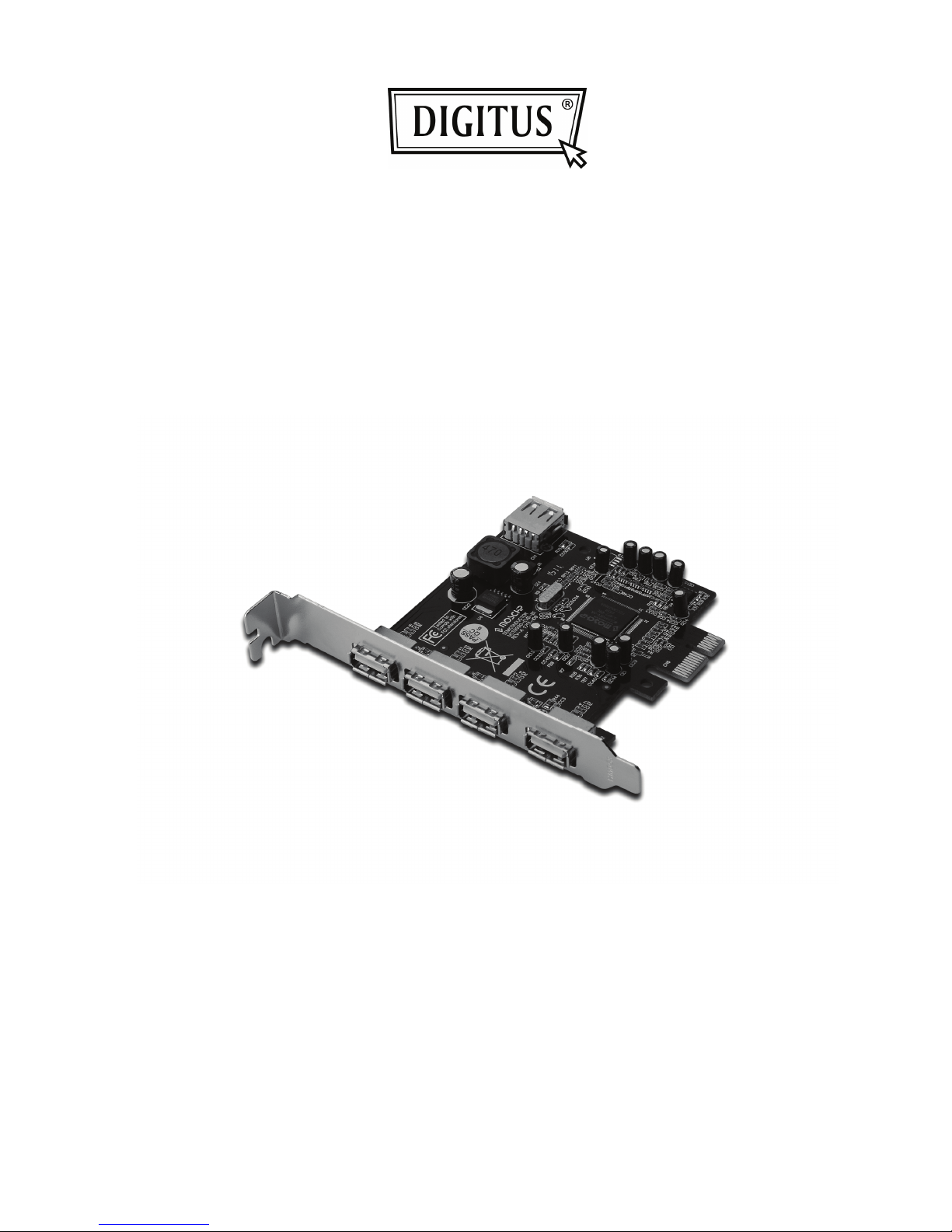

Digitus DS-30202-1 Manuel utilisateur

USB 2.0

4+1 PORT PCI EXPRESS CARD

User Manual

DS-30202-1

Features and Benefits

1. Fully compliant with PCI Express Base Specification Revision 1.1

2. Single-lane (x1) PCI Express throughput rates up to 2.5 Gbps

3. Compliant with Universal Serial Bus specification revision 2.0

4. Provides independent four external and one internal USB 2.0 high

speed ports (internal port is sharing with the 1

st

external port)

5. Supports simultaneous operation of multiple USB 2.0 and USB 1.1

devices

6. Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps)

Built-in 4-pin power connector for receiving extra power supply from

system

System Requirements

1. Windows

®

XP/Vista/Win 7 (32/64 bit)

2. One available PCI Express slot

Package Contents



1 x USB2.0 4+1 Port PCI Express Card

1 x Driver CD

1 x User Manual

Hardware Installation

1. Turn off the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCIe slot.

4. To install the card, carefully align the card’s bus connector with the

selected PCIe slot on the motherboard. Push the board down firmly.

5. Replace the slot bracket’s holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

Driver Installation

For Windows XP (32-bit/64-bit)

Once the Windows XP startup, USB 2.0 PCI Express card will be

installed automatically without driver installation.

For Windows Vista/7 (32-bit/64-bit)

Once the Windows Vista/7 startup, USB 2.0 PCI Express card will be

installed automatically without driver installation.

The USB 2.0 PCI Express card will detect with four instances Standard

EHCI USB Host controller & four standard OHCI USB host controller

ports in Device Manager as shown below.
