Wireless AC 433Mbps Dual Band

USB 2.0 Adapter

User Manual

DN-70560 • DN-70565

DN-70560

DN-70565

2/ 36

Chapter 1: Introduction…………………………………….………….3

1.1 Product Features……………………………………………………….……………….3

1.2 Package Contents……………………………………………………………………….3

1.3 Indicator Description………………………………………………………………….3

CHAPTER 2: Quick Installation Guide……………………………….4

2.1 Driver Installation……………………………………………………………………….4

2.2 Connect to Wireless Access Point……………………………………………….7

2.2.1 Using Client Utility……………………………………………………………………7

2.2.2 Using Windows Zero Configuration………………………………………….12

CHAPTER 3: Client Utility………………………………………………..16

3.1 Connection Profile Management………………………………………………….16

3.1.1 Add a new profile……………………………………………………………………..17

3.1.2 Remove an existing profile……………………………………………………….19

3.1.3 Edit an existing profile………………………………………………………………20

3.1.4 Make a copy of existing profile………………………………………………..21

3.1.5 Set as default profile………………………………………………………………..21

3.2 View Network Statistics, General Information, and Status……….22

3.2.1 General Information………………………………………………………………….22

3.2.2 Status………………………………………………………………………………………..23

3.2.3 View Network Statistics…………………………………………………………….23

3.3 Miscellaneous Settings………………………………………………………………….24

3.4 Establish secure connection with AP by WPS……………………………….25

3.4.1 PIN Code…………………………………………………………………………………….27

3.4.2 Push Button………………………………………………………………………………..28

CHAPTER 4 Soft AP Function…………………………………………….29

4.1 Switch to AP Mode and Station Mode…………………………………………..29

4.1.1 Configure SSID and Channel…………………………………………………….31

4.1.2 Setup Soft-AP Security……………………………………………………………..32

4.2 Advanced Settings………………………………………………………………………..33

4.3 Wireless Statistics………………………………………………………………………….34

4.4 Internet Connection Sharing (ICS)……………………………………………….35

CHAPTER 5: Troubleshooting……………………………….………….35

3/ 36

Chapter 1. Introduction

Thank you for purchasing the wireless 802.11b/g/n/a/ac USB adapter! This

adapter is mini size design and you are able to plug it into the USB port.

Excepting common wireless standards 802.11b/g/n, this wireless adapter is

also 802.11ac compatible - data transfer rate is 150/433Mbps, and that’s

three times faster than 802.11g wireless network!

1.1 Product Features

◆Complies with IEEE 802.11ac , IEEE 802.11a,IEEE 802.11n, IEEE 802.11g

and IEEE 802.11b standards

◆Provides USB2.0 port

◆Provides 150/433Mbps receiving rate and 150/433Mbps sending rate

◆Supports 20MHz/40MHz/80MHz frequency width

◆Auto-detects and changes the network transmission rate

◆Provides two work modes: Infrastructure and Ad-Hoc

◆Supports Soft AP to establish your wireless LAN networking

◆Supports 64/128-bit WEP, WPA, WPA2 encryption methods and 802.1x

security authentication standard

◆Supports WPS (Wi-Fi Protected Setup) encryption method to free you from

remembering long passwords

◆Easy-to-install, plug and play

◆Supports Windows XP/VISTA/Win7/ Win8/Linux/Macintosh

1.2 Package contents

The following contents should be found in your box:

◆One Wireless 802.11b/g/n/a/ac USB adapter

◆One CD (include driver/utility/user manual)

Note: If any of the listed contents are damaged or missing, please contact the

retailer from whom you purchased the product for assistance.

1.3 Indicator Description

There is a LED indicator blinking when data communication is going on.

4/ 36

CHAPTER 2: Quick Installation Guide

This chapter is to assist you how to use the included CD-ROM which

comprises the Driver and the Client Utility Interface.

2.1 Driver Installation

Please follow the following instructions to install your new wireless USB

Adapter:

2.1.1

Insert the USB wireless network card into an empty USB 2.0 port of your

computer when computer is switched on. Never use force to insert the card,

if you feel it’s stuck, flip the card over and try again.

2.1.2

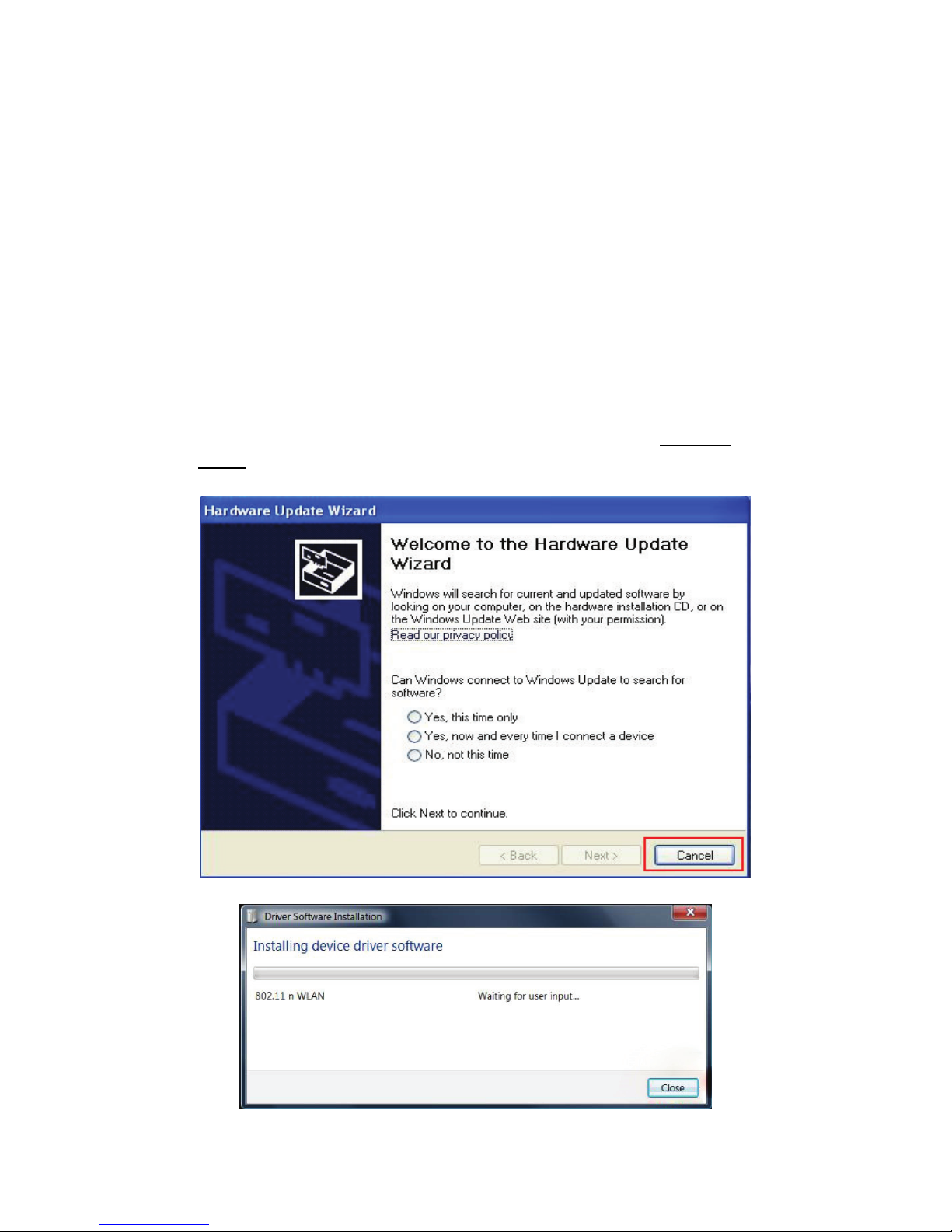

The following message will appear on your computer, click ‘Cancel /

Close’.

Under Windows XP

Under Windows Vista and Windows 7/8

5/ 36

2.1.3

Insert the driver CD into your CD-ROM. You can see autorun screen below.

if not, you can double click ‘autorun.exe’ on CD.

Click ‘Install Driver’ to start the installation procedure

2.1.4

Installation descriptions shown. Click ‘Next’ to continue

6/ 36

2.1.5

Once the installation is finished the computer will be asked to reboot. you

can click ‘Finish’ and reboot the computer to finish the installation of driver

files.

2.1.6

A new icon will appear near the clock of system tray:

Left-click the icon will launch wireless network configuration utility, and

you can right-click the icon to show the quick menu of configuration utility.

This icon also uses different color to show the status of wireless

connection:

Wireless connection is established, good signal reception.

Wireless connection is established, weak signal reception.

Connection is not established yet.

7/ 36

Wireless network card is not detected.

For detailed instructions of wireless network configuration utility, please see

next chapter.

2.2 Connect to Wireless Access Point

To use wireless network, you have to connect to a wireless access point

first. You can either use Client utility (comes with network card driver), or

Windows Zero Config utility (comes with Windows operating system).

2.2.1 Using Client Utility

Please follow the following instructions to use Client configuration utility to

connect to wireless access point.

1. Left-click the Client configuration utility icon located at lower-right corner of

computer desktop, and configuration menu will appear:

HERE!

2. Wireless utility will appear. Click ‘Available Network’ menu to search for

wireless access points nearby.

8/ 36

3. Please wait for a while, and all wireless access points which can be

reached by this wireless network card will be displayed here.

If the wireless access point you wish to connect does not appear here, you

can click ‘Refresh’ button to scan for wireless access points again; if the

wireless access point you’re looking for still not appear, try to move the

computer closer.

When the access point you’re looking for is on the list, left-click it and then

double click it or click ‘Add to Profile’.

4. If a password (a.k.a. ‘Network Key’) is required to access the wireless

access point, please input it in ‘Network key’ (and input it again in

‘Confirm network key’ for confirmation). Click ‘OK’ when password is

properly inputted.

NOTE: Network security type (‘Network Authentication’ and ‘Data

encryption’) will be selected automatically based on wireless access

point’s security setting. It’s not required to change these settings by

yourself.

9/ 36

All options in this page will be filled automatically according to the access

point you wish to add to profile. However, you can still modify any of them

to meet your requirement.

Profile name

You can give a name to this profile, so you can

remember its purpose easily. It can be any phrase

to help you remember.

Network Name (SSID)

The SSID (Service Set IDentifier, i.e. access point’s

name). This field will be filled as the access point

you selected when SSID is not hidden and grayed

out. If SSID is hidden, you have to input correct

SSID you yourself.

This is a

computer-to-computer

(ad hoc) network

Check this box if you wish to connect to another

computer / network device by ad hoc method.

When not accessing to wireless access point, you

have to check this box.

Channel

Select wireless channel for ad hoc connection. This

option only appears when you’re using ad hoc

connection.

Network Authentication

Select the network authentication type from

drop-down menu. This setting must be identical

with the setting of wireless access point you with to

connect.

10 / 36

Data encryption

Select the data encryption type from drop-down

menu. This setting must be identical with the setting

of wireless access point you with to connect.

ASCII / PASSPHRASE

When the encryption type is ‘WEP’, it’s required to

input a set of ‘passphrase’ to connect to wireless

access point. Check ‘ASCII’ or ‘PASSPHRASE’

depends on the security setting of access point,

and input it in the box; if you select ‘PASSPHRASE’

you also need to select the length of the key.

The passphrase must be identical with the setting

of wireless access point you with to connect.

Key index

Select WEP key index. For most of access points

you can select ‘1’, but please refer to the setting of

the access point.

Network key / Confirm

network key

When the encryption type is ‘WPA’ or ‘WPA2-PSK’,

it’s required to input a set of ‘passphrase’ to connect

to wireless access point. Please input the same

passphrase in two boxes for confirmation.

EAP TYPE / Tunnel /

Provision Mode

When authentication type is any of 802.1X, you

have to select EAP type, tunnel, and provision

mode from dropdown menu. This setting must be

identical with your 802.1x authentication server.

Username / Identity /

Domain / Password

Please input 802.1x related authentication

information here.

Certificate

If certification is required to authenticate with

802.1x authentication server, please select a local

certificate from dropdown list.

PAC

Check this box and PAC (Privilege Access

Certificate) will be automatically selected.

Please click ‘OK’ when ready.

5. Network card will attempt to connect to access point now, this may require

few seconds to minutes, please be patient. When the ‘Status’ become

‘Associated’ , your computer is connected to access point you selected.

Click ‘Close’ to close configuration menu.
