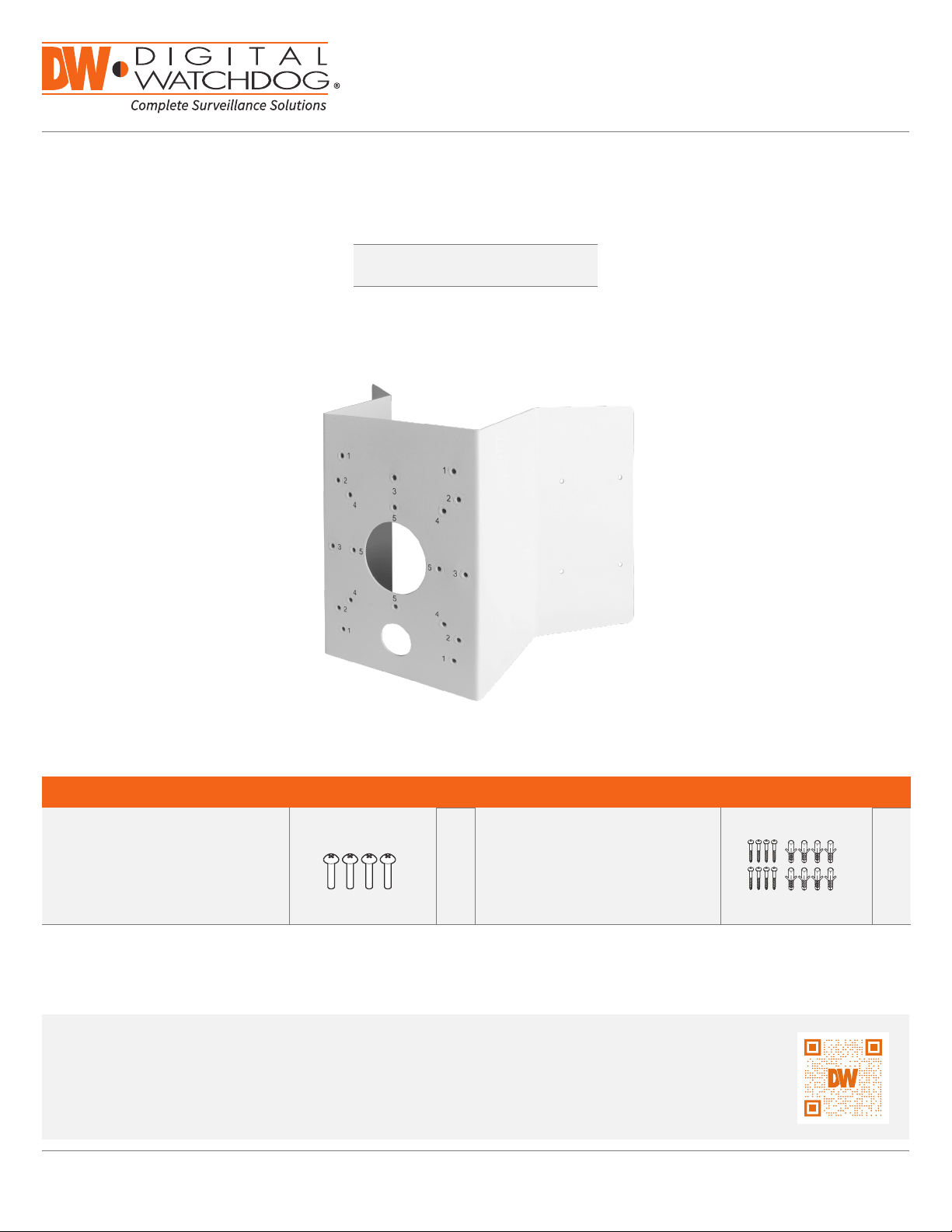

Digital Watchdog DWC-V1CNMW Manuel utilisateur

Corner bracket for DW cameras

Quick Start Guide

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday

digital-watchdog.com

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in the ‘Search by Product’ search bar. Results

for applicable part numbers will populate automatically based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

WHAT’S IN THE BOX

Camera Mounting Screws 4Screws and Plastic Anchors 8

DWC-V1CNMW

Quick Manual

Ver. 1.1 / 2021.06

Before installing and using the Camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Please check if all the camera and accessories are included in the package.

Wall / Junction Bracket

Corner Mount Bracket Manual

1. Accessories & Dimension

Mount Screw 4ea Screw &

Plastic Anchor - 8pcs

2. Installation

MOUNT POINT 3, 4

ø121mm

MOUNT POINT 5

ø78mm

MOUNT POINT 1

102mm x 142mm

MOUNT POINT 2

105mm x 110mm

DWC-PZWM wall mount bracket

for multi-sensor IP cameras

All other dome camera wall mount brackets

DWC-WMJUNCW junction box

for wall mount brackets

DWC-P230WMW wall mount

bracket for PTZ IP cameras

DWC-BLJUNC-W and

DWC-PBJUNC junction boxes

for bullet cameras

145

200

MOUNTING HOLES #1 MOUNTING HOLES #3 MOUNTING HOLES #5

MOUNTING HOLES #2 MOUNTING HOLES #4

Quick Manual

Ver. 1.1 / 2021.06

Before installing and using the Camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Please check if all the camera and accessories are included in the package.

Wall / Junction Bracket

Corner Mount Bracket Manual

1. Accessories & Dimension

Mount Screw 4ea Screw &

Plastic Anchor - 8pcs

2. Installation

MOUNT POINT 3, 4

ø121mm

MOUNT POINT 5

ø78mm

MOUNT POINT 1

102mm x 142mm

MOUNT POINT 2

105mm x 110mm

DWC-PZWM wall mount bracket

for multi-sensor IP cameras

All other dome camera wall mount brackets

DWC-WMJUNCW junction box

for wall mount brackets

DWC-P230WMW wall mount

bracket for PTZ IP cameras

DWC-BLJUNC-W and

DWC-PBJUNC junction boxes

for bullet cameras

145

200

MOUNTING HOLES #1 MOUNTING HOLES #3 MOUNTING HOLES #5

MOUNTING HOLES #2 MOUNTING HOLES #4

Quick Start Guide

Rev: 10/21

Speciﬁcations and pricing are subject to change without notice.

INSTALLATION

Mounting point Compatible wall mount Mounting size

Mounting point 1 DWC-P230WMW 4.01” x 5.59” (102x142mm)

Mounting point 2 DWC-PZWM 4.13” x 4.33” (105x110mm)

Mounting point 3 DWC-WMJUNCW Ø 4.76” (Ø 121mm)

Mounting point 4 All other dome camera wall mount

brackets Ø 4.76” (Ø 121mm)

Mounting point 5 DWC-BLJUNC-W, DWC-BLJUNC,

DWC-B7JUNC Ø 3.07” (Ø 78mm)

DWC-P230WMW wall mount

bracket for PTZ IP cameras

MOUNTING HOLES #1

DWC-WMJUNCW junction box

for wall mount brackets

MOUNTING HOLES #3

DWC-BLJUNC-W and

DWC-PBJUNC junction boxes

for bullet cameras

MOUNTING HOLES #5

DWC-PZWM wall mount bracket

for multi-sensor IP cameras

MOUNTING HOLES #2

All other dome camera wall mount brackets

MOUNTING HOLES #4

1Place the corner mount in the desired location on the wall corner.

2Using the screws and wall anchors included, attach the mount ﬁrmly to the wall corner.

3Use the table below to pair your wall mount or junction box with the appropriate set of mounting holes

on the corner mount.

Corner mount front view
