Digital Watchdog V1372TIR Series Manuel utilisateur

V1372TIR Series

About manual

INSTRUCTION MANUAL

Before installing and using the camera, please read this

manual carefully.

Be sure to keep it handy for future reference.

5436 W Crenshaw Street

Tampa, FL 33634

www.digital-watchdog.com

Technical Support : 1-866-446-3595/813-888-9555

Before installing and using the camera, please read this

manual carefully.

Be sure to keep it handy for future reference.

5436 W Crenshaw Street

Tampa, FL 33634

www.digital-watchdog.com

Technical Support : 1-866-446-3595/813-888-9555

PRECAUTIONS

■Do not open or modify

Do not open the case except during maintenance and installation,

as it may be dangerous and cause damages.

■Do not put objects inside the unit

Make sure that no metal objects or flammable substances

get inside the camera. It could cause fire, short-circuits or damages.

■Be careful when handling the unit

To prevent damage, do not drop the camera or subject it to

strong shock or vibration.

■Install away from electric or magnetic fields

■Protect from humidity and dust

■Protect from high temperature

Be careful when installing close to the ceiling , in a kitchen or boiler

room, as the temperature may rise to high levels.

■Do not open or modify

Do not open the case except during maintenance and installation,

as it may be dangerous and cause damages.

■Do not put objects inside the unit

Make sure that no metal objects or flammable substances

get inside the camera. It could cause fire, short-circuits or damages.

■Be careful when handling the unit

To prevent damage, do not drop the camera or subject it to

strong shock or vibration.

■Install away from electric or magnetic fields

■Protect from humidity and dust

■Protect from high temperature

Be careful when installing close to the ceiling , in a kitchen or boiler

room, as the temperature may rise to high levels.

■Cleaning

Dirt can be removed from the case only by wiping it with a soft cloth

moistened with a soft detergent solution.

■Mounting Surface

The mounting surface material must be strong enough to support

the camera.

TROUBLESHOOTING

Before sending the camera out for repair, check the items below.

If the problem persists after checking these items, contact your service

center.

■If no image appears

Is the coaxial cable attached securely?

Are the power and voltage normal?

Has the iris of the lens inside the camera been

adjusted correctly (with the level volume) ?

Is there adequate illumination?

■If the image is unclear

Is the lens in focus?

Is the lens dirty?

Dirt or fingerprints on the lens can adversely affect the

Before sending the camera out for repair, check the items below.

If the problem persists after checking these items, contact your service

center.

■If no image appears

Is the coaxial cable attached securely?

Are the power and voltage normal?

Has the iris of the lens inside the camera been

adjusted correctly (with the level volume) ?

Is there adequate illumination?

■If the image is unclear

Is the lens in focus?

Is the lens dirty?

Dirt or fingerprints on the lens can adversely affect the

images. Gently wipe any dirt or fingerprints off the lens

with a soft cloth or lens cleaning paper and cleaning

fluid (commercially available).

Is the monitor adjusted correctly?

WARNING:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

DIMENSION (mm)

INSTALLATION

INSTALLATION (cont.)

1. Loosen the fixing screw (A) using a screwdriver.

2. Separate the upper case (B) and the base case (D).

3. Cut a hole in the ceiling for routing the cables.

4. Place the camera horizontally on the ceiling, drill the screw

holes at the marked four positions.

5. Pass the power cable (E) and video cable (F) from the camera

unit through the cable hole in the ceiling.

6. Align the screw holes of the camera unit with the holes in the

ceiling, secure with the four screws.

7. Install and adjust the camera unit.

8. Adjust the dome liner to show the lens through the camera

window fix to the base(D)

A. Loosen the fixing screw using the L ranch that came with the camera

B. Separate the upper case and the base case.

C. Cut a hole in the ceiling for routing the cables.

D. Place the camera horizontally on the ceiling, drill the screw

holes at the marked four positions.

E Pass the power cable and video cable from the camera

unit through the cable hole in the ceiling.

F. Align the screw holes of the camera unit with the holes in the

ceiling, secure with the four screws.

G. Install and adjust the camera unit.

H. Adjust the dome liner to show the lens through the camera

dtt hit

tthb

1. Loosen the fixing screw (A) using a screwdriver.

2. Separate the upper case (B) and the base case (D).

3. Cut a hole in the ceiling for routing the cables.

4. Place the camera horizontally on the ceiling, drill the screw

holes at the marked four positions.

5. Pass the power cable (E) and video cable (F) from the camera

unit through the cable hole in the ceiling.

6. Align the screw holes of the camera unit with the holes in the

ceiling, secure with the four screws.

7. Install and adjust the camera unit.

8. Adjust the dome liner to show the lens through the camera

window, fix to the base(D).

9. Put the upper case (B) and the base (D) together.

10. Tighten the screw (A) for the upper/base cases not to be

separated .

A. Loosen the fixing screw using the L ranch that came with the camera

B. Separate the upper case and the base case.

C. Cut a hole in the ceiling for routing the cables.

D. Place the camera horizontally on the ceiling, drill the screw

holes at the marked four positions.

E Pass the power cable and video cable from the camera

unit through the cable hole in the ceiling.

F. Align the screw holes of the camera unit with the holes in the

ceiling, secure with the four screws.

G. Install and adjust the camera unit.

H. Adjust the dome liner to show the lens through the camera

window and attach it to the base.

I. Put the upper case and the base together.

J. Tighten the screws with the L ranch for the upper and base not to be

separated .

CONNECTION

DC12

DC12V / AC24V

CAUTION :

Check for polarity when using a DC 12V power supply.

DC12

DC12V / AC24V

■LENS ADJUSTMENT

CAMERA SETTINGS

B. Focus lever

A. Zoom Lever

A. Set the zoom lever to the desired position by moving the Zoom lever.

B. Set the Focus lever as the image is focused by moving Focus lever.

B. Focus lever

A. Zoom Lever

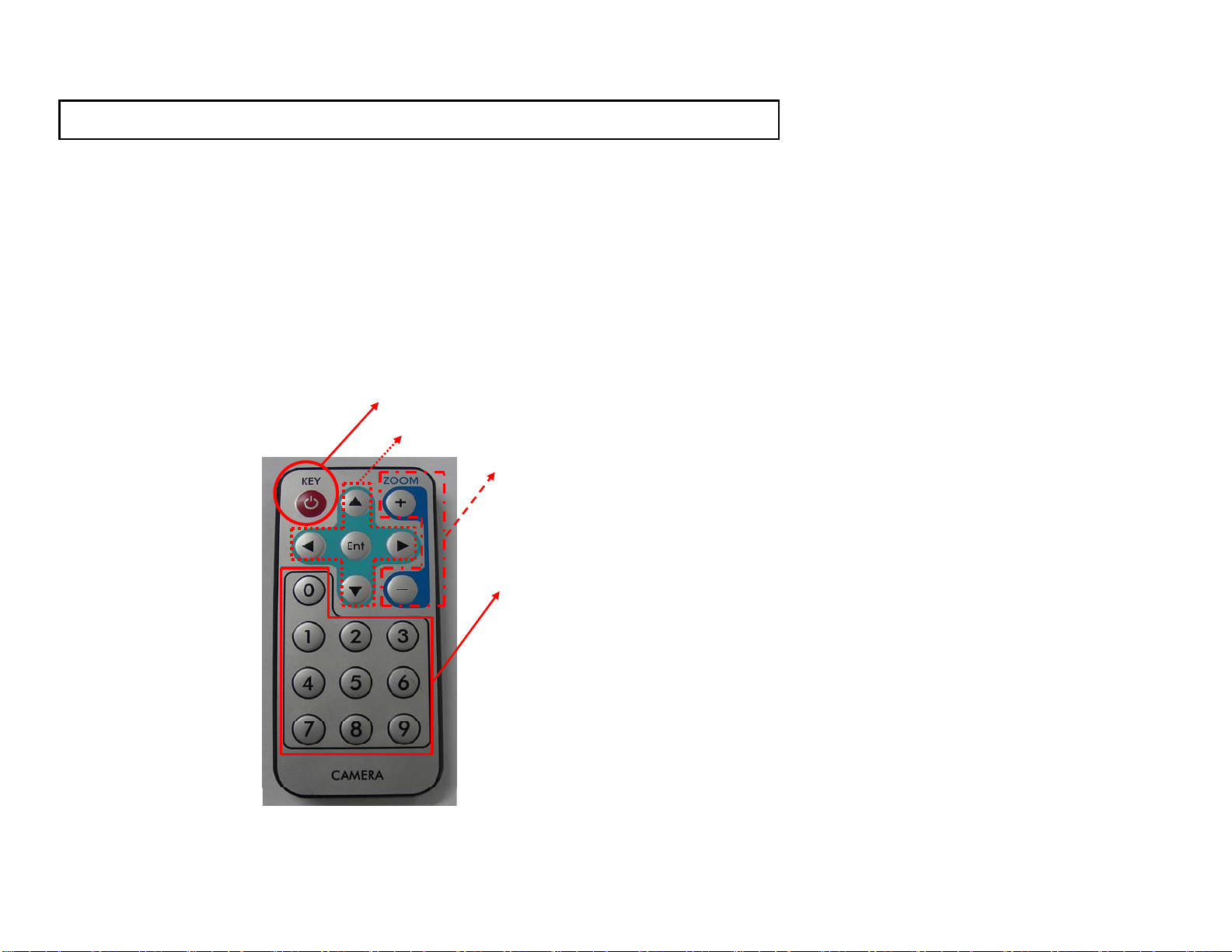

REMOTE CONTROL- V1372TIR Series [OPTIONAL]

KEY BUTTON

OSD BUTTON

PAN FOCUS CONTROL BUTTON

Omni‐FocusRemoteControlInstructions

1. ChecktheDipswitch(SW4)forcameraID(Defaultis0)

2. Pointtheremotecontroltowardsthecamera,thenpressand

hold[0]untiltheRedLEDlightstartflashing.

3. PressandholdtheKEYbutton,untilLEDturnsasolidRED.

4. PressthePlussign(+)toZOOMIN,Minussign(‐)toZOOMOUT

5. Pressthe[ENT]buttontoenterthesetupMenuandpress[KEY]

buttontoexit.

KEY BUTTON

OSD BUTTON

PAN FOCUS CONTROL BUTTON

ID BUTTON

Omni‐FocusRemoteControlInstructions

1. ChecktheDipswitch(SW4)forcameraID(Defaultis0)

2. Pointtheremotecontroltowardsthecamera,thenpressand

hold[0]untiltheRedLEDlightstartflashing.

3. PressandholdtheKEYbutton,untilLEDturnsasolidRED.

4. PressthePlussign(+)toZOOMIN,Minussign(‐)toZOOMOUT

5. Pressthe[ENT]buttontoenterthesetupMenuandpress[KEY]

buttontoexit.

V1372TIR

CAMERA SETTING FOR SIDE OSD CONTROL BOARD

2'nd Video

Joy Stick

2'nd Video

Joy Stick Key

(1) Ad

ustin

level volume

(

)

-V1362DIR, V1372TIR series

If the entire image is too dark or bright, or the backlight compensation is not correct

even after LENS is set to "DC", you need to adjust the level volume.

CCW (Low) Closes the lens iris, making the entire image darker

CW(High) Opens the lens iris, making the entire image drighter

(2) SECOND VIDEO OUT CONNECTOR

(

2ND VIDEO

)

If installer uses a protable monitor, this connector should be connected.
