ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Ball Camera

DWC-BL2651TIR

All manuals and user guides at all-guides.com

all-guides.com

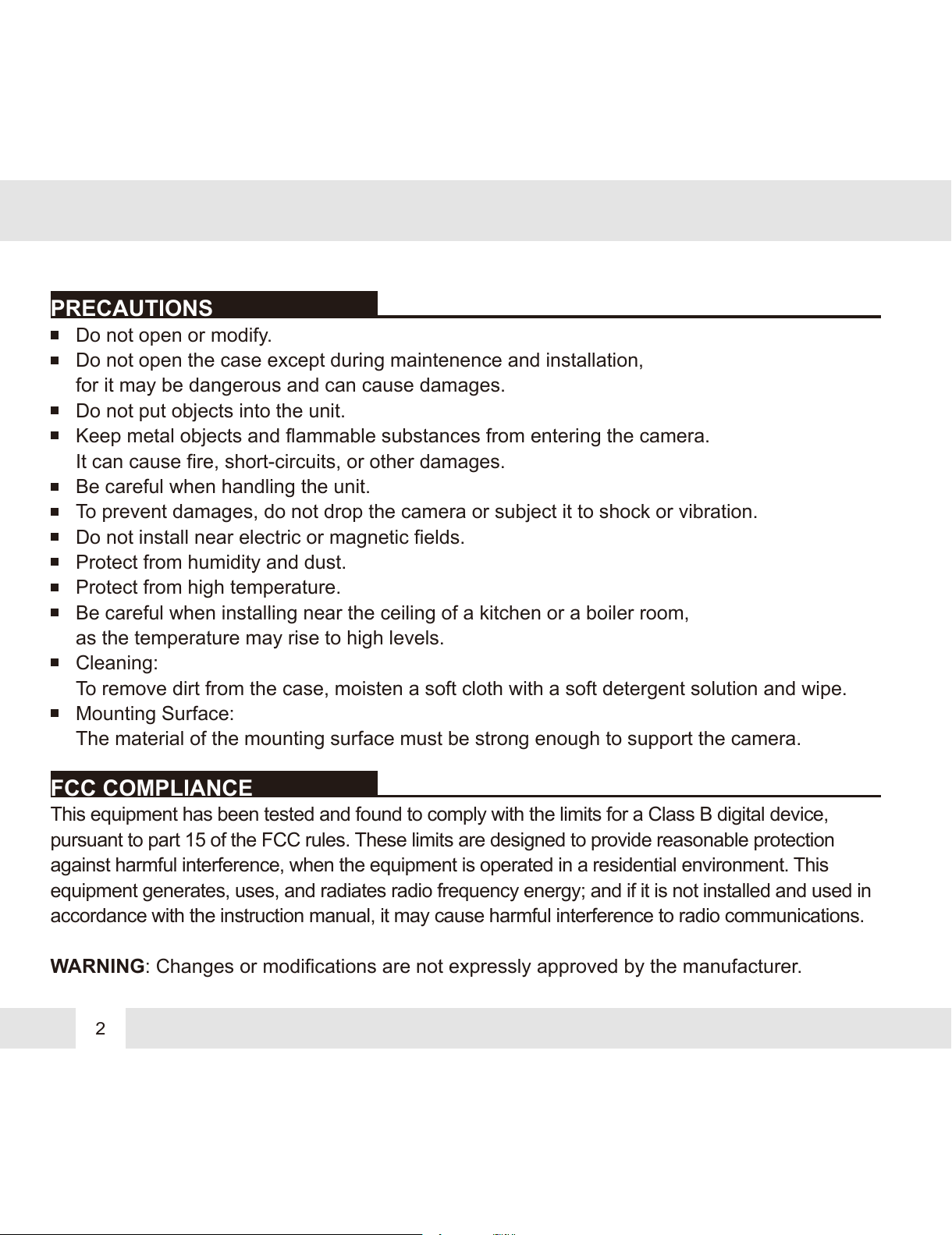

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

All manuals and user guides at all-guides.com

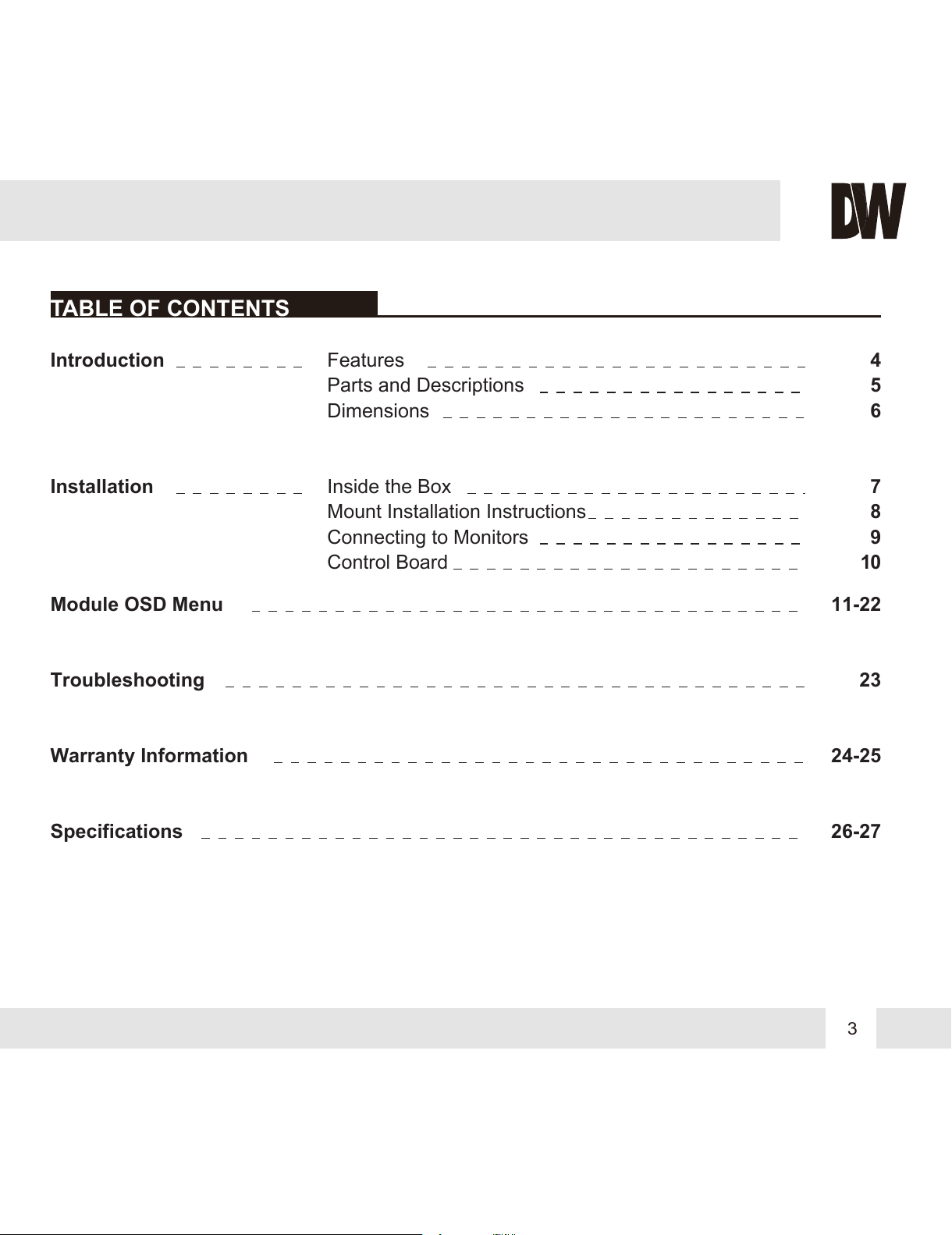

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Connecting to Monitors

Control Board

11-22

24-25

26-27

All manuals and user guides at all-guides.com

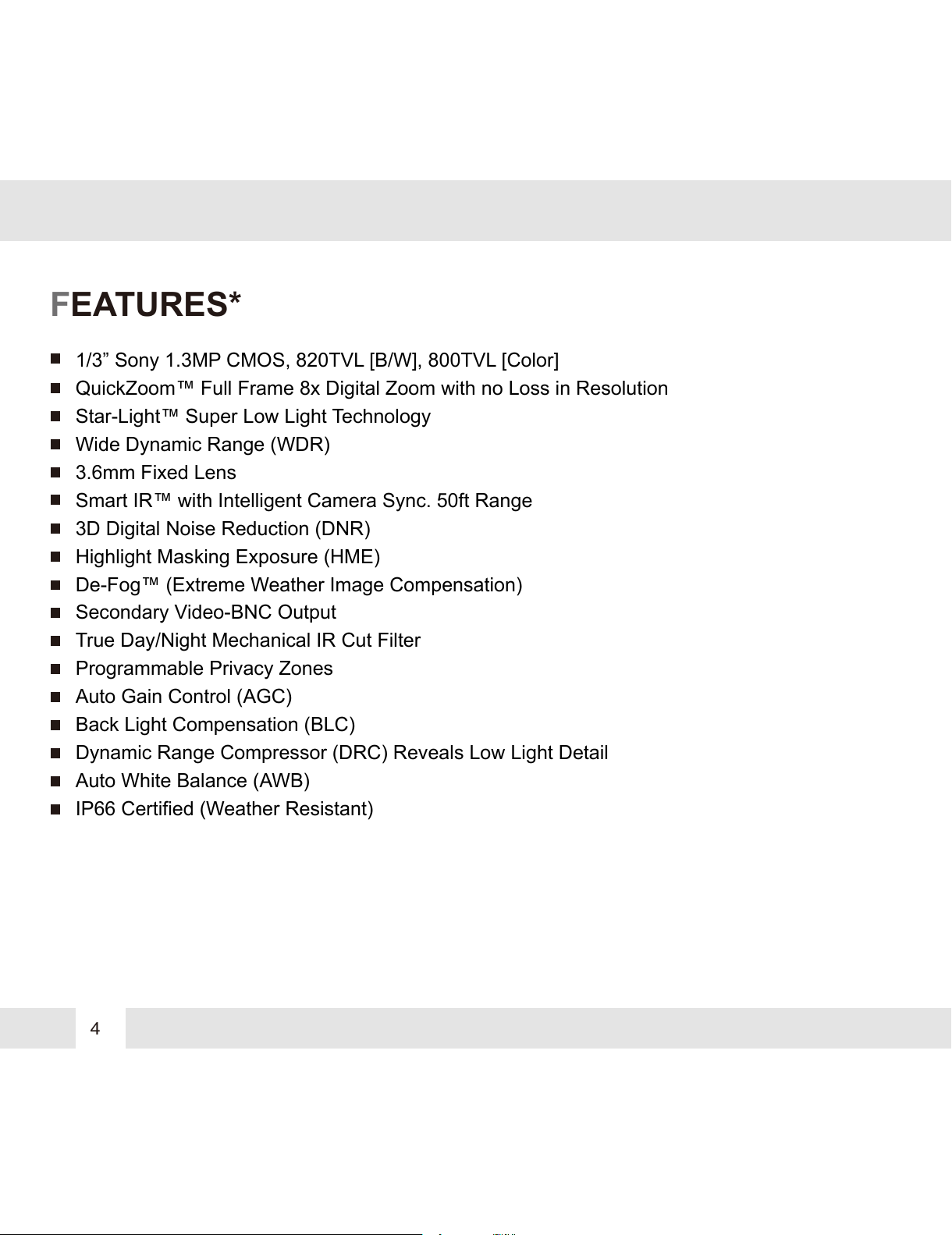

FEATURES*

1/3” Sony 1.3MP CMOS, 820TVL [B/W], 800TVL [Color]

QuickZoom™ Full Frame 8x Digital Zoom with no Loss in Resolution

Star-Light™ Super Low Light Technology

Wide Dynamic Range (WDR)

3.6mm Fixed Lens

Smart IR™ with Intelligent Camera Sync. 50ft Range

3D Digital Noise Reduction (DNR)

Highlight Masking Exposure (HME)

De-Fog™ (Extreme Weather Image Compensation)

Secondary Video-BNC Output

True Day/Night Mechanical IR Cut Filter

Programmable Privacy Zones

Auto Gain Control (AGC)

Back Light Compensation (BLC)

Dynamic Range Compressor (DRC) Reveals Low Light Detail

Auto White Balance (AWB)

IP66 Certified (Weather Resistant)

All manuals and user guides at all-guides.com

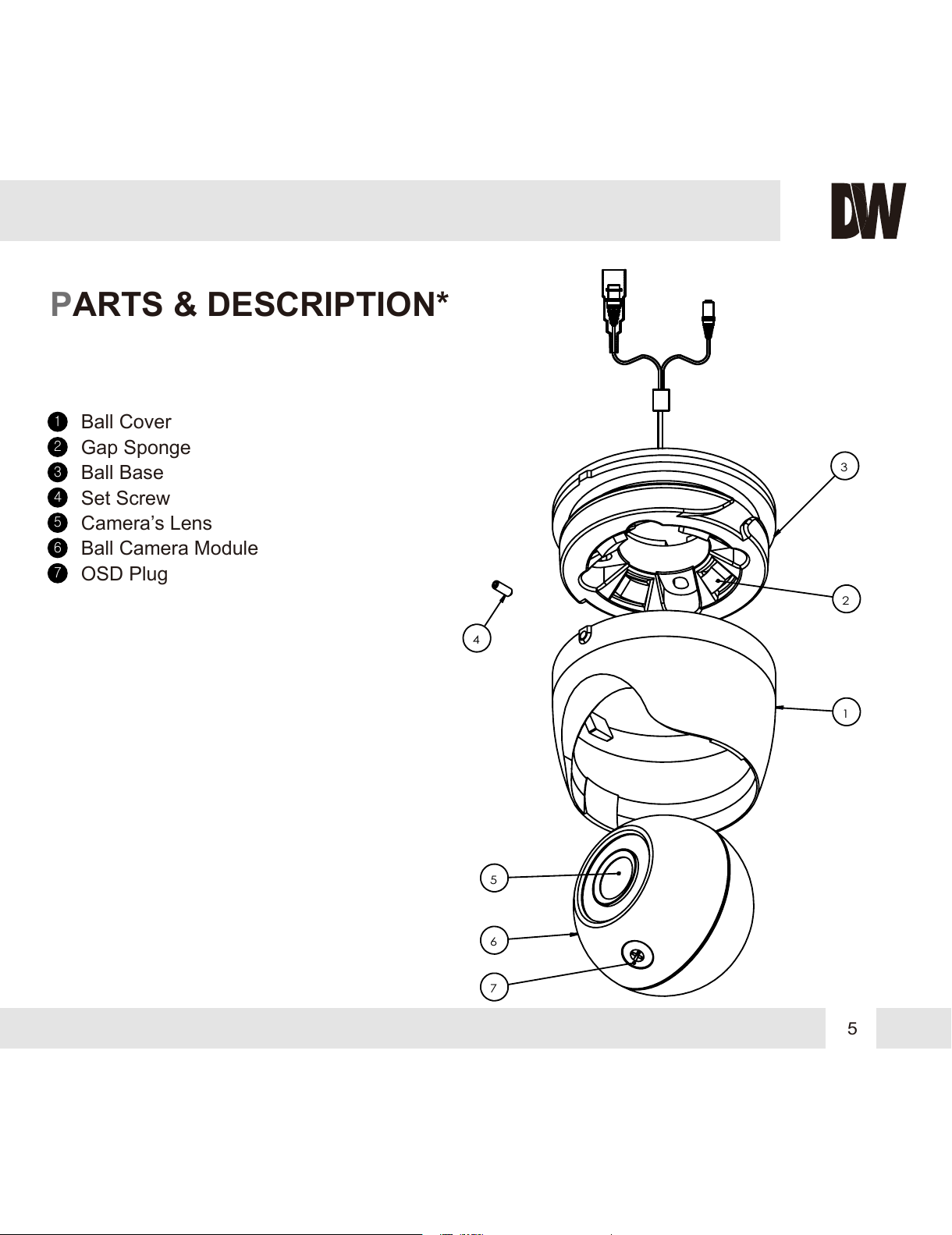

PARTS & DESCRIPTION*

1Ball Cover

Gap Sponge

Ball Base

Set Screw

Camera’s Lens

Ball Camera Module

OSD Plug

All manuals and user guides at all-guides.com

DIMENSIONS IN MILLIMETERS (IN)*

79.8 3.14”

54.8 2.16”

80.0 3.15”

46.0 1.81”

All manuals and user guides at all-guides.com

all-guides.com

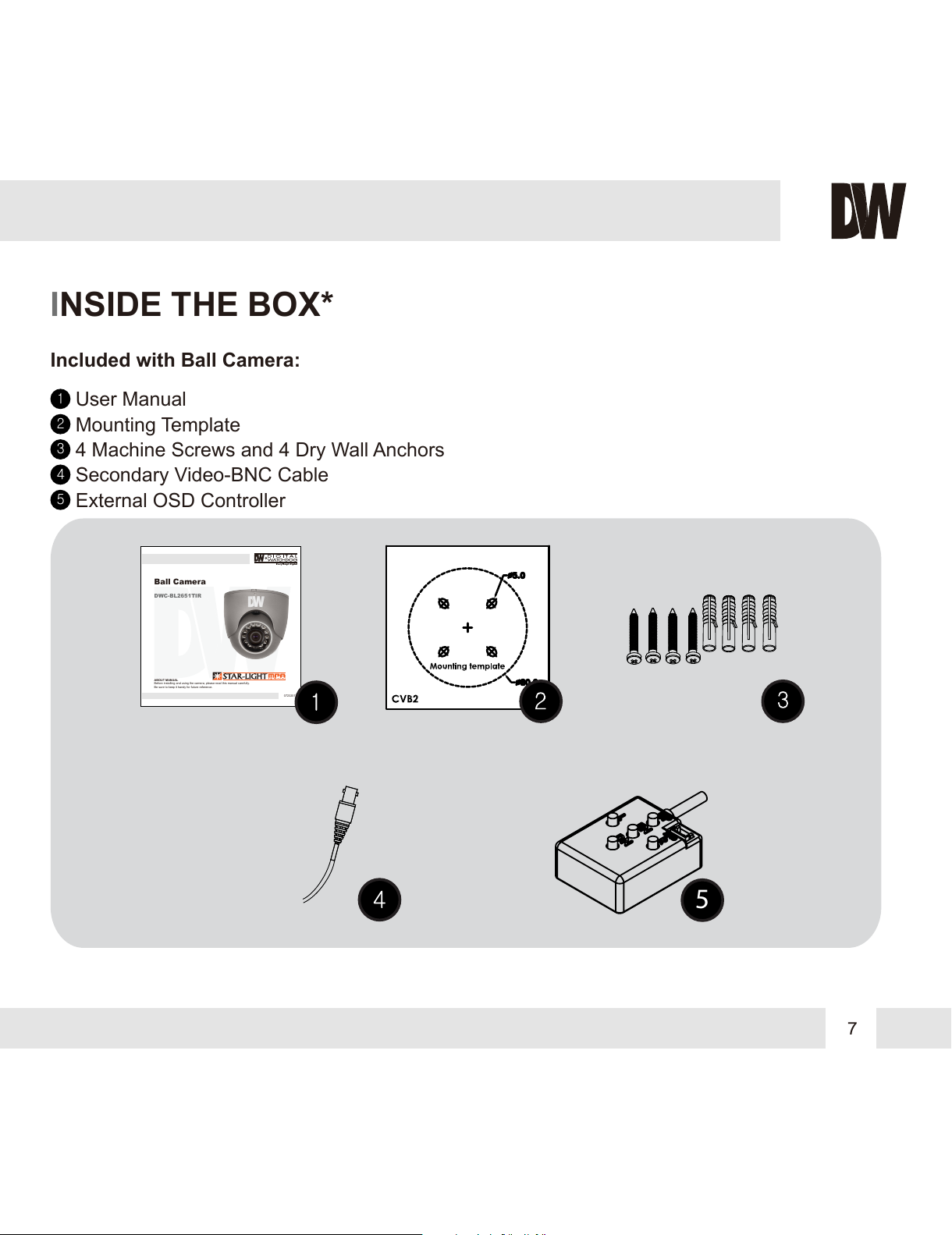

INSIDE THE BOX*

Included with Ball Camera:

User Manual

Mounting Template

4 Machine Screws and 4 Dry Wall Anchors

Secondary Video-BNC Cable

External OSD Controller

07232013

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Ball Camera

DWC-BL2651TIR

All manuals and user guides at all-guides.com

INSTALLATION INSTRUCTIONS*

1. To disassmble the camera, uncrew the small screw

at the base of the camera’s housing. The ball with the

camera module will get loose and separate from the

ball housing.

2. Use the camera or mounting template to mark and

drill the necessary holes in the wall or ceiling.

3. Pull wires through and make connections.

4. Using the four (4) included screws, mount and

secure the camera to the wall or ceiling.

5. Use the joystick to adjust the OSD menu. See

pages 11-22 for more information.

6. Secure the camera’s ball module into the housing

using the small screw at the base of the camera’s

housing.

All manuals and user guides at all-guides.com

Use the diagram below to connect to a Monitor or CRT Monitor properly.

12VDC

Monitor

CCTV Monitor

Power Connection - 12VDC

All cameras are equipped with a second video output for on-site configuration.

CONNECTING TO MONITORS*

All manuals and user guides at all-guides.com

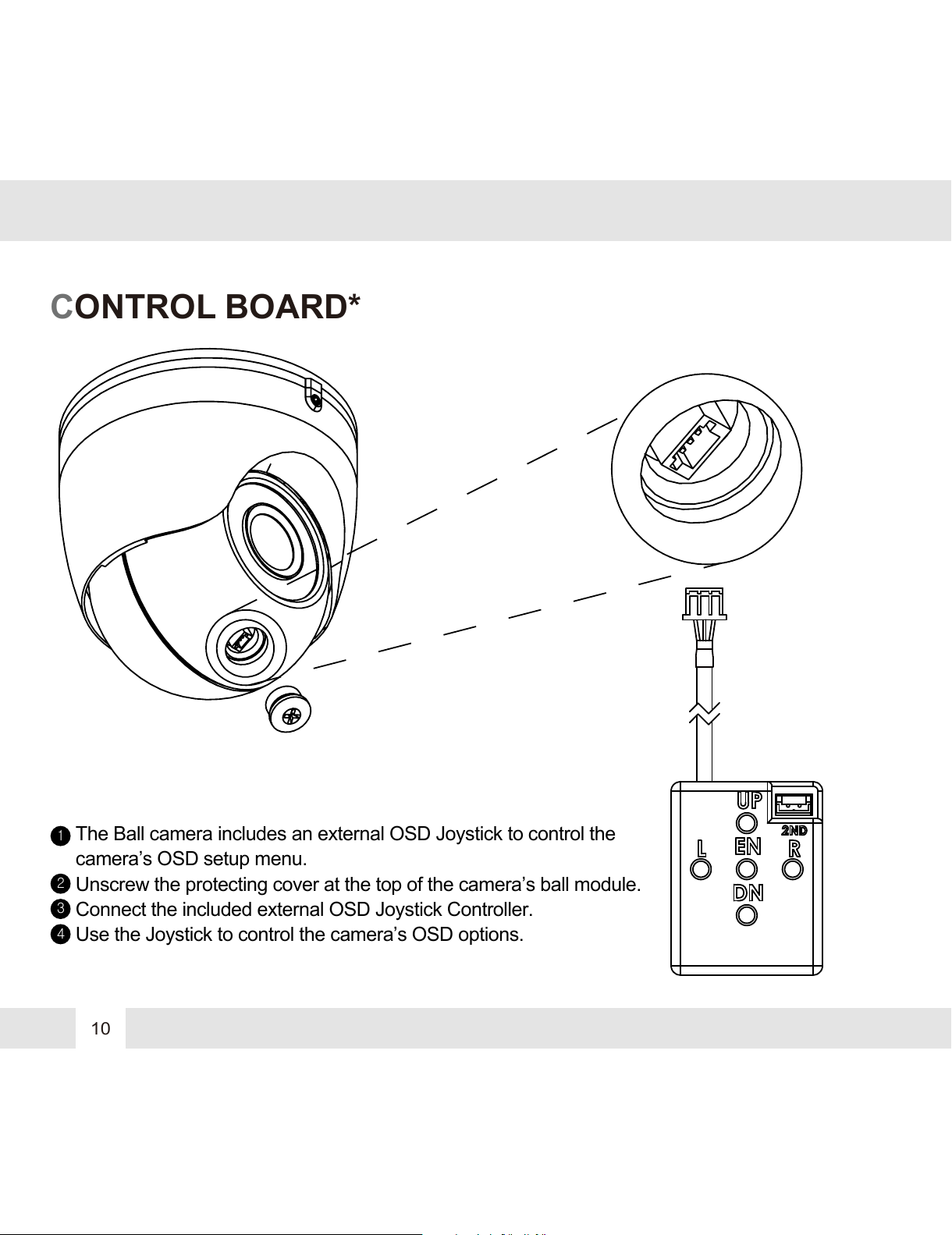

CONTROL BOARD*

The Ball camera includes an external OSD Joystick to control the

camera’s OSD setup menu.

Unscrew the protecting cover at the top of the camera’s ball module.

Connect the included external OSD Joystick Controller.

Use the Joystick to control the camera’s OSD options.

All manuals and user guides at all-guides.com
