Digital Watchdog STAR-LIGHT PLUS DWC-D3853WTIRW Manuel utilisateur

Quick Start Guide Quick Start Guide

1. The mounting surface must withstand ﬁve times the weight of

your camera.

2. Do not let the cables get caught in improper places or the electric line

cover can be damaged. This may cause a short or ﬁre.

3. Detach the camera’s dome cover by pressing on the two small

buttons located at each side of the cover dome.

4. Remove the dome protective ﬁlm before placing the dome back on

the camera base.

STEP 1 – PREPARING TO MOUNT THE CAMERA

Pass the wires through the mount bracket and make all necessary

connections. Connect the BNC cable and power cables to the

camera.

STEP 2 – CABLING THE CAMERA TO

EXTERNAL DEVICES

Power

Requirements Power Consumption

DC12V only DC12V (LED o): 3W, 250mA

DC12V (LED on): 4.04W, 337mA

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday through Friday

digital-watchdog.com

DWC-D3853WTIRW

WHAT’S IN THE BOX

Test Video

Cable 1 Set

Screws

and plastic

anchors

(2pcs)

1 set

Mounting

template 1Quick setup

guide 1

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Protective cover

Protective ﬁlm

Attention: This document is intended to serve as a quick reference for the

initial setup. It is recommended that the user read the entire instruction

manual for complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in

the ‘Search by Product’ search bar. Results for

applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

Quick Start Guide

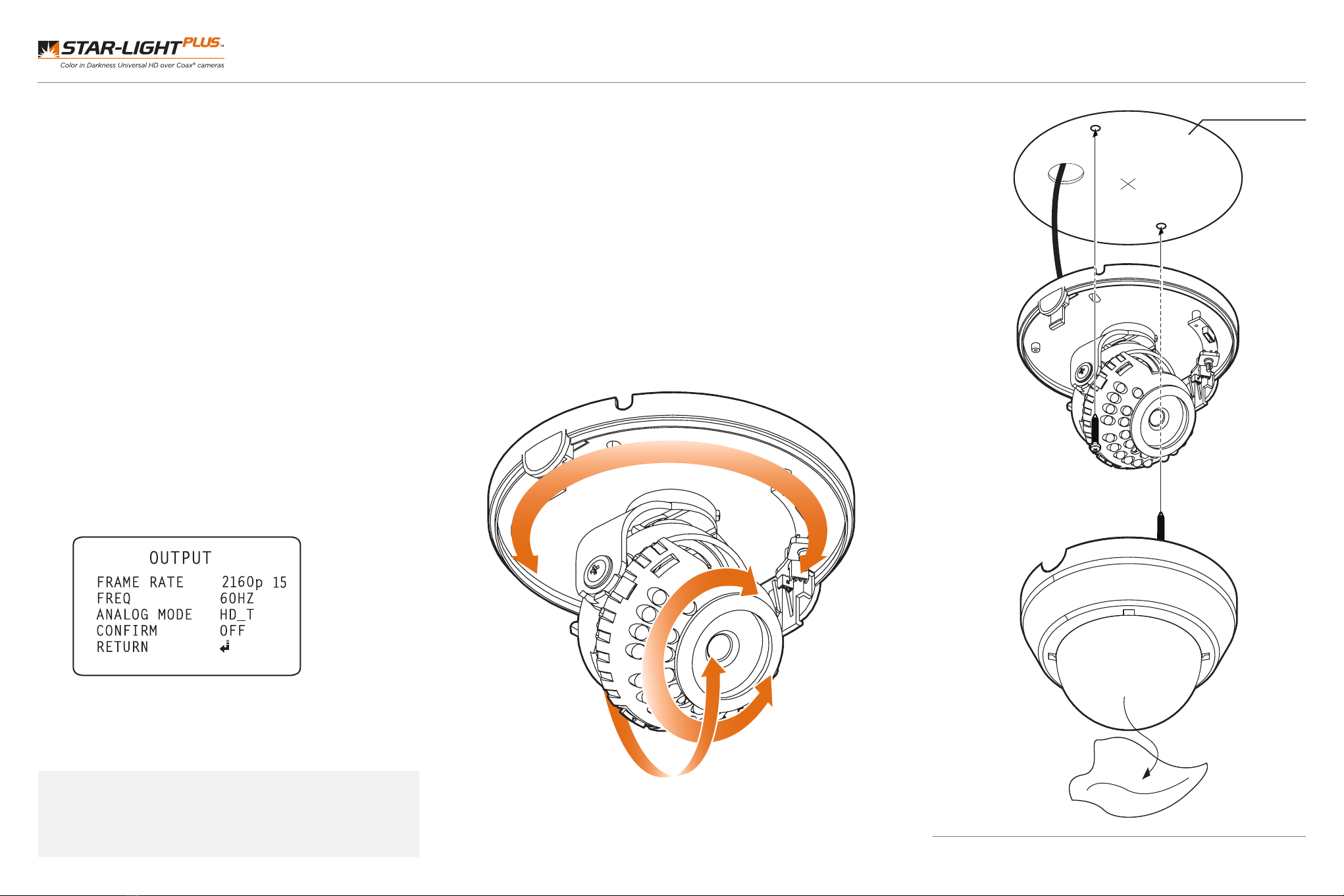

1. Once all cables have been connected, use the screws included with

the camera to properly mount and secure the camera to the mounting

surface.

2. Adjust the camera’s pan, tilt and position to achieve the desired view.

The cameras’ max angles are:

Pan: 0° ~ 360°

Tilt: 0° ~ 70°

Rotation: 0° ~ 360°

3. Once the installation is complete, remove the protective cover from

the camera’s dome cover.

STEP 4 – INSTALLING THE CAMERA

Speciﬁcations and pricing are subject to change without notice.

Panning 360°

Rotation 360° Tilting 70°

Mounting template

Rev Date: 01/20

STEP 3 – CHANGING THE SIGNAL IN

THE CAMERA

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals as

well as CVBS up to 960H. To switch between the signals:

a. Enter the camera’s OSD menu. You can access it locally from

using the camera’s joystick in the body of the camera, or from a

recorder supporting UTC communication.

Go to SETUP > OUTPUT.

b. Set the camera’s resolution from the following options:

- 4K/2160p @15fps.

- 5MP/1440 @30fps.

- 2.1MP/1080p @30fps.

c. Set the camera’s analog signal output from the following options:

- HD-A - HD-Analog

- HD-T - HD-TVI

- HD-C - HD-CVI

- CVBS - legacy analog signal

d. Change CONFIRM to ON to save the changes.

e. Go to the EXIT menu and select SAVE&EXIT to save all changes.

The camera signal automatically.

NOTE: To use your Star-Light Plus™ 4K cameras at a lower

resolution, you must use a VMAX® A1 4K DVR to access the

camera’s menu due to the cameras being set to 4K as the

default. A DVR that does not support 4K resolution may

recognize the camera, but will not deliver a picture.
