Digital Watchdog INFINITY Snapit DWC-D4367WD Manuel utilisateur

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Indoor Dome Camera

DWC-D4367WD

DWC-D4367WTIR

12132012

PRECAUTIONS

FCC COMPLIANCE

Do not open or modify.

Do not open the case except during maintenence and installation, for it may be dangerous and can

cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room, as the temperature may rise

to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against

harmful interference, when the equipment is operated in a residential environment. This equipment

generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance

with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Connecting to Monitors

Adjusting the Camera Lens

8-9

14-25

27-28

29-30

Adjusting the 3-Axis Gimbal 13

FEATURES*

1/3” Sony Super HAD CCD II

620 TV Lines (B&W), 600 TV Lines (Color)

3.3~12mm Varifocal Auto Iris Lens

70ft Range IR with Intelligent Camera Sync [DWC-D4367WTIR Only]

Electronic Day and Night [DWC-D4367WD Only]

TDN (True Day and Night / IR Cut Filter) [DWC-D4367WTIR Only]

Smart DNR (Digital Noise Reduction)

WDR (Wide Dynamic Range)

Star-Light (Super Low Light Technology)

HME (Highlight Masking Exposure)

Programmable Privacy Zones & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

UTP & RS485 Built-In

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

PART & DESCRIPTIONS*

Lens

3UTP

4RS-485

Power Input Connctor

12VDC/24VAC Dual Voltage

Primary Video BNC-Output Connector

Secondary Video-BNC

Output Connector

Camera Control Board

Bubble Dome Cover

Upper Case

Mounting Screws

NO IR IR

DIMENSIONS IN MILLIMETERS (IN)*

Surface Mount

(3.5”)

108(4.25”)

Top View

40.5(1.59”)

56.3(2.22”)

96.8(3.81”)

108(4.25”)

INSIDE THE BOX*

Included with Snapit Indoor Dome Camera

User Manual

Mounting Template

2 Machine Screws and 2 Dry Wall Anchors

Secondary Video-BNC Cable

SURFACE MOUNT INSTALLATION INSTRUCTIONS*

Squeeze the sides of the

camera and separate the

camera module from the

dome cover.

Use the camera’s mounting

template or your camera to

mark the holes as required.

Drill holes into the drywall and

insert the drywall mounts into

the holes.

Pull wires through and make

connections. Then, mount the

camera to the wall using the

included machine screws.

1 2 3

Adjust the camera lens

position by using the 3-Axis

Gimbal.

Snap the dome cover over

the camera module.

5 6

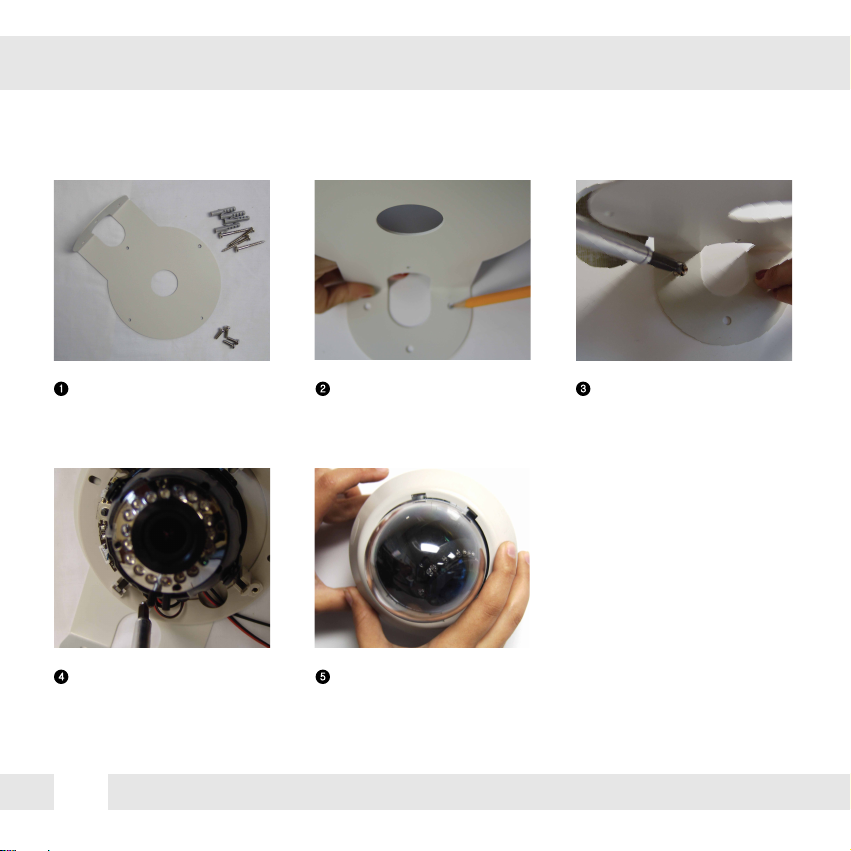

WALL MOUNT INSTALLATION INSTRUCTIONS*

Check to see all parts are in

the box.

Use the mount to mark the

pilot holes that are required.

Drill holes into the drywall

and insert the drywall mounts.

Secure the wall mount to the

wall using the mounting

screws.

Attach the base of the camera

to the wall mount with the

smaller machine screws.

Adjust the camera lens, and

snap the dome cover over

the camera module.

1 2 3

4 5

CONNECTING TO MONITORS*

Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection)

All cameras are equipped with a second video output for on-site configuration.

Use the diagram below to connect to a Monitor or CRT Monitor properly.

DC 12V / AC 24V

CCTV Monitor

Monitor

300.0mm(11.8”)

Second Video Output

NO IRIR
