Digital Watchdog DWC-MB45Wi650T Manuel utilisateur

User’s Manual Ver. 12/20

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

MEGApix® 5MP Long Range Bullet IP Camera

DWC-MB45Wi650T / DWC-MPB45Wi650T

WARNING

To prevent damage which may result in fire or electric shock

hazard, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is

specified in the specification sheet. Using any other

adapter could cause fire, electrical shock, or damage to

the product.

2. Incorrectly connecting the power supply or replacing

the battery may cause an explosion, fire, electric shock,

or damage to the product.

3. Do not connect multiple cameras to a single adapter.

Exceeding the capacity may cause excessive heat

generation or ﬁre.

4. Securely plug the power cord into the power

receptacle. An insecure connection may cause ﬁre.

5. When installing the camera, fasten it securely and

ﬁrmly. A falling camera may cause personal injury.

6. Do not place conductive objects (e.g. screwdrivers,

coins, metal items, etc.) or containers ﬁlled with water

on top of the camera. Doing so may cause personal

injury due to ﬁre, electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or sooty

locations. Doing so may cause ﬁre or electric shock.

8. If any unusual smells or smoke come from the unit, stop

using the product. Immediately disconnect the power

source and contact the service center. Continued use in

such a condition may cause ﬁre or electric shock.

9. If this product fails to operate normally, contact the

nearest service center. Never disassemble or modify

this product in any way.

10. When cleaning, do not spray water directly onto parts

of the product. Doing so may cause ﬁre or electric

shock.

Precaution

Operating

• Before using, make sure the power supply and all other

parts are properly connected.

• While operating, if any abnormal condition or

malfunction is observed, stop using the camera

immediately and contact your dealer.

Handling

• Do not disassemble or tamper with parts inside the

camera.

• Do not drop the camera or subject it to shock or

vibration as this can damage the camera.

• Clean the clear dome cover with extra care. Scratches

and dust can ruin the quality of the camera image.

Installation and Storage

• Do not install the camera in areas of extreme

temperature, exceeding the allowed range.

• Avoid installing in humid or dusty environments.

• Avoid installing in places where radiation is present.

• Avoid installing in places where there are strong

magnetic fields and electric signals.

• Avoid installing in places where the camera would be

subject to strong vibrations.

• Never expose the camera to rain or water.

Warning

This symbol indicates that dangerous

voltage consisting of a risk of electric

shock is present within this unit.

Precaution

This exclamation point symbol is intended

to alert the user to the presence of

important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION :

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these Instructions. - All these safety and operating instructions should be read before the product is installed

or operated.

2. Keep these Instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this device near water. - For example: near a bathtub, washbowl, kitchen sink, laundry tub, in a wet

basement; near a swimming pool; etc.

6. Clean only with a dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install following the manufacturer’s instructions. - Slots and openings

in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it from over-

heating. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surfaces.

This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is

provided and the manufacturer’s instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers)

that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Old Appliances

1. When this crossed-out wheel bin symbol is attached to a product it means the

product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the

municipal waste stream per laws designated by the government or the local

authorities.

3. The correct disposal of your old appliance will help prevent potential negative

consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact

your city office, waste disposal service or the shop where you purchased the product.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at his own expense.

Table of Contents

Introduction

Product and accessories..................................................................................................................................................................5

Parts identification............................................................................................................................................................................6

Installation

Factory reset........................................................................................................................................................................................7

Installation............................................................................................................................................................................................7

Cabling...................................................................................................................................................................................................8

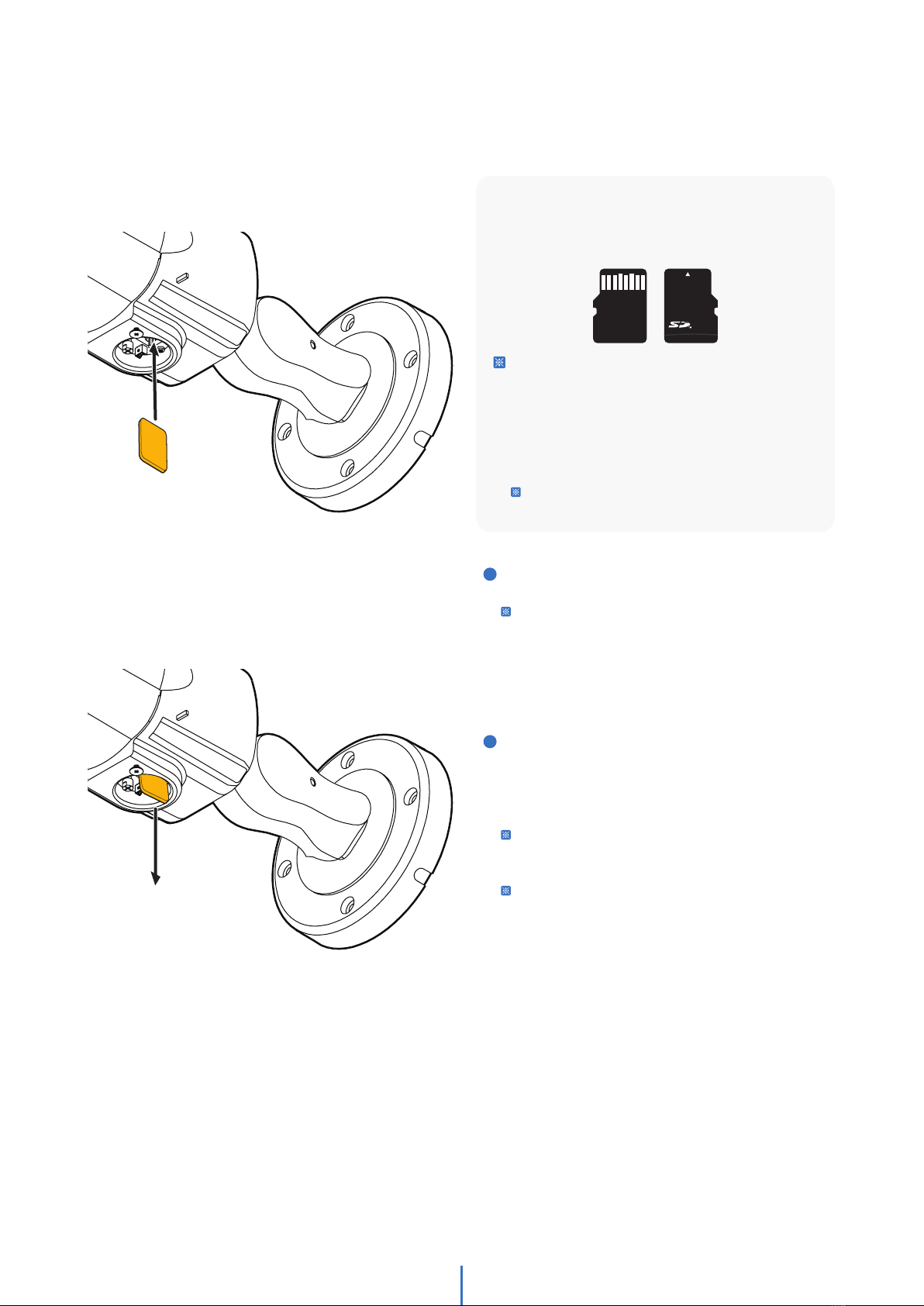

Managing the SD Card..................................................................................................................................................................10

Network Setup

DW IP finder.......................................................................................................................................................................................11

Web Viewer

Login to the camera.......................................................................................................................................................................12

GUI overview.....................................................................................................................................................................................13

Camera Settings

Settings > Video and audio setup.............................................................................................................................................14

Settings > Camera setup > Image adjustment.....................................................................................................................22

Settings > Camera setup > Exposure settings......................................................................................................................23

Settings > Camera setup > Day and night settings............................................................................................................24

Settings > Camera setup > Backlight settings......................................................................................................................25

Settings > Camera setup > White Balance settings............................................................................................................26

Settings > Camera setup > Image enhancement settings...............................................................................................27

Settings > Camera setup > Video enhancement.................................................................................................................28

Settings > Network setup.............................................................................................................................................................29

Settings > Trigger action setup..................................................................................................................................................39

Settings > Event setup...................................................................................................................................................................43

Settings > Record setup................................................................................................................................................................48

Settings > Security setup..............................................................................................................................................................54

Settings > System setup > System information...................................................................................................................61

Settings > System setup > Firmware.......................................................................................................................................63

Settings > System setup > Date and time..............................................................................................................................64

Settings > System setup > DST..................................................................................................................................................65

Settings > System setup > Users...............................................................................................................................................66

Settings > System setup > System log....................................................................................................................................67

Settings > System setup > Factory reset................................................................................................................................68

Settings > System setup > Restart............................................................................................................................................69

Settings > System setup > System open source license...................................................................................................70

Network setup guides...............................................................................................................................71

FAQs............................................................................................................................................................78

Dimensions.................................................................................................................................................79

Specifications.............................................................................................................................................80

Warranty.....................................................................................................................................................81

Limits and exclusions.................................................................................................................................82

Introduction -

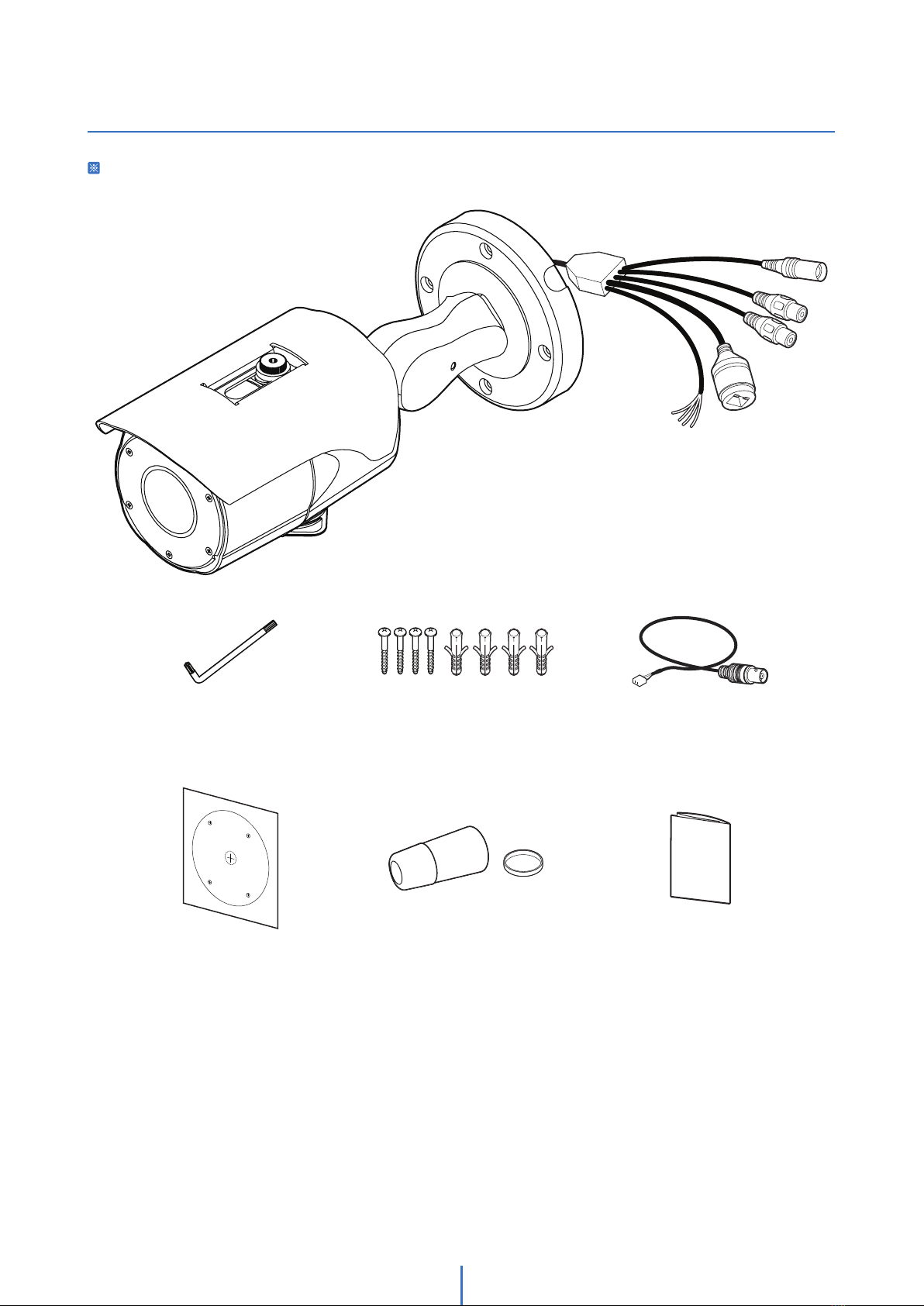

Product and Accessories

Hex Wrench Test Monitor

Cable

Mounting Template Waterproof Cap and

Gasket

Screws and

Plastic Anchors -

4pcs

Camera

Cables

Please check if all the camera and accessories are included in the package.

Quick Installation and

Download Guide

Introduction -

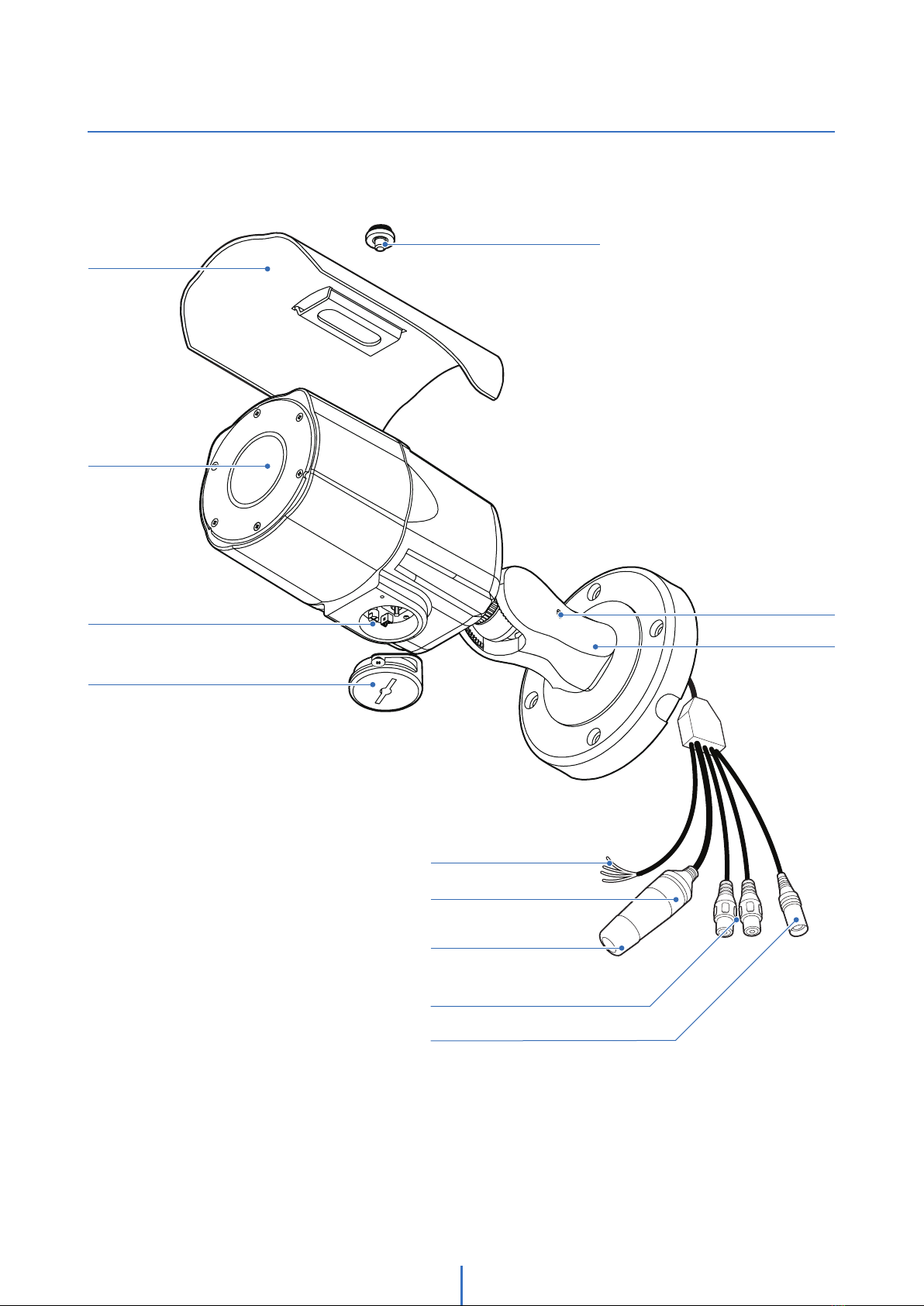

Part Name

Sunshield Adjusting Screws

Pan/Tilt Stopper

Screw

Bracket

Sunshield

Lens

Control Board

Con Cap

RJ-45 Connector

Waterproof Cap

Audio In/Out

DC Power Jack

Alarm In/Out

Installation -

Installation

Before installing your camera, you must read the following cautions.

1. The mounting surface must withstand ﬁve times the camera weight.

2. Do not let the cables get caught in improper places or the electric line cover can be damaged. This may

cause a short or ﬁre.

3. Using the mounting template or the camera itself, mark and drill the necessary holes in the mounting

surface.

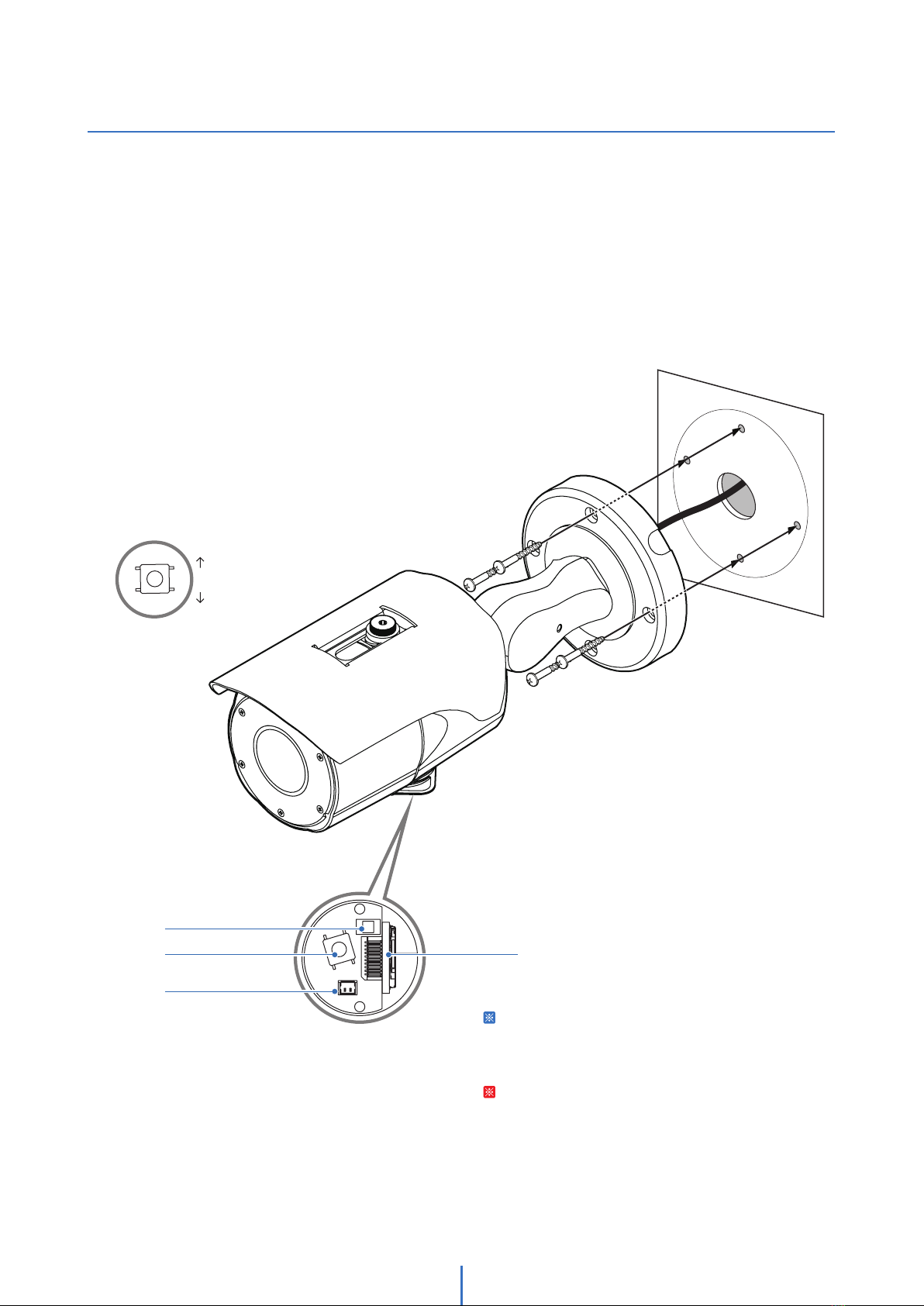

Installing your camera:

1. Pass wires through and make all necessary connections.

See the ‘Cabling’ section for more information.

2. Using the included screws and anchors, secure the camera

to the mounting surface.

3. Loosen the pan/tilt stopper screw and adjust the

camera’s angle as needed.

4. Use the test video cable for a local preview

of the camera’s view.

5. Use the T-W toggles at the bottom of the

camera to adjust the zoom.

Reset to the Factory Default

Press the reset button for 5 seconds to return the

setup to the factory default.

Warning:

If you press the ‘Reset’ button, you will lose all

setting data. If needed, please, make a note for

further installation.

Reset Button

T-W Jog Button SD Card Slot

Test Video Output

WIDE

TELE

Zoom Out

Zoom In

Installation -

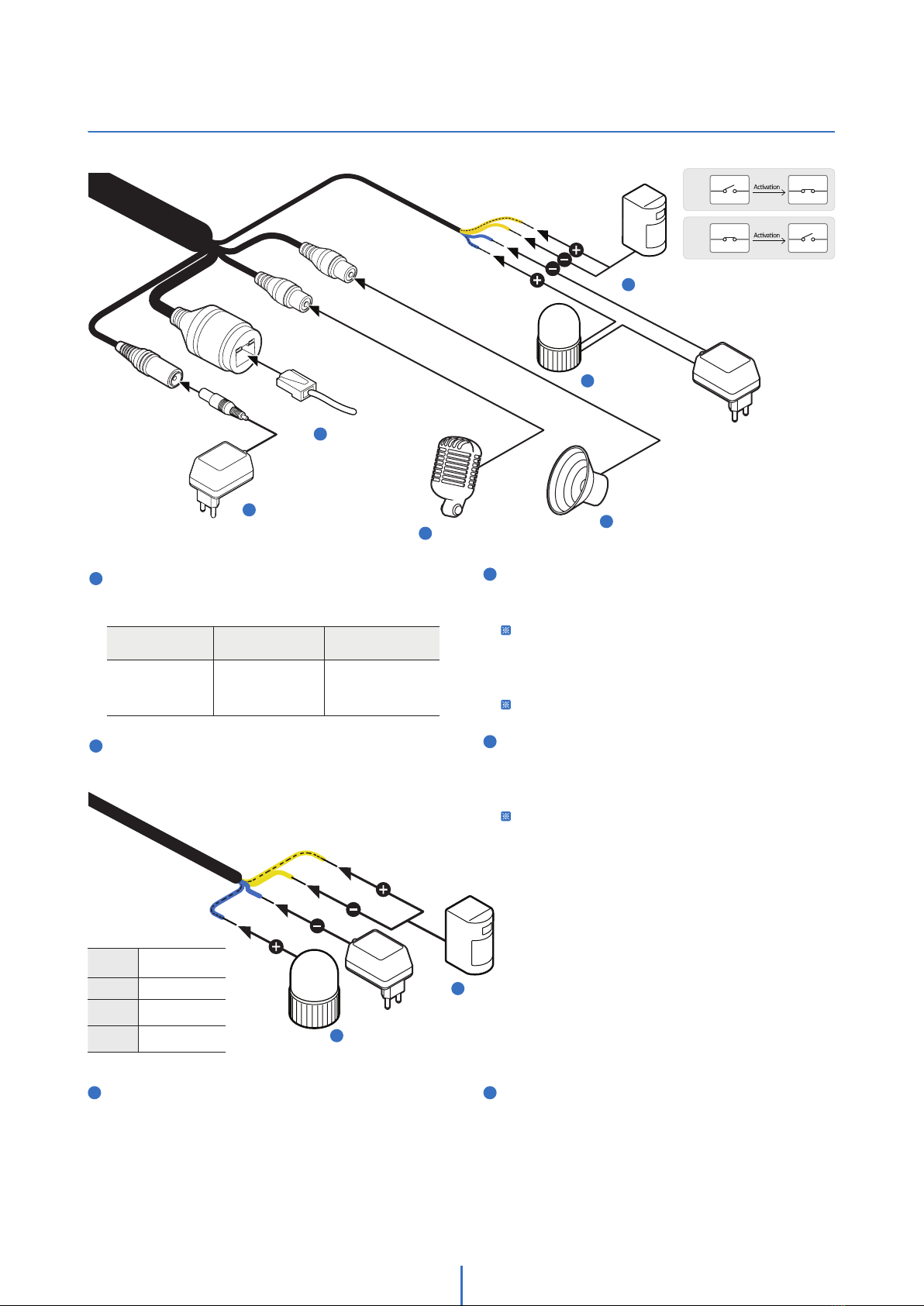

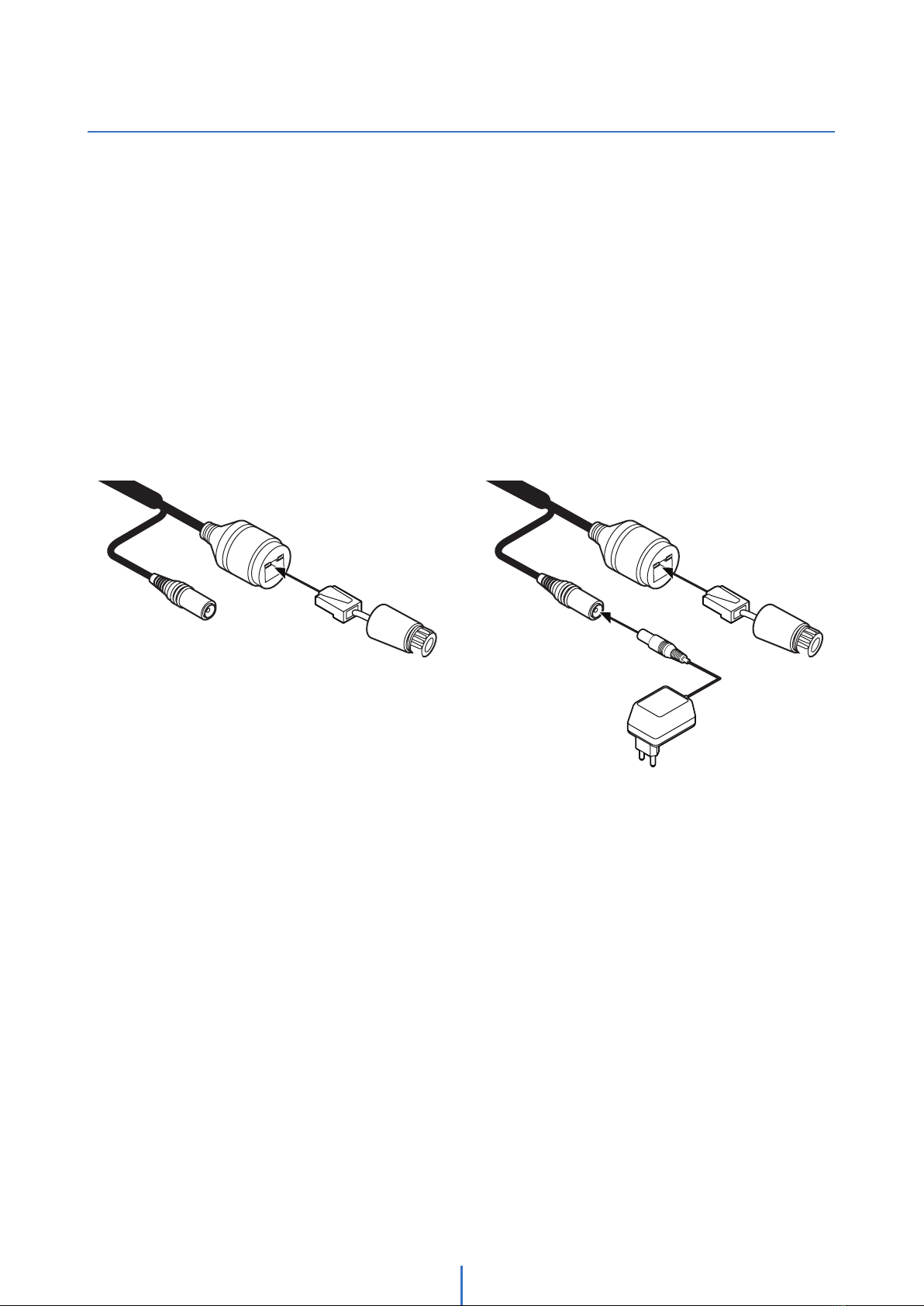

Cabling

1. Using a PoE-Enabled Switch

The Camera is PoE-compliant, allowing transmission

of power and data via a single Ethernet cable.

PoE eliminates the need for the different cables used

to power, record, or control the camera. Follow the

illustration below to connect the camera to a PoE-

enabled switch using an Ethernet cable.

2. Using a Non-PoE Switch

If a PoE-enabled switch is not used, use a power

adaptor for power transmission and non-PoE switch

for data transmission.

Follow the illustrations below to connect the camera

without a PoE-enabled Switch.

Two Options

Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording

images instantly.

A non-PoE switch will require an adaptor for power transmission.

Ethernet Cable Ethernet Cable

Power

1Power Connection

Please, check the voltage and current capacity of

rated power carefully.

2Network Connection

Connect the crossover cable into the RJ-45.

Installation -

Cabling

1Power

2Network

4Audio Output

3Audio Input

5Alarm Output

6Alarm Input

6Alarm In

5Alarm Out

Rate Power Power

Consumption PoE

DC 12V 9W

IEEE 802.3af

class3, max

10.5W

DI YELLOW +

DOT

DI COM YELLOW

DO1

COM BLUE

DO1

(N.O.) BLUE + DOT

N.C

N.O In 1

COM

In1

COM

In1

COM

In1

COM

3Audio Output

Connect the ‘audio out’ port of the camera to the

‘line in’ port of the speaker.

If the speaker without the amplifier is connected

to the audio out port, it doesn’t work properly.

Therefore, the speaker with the amplifier or the

separate amplifier is needed.

Audio Out is available via the RTSP backchannel.

4Audio Input

Connect the ‘audio in’ port of the camera to the

microphone directly or 'line out’ port of the

amplifier connected with a microphone.

If the microphone is connected directly, the

microphone with the embedded amplifier such

as condenser mic. needs to be used.

5Alarm/Relay Out (DO)

Connects to the alarm lights, siren or lamps and

the sensor types are normally open and

normally close.

6Sensor/Alarm Input (DI)

The sensor/alarm input device's cable should

connect to + and - of the Terminal Block.

Installation -

Managing the SD Card

Micro

The memory card is an external data storage

device that has been developed to offer an

entirely new way to record and share video,

audio, and text data using digital devices.

Recommended SD card specification

(not included)

- Type: Micro SD (SD/SDHC/SDXC)

- Manufacturer: SanDisk, Samsung,

Transcend, Micron

- Capacity: 4GB~128GB

- Class: UHS-I U3 Class 10

New micro SD card over 64GB must be

formatted on the first use.

1Inserting an SD Memory Card

Insert the SD card in the arrow direction.

Don’t insert the SD memory card while it’s

upside down by force. Otherwise, it may

damage the SD memory card.

2Removing an SD Memory Card

Removing an SD Memory Card Gently press down

on the exposed end of the memory card as shown

in the diagram to eject the memory card from

the slot.

Pressing too hard on the SD memory card can

cause the card to shoot out uncontrollably from

the slot when released.

If you have saved data in the SD memory card,

removing the SD memory card before setting

the record to OFF will cause damage to the data

stored in the card.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Digital Watchdog Caméra de sécurité

Digital Watchdog

Digital Watchdog STAR-LIGHT Universal HD over Coax... Manuel utilisateur

Digital Watchdog

Digital Watchdog MC355T Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix CaaS DWC-MB44LPRC2 Manuel utilisateur

Digital Watchdog

Digital Watchdog Infinity OMNI-Plus V1382TIR Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGAPIX DWC-MV45WiATW Manuel utilisateur

Digital Watchdog

Digital Watchdog DWC-MPB75Wi4T Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT DWC-B7753TIR Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix CaaS DWC-MB44Wi650C6 Manuel utilisateur

Digital Watchdog

Digital Watchdog Star-Light DWC-D4783WD Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix DWC-MTT4WiA Manuel utilisateur

Digital Watchdog

Digital Watchdog DWC-D6351D Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT PLUS Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT FLEX DWC-VS753WT6666 Manuel utilisateur

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-D3863WTIRW Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix CaaS DWCA-VF25W28-64 Manuel utilisateur

Digital Watchdog

Digital Watchdog MC352DIR Manuel utilisateur

Digital Watchdog

Digital Watchdog DWC-V5661T Manuel utilisateur

Digital Watchdog

Digital Watchdog DWC-MB72Wi4TW Manuel utilisateur

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT AHD DWC-D3763TIR Manuel utilisateur

Digital Watchdog

Digital Watchdog MegaPix Pano DWC-PZ21M69T Manuel utilisateur

Digital Watchdog

Digital Watchdog DWC-V1CMW Manuel utilisateur

Digital Watchdog

Digital Watchdog Star-Light Plus Universal HD over Coax... Manuel utilisateur

Digital Watchdog

Digital Watchdog DWC-B562DIR Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
