Upgrade Instructions

Part Number: EK-VX44S-IN. A01

VAX 4000 Model 100

to DEC 3000 Model

400S AXP

MLO-010669

Can Cannot

Upgrade Upgrade

Disks: RZ23L*, RZ24L* RZ57

RZ24*

RZ25*

RZ26*

RZ55*

RZ56*

RZ58*

Drives: RRD42** B400X

RWZ01** DSSI Devices

RX26* R400X

TLZ04 TF85

TLZ06** TK50

TSZ05* TK70

TSZ07* TKZ08

TZ30 TSV05

TZ85* TU81

TZK10

Expansion

Boxes: SZ03

SZ12

SZ16

Memory: None

Options You Can Upgrade

*Supported only in external device.

**Including tabletop device.

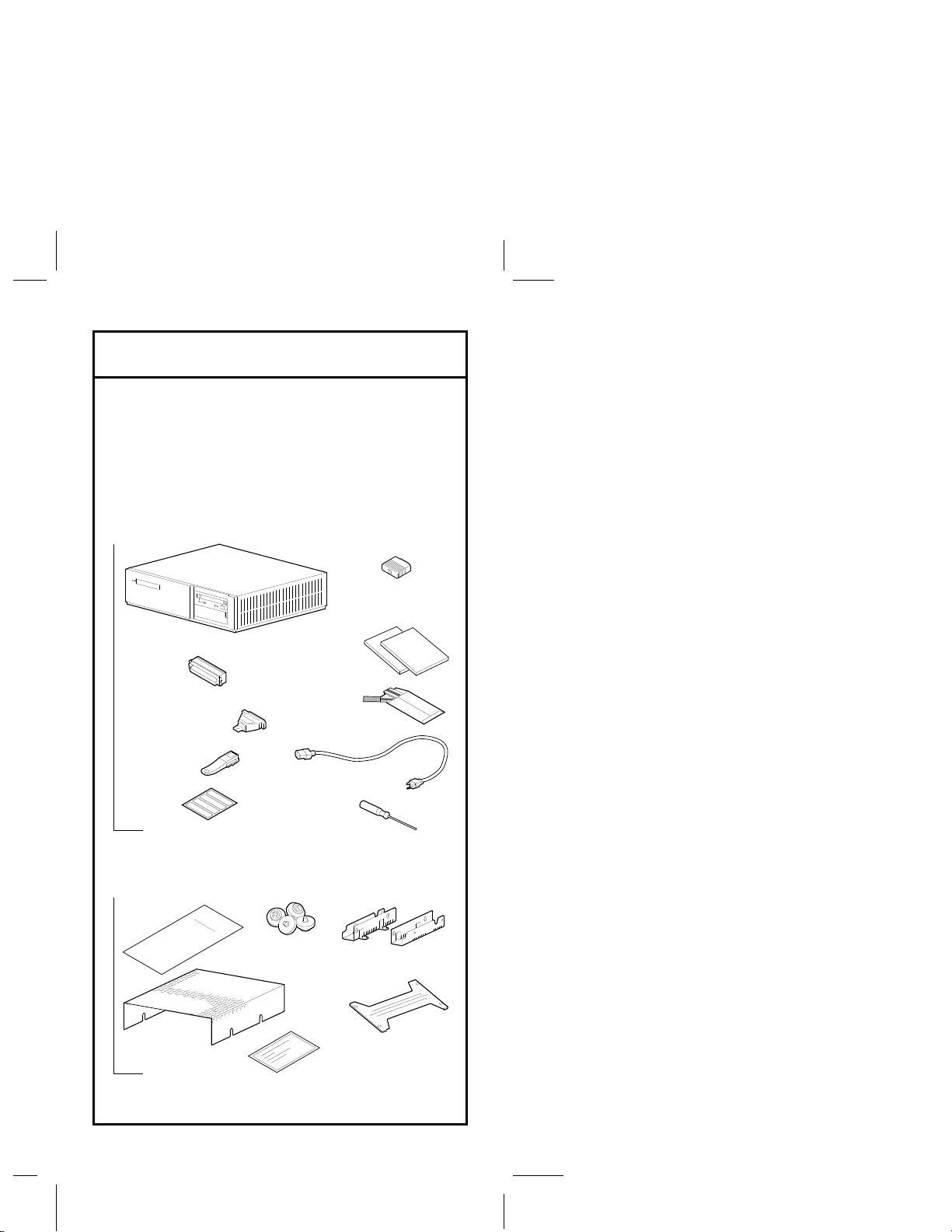

Your shipment should contain the following

two kits.

If you are missing any of these components,

contact your Digital sales representative.

Check Components Shipped

Antistatic

Wrist Strap

System Power

Cord

Modem Loopback

Connector

Screwdriver

System Unit

Documentation

Ethernet Loopback

Connector

Printer Port

Terminator

SCSI

Terminator

Network

Label

System Kit:

Accessory Kit:

xxxxxxx

xxxxxxxxxxx

xxx

Upgrade

Card

MLO-010670

Return

Address Label

Rubber

Grommets

TZ30 RFI

Shield

RX26 Brackets

Metal Support

Plate

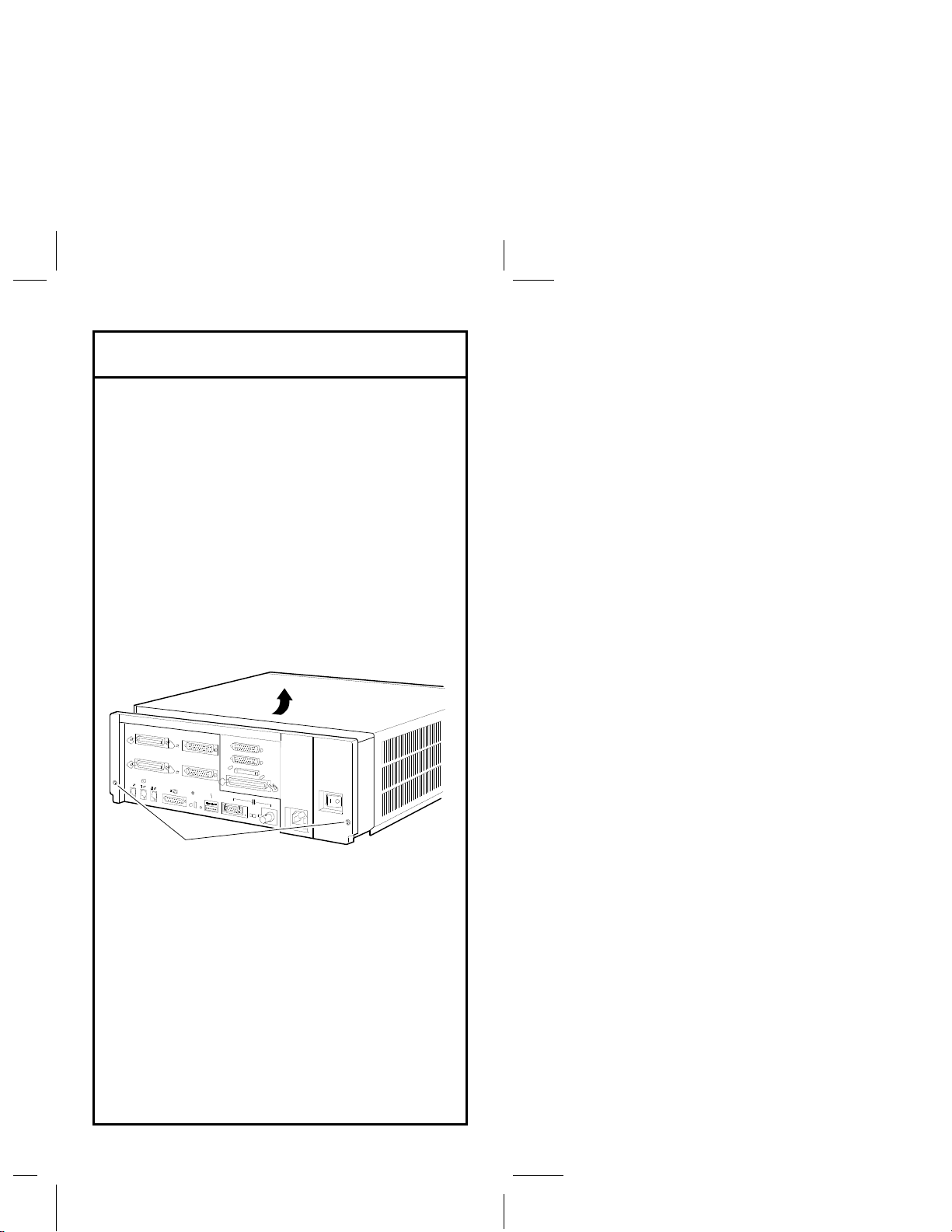

Follow these steps to remove the system unit

cover:

1. Turn off the system by pressing the

on/off switch to the off (O) position.

2. Disconnect the cables, connectors, and

terminators from the system unit.

3. Loosen the two captive screws on the

back of the system unit.

4. Slide the cover forward and lift it up

from the system unit. Set the cover

aside.

Remove the System Unit Cover

Captive

Screws MLO-010744

Note: The DEC 3000 system can hold two

fixed disk drives and one removable-media

drive.

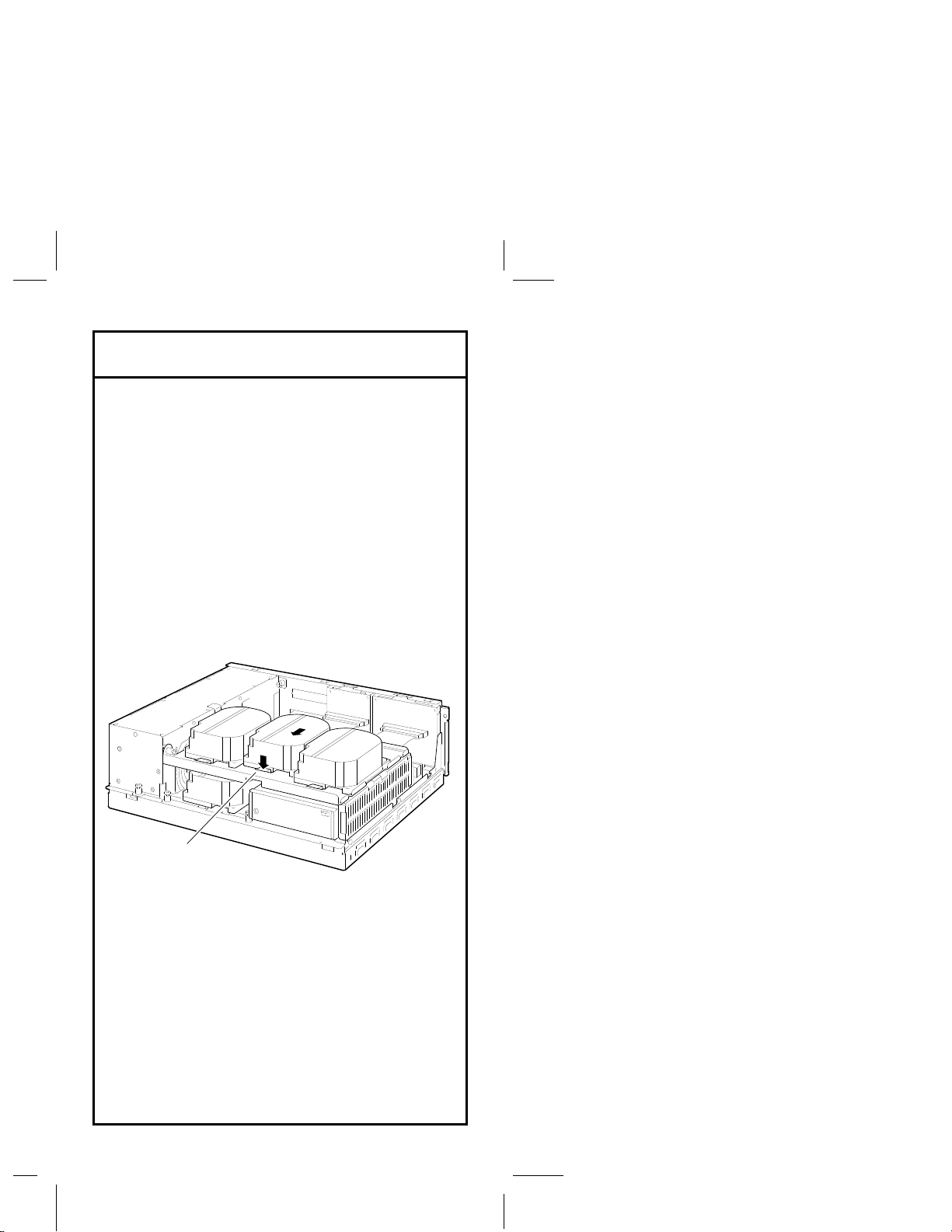

1. Press and hold the spring clip that locks

the disk drive in position.

2. Refer fo the figure, and push the disk

drive towards the spring clip until the

rubber grommets on the bottom of the

disk drive release from the cutouts in the

drive mounting shelf.

3. Lift the disk drive up from the drive

mounting shelf and release the spring

clip.

4. Disconnect the SCSI and power cables

from the back of the drive.

5. Set the drive aside on an antistatic mat.

Remove Fixed Disk Drives

MLO-010738

Spring

Clip

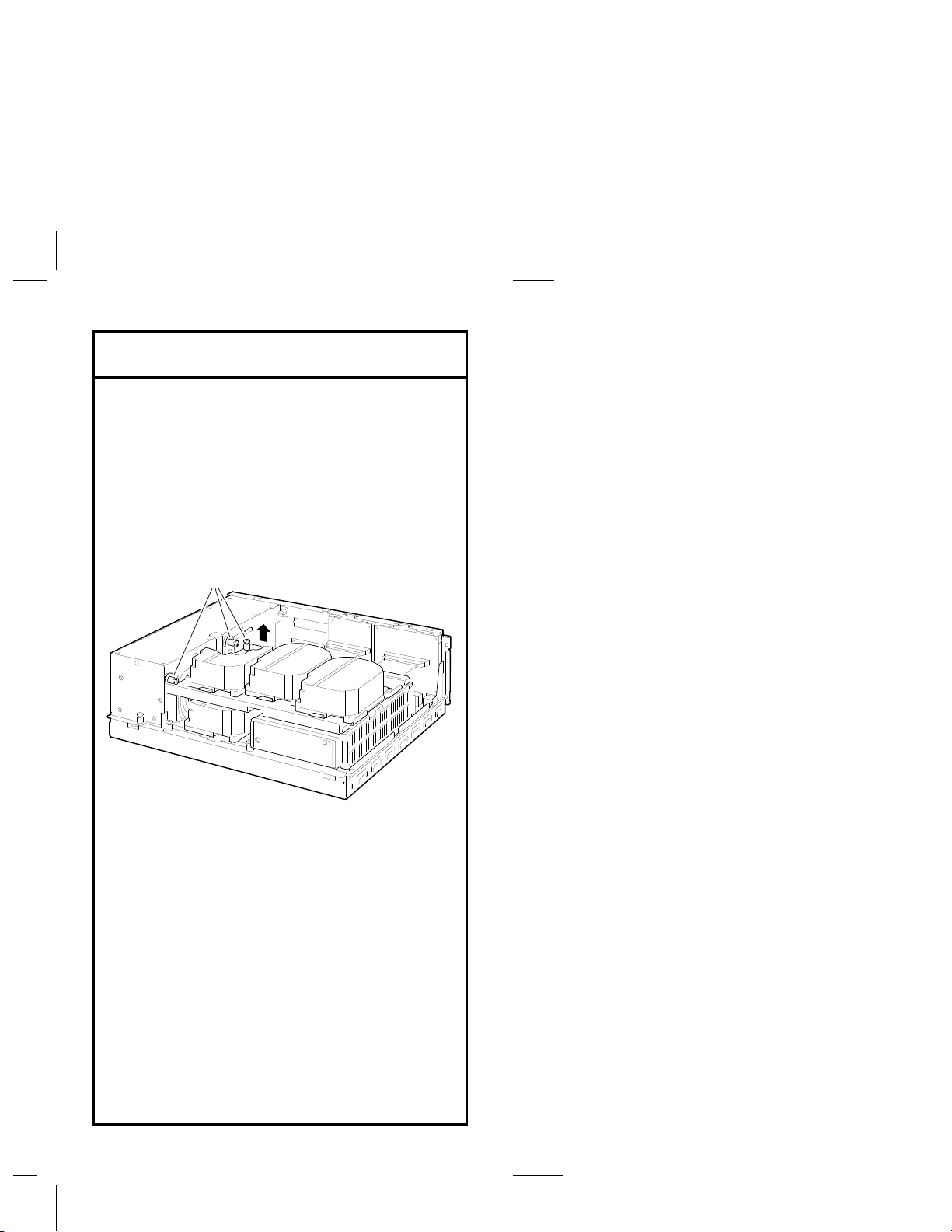

1. Disconnect the power cable from the

power supply unit. Remove the power

cable from the enclosure.

2. Refer to the figure, and loosen the three

captive screws that hold the drive shelf in

place.

3. Lift the left side of the shelf and pull the

shelf to the left until the tabs on the right

clear the cutouts in the lower drive shelf.

4. Set the drive shelf aside.

Remove the Upper Drive Shelf

MLO-010739

Captive Screws

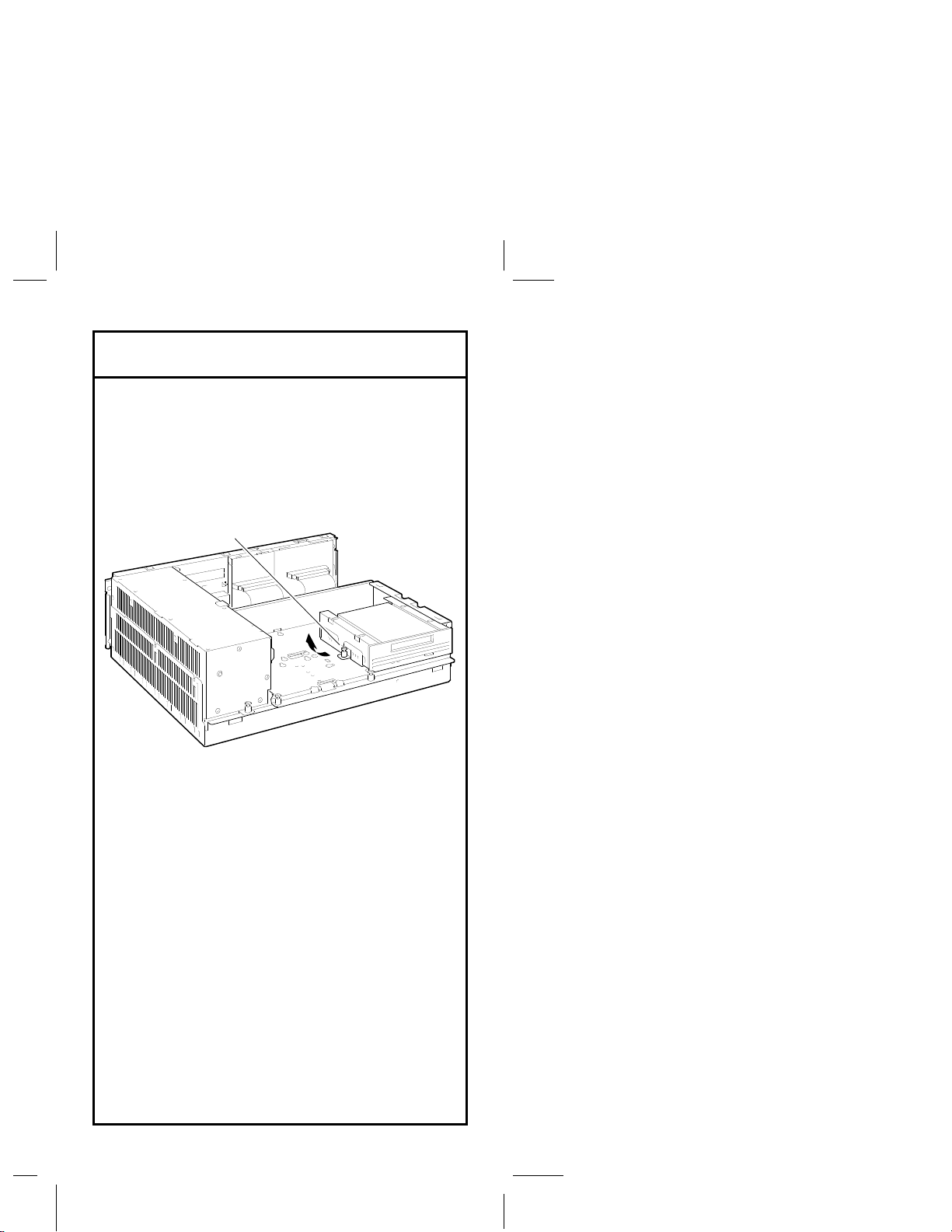

Follow these steps to remove a removable-

media drive from the lower drive shelf:

1. Loosen the captive screw that secures the

drive mounting bracket to the drive shelf.

2. Lift the left side of the drive until the tabs

on the right side clear the cutouts in the

lower drive shelf.

3. Disconnect the SCSI and power cables

from the back of the drive.

4. Set the drive aside on an antistatic mat.

Remove Remaining Drives

Captive Screw

MLO-010740

Each device in your system must have its

own unique SCSI ID setting. If your DEC

3000 system has a factory-installed drive, it

is set to SCSI ID 3.

You can check the SCSI ID settings on your

drives by referring to the DEC 3000 Model

400/400S AXP Options Guide. The RZ23L

and RZ24 SCSI ID settings (not covered in

the guide) are shown here.

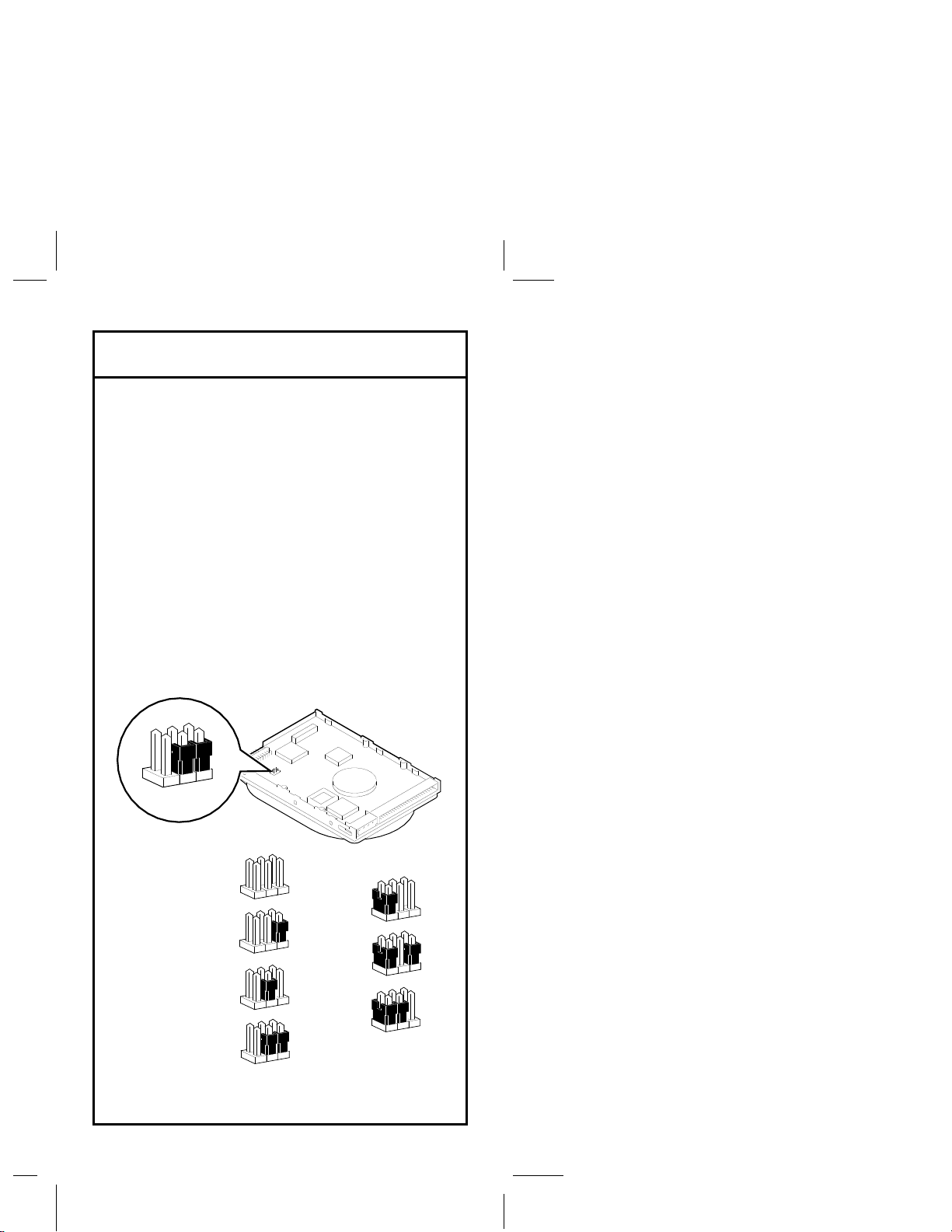

RZ23L Drive SCSI ID Settings:

Check the SCSI ID Settings

MLO-010587

SCSI

Settings:

E2 E1

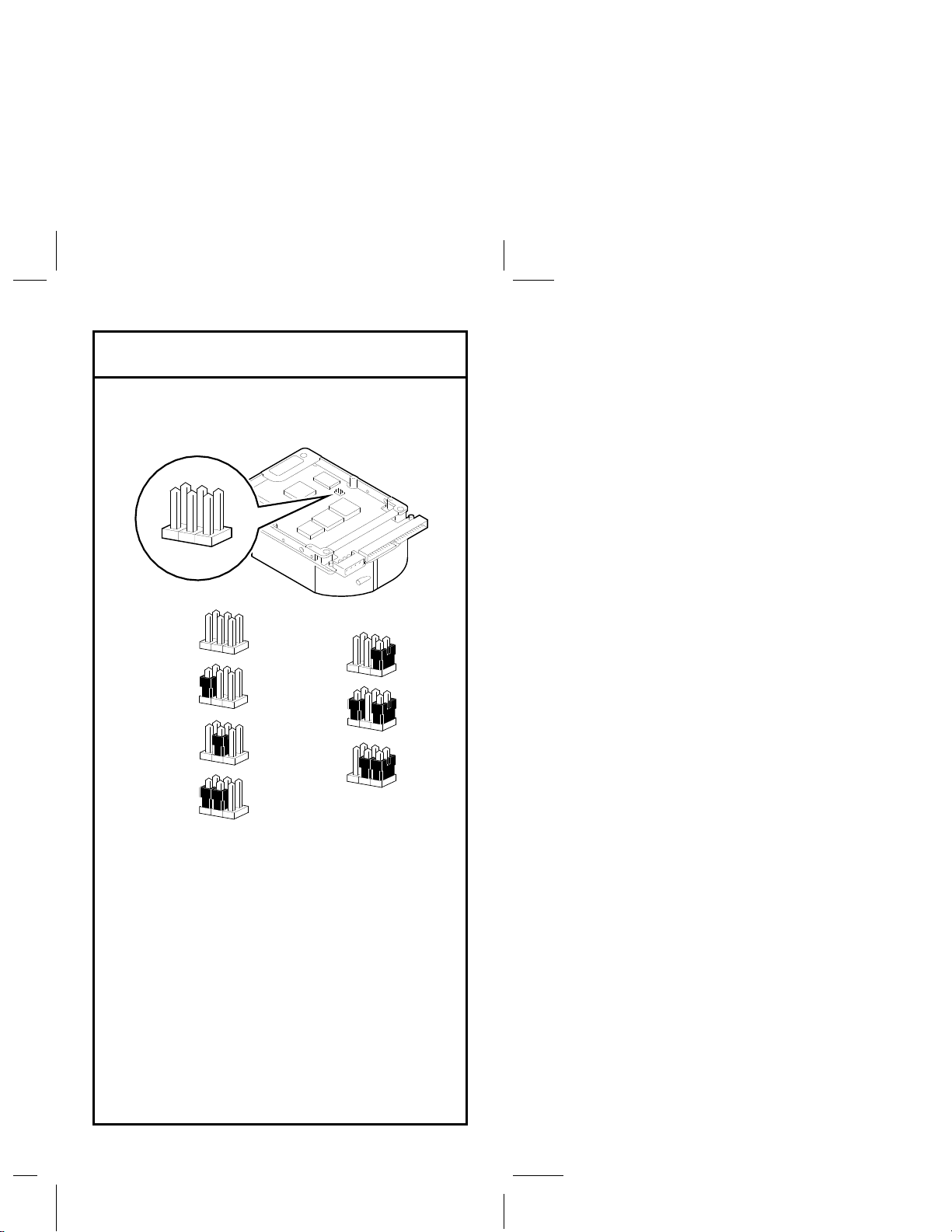

RZ24 Drive SCSI ID Settings:

Check the SCSI ID Settings

MLO-010586

SCSI

Settings:

E2 E3

Remove the mounting brackets from all the

drives you are upgrading, unless you are up-

grading an RZ23L or RZ24 drive that has

the support plate shown below.

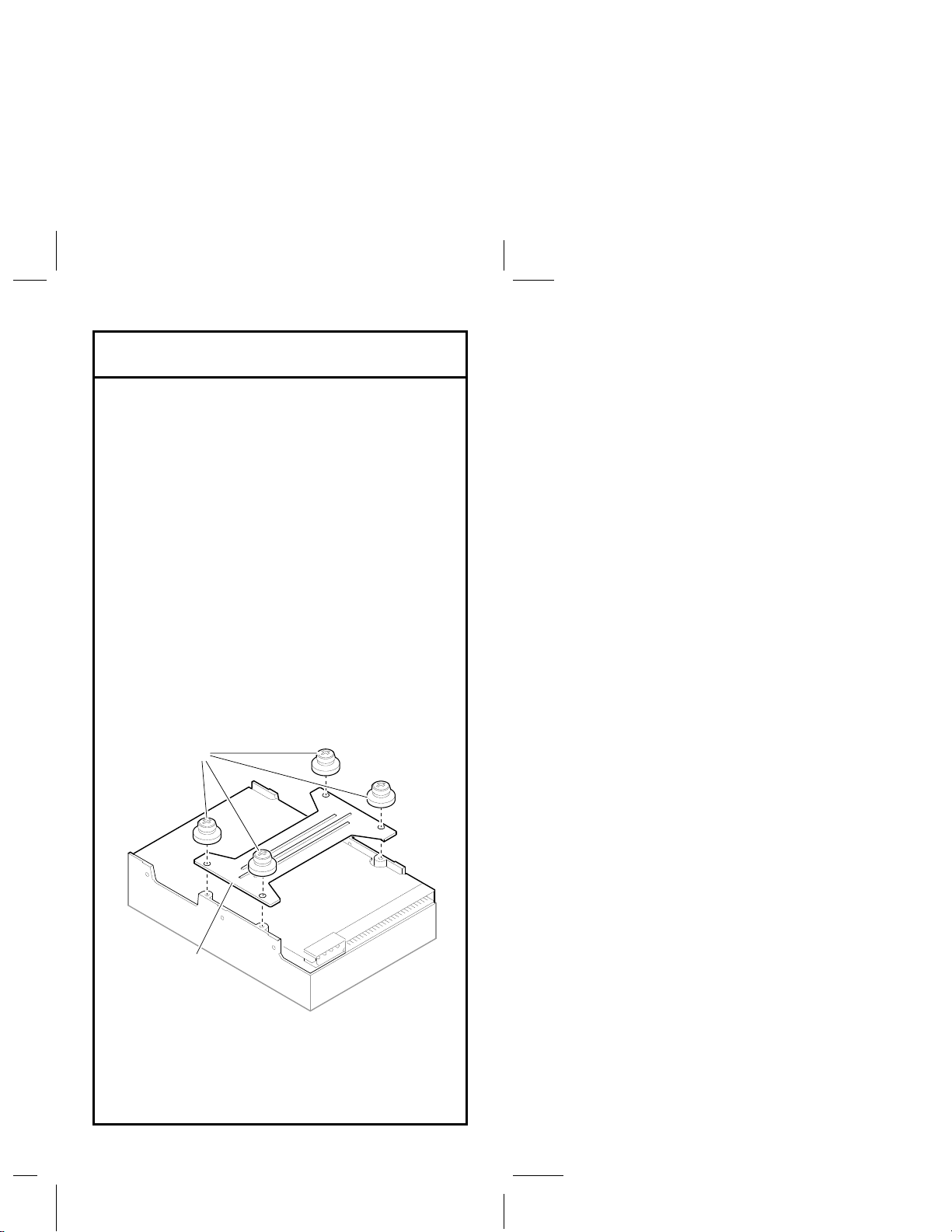

To attach the support plate (from the acces-

sory kit) to your drives:

1. Place the metal support plate on the disk

drive as shown.

2. Screw the four rubber grommets into the

plate and the drive until the plate is se-

cure.

Install New Mounting Brackets

Metal Support

Plate

MLO-010588

Rubber

Grommets
