ConnectCore MP13

Development Board

Hardware Reference Manual

Revision history—90002552

Revision Date Description

1P March 2023 Initial draft.

Trademarks and copyright

Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States

and other countries worldwide. All other trademarks mentioned in this document are the property of

their respective owners.

Disclaimers

Information in this document is subject to change without notice and does not represent a

commitment on the part of Digi International. Digi provides this document “as is,” without warranty of

any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or

merchantability for a particular purpose. Digi may make improvements and/or changes in this manual

or in the product(s) and/or the program(s) described in this manual at any time.

Warranty

To view product warranty information, go to the following website:

www.digi.com/howtobuy/terms

Customer support

Gather support information: Before contacting Digi technical support for help, gather the following

information:

Product name and model

Product serial number (s)

Firmware version

Operating system/browser (if applicable)

Logs (from time of reported issue)

Trace (if possible)

Description of issue

Steps to reproduce

Contact Digi technical support: Digi offers multiple technical support plans and service packages.

ConnectCore MP13 Development Board 2

ConnectCore MP13 Development Board 3

Feedback

To provide feedback on this document, email your comments to

[email protected]

Include the document title and part number (ConnectCore MP13 Development Board, 90002552 1P) in

the subject line of your email.

Contents

About the ConnectCore MP13

Features and functionality 6

Safety instructions 7

ESD 7

Block diagram 8

Placement 9

Top view 9

Bottom view 10

Connectors 10

Interfaces

Power interfaces 13

DC-in jack connector 13

Coin cell connector 13

Power and reset buttons 14

System boot 14

Debug interfaces 14

JTAG 14

Console port 15

Multimedia 15

Audio 15

Storage interface 16

MicroSD 16

Communication 16

Gigabit Ethernet 16

10/100 Mbps Ethernet 16

UART/RS-232/RS-485 16

CAN 17

USB Host 18

USB OTG 18

Mini PCI Express slot 18

XBee socket 18

MikroBus socket 18

SPI and I2C 18

GPIO 19

User interfaces 20

Wireless 20

ConnectCore MP13 Development Board 4

ConnectCore MP13 Development Board 5

Specifications

Electrical specification 21

Supply voltages 21

Mechanical specification 21

Environmental specification 21

WLAN specification 21

Appendix A - ETH2 Interface Correction

Background 22

Solution 23

About the ConnectCore MP13 Features and functionality

ConnectCore MP13 Development Board 6

About the ConnectCore MP13

The Digi ConnectCore MP13 wireless SOM kit is a complete development platform for intelligent,

connected and secure embedded products with a broad suite of tools and turnkey Linux software

support.

Note While the ConnectCore MP13 system-on-module is designed to be used in a production

environment, the ConnectCore MP13 Development Kit is designed only for development and testing in

a pre-production environment.

Features and functionality

nConnectCore MP13 module

lSTM32MP133C ARMCortex-A7 core operating at speeds up to 650 MHz

lUp to 256 MB, 16-bit DDR3 memory

lUp to 256 MB, 8-bit SLC NAND flash memory

lIEEE 802.11 a/b/g/n/ac WLAN and Bluetooth 5.0

nPower

lPower jack or industrial-dedicated 5V power connector

lCoin-cell battery charger, supplying the on-module RTC

lPower and reset buttons

nBoot source configuration

lNAND, USB, microSD

nDebug

lStandard IEEE 1149.1 JTAG interface

lSerial console at AB-type micro-USB connector and TTL level

nMultimedia

lMIPI DSI display

lHDMI display (through MIPI-to-HDMI transceiver)

lParallel 24-bit LCD interface with FFC on-board connector

lLVDS interface with up to four differential data pairs (through parallel-to-LVDS transceiver)

l8-bit parallel camera

lAudio CODEC with the following functionality

oOne 3.5 mm headphone jack

oOne 3.5 mm microphone jack

oTwo speaker outputs

oOne line-out output

oTwo line-in inputs

nStorage

About the ConnectCore MP13 Safety instructions

ConnectCore MP13 Development Board 7

lNAND flash

lmicroSD card slot

nCommunication

lRS-232

lRS-485

lTwo CAN

lGigabitEthernet

lTwo USB Host 2.0 interfaces through a stacked USB A type connector

lUSB OTG with AB-bype micro-USB connector

lSISO IEEE 802.11 a/b/g/n/ac +Bluetooth 5.0 with on-module U.FL or external SMA antenna

connector

lPCI Express Mini Card slot supporting full and half-size cards

lMikroBus socket

lXBee socket supporting XBee Cellular

nUser interface

lThree user LED, two of them shared with user buttons

nDimensions:

l120 x 160 mm

Safety instructions

nThe ConnectCore MP13 DVK cannot be guaranteed operation due to the radio link and so

should not be used for interlocks in safety critical devices such as machines or automotive

applications.

nThe ConnectCore MP13 DVK has not been approved for use in (this list is not exhaustive):

lnuclear applications

lexplosive or flammable atmospheres

nThere are no user serviceable components inside the ConnectCore MP13 DVK. Do not modify

the ConnectCore MP13 in any way. Modifications may exclude the DVK from any warranty and

can cause the ConnectCore MP13 to operate outside of regulatory compliance for a given

country, leading to the possible illegal operation of the radio.

nUse industry standard ESD protection when handling the ConnectCore MP13 DVK.

nTake care while handling to avoid electrical damage to the PCB and components.

nDo not expose ConnectCore MP13 DVK to water or moisture.

nUse this product with the antennas specified in the ConnectCore MP13 DVK user guides.

ESD

The ConnectCore MP13 Development Board has no additional ESD protection added to USB Host

(J24) and microSD card (J13) ports. For this reason, ESD stickers have been added to the

corresponding connectors. Please consider this when using the ConnectCore MP13 Development

Board. Additional ESD protection shall be added to end products using these interfaces of

ConnectCore MP13 SOM.

About the ConnectCore MP13 Block diagram

ConnectCore MP13 Development Board 8

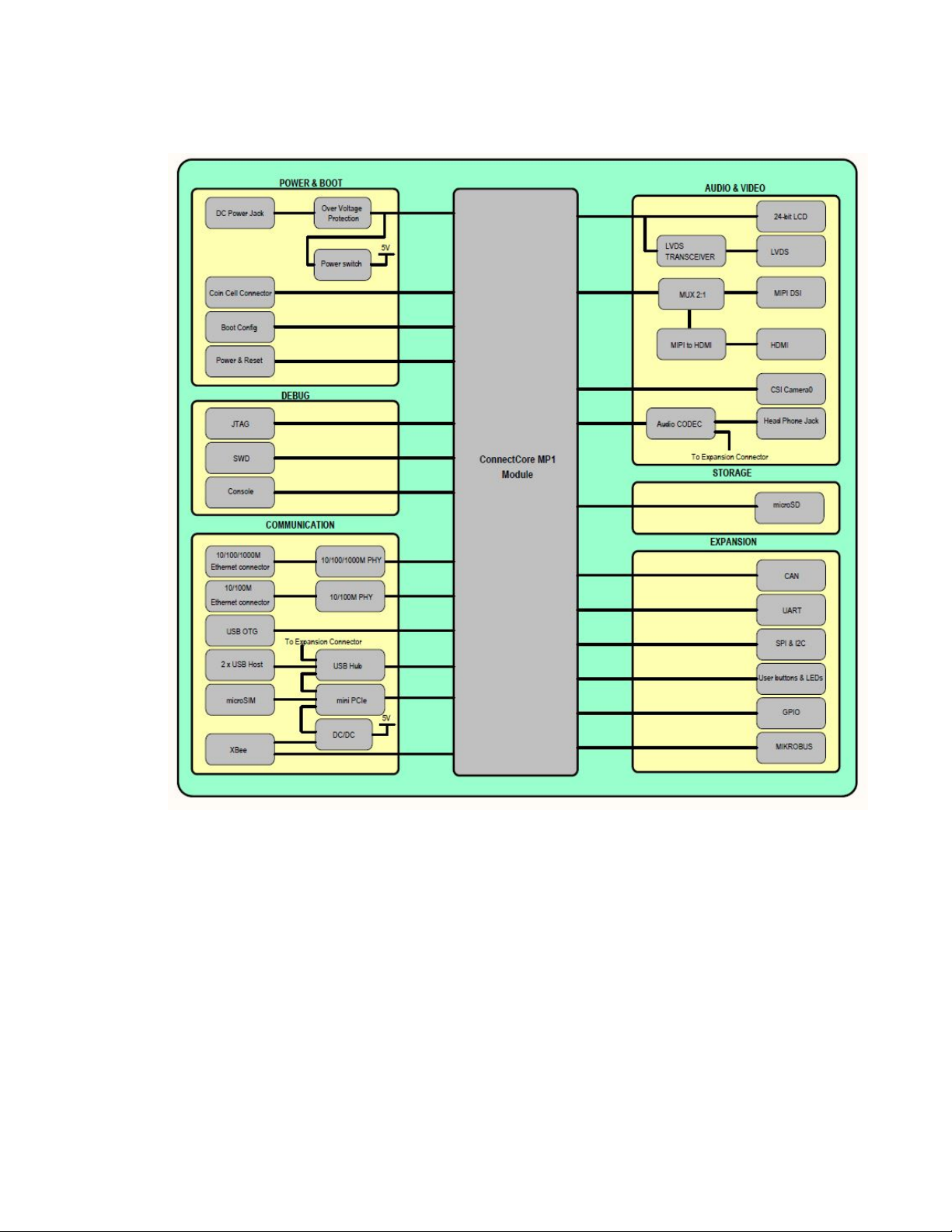

Block diagram

About the ConnectCore MP13 Placement

ConnectCore MP13 Development Board 9

Placement

Top view

About the ConnectCore MP13 Connectors

ConnectCore MP13 Development Board 10

Bottom view

Note Serigraphy on the bottom side of the PCB is incorrect. Refer to schematics and CAD

documentation for correct identification of the connectors.

Connectors

The following table lists all connectors on the ConnectCore MP13:

Connector Interface

J1 WLAN/Bluetooth expansion

J2 u.FL

J3 Bluetooth UART

J4 u.FL

J5 SMA

J6 5V power-in jack
