Digi XBee3 Cellular LTE-M Cellular Module Patch and Maintenance Release via EasyFlash Firmware Update

90002353_C 1

Digi XBee3 Cellular LTE-M Cellular Module Patch and

Maintenance Release via EasyFlash Firmware

Update

This document describes how to update the cellular modem firmware of the XBee3 Cellular LTE-M

module using EasyFlash and the XBIB-CU-TH development board.

It applies to the XBee3 Cellular device containing the following cellular modem:

nu-blox SARA-R410M-02B

There are two .zip packages available to update the u-blox module via EasyFlash. You must contact

Digi Technical Support to get both of these .zip packages.

nCritical issue patch (required): Version L0.0.00.00.05.06-A02.01 patch

This is a required patch to fix a critical issue as described here: u-blox Memory Housekeeping

Issue on XBee3 Cat M Cellular.

nMaintenance release (recommended): Version L0.0.00.00.05.08 maintenance release

Prerequisites

nFirmware requirements:

lFor the critical issue patch: XBee3 Cellular LTE-M with firmware 1140A or above

lFor the maintenance release: XBee3 Cellular LTE-M with firmware 11413 or above

nValid SIM installed

nXBIB-CU-TH Development board

nXCTU-NG latest release version (6.4.3 or later)

nEasyFlash version 10.02

nUSB 3.0 port (supports required current)

nUSB-C cable

nUSB-B micro cable

nGuides for installing EasyFlash 10.02 and required drivers:

lSARA-R4 Firmware Update R2.pdf

lSARA-R4 USB Driver Installation.pdf

Precautions

For best results:

nThe update operation should have exclusive access to the XBee. Disable any running

MicroPython scripts or other communication to the module.

Digi XBee3 Cellular LTE-M Cellular Module Patch and Maintenance Release via

EasyFlash Firmware Update

Step 1: Configure the XBIB-CU-

TH board

90002353_C 2

nEnsure solid uninterrupted power. Power loss during update may cause corrupted modem

firmware.

nThe EasyFlash update should be done with the radio at factory settings.

lThe radio's parameters as read through the graphical interface of the XCTU can be set to

factory defaults and then written to the module. If a module is brand new, then this step is

not needed since it will already be at these settings.

Step 1: Configure the XBIB-CU-TH board

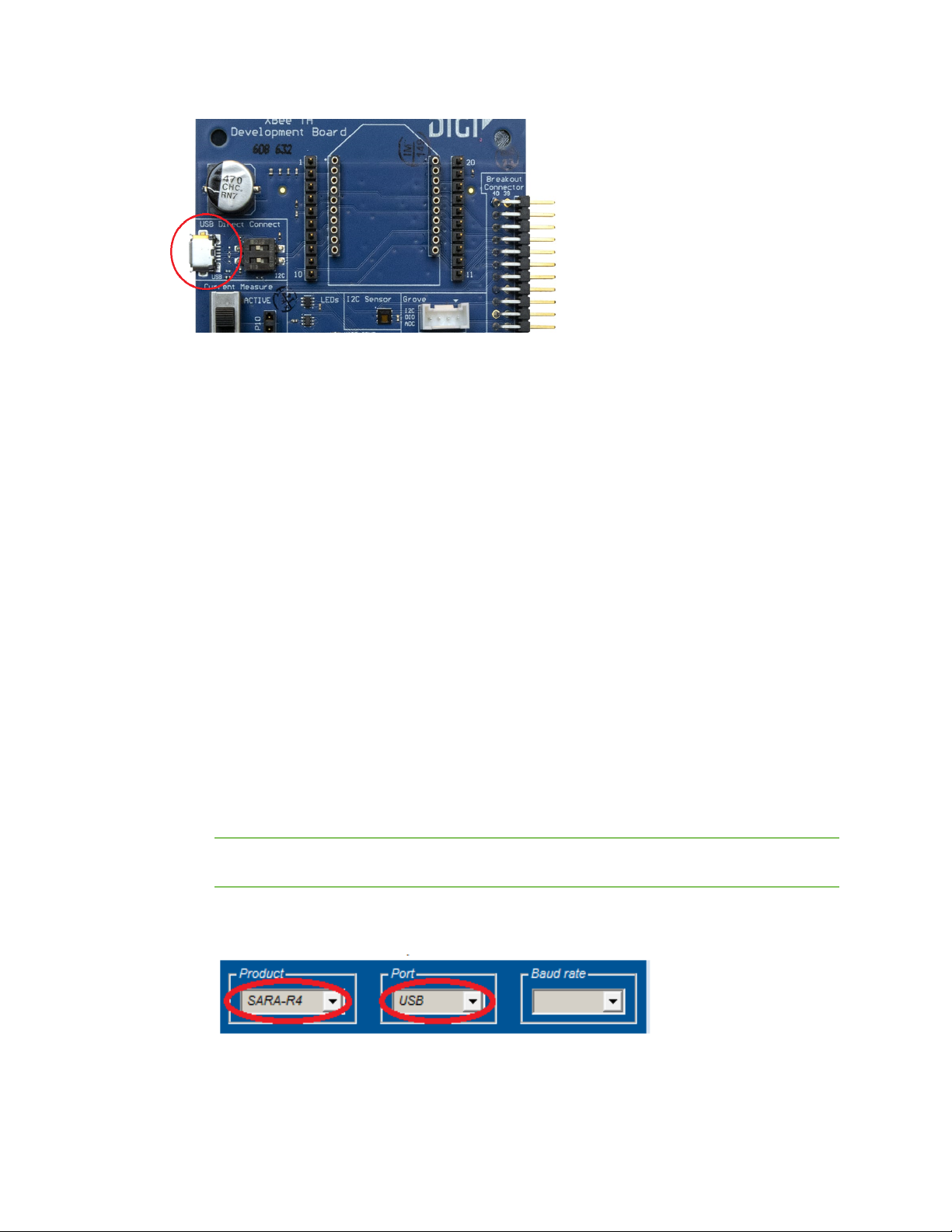

Enable the USB direct connect switches on XBIB-CU-TH development board. The switches must be

switched to the left of the board, as shown below.

Note This procedure requires USB direct and therefore cannot be performed on the XBIB-U-DEV

development board.

Step 2: Configure XBee3 Cellular LTE-M module.

1. Connect the USB Type-C cable to the USB 3.0 port on the bottom edge of the development

board. The USBhost must support USB 3.0, as this board requires the higher current supplied

by USB 3.0.

Digi XBee3 Cellular LTE-M Cellular Module Patch and Maintenance

Release via EasyFlash Firmware Update

Step 3: Connect to Cellular Modem via

USB Direct Access

90002353_C 3

2. Open XCTU and add the XBee3 Cellular device.

3. Click the Configuration Working mode button.

4. Scroll down to the I/O Settings section.

a. Find the P1 DIO11 option.

b. Ensure that it is set to USBdirect 7. Click the Write button to change the setting.

5. Scroll to the Network Settings section.

a. Find the DODevice Options field.

b. Ensure that bit 2 is set. Click the Write button to change the setting.

Step 3: Connect to Cellular Modem via USB Direct Access

Connect the USB micro-B cable to the USB Direct Connect port on the development board. If

prompted, wait for the driver installation to complete.

Digi XBee3 Cellular LTE-M Cellular Module Patch and Maintenance

Release via EasyFlash Firmware Update

Step 4: Flash the Cellular Module for the

required critical issue patch

90002353_C 4

Step 4: Flash the Cellular Module for the required critical issue

patch

1. Contact Digi Tech Support for a .zip file that contains the required driver installation files and

installation guides.

nCall: 952-912-3444 or 877-912-3444

nEmail: tech.support@digi.com

2. Download the EasyFlash program and the firmware file.

a. Follow the instructions from Digi Tech Support to get the u-blox_EasyFlash_

10.02_SARA-R410M-02B_L0_0_00_00_05_06_A0201.zip file.

b. Open the .zip file and download the files onto your computer. Make sure the files

are all saved to the same location.

3. Install the SARA-R4 USB driver.

a. Before you begin, make sure that all Qualcomm tools are closed.

b. Open the SARA-R4 USBDriver Installation.pdf file that was included in the .zip

file, and follow the driver installation instructions.

4. Ensure that the desired .dof firmware file (such as SARA-R410M-02B-L0_0_00_00_05_06_12-

08-18.dof) is located in the same folder as the EasyFlash.exe.

5. Run the u-blox EasyFlash program on the PC with the Run as administrator privilege to

ensure correct operation.

Note For more information about EasyFlash, refer to the SARA-R4 Firmware Update R2.pdf

file that was included in the .zip file.

a. From the Product list box, select that SARA-R4 option.

b. From the Port list box, select the USB option.

c. Click Start.

Digi XBee3 Cellular LTE-M Cellular Module Patch and

Maintenance Release via EasyFlash Firmware Update

Step 5: Flash the Cellular Module for the

recommended maintenance release

90002353_C 5

6. Reset the XBee Cellular module.

7. Wait for the update to complete.

Step 5: Flash the Cellular Module for the recommended

maintenance release

1. Contact Digi Tech Support for a .zip file that contains the required driver installation files and

installation guides.

nCall: 952-912-3444 or 877-912-3444

nEmail: tech.support@digi.com

2. Download the EasyFlash program and the firmware file.

a. Follow the instructions from Digi Tech Support to get the u-blox_EasyFlash_

10.02_SARA-R410M-02B-01_IP.zip file.

b. Open the .zip file and download the files onto your computer. Make sure the files

are all saved to the same location.

3. Install the SARA-R4 USB driver.

Note If you have already installed the SARA-R4 USB driver while flashing the critical issue

patch, you can skip this step.

a. Before you begin, make sure that all Qualcomm tools are closed.

b. Open the SARA-R4 USBDriver Installation.pdf file that was included in the .zip

file, and follow the driver installation instructions.

4. Ensure that the desired .dof firmware file (such as SARA-R410M-02B-L0_0_00_00_05_08.dof_

updated.dof) is located in the same folder as the EasyFlash.exe.

5. Run the u-blox EasyFlash program on the PC with the Run as administrator privilege to

ensure correct operation.

Note For more information about EasyFlash, refer to the SARA-R4 Firmware Update R2.pdf

file that was included in the .zip file.

a. From the Product list box, select that SARA-R4 option.

b. From the Port list box, select the USB option.

c. Click Start.

6. Reset the XBee Cellular module.

7. Wait for the update to complete.

Digi XBee3 Cellular LTE-M Cellular Module Patch and Maintenance Release via

EasyFlash Firmware Update

Step 6: Restore settings and reset

the module

90002353_C 6

Step 6: Restore settings and reset the module

1. Open XCTU.

2. Click the Configuration Working mode button.

3. Scroll down to the I/O Settings section.

a. Find the P1 DIO11 option.

b. Restore P1 to the desired setting.

4. Scroll to the Network Settings section.

a. Find the DODevice Options field.

b. Restore DO to the desired setting.

5. Reset the module.
