HARDWIRE SC-2

VALVE DISTORTION

OWNER’S MANUAL

DECLARATION OF CONFORMITY

Manufacturer’s Name: Harman Signal Processing

Manufacturer’s Address: 8760 S. Sandy Parkway

Sandy, Utah 84070, USA

declares that the product:

Product name: SC-2

Product option: All (requires Class II power adapter

that conforms to the requirements

of EN60065, EN60742, or

equivalent.)

conforms to the following Product Speciﬁcations:

Safety: IEC 60065 -01+Amd 1

EMC: EN 55022:2006

EN 55024:1998

FCC Part 15

Supplementary Information:

The product herewith complies with the requirements

of the:

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC.

RoHS Directive 2002/95/EC

WEEE Directive 2002/96/EC

EC Regulation 278/2009

With regard to Directive 2005/32/EC and EC Regulation

1275/2008 of 17 December 2008, this product is designed,

produced, and classiﬁed as Professional Audio Equipment and

thus is exempt from this Directive.

With regard to the PS200R and Directive 2005/32/EC and EC

Regulation 278/2009 of 6 April 2009, this regulation applies to

Class A (single output) external power supplies.The PS200R

used with this product is a multi-output power supply and

thus is exempt from this Directive.

Roger Johnsen

Vice-President of Engineering

8760 S. Sandy Parkway

Sandy, Utah 84070, USA

Date: October 4, 2010

European Contact:Your local DigiTech Sales and Service

Ofﬁce or

Harman Signal Processing

8760 South Sandy Parkway

Sandy, Utah 84070 USA

Ph: (801) 566-8800

Fax: (801) 568-7583

WARNING

For your protection, read the following:

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

8. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

9. Unplug this apparatus during lightning storms or when

unused for long periods of time.

10. No user serviceable parts inside. Refer all servicing to

qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-

supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate

normally, or has been dropped.

11.WARNING:To reduce the risk of fire or electric shock, do

not expose this apparatus to rain or moisture.

12. Refer to labels on the unit, including bottom cover, for

other markings and pertinent information.

ELECTROMAGNETIC

COMPATIBILITY

This device complies with part 15 of the FCC Rules

and the Product Specifications noted on the Declara-

tion of Conformity. Operation is subject to the fol-

lowing two conditions:

• this device may not cause harmful interference,

and

• this device must accept any interference received,

including interference that may cause undesired

operation.

Operation of this unit within significant

electromagnetic fields should be avoided.

• use only shielded interconnecting cables.

If you want to dispose of this product, do not mix it with general household waste.

There is a separate collection system for used electronic products in accordance with

legislation that requires proper treatment, recovery, and recycling.

Private households in the 25 member states of the EU, in Switzerland and Norway may return their

used electronic product free of charge to designated collection facilities or to a retailer (if you

purchase a similar new one).

For countries not mentioned above, please contact your local authorities for a correct method of

disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery,

and recycling and thus prevent potential negative effects on the environment and human health.

WARRANTY:

We at DigiTech® are very proud of our products and back-up each one we sell with the following warranty:

1. Please register online at www.digitech.com within ten days of purchase to validate this warranty.This warranty is

valid only in the United States.

2. DigiTech warrants this product, when purchased new from an authorized U.S. DigiTech dealer and used solely within

the U.S., to be free from defects in materials and workmanship under normal use and service.This warranty is valid

to the original purchaser only and is non-transferable.

3. DigiTech liability under this warranty is limited to repairing or replacing defective materials that show evidence of

defect, provided the product is returned to DigiTech WITH RETURN AUTHORIZATION, where all parts and labor

will be covered up to a period of one year (this warranty is extended to a period of six years when the product

has been properly registered through our website).A Return Authorization number may be obtained from DigiTech

by telephone.The company shall not be liable for any consequential damage as a result of the product’s use in any

circuit or assembly.

4. Proof-of-purchase is considered to be the responsibility of the consumer. A copy of the original purchase receipt

must be provided for any warranty service.

5. DigiTech reserves the right to make changes in design, or make additions to, or improvements upon this product

without incurring any obligation to install the same on products previously manufactured.

6. The consumer forfeits the benefits of this warranty if the product’s main assembly is opened and tampered with by

anyone other than a certified DigiTech technician or, if the product is used with AC voltages outside of the range

suggested by the manufacturer.

7. The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor authorizes

any person to assume any obligation or liability in connection with the sale of this product. In no event shall DigiTech

or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty

due to causes beyond their control.

NOTE: The information contained in this manual is subject to change at any time without notiﬁcation. Some information

contained in this manual may also be inaccurate due to undocumented changes in the product or operating system since

this version of the manual was completed.The information contained in this version of the owner’s manual supersedes all

previous versions.

Introduction

More than a remarkable achievement, DigiTech’s HardWire®series represents

a collection of significant improvements in guitar effects pedals.The HardWire

series pedals provide a suite of well-known effects, each with superior tone and

control. But these pedals go above and beyond their peers to provide such

distinguishing features as true bypass and high voltage operation, making them

essential additions to the signal chain of players who know about sound quality

and demand the utmost in performance.

Included Items

• HardWire SC-2 Valve Distortion

• StompLock™

• Foot Switch Glow Sticker

• Hook-and-loop Pedalboard Pad

• Online Warranty Registration Information Card

Pedal Interface

1 4 5

What Does This Do?

1. Level Knob - Controls the distortion output level.Turn the knob

clockwise to increase and counter-clockwise to decrease the output

level.

1. DC Adapter Jack - Connect the optional Harman power supply to

this jack. Use the proper supply for your area’s mains line voltage.

2. Low Knob - Controls the level of low frequency (bass) boost/cut.

Turn the knob clockwise to increase and counter-clockwise to decrease

the bass level.

3. High Knob - Controls the level of high frequency (treble) boost/cut.

Turn this knob clockwise to increase and counter-clockwise to decrease

the treble level.

4. Gain Knob - Controls the overall distortion gain.Turn the knob

clockwise to increase and counter-clockwise to decrease the amount of

distortion gain.

5. Voicing Switch - This switches between the Distortion’s two voicings.

Crunch provides a classic balanced distortion. Saturated features an

extra gain stage for maximum sustain distortion making it ideal for

solos.

6. Input - Connect your instrument or the output of another pedal to

this jack.This jack enables battery power to the pedal when connected.

To prolong battery life, disconnect the cable from the Input jack when

not in use. If the optional Harman power supply is used, cables can

remain connected.

7. Foot Switch Release Pins - These two pins are spring loaded

hinges that hold the Foot Switch in place. See page 7 for information

on accessing and changing the battery.

8. Indicator LED - Lights when the effect is turned on.When battery

power is low (approximately 15 minutes before it dies), the Indicator

LED begins to dim giving you advanced warning that very shortly you

will need to replace the battery.

9. Foot Switch - Turns the effect on and off.

10. Output - Connect this output to the input of your amplifier or the

input of another pedal.

Note: Use unbalanced mono instrument cables only.

Amplifier Setup

Harman Power

Supply (optional)

Autres manuels pour Hardwire SC-2

Table des matières

Autres manuels digi-tech Pédale musicale

digi-tech

digi-tech BASS SYNTH WAH Manuel utilisateur

digi-tech

digi-tech RPX400 Manuel utilisateur

digi-tech

digi-tech RP360 XP Manuel utilisateur

digi-tech

digi-tech Brian May Artist Series Manuel utilisateur

digi-tech

digi-tech TRIO+ Band Creator+ Looper Manuel utilisateur

digi-tech

digi-tech GeNetX GNX2 Manuel utilisateur

digi-tech

digi-tech HARMONYMAN - Manuel utilisateur

digi-tech

digi-tech BLACKARTS BONESHAKER Manuel utilisateur

digi-tech

digi-tech CROSSROADS Manuel utilisateur

digi-tech

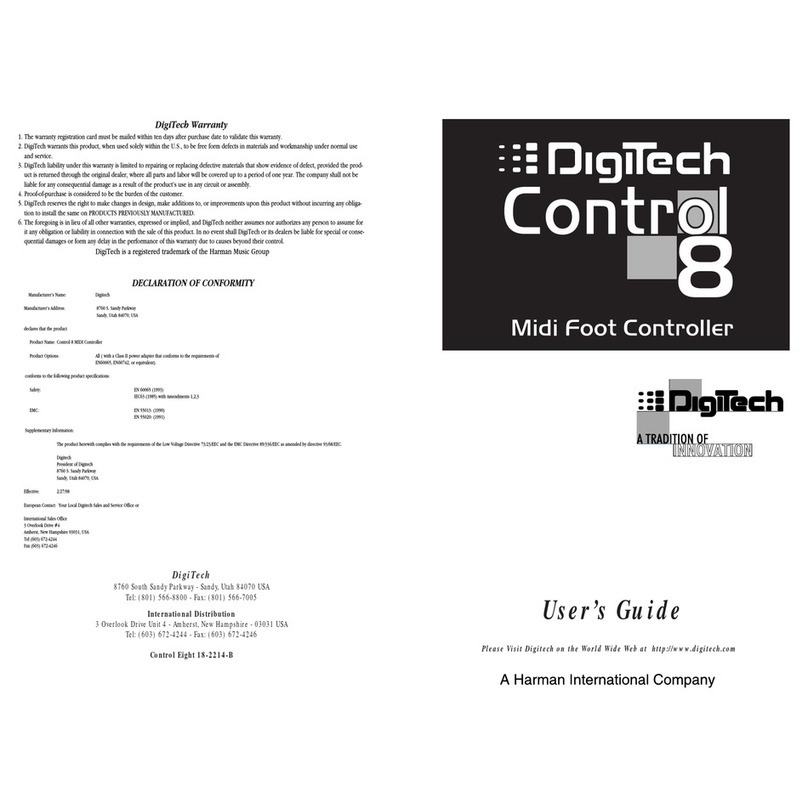

digi-tech C8 Manuel utilisateur
