Diaz VS2 Manuel utilisateur
www.diaz.be 1
Diaz VS2
V.21.00
General information
Mounting of the pleated blind in the glazing bead
Manual
VS2
Cord
Rubber band
Upper tension
cord bracket
Lower tension
cord bracket
Operating
handles
Lower tension cord
bracket
1Determine the position of the tension cord bracket and mark it on the window frame.
You can also use the xing
template (green) to mark
the position. (see separate
sheet)
outer edge of the blind
= ordered width
2Screw the xing plates to the marked position.
DIN 7982 Ø 3,9 x 13 mm
DIN 7981 Ø 2,9 x 9,5 mm

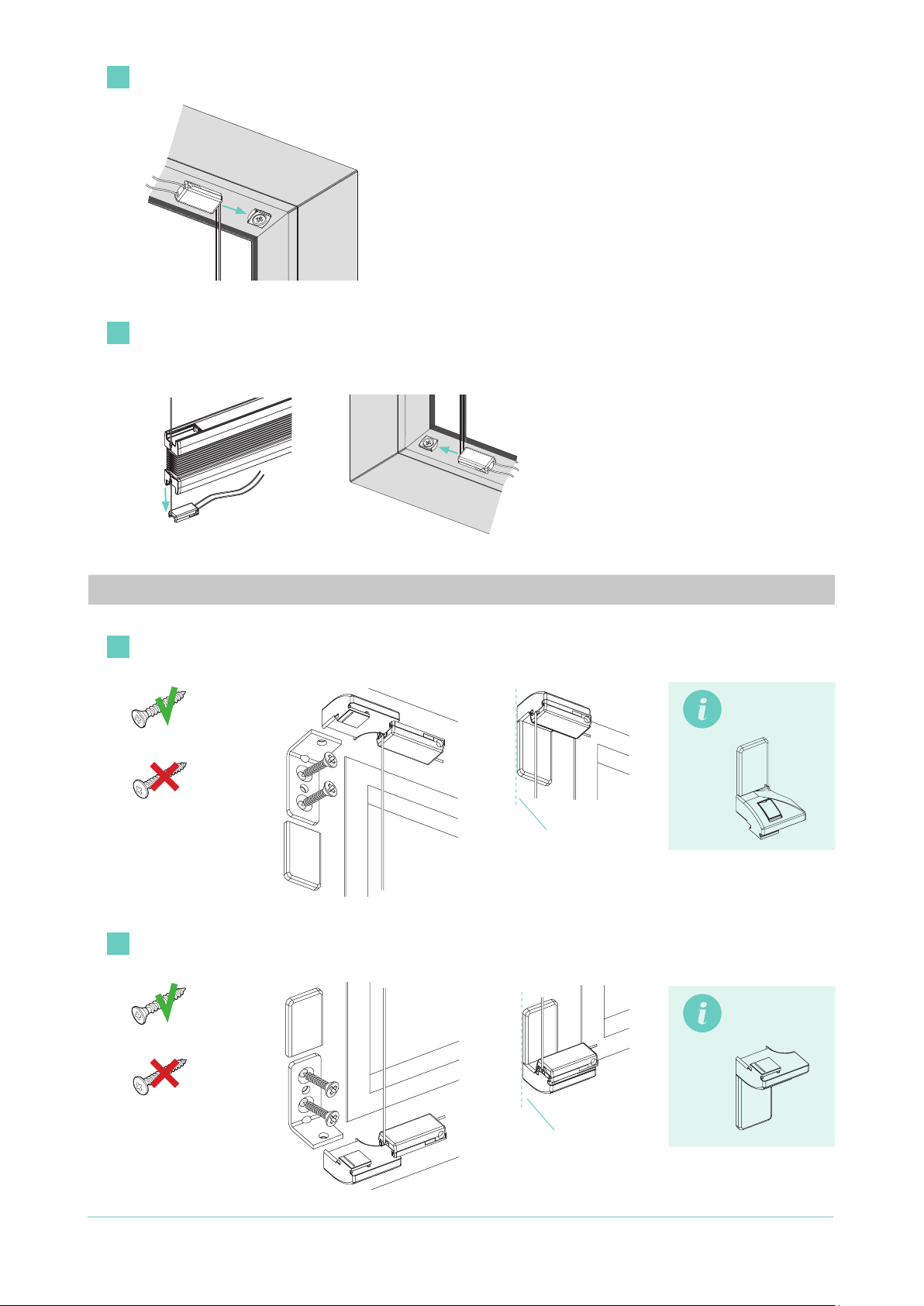

www.diaz.be 2
Diaz VS2
V.21.00
Mounting of the pleated blind with mounting bracket
DIN 7982 Ø 3,9 x 13 mm
DIN 7982 Ø 3,9 x 13 mm
DIN 7981 Ø 2,9 x 9,5 mm
DIN 7981 Ø 2,9 x 9,5 mm
1
2
3
Mount the top brackets and push the tension cord brackets over it.
Mount the bottom brackets and push the tension cord brackets over it.
outer edge of the blind
outer edge of the blind
Push the upper tension cord brackets over the xing plates until they lock.
Take the lower tension cord brackets out of the rail
and push them over the xing plates until they lock.
4
Alternative
mounting
Alternative
mounting

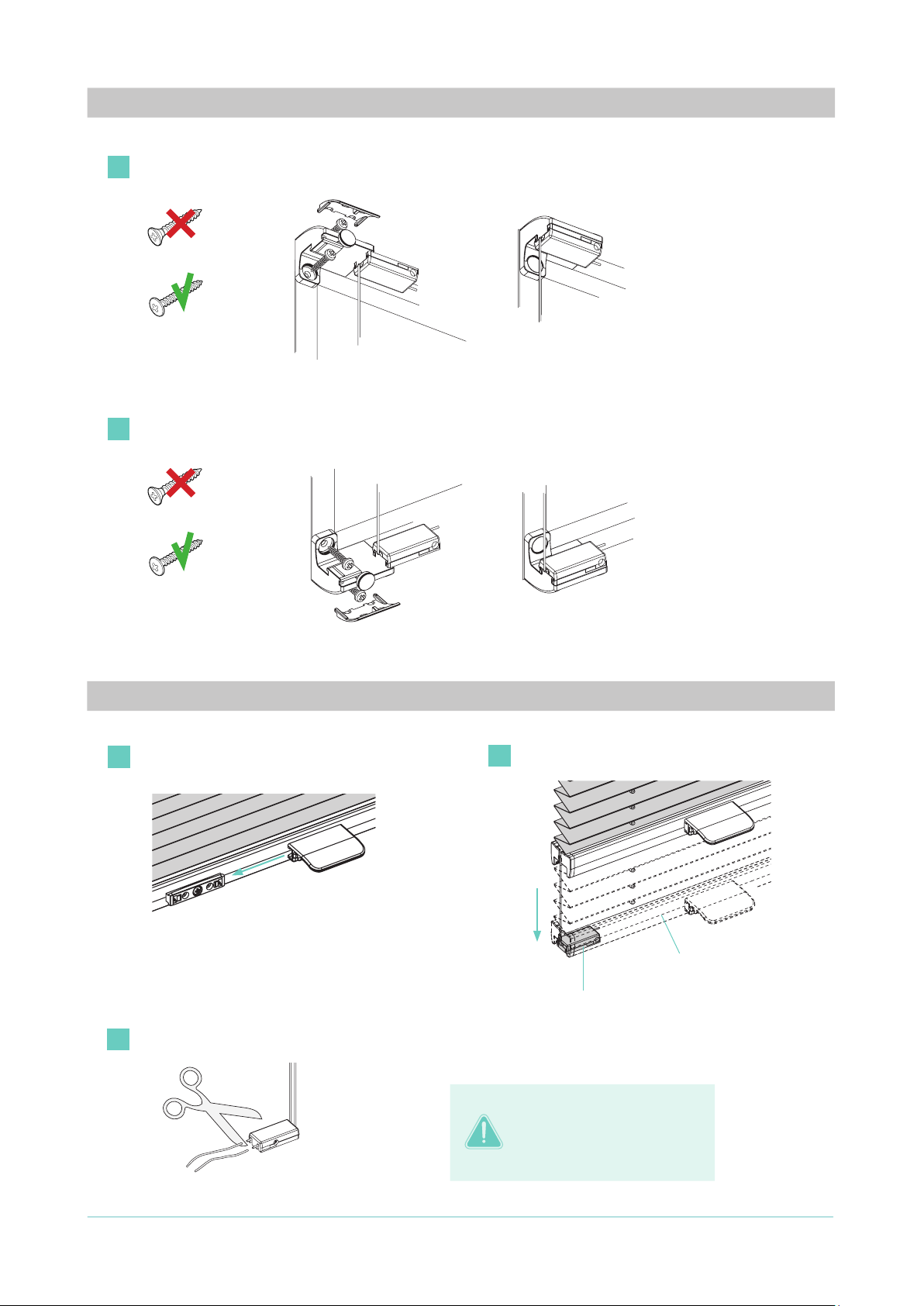

www.diaz.be 3
Diaz VS2
V.21.00
1
2
Install the supports at the top with moulding locking strip and push the tension cord brackets over it.
Install the supports at the bottom with moulding locking strip and push the tension cord brackets over it.
Mounting of the pleated blind with glazing bead support
Finishing of the blind
DIN 7982 Ø 3,9 x 13 mm
DIN 7982 Ø 3,9 x 13 mm
DIN 7981 Ø 2,9 x 9,5 mm
DIN 7981 Ø 2,9 x 9,5 mm
1Mount handles: slide both handles sideways. 2Click the operation prole over the tension cord bracket.
CLICK
tension cord bracket.
operation prole
3Cut off the excess cord ends.
Adjustment of the cord
tension must be uniform
and can only be done
by a professional.
