DFSK K01H Manuel utilisateur
Thank you for choosing a DFSK K01H for your business.
We hope the vehicle gives you years of reliable service.
Please be aware that this manual covers a range of DFSK K01H series
vehicles, some features of which may not be available on your vehicle.
As our products are in continuous development and improvement, the
company reserves the right to upgrade the technical state and parameters
at any time.
Sokon Automotive.
K01H HANDBOOK
Contents
I. Identicationofthevehicle
1. Vehicle Identication Number
2. Engine Number
II. TechnicalData
1. Engine Specication
2. General Specications
3. Tyre Pressures
4. Wheel Alignment Parameters
5. Capacities
III. VehicleFeaturesandFunctions
1. Door locks
2. Keys
3. Front Door Window
4. Seats
5. Seat Belts
6. Dashboard
7. Ignition switch
8. Lights, turn signal and high/low beam
switch
9. Windscreen wiper and washers
10. Horn
11. Hazard asher switch
12. Fog light switch
13. Heater
14. Heater Control Panel
15. Instrument Cluster
16. Cigarette Lighter
17. Ash Tray
18. MP3 player & radio
19. Glove Box
20. Interior Light
21. Interior Rear-View Mirror
22. Exterior Mirrors
23. Sun Visor
24. Grab Handle
25. Tool kit
26. Handbrake
27. Foot Pedals
28. Gear Lever
29. Bonnet
IV. OperatingtheVehicle
1. Running-in
2. Starting the engine
3. Driving
4. Braking
5. Driving in snow and ice
V. CareandMaintenance
1. Fuel
2. Engine oil
3. Air lter
4. Transmission uid
5. Brake uid
6. Washers and wipers
7. Fuse box
8. Spare wheel
9. Changing a wheel
10. Engine fails to start
11. Jump start
12. Overheating
VI. Check&Service
1. Regular checks and maintenance
2. Service intervals
VII. Towingthevehicle
1. Towing the vehicle in an emergency
VIII. TipperBodyOperation
1. Isolator Switch
2. The Tipper Body Controls
IX. HandoverProceedure
X. WarrantyProceedure
XI. ServiceRecord
XII. BreakdownRecovery
I.IdenticationoftheVehicle
1.VehicleIdenticationNumber
The vehicle identication number (VIN) is located at the bottom of the windscreen on the left-
hand side, on the centre of the bulkhead inside the cab and on the chassis side rail beneath
the driver’s seat.
2.TheEngineNumber
The serial number of the engine will be found stamped on the top of the engine.
Both numbers should always be quoted with any vehicle enquiries, as the Factory records
are always led against the VIN and engine number, which aids traceability.
I. Identication of the vehicle
Model DK12-06
Type Four cylinders in line.
16 Valves, 4-stroke, water cooled, DOHC, VVC, EFI
petrol engine
Displacment 1240cc
Power Output kW(rpm) |hp 67/6000 | 90hp
Max Torque NM/(rpm) 119/3800
Fuel 93 RON or higher unleaded petrol
II.TechnicalData
1.EngineSpecications
II. Technical Data
K01H
L W H (mm) 4280 x 1560 x 1850
Load Space (mm) 2240x1400x350 / 2440x1400x530
Wheelbase (mm) 2760
Track (mm) 1310/1310
Kerb Weight (kg) 990
Gross Weight (kg) 1865
Seats 2
Turning Circle (m) 10.3
Max Gradient (%) ≥30
Fuel Tank Capacity (L) 40
Gearbox Type 5MT
Max Speed (mph) 74.5
Fuel Consumption combined (mpg) 37.6
FR/RR Suspension (mm) 555/1075
Tyre/wheel combinations 165R13LT-8PR 94/93S 5J x 13 40mm
2.GeneralSpecications
II. Technical Data
3.Tyrepressures(psi)
Tyre size
165R13LT (psi)
K01H Unladen
Fully laden
Front wheel Rear wheel
26 26
26 54
4.WheelAlignment
Item Unit EQ1020TF
Truck
EQ1021NF
Truck (Double cabin)
K01H
EQ1021GF24Q7
Truck
Toe-in mm 0~5
Tyre camber angle
(°)
1°30’ 1°30’
Master pin inclination
angle
8 8
Master pin caster angle 2°30’ 2°30’
II. Technical Data
5.Fluidsandoilcapacities
Item Unit
DK12-05 DK12-06
Cooling system L 5.2
Engine oil L 4.2
Fuel tank L 40
Transmission uid L 1.3
Rear axle uid L 1.2
Braking system uid
DOT 4
L 0.6
II. Technical Data
III.VehicleFeaturesandFunctions
1.DoorLocks
Inside the Vehicle
All the doors can be locked by pressing down the lock button. The door can not be operated from inside or outside the
vehicle. Pull the lock button to un-lock the door.
Outside the vehicle
The front doors can be locked and un-locked using the key. The locking button is up while un-locked, and down when
locked.

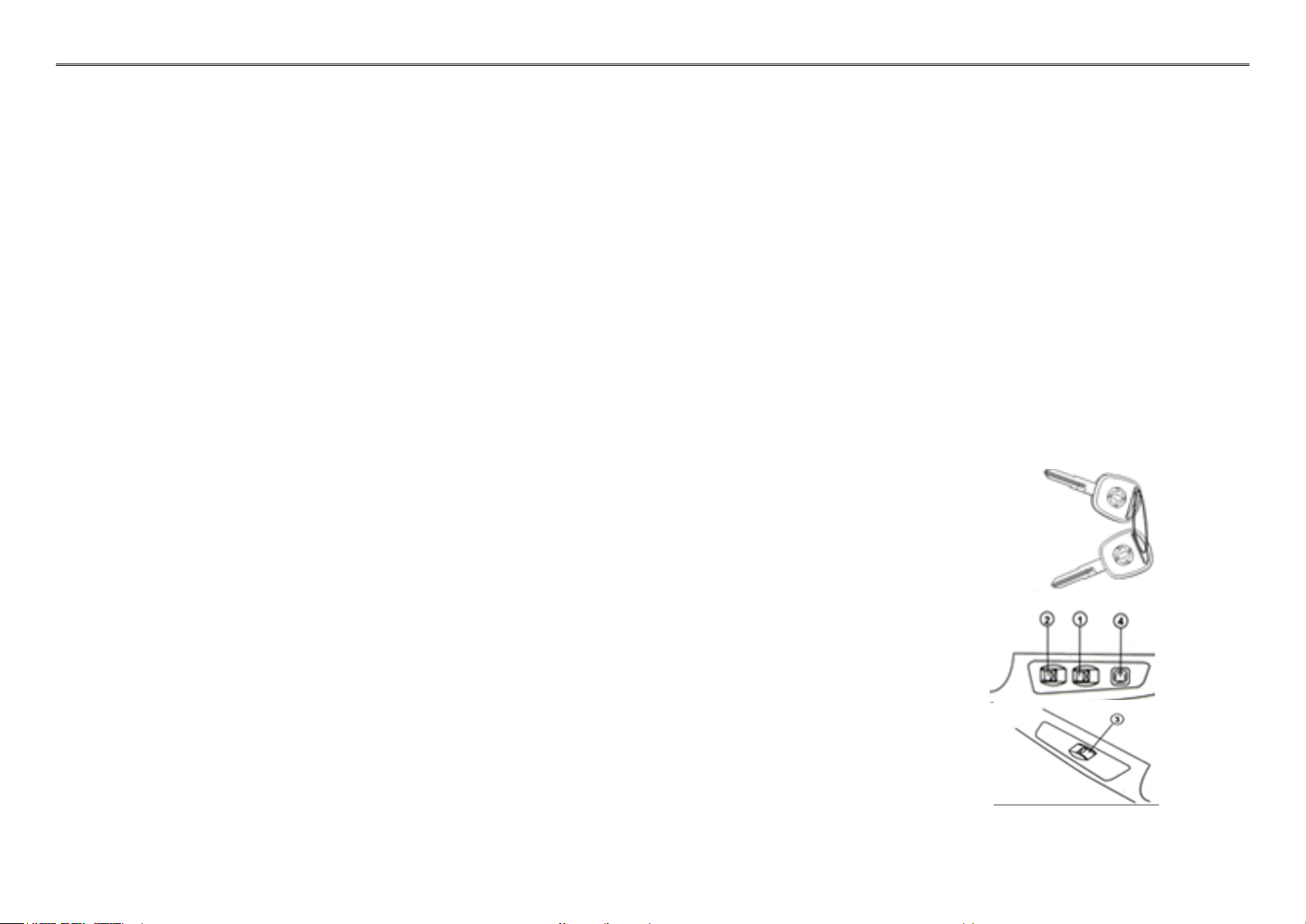

2.Keys
This vehicle is supplied with two keys that operate the ignition switch, the doors, and the fuel ller cap.
3.FrontDoorWindows-Electric
The operating switches are located on the door trim inside the door.
Switch 1 is for the driver to control the window on the passenger side.
Switch 2 is for the window in the driver’s side.
Switch 3 is located on the passenger side door trim for operating the passenger side window.
Button 4 is a toggle switch, which disables and re-enables switch 3, for the passenger side window.
Depress the button, the window will open.
Pull up the button, the window will close.
III. Vehicle Features and Functions

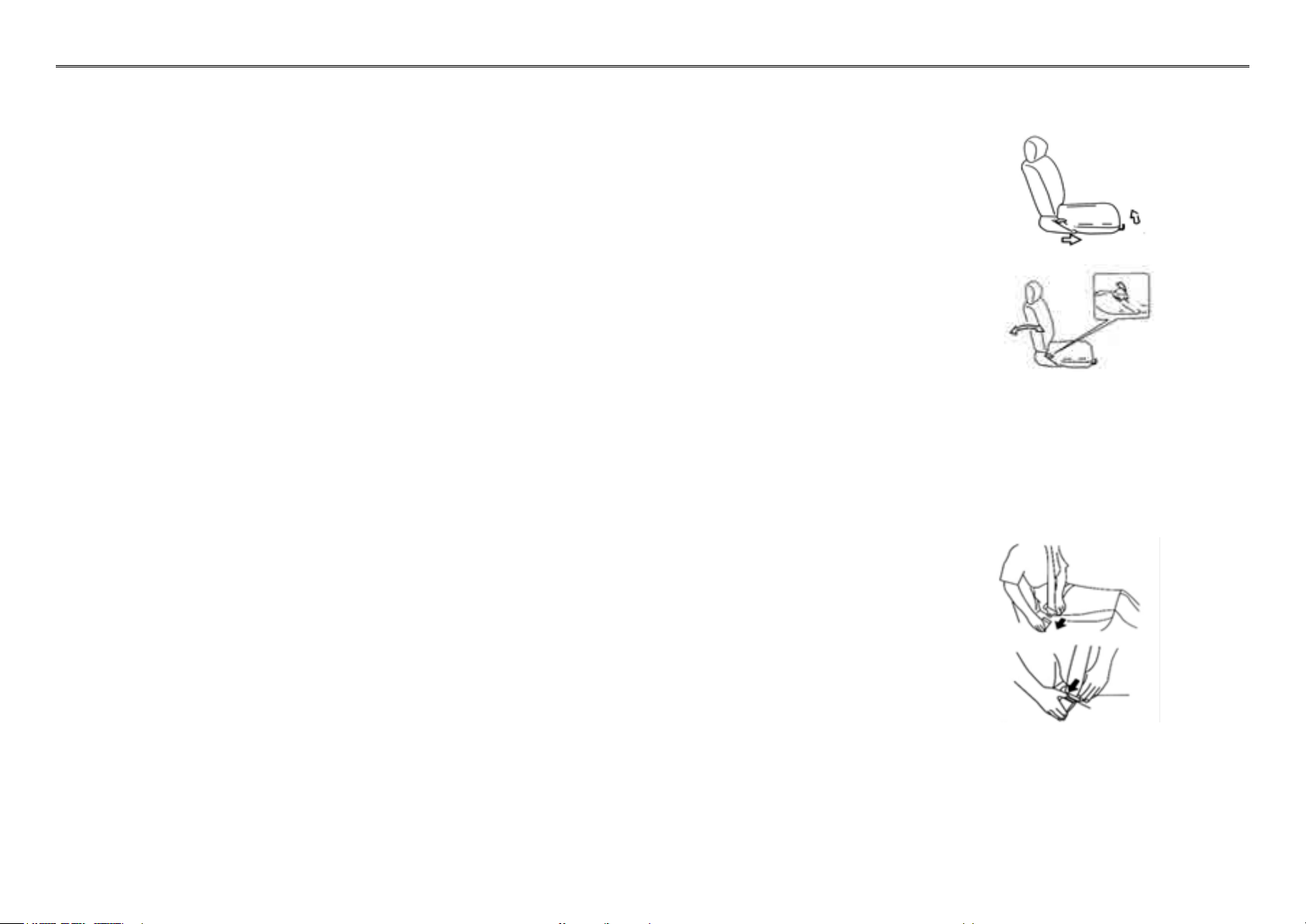

4.Seats
Adjustment of the Seats:
Lift the handle at the front of the seat and slide the seat forwards and rearwards as required.
Pull up the backrest handle beside the seat to adjust the seat back angle.
The backrest can also be folded forward.
Note:Donotadjusttheseatwhiledriving,ortheseatmaymoveabruptlyforwardorbackward
whichmaycausethelossofcontrolofthevehicle.
5.SeatBelts
While driving, seatbelts must be worn at all times.
To secure, pull the belt out steadily and insert the tongue into the buckle rmly until you hear a click.
Press the red button on the buckle to release the clip and the belt.
The seat belt will automatically retract back into the stowed position.
Do not attempt to make any modications to the seat belt.
The seat belts should not come into contact with harsh cleaning chemicals. If you need to clean the
belt use a pH neutral soap and water. If the seat belt shows signs of wear or is dirty or damaged,
then it should be replaced by an authorised service centre.
It is very important that if a seat belt is in use during an accident, even though there may not be any
obvious damage, it should be changed.
Seat belts are designed to be used by only one person at a time.
III. Vehicle Features and Functions
