Dexter Laundry T-350SWD Manuel utilisateur
8514-302-001 REV B page 1
COMMERCIAL WASHER
MODEL T-300/350/350SWD VENDED
C-SERIES CONTROL – 50Hz, (Lower Extr ct)
OPERATOR’S MANUAL
INSTALLATION & OPERATION
INSTRUCTIONS
Please read this information and retain for reference.
WARNING - HIS WASHER IS EQUIPPED WI H DEVICES AND FEA URES RELA ING O I S SAFE
OPERA ION. O AVOID INJURY OR ELEC RICAL SHOCK, DO NO PERFORM ANY SERVICING UNLESS
QUALIFIED O DO SO.
I IS HE RESPONSIBILI Y OF HE OWNER O CHECK HIS EQUIPMEN ON A FREQUEN
BASIS O ASSURE I S SAFE OPERA ION.
A machine should not be allowed to operate if any of the following occur:
- Excessively high water level.
- If machine is not connected to a properly grounded circuit.
- If the door does not remain securely locked during the entire cycle.
- Vibration or shaking from an inadequate mounting or foundation.
WARNING - FOR SAFETY
1. Always shut off power and water supply before servicing.
2. Do not overload the washer.
3. Do not open door when cylinder is in motion or it contains water.
4. Do not bypass any safety devices of this washer.
5. Do not use volatile or flammable substances in or near this washer.
6. Keep all panels in place. hey protect against shock and injury and add rigidity to the washer.
PREVENTIVE MAINTENANCE REQUIREMENTS
DAILY
- Check that the loading door remains securely locked and cannot be opened during an entire cycle.
- Clean the top, front, and sides of the cabinet to remove residue.
- Clean the soap dispenser and lid and check that all dispenser mounting screws are in place and tight.
- Check the loading door for leaks. Clean the door seal of all foreign matter.
- Leave the loading door open to aerate the washer when not in use.
QUARTERLY
- Make sure the washer is inoperative by switching off the main power supply.
- Check the V belts for wear and proper tension.
- Clean lint and other foreign matter from around motor.
- Check all water connections for leaks.
- Check the drain valve for leaking and that it opens properly.
- Wipe and clean the inside of the washer and check that all electrical components are free of moisture and
dust.
- Remove and clean water inlet hose filters. Replace if necessary.
- Check anchor bolts. Retighten if necessary.
IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly
maintenance.
8514-302-001 REV B page 2
TABLE OF CONTENTS
Page
No.
Wash
er Specifications
2

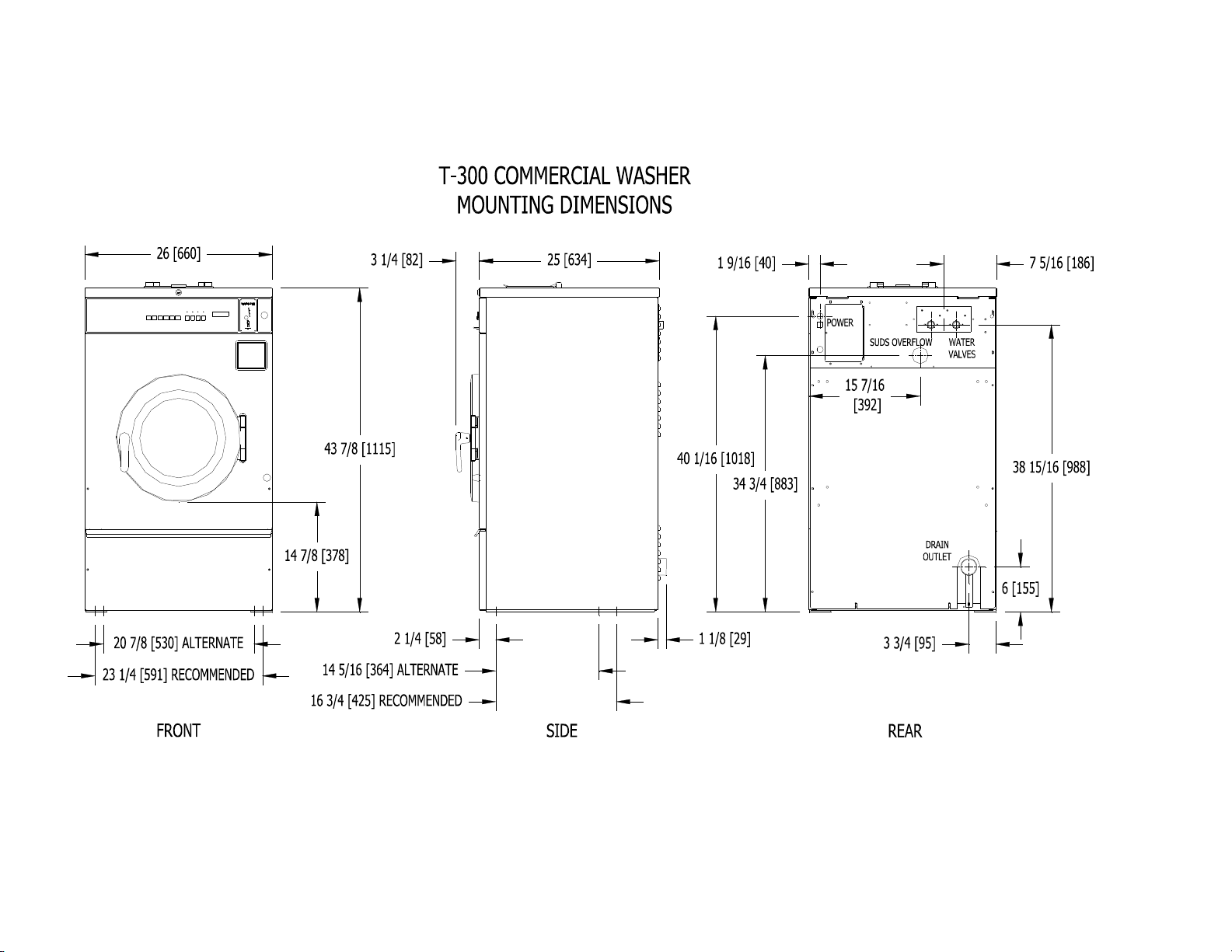

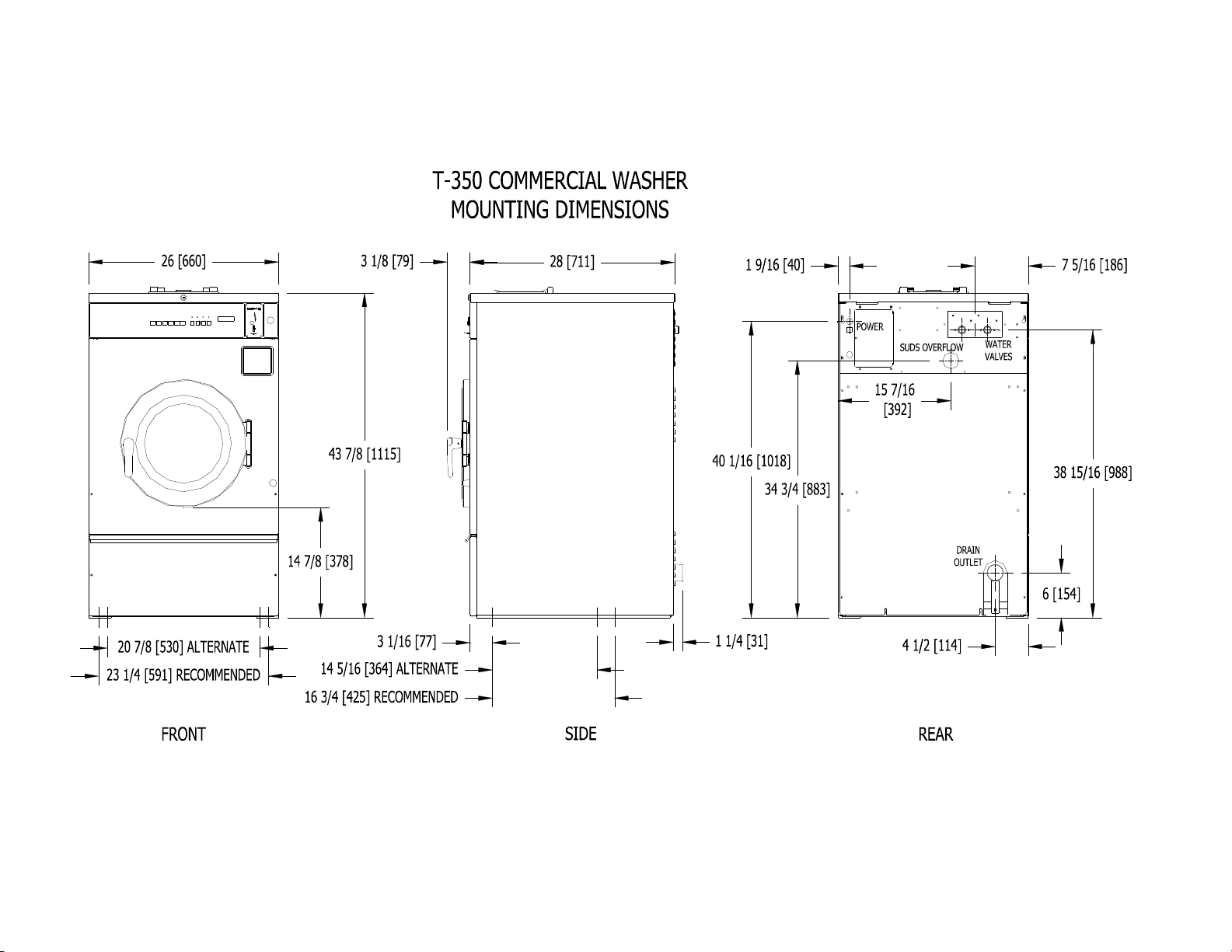

Mounting Dimensions 3
Installation Instructions 7
Operating Instructions 22
Programming the Washer Control 24
Water Level Adjustment 42
Displayed W
asher Faults
44
Servicing and roubleshooting
51
Accessor
ies and Contact Information
55
WASHER SPECIFICATIONS
MODEL
-
300
10.5
kg
(
23
LB.
)
WASHER
(Lower Extract Model
)
CAPACI Y
CYLINDER SIZE
ELEC RICAL
DRIVE SYS EM
WASH SPEED
IN ERMEDIA E
EX RAC
FINAL EX RAC
MACHINE CON ROL
WA ER INLE
DRAIN VALVE
10.5 kg/76.5L (23 LBS/2.7 CUBIC F .)
53cm DIA X 34cm DEEP (21” X 13 1/2”)
230 VAC, 50 HZ, 1 PHASE
SOF S AR REVERSING INVER ER DRIVE, 1 HP MO OR
55 RPM
449 RPM (60 G’S)
550 RPM (90 G’S)
PROGRAMMABLE COMPU ER
2 SOLENOID OPERA ED VALVES
FLOW RA E: 35L/MIN (9 GAL/MIN) EACH, 207-827 kPa
(30-120 PSI)
57mm (2 1/4”) DIAME ER
8514-302-001 REV B page 3
MODEL
-
35
0
EXPRESS
and
-
350SWD E
XPRESS
10.5
kg (
23
LB.
)
WASHER (Lower Extract Model)
CAPACI Y
CYLINDER SIZE
ELEC RICAL
DRIVE SYS EM
WASH SPEED
IN ERMEDIA E
EX RAC
FINAL EX RAC
MACHINE CON ROL
WA ER INLE
DRAIN VALVE
10.5 kg/76.5L (23 LBS/2.7 CUBIC F .)
53cm DIA. X 34cm DEEP (21” DIA X 13 1/2” DEEP)
230 VAC, 50 HZ, 1 PHASE
SOF S AR REVERSING INVER ER DRIVE, 1 HP MO OR
55 RPM
449 RPM (60 G’S)
777 RPM (180 G’S)
PROGRAMMABLE COMPU ER
2 SOLENOID OPERA ED VALVES
FLOW RA E: 35L/MIN (9 GAL/MIN) EACH, 207-827 kPa
(30-120 PSI)
57mm (2 1/4”) DIAME ER
8514-302-001 REV B page 4
8514-302-001 REV B page 5
8514-302-001 REV B page 6
8514-302-001 REV B page 7
INSTALLATION INSTRUCTIONS
For -350SWD models, this washer may have been purchased as part of a stacked
washer/dryer. In addition to these instructions, please also refer to the installation
instructions that accompany the dryer when installing this product.
All washers must be installed in accordance with all local, state and national building,
electrical, plumbing and other codes in effect in the area.
WARNING - THESE INSTALLATION AND SERVICING
INSTRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL ONLY.
TO AVOID INJURY AND ELECTRICAL SHOCK DO NOT PERFORM
ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS, UNLESS QUALIFIED.
FOUNDA ION REQUIREMEN S
T-300:
his machine is designed for use on or over bare concrete floor - not to be
used above combustible flooring, such as carpet or wood. he washer
must be securely bolted to a substantial concrete floor, or mounted upon
a suitable base that is securely bolted to a substantial concrete floor.
Grouting is highly recommended, especially to the concrete surface. See
Machine Grouting section for details.
T-350 nd T-350SWD:
his machine is designed for use on or over bare concrete floor - not to be
used above combustible flooring, such as carpet or wood. he washer
must be securely bolted nd grouted to a substantial concrete floor or
mounted nd grouted upon a suitable base that is securely bolted nd
grouted to a substantial concrete floor. See Machine Grouting section for
details.
CARE MUS BE AKEN WI H ALL FOUNDA ION WORK O ENSURE A
S ABLE UNI INS ALLA ION, ELIMINA ING POSSIBILI IES OF
EXCESSIVE VIBRA ION.
Allow a minimum 24 inches (610 mm) of clearance behind the rear of the
machine to provide access for motor service.
Installation on an isolated pad is NO recommended. Consult a structural
engineer for installations that will not be tied to a surrounding floor.
8514-302-001 REV B page 8
MOUN ING HEIGH
A concrete pedestal or steel-mounting base that elevates the machine
above the floor level is suggested to provide easy access to the loading
door.
Suggested Amount to Elevate Washer:
-300/350/350SWD: approximately 8 inches (203 mm)
Contact a Dexter laundry equipment distributor for recommended steel
mounting bases. Available steel mounting bases:
Washer Part Number Height
-300 9945-094-003 8” (203 mm) Single Base
-300 9945-094-004 8” (203 mm) Double Base
-350 9945-121-001 8” (203 mm) Single Base
-350 SWD 9945-151-001 6” (152 mm) Single Base
If an elevated concrete pedestal is desired, it should be embedded and
tied into the existing floor. DO NO install a pad on top of the existing
floor. Cut through existing floor as shown below. See Machine Mounting
Detail Figures for floor thickness and bolt sizes.
EXPANSION ANCHORS ARE NO RECOMMENDED FOR USE IN CONCRE E
PEDES ALS BECAUSE HE ANCHORS ARE OO CLOSE O AN EDGE,
CAUSING I O BREAK OU .
FOUNDA ION AND PAD OP IONS
All installations require reinforced concrete floors. Refer to appropriate
model Machine Mounting Detail Figures 1-1, 1-2 and 1-3 for minimum
floor thickness and minimum pad sizes. See mounting diagram for overall
washer dimensions.
Refer to appropriate model Figure 1-4 for side by side mounting
dimensions.
WASHER INS ALLA ION ON EXIS ING FLOOR:
8514-302-001 REV B page 9
WASHER INS ALLA ION ON NEW FLOOR:
NEW PAD IED O EXIS ING FLOOR:
If the existing floor is not reinforced concrete that meets the minimum
thickness requirements, DO NO install a pad on top of the existing floor.
he existing floor and the machine pad must be tied together as one
piece as follows:
1) Cut an opening through the existing floor that is wider and deeper
than the washer as shown below. See Machine Mounting Details for
dimensions.
2) Excavate to a depth that allows for 6” [152] minimum of
compacted fill plus the minimum required concrete thickness. Also
excavate 2” [51] under the existing floor so that the new concrete is
poured under the floor as well.
3) Back fill with clean fill dirt and compact dirt, making sure to allow
for the minimum thickness concrete pad to be poured.
4) Drill holes around the perimeter of the existing floor to install
reinforcing bars to tie the new pad to the existing floor. Drill 2-1/2”
[64] deep into the existing floor on 12” [305] centers around the entire
perimeter.
5) Clean holes and fill half-way with acrylic adhesive rated for
commercial-grade machine installations.
6) Use #4 (60 ksi) reinforcing bar to tie the new pad to the existing
floor. ie the bars together at intersections and use supports to hold
bars in the proper depth in the pad.
7) After adhesive has cured, pour 4000 psi concrete up to level with
the existing floor plus any extra elevated pedestal desired 4-10” [102-
254].
Concrete must be done in one pour so that the entire pad cures as one
piece.
8514-302-001 REV B page 10
NEW PAD IED O EXIS ING FLOOR (LEVEL WI H FLOOR):
NEW RAISED CONCRE E PEDES AL IED O EXIS ING FLOOR:
