Dexter Laundry HIGH SPEED 25LB WASHER Instructions d'installation

`P/N 8514-064-001 Rev A HIGH EXTRACT WASHER

25 LB (11.4 KG) CAPACITY

STACKABLE

ON-PREMISE LAUNDRY

COMPUTER CONTROL

THE

DEXTER

COMPANY OWNER'S BOOKLET

INSTALLATION & OPERATION

INSTRUCTIONS

Please read this information and retain for reference.

WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE

OPERATION. TO AVOID INJURY OR ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING

UNLESS QUALIFIED TO DO SO.

IT IS THE RESPONSIBILITY OF THE OWNER TO CHECK THIS EQUIPMENT ON A FREQUENT

BASIS TO ASSURE ITS SAFE OPERATION.

A machine should not be allowed to operate if any of the following occur:

- Excessively high water level.

- If machine is not connected to a properly grounded circuit.

- If the door does not remain securely locked during the entire cycle.

- Vibration or shaking from an inadequate mounting or foundation.

WARNING - FOR SAFETY

1. Always shut off power and water supply before servicing.

2. Do not overload the washer.

3. Do not open door when cylinder is in motion or it contains water.

4. Do not bypass any safety devices of this washer.

5. Do not use volatile or flammable substances in or near this washer.

6. Keep all panels in place. They protect against shock and injury and add rigidity to the washer.

PREVENTIVE MAINTENANCE REQUIREMENTS

DAILY

- Check that the loading door remains securely locked and cannot be opened during the entire cycle.

- Check the water connections for leaks.

- Clean the top and sides of the cabinet to remove residue.

- Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and tight.

- Check the drain valve for leaking and that it opens properly.

- Check the loading door for leaks. Clean the door seal of all foreign matter.

- Leave the loading door open to aerate the washer when not in use.

QUARTERLY

- Make sure the washer is inoperative by switching off the main power supply.

- Check the V-belts for wear and proper tension.

- Clean lint and other foreign matter from around motor.

- Check all water connections for leaks.

- Wipe and clean the inside of the washer and check that all electrical components are free of moisture and dust.

- Remove and clean water inlet hose filters. Replace if necessary.

- Check anchor bolts - retighten if necessary

IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly maintenance.

25 LB HIGH EXTRACT WASHER

THE

DEXTER

COMPANY

INSTALLATION INSTRUCTIONS

This washer may have been purchased as part of a stacked washer/dryer. In addition to thesr

instructions, please also refer to the installation instructions that accompany the dryer when

installing this product.

All washers must be installed in accordance with all local, state and national building, electrical,

plumbing and other codes in effect in the area.

WARNING - THESE INSTALLATION AND SERVICING INSTRUCTIONS

ARE FOR USE BY QUALIFIED PERSONNEL ONLY. TO AVOID INJURY

AND ELECTRICAL SHOCK DO NOT PERFORM ANY SERVICING

OTHER THAN THAT CONTAINED IN THE OPERATING

INSTRUCTIONS, UNLESS QUALIFIED.

FOUNDATION REQUIREMENTS

WARNING: This machine is designed for use on or over bare concrete floor - not to be used

above combustible flooring. The washer must be securely bolted and grouted to a substantial

concrete floor, or mounted and grouted upon a suitable base, which is in turn, securely bolted

and grouted to a substantial concrete floor. CARE MUST BE STRESSED WITH ALL

FOUNDATION WORK TO INSURE A STABLE UNIT INSTALLATION, ELIMINATING

POSSIBILITIES OF EXCESSIVE VIBRATION. All installations must be made on sound

concrete floors, 6 inches (152 mm) or thicker. Anchor bolts or expansion anchors must be of a

quality grade and a minimum of 5/8-inch (16 mm) diameter.

MOUNTING

A concrete pedestal or steel-mounting base that elevates the machine approximately 6 inches

(152 mm) above the floor level is recommended to provide easy access to the loading door.

Allow a minimum of 24 inches (610mm) of clearance behind the rear of the machine, to provide

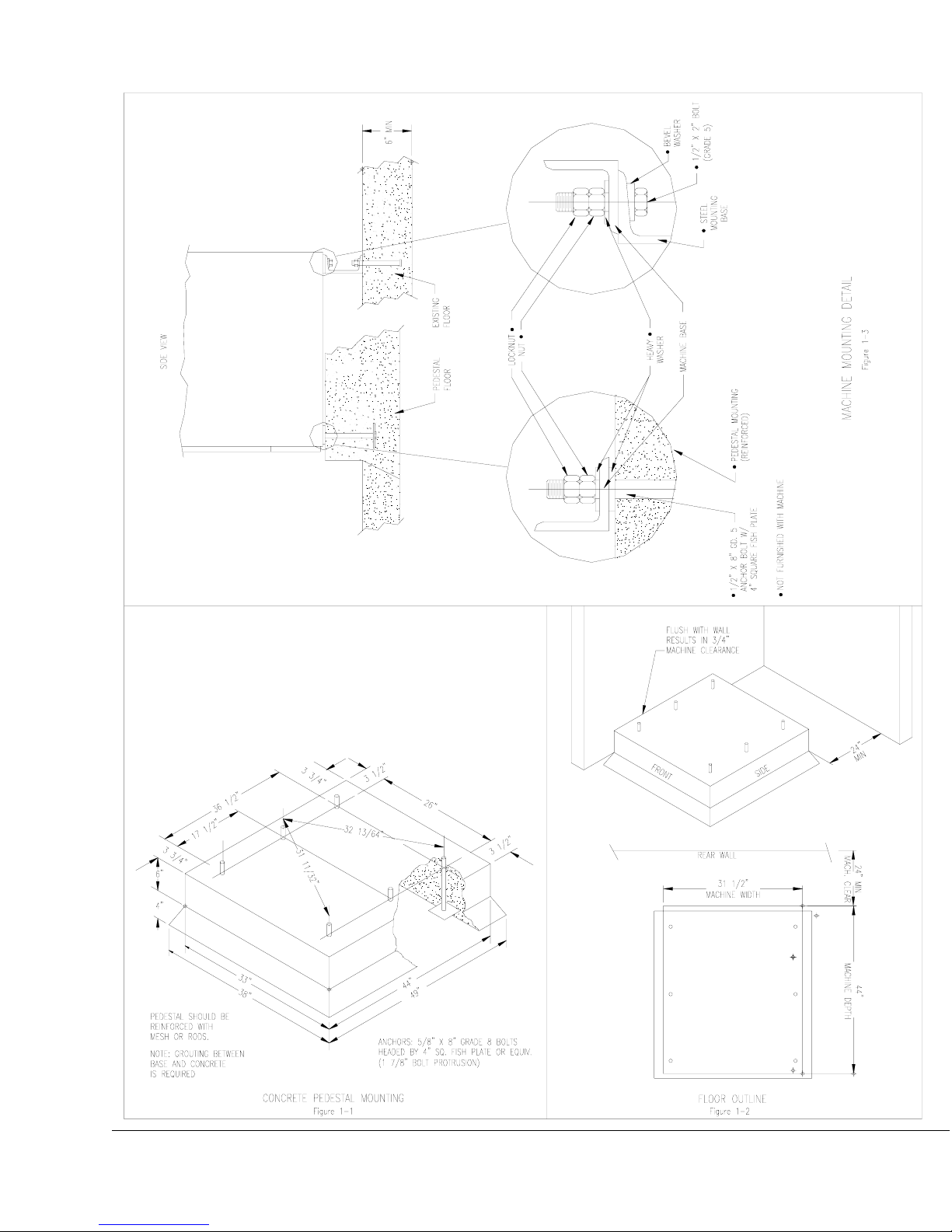

access for motor removal. Refer to Fig. 1-1 and 1-2 for machine bolt-down dimensions.

If an elevated concrete pedestal is desired, it should be embedded into the existing floor. Anchor

bolts should be 5/8" x 8" (16 mm x 200 mm), grade 8 or better, headed by a 4 inch (10 cm)

square fish plate and should protrude 1 7/8 inches (48 mm) above the finished surface of the

pedestal. EXPANSION ANCHORS ARE NOT RECOMMENDED FOR USE IN CONCRETE

PEDESTALS, BECAUSE THE ANCHORS ARE TOO CLOSE TO AN EDGE, CAUSING IT

TO BREAK OUT. (See Fig. 1-1 and 1-3.)

PLUMBING

Water supply hoses are furnished with each machine. Separate hot and cold water lines must be

provided, maintaining 30 P.S.I . (207 kPa) to 120 P.S.I. (818 kPa) water flow pressure. A 140F

(60C) degree hot water supply is recommended for best washing results.

DRAIN

The drain outlet tube at the rear of the machine is 3 inches (76 mm) in diameter. A flexible hose

material (Pt. #9242-417-003) is available to extend this draining system. Any drain hose used must

be lower than the drain valve to assure proper draining.

ELECTRICAL 208-240V/1PH/60HZ OR 208-240/3PH/60HZ

WARNING

SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS.

This Dexter washing machine is intended to be a permanently installed appliance. No power cord is

provided. The machine should be connected to an individual branch circuit not shared by lighting or

other equipment. Where required, a means for disconnection with a contact separation distance of at

least 3mm must be provided. The connection should be sheathed in liquid-tight flexible conduit, or

equivalent, with conductors of the proper size and insulation.

TO MAKE ELECTRICAL CONNECTIONS: Disconnect all power to the washer. Remove screw and

lift out the cover located in the upper left corner of the machine (as viewed from the back).

 If power is 208-240-3PH-60Hz, connect L1, L2, L3 and ground. If there is a high leg it must be

connected to L3.

 If power is 208-240-1PH-60Hz, connect L1, L2 and Ground.

NOTE: It is important that the grounding screw next to the power terminal block TB-1 be

connected to a good external ground.

FUSING REQUIREMENTS:

SINGLE- or THREE -PHASE POWER - 20 AMP TIME-DELAY (DUAL ELEMENT) FUSE

(or equivalent circuit breaker)

CONTROLS TRANSFORMER

The controls transformer is mounted at the back of the control trough and has two voltage range

settings. One terminal is provided for the range of 208 to 220 volts and the other is for the range of

221 to 240 volts. Make sure the transformer is wired to match the intended supply voltage.

INJECTION SOURCE DETAILS

The washer control may be programmed to send 120V output signals for a chemical injection

system. The signals are not intended as a power source and must be limited to less than 100

milliamps of current. There is a separate terminal block for connection of the external injection

signals. For the injection sources, program codes 0 through 6 are as shown in the table below.

Dexter

Recommended

Connections

Controller

Programmed

Signals

Injection

Terminal Block

Circuits

Detergent 1 A

Bleach 2 B

Starch 3 C

Sour/Softener 4 D

5 A and B

6 C and D

0 None

CHECKOUT

After all mounting, plumbing and electrical work is completed, the washer should be run through a

cycle and checked for water leaks and proper functioning.

MODEL HIGH SPEED 25LB WASHER

CAPACITY

CYLINDER SIZE

ELECTRICAL

DRIVE SYSTEM

WASH SPEED

INTERMEDIATE

EXTRACT

FINAL EXTRACT

MACHINE CONTROL

WATER INLET

DRAIN VALVE

25LBS/4 CUBIC FT. (11.3 kg/113 L)

25” DIA X 14 1/8” DEEP (63.5cm X 36cm)

208-240 VAC, 60 HZ, 1 OR 3 PHASE

SOFT START REVERSING INVERTER DRIVE, 2 HP MOTOR

50 RPM

410 RPM (60 G’S)

750 RPM (200 G’S)

PROGRAMMABLE COMPUTER WITH 6 STANDARD CYCLES.

2 SOLENOID OPERATED VALVES

FLOW RATE: 9 GAL/MIN EACH, 30-120 PSI

3” DIAMETER

STARTING THE WASHER

A. Load the clothes into the cylinder and latch the door securely. Be sure clothing does not

get caught between the door gasket and tub front when closing the door. Do not overload the

washer.

B. Select the appropriate cycle number (1 through 6) using for the load being washed. See

the cycle descriptions in the programming section. Use the UP and DOWN keys to change

the cycle number.

C. If not using a chemical injection system, add low-sudsing powdered detergent into the

“detergent” compartment of the automatic dispenser on the top of the washer. If desired add

fabric softener to the “fabric softener” compartment. Use the amount of fabric softener as

recommended by the manufacturer.

If liquid wash products are used in the “detergent” compartment, they must be added at

the beginning of the wash cycle.

If the machine is set for pre-wash, washing products can be added to the round opening of

the dispenser or put in with the clothes when loading the cylinder before starting the

machine.

D. Press START. The display will go blank for a moment and then display the cycle time in

minutes. The clothes door will lock and remain locked until the end of the cycle.

END OF CYCLE

When the cycle is complete the “on” light will go off. The door can now be opened and the clothes

load removed. Leave the clothes door open when the machine is not in use.

SAFETY DOOR LOCK

This machine is equipped with a Safety Door Lock that prevents opening the door if the power is

interrupted, until it is safe to do so.

If power failure occurs or if power is interrupted during maintenance it will be necessary to wait 2 to

3 minutes before the door can be opened.

PROGRAMMING INSTRUCTIONS:

Programming can be accomplished manually using the machine controls or by connecting to the

machine control using a PDA (personal digital assistant). For instructions on using a PDA with this

washer control, please contact your local Dexter distributor. Please read below for manual

programming instructions.

The keypad layout for the washer control is shown above.

Wash Cycle Programming

1. Turn on the power to the washer.

2. Turn the Run/Program key to the Program position. Display will show “C O” and the “ADD

BLEACH” light will blink and will continue to blink during the programming mode.

3. Press the “DOWN” or “UP” buttons to select which cycle to alter. When the desired cycle

number is displayed, press “START”.

4. The display should now show a “b”. The “b” and the cycle indicator lights indicate which bath

is being selected to alter. Press the “UP” and “DOWN” buttons to select a bath to change and

then press “START”. The indicator lights are shown below.

FINAL

RINSE

PRE

WASH

FLUSH WASH RINSE SPIN

When “RINSE” is selected, “b r1” through “b r4” may be selected. There may be multiple

rinses that are indicated by r1, r2, r3 and r4.

5. Each bath can be programmed with the following options. Use the “DOWN” and “UP” keys to

select the desired setting and the “START” key to move to the next option.

DISPLAY FUNCTION OPTIONS

Ct ** Tumble Time Two-digit amount of time in minutes.

t ** Water Temperature HH for hot, CH for warm, CC for cold

and EE for no water.

L ** Water Level Lo for low, Hl for high.

dF * Type of Fill d for delayed fill, t for timed fill.1

S ** Spin Time Two-digit amount of time in minutes.

IS * Injection Source Single digit code indicating injector signal(s).2

1 A delayed fill will pause the time count until the selected level is reached. A timed fill will

allow the time count to continue until the selected level is reached.

2Codes for injections sources are defined at the end of the programming section. When the No

Water bath is selected, the electronic controller prohibits injection signals. The programmed

injection source value is ignored.

To exit the programming of a bath, press the “STOP” button once and use the “UP” and “DOWN”

keys select another bath. Press the “STOP” button again to select a different cycle to change. To

end programming, turn the key to “RUN” position

Note: The Wash Cycle programming mode will automatically exit and return to

the Idle mode if no buttons are pushed for one minute.

WASH CYCLE PARAMETER RANGES

The range of each cycle parameter is shown below:

Cycle Time 0 to 15 minutes for Prewash, Wash, Rinse1, 2, 3 and 4

1 to 15 minutes for Final Rinse

For the bathes that can, if the time is set to zero, then the bath

will be eliminated from the cycle.

Water Temperature HH – hot, CH – warm, CC – cold, EE – no water

Water Level HI – high, LO – low

Delay Fill The selections are “d” for delay the bath time until water level

is reached or “t” to count down bath time during the fill.

Spin Time 0 to 10 minutes for Prewash, Wash, Rinse, 2, 3 and 4

1 to 10 minutes for Final Spin

Injection Source 0 to 6

Cycle 1 Sheets & Pillowcases (Health Care)

Bath

Bath Cycle

Time

(min.)

Water

Temp.

Water

Level

Delay

Fill

Spin

Time

(min.)

Injection Source

Flush 3 CH HI d

Prewash 2 CH HI d

Wash 7 HH LO d 1 (Detergent)

Rinse 1 7 HH LO d 2 (Bleach)

Rinse 2 2 CH HI d 1

Rinse 3 2 CH HI d

Rinse 4

Final

Rinse

4 CH LO d 4 4 (Sour/Soft)

Cycle 2 Towels / Pads / Diapers (Health Care)

Bath

Bath Cycle

Time

(min.)

Water

Temp.

Water

Level

Delay

Fill

Spin

Time

(min.)

Injection Source

Flush 3 CH HI d

Prewash 2 CH HI d

Wash 7 HH LO d 1 (Detergent)

Rinse 1 1 HH HI d

Rinse 2 7 HH LO d 2 (Bleach)

Rinse 3 2 CH HI d 1

Rinse 4 2 CH HI d

Final

Rinse

4 CH LO d 5 4 (Sour/Soft)

Table des matières

Autres manuels Dexter Laundry Rondelle

Dexter Laundry

Dexter Laundry T-1800 Manuel utilisateur

Dexter Laundry

Dexter Laundry WCVD-WN Series Manuel utilisateur

Dexter Laundry

Dexter Laundry T-350SWD Manuel utilisateur

Dexter Laundry

Dexter Laundry WCVD-WN Series Mode d'emploi

Dexter Laundry

Dexter Laundry T450 Express Manuel utilisateur

Dexter Laundry

Dexter Laundry WC 00XA-12EC X Series Manuel utilisateur

Dexter Laundry

Dexter Laundry T-450SWD Manuel utilisateur

Dexter Laundry

Dexter Laundry Wn0600xa-12en2x-sskcs-usx Guide de démarrage rapide

Dexter Laundry

Dexter Laundry 400 EXPRESS Manuel utilisateur

Dexter Laundry

Dexter Laundry T-300 VENDED Manuel utilisateur

Dexter Laundry

Dexter Laundry N-Series Manuel utilisateur

Dexter Laundry

Dexter Laundry T-675 EXPRESS PLUS Manuel utilisateur

Dexter Laundry

Dexter Laundry T-300 VENDED Guide de démarrage rapide

Dexter Laundry

Dexter Laundry OPL Series Guide de démarrage rapide

Dexter Laundry

Dexter Laundry WCAD Series Manuel d'installation

Dexter Laundry

Dexter Laundry V-Series Manuel utilisateur

Dexter Laundry

Dexter Laundry WCVD-WN Series Guide de démarrage rapide

Dexter Laundry

Dexter Laundry WC0300XA-10EC4X Manuel utilisateur

Dexter Laundry

Dexter Laundry WC Series Guide de démarrage rapide

Dexter Laundry

Dexter Laundry T-900 Manuel utilisateur

Dexter Laundry

Dexter Laundry 80LB CAPACITY COMPUTER CONTROL OPL WASHER... Manuel utilisateur

Dexter Laundry

Dexter Laundry WCAD Series Guide de démarrage rapide

Dexter Laundry

Dexter Laundry T-650 Guide de démarrage rapide

Dexter Laundry

Dexter Laundry T-1450 Manuel d'installation

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
