INDUSTRIALDRYER OriginalInstructions

MODEL T-30, T-50, & T-80 ON-PREMISE For GB & IE

B-SERIES CONTROL, ELECTRIC-HEATED

OPERATOR’S MANUAL

The dryer will operate correctly in ambient temperatures of +5°C to +45°C, in relative humidity up to

50% at +40°C and above 50% when below +40°C, and at altitudes up to 1000m above sea level,

must be transported and stored from -40°C to +140°C, and has been packaged to prevent damage

from humidity, vibration, and shock. Take measures to avoid harmful effects of occasional

condensation.

Post the following “For Your Safety” cautions in a prominent location:

FOR YOUR SAFETY

Do not store or use petrol or other flammable vapours and liquids or dry cleaning solvents in the

vicinity of this or any other appliance.

FOR YOUR SAFETY

THIS MACHINE IS FOR DRYING ONLY FABRICS WASHED IN WATER.

To avoid possibility of fire, including spontaneous combustion, do not dry oiled floor mops, items

containing foam rubber or similarly textured rubberlike materials or any material on which you have

used a cleaning solvent or which contains flammable liquids or solids (such as petrol, kerosene, waxes,

etc.) Fabric softeners, or similar products, should be used per the fabric softener instructions. Remove

all objects from pockets such as lighters and matches.

WARNING – Risk of Fire

Clothes dryer installation must be performed by a qualified installer.

Install the clothes dryer according to the manufacturer’s instructions and local codes.

Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is

installed, use duct that has been investigated and found acceptable for use with clothes dryers.

Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will

obstruct clothes dryer airflow and increase the risk of fire.

To reduce the risk of severe injury or death, follow all installation instructions.

This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall

not be made by children without supervision. Children of less than 3 years should be kept away

unless continuously supervised.

It is important that you read this Manual and retain it for future reference. For service or

replacement parts, contact the distributor in your area or the manufacturer:

Dexter Laundry, Inc.

2211 West Grimes Avenue

Fairfield, Iowa 52556, USA

8514-219-001 REV E PAGE 2

TABLE OF CONTENTS

Page No.

Dryer Dimensions (Figure 1)............................................................................. 4, 5, 6

Uncrating ...................................................................................................... 7

Dryer Installation (Figure 2)..............................................................................8

Dryer Exhaust System (Figure 3).......................................................................12

Dryer Shutdown...............................................................................................12

Touch Pad Layout (Figure 4).............................................................................13

Dryer Default Settings...................................................................................... 14

Dryer Default Codes......................................................................................... 14

Touch Pad Description......................................................................................15

Operating Instructions......................................................................................17

Programming Instructions.................................................................................19

Servicing Dryer................................................................................................ 26

Preventive Maintenance....................................................................................27

WARNINGS ABOUT USE AND OPERATION

Caution! There are sharp ed

es on various sheet metal parts internal

to the enclosure. Use safety consciousness when placing or moving

your hands while working in the interior of this equipment.

Meaning: Do Not Enter This

Equipment (or Space).

Meaning: Do Not Step, Stand, or Sit

on This Equipment.

Meaning: Do Not Operate with

Guards or Covers Removed.

Meaning: High Voltage. Disconnect

power before servicing.

Meanin

: Lock Out and Ta

Out

before servicing.

Meaning: Burn Hazard. Do Not Touch

Heater Housing or Heating Elements.

Allow these parts to cool before servicing.

Meaning: Do Not Dry Items

Containing Explosive Material.

Meaning: Do Not Dry Items

Containing Flammable Material.

Meaning: Read Operators

Manual.

Meaning: Center of Gravity.

Meaning: Left Point for Forklift

or Hand Pallet Truck or Jack.

Meaning: Right Point for Forklift or

Hand Pallet Truck or Jack.

It is ABSOLUTELY ESSENTIAL that the dryer be connected to a known earth connection.

This is not only for personal safety, but is necessary for proper operation.

DO NOT MODIFY THIS APPLIANCE. KEEP SHIELDS, GUARDS AND COVERS IN

PLACE. These safety devices are provided to protect everyone from injury.

WARNING: Do not stop dryer before end of cycle time unless all items are quickly removed

and spread out to dissipate heat.

8514-219-001 REV E PAGE 3

WARNINGS ABOUT USE AND OPERATION continued

THIS DRYER IS EQUIPPED WITH A MANUALLY RESETTABLE OVER-TEMPERATURE

THERMOSTAT located to the right of the motor on the rear of the cabinet. Should the dryer

cease to heat, refer to your “Service Procedure and Parts Data” book for instructions.

CHECK THIS THERMOSTAT WHEN INSTALLING DRYER to assure it is not tripped.

Impacts, such as rough handling in shipment, may trip the thermostat.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE while in operation.

THIS APPLIANCE SHALL NOT BE USED TO DRY OFF CLOTHES CONTAINING

SOLVENTS OR DRY-CLEANING FLUIDS.

Misuse of Dryer

Do not use this Equipment for any purpose not described in this Manual.

Do not operate this equipment without all guards and covers in place.

Do not operate this dryer from any power source not matching the

operational requirements on the back of the dryer.

Do not place your body inside the dryer cylinder or allow others to do so.

Death or serious injury can result from this!

Other Examples May Be Applicable

Caution – Replace Fuses With Same Type and Rating

Fuse No. Voltage Amperage SC I/R Type Size

F1 250V 600mA 35A@250VAC T 5.00 x 20.00 mm

8514-219-001 REV E PAGE 4

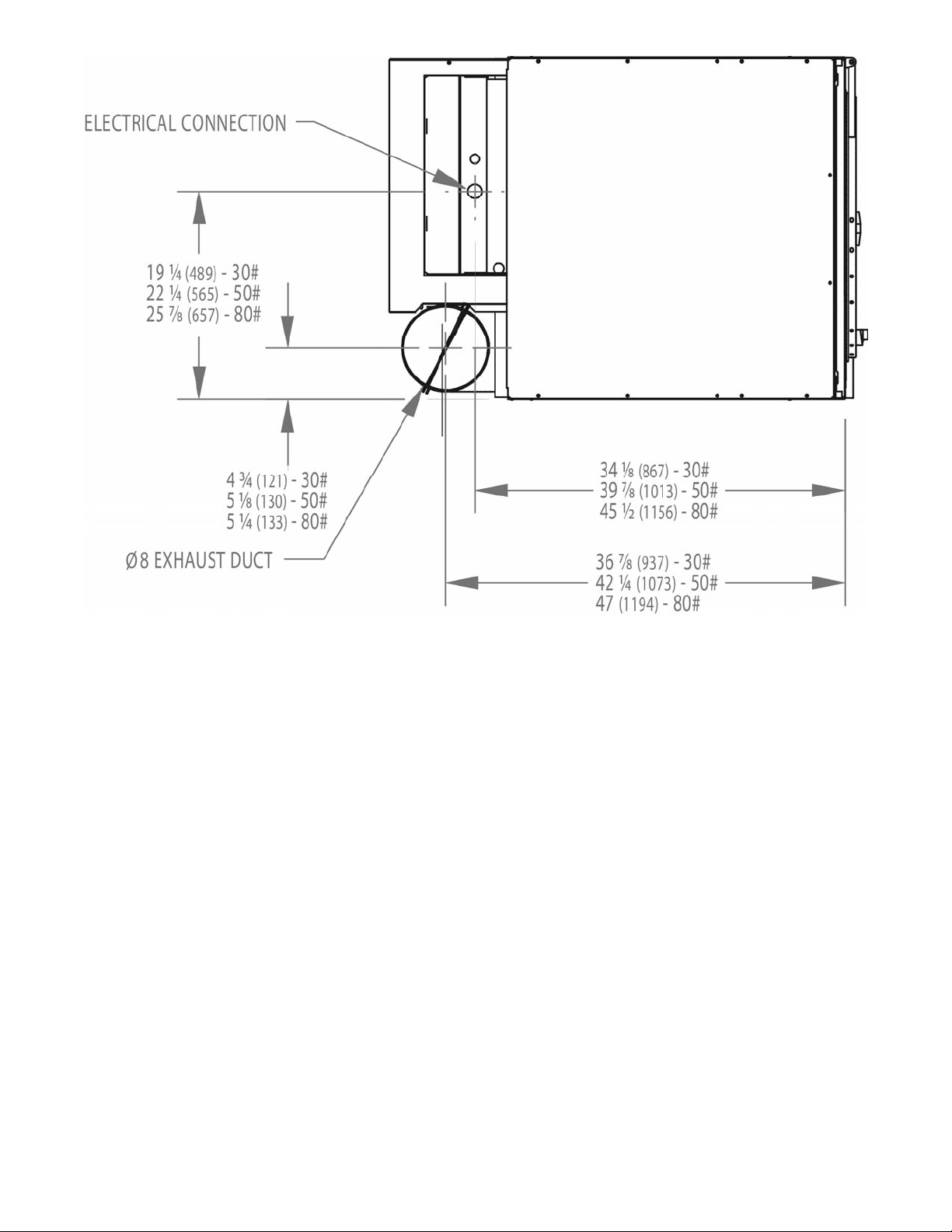

DRYER DIMENSIONS - FIGURE 1A

8514-219-001 REV E PAGE 5

DRYER DIMENSIONS - FIGURE 1B

8514-219-001 REV E PAGE 6

DRYER DIMENSIONS - FIGURE 1C

8514-219-001 REV E PAGE 7

INSTALLATION AND OPERATING INSTRUCTIONS

Note: A forklift, or a hand pallet truck or jack, must lift the dryer and only from the

front or rear of the dryer with the dryer bolted to the pallet and supported the full

length of the dryer.

UNCRATING AND PLACING THE DRYER

Tools Required: 3/4" (19 mm) hex socket and ratchet driver, a knife, and a channel-lock

wrench, which will open to 1 3/8" (35 mm).

1. Remove the plastic wrap with the knife. Remove cardboard rails, fillers, and top cap.

2. Using a ratchet and a 3/4” (19 mm) socket, remove the (4) bolts attaching the wooden

skid to the dryer cabinet. Save the bolts for future moving of the dryer.

3. With a walking motion, move the dryer forward completely off the wooden skid. Save the

skid for future moving of the dryer.

4. Using the channel-lock wrench, adjust the leveling legs to align the machine with adjacent

units.

Note: If the dryer is ever moved again, the dryer should be re-mounted on its pallet and its

crating bolts re-inserted and tightened, in the reverse order as above.

Dryer Model Mass Dryer Model Mass Dryer Model Mass

DN0030E_ 210 kg DN0050E_ 263 kg DN0080E_ 331 kg

DRYER INSTALLATION

1. CODE CONFORMITY: All industrial dryer installations must conform to the local and

national codes for the location of installation.

The appliance must not be installed behind a lockable door, a sliding door or a door with a

hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the

tumble dryer door is restricted.

2. INSTALLATION CLEARANCES: This unit may be installed at the following alcove

clearance.

I. Left Side 0”

II. Right Side 0” *

III. Back 18” (457 mm) (Certified for 1” (25 mm) clearance; however, 18”

(457 mm) clearance is necessary behind the belt guard to allow servicing

and maintenance.)

IV. Front 48” (1220 mm) (to allow use of dryer)

V. Top Refer to figure labeled on the next page “Vertical Clearance Dimensions”.

Certification allows 0” clearance at the top 1” (25 mm) back from the

front. However, a 1/4" (6 mm) clearance is required to allow opening the

upper service door.

8514-219-001 REV E PAGE 8

A 10” (254 mm) clearance is required from the top at all other points.

VI. Floor This unit may be installed upon a combustible floor.

Do not obstruct the flow of combustion and ventilation air.

Maintain minimum of 25 mm (1 in.) clearance between duct and combustible material.

Refer to installation label attached to rear guard for other installation information.

VERTICAL CLEARANCE DIMENSIONS - ALL DCBD(30/50/80)

3. MAKE-UP AIR. Adequate make-up air must be supplied to replace air exhausted by

dryers on all types of installations. Provide a minimum air opening to the outside for each

dryer as follows:

Dryer Model Make-up Air Volume/Time Make-up Air Opening Size (minimum)

DN0030E_ 690 CFM (19.5 m3/minute) 1 ft² (0.10 m2)

DN0050E_ 700 CFM (19.8 m3/minute) 1.25 ft² (0.12 m2)

DN0080E_ 850 CFM (24.1 m3/minute) 1.25 ft² (0.12 m2)

This is a net requirement of effective area. Screens, grills or louvers, which will restrict the

flow of air, must be considered. Consult the supplier to determine the free area equivalent for

the grill being used.

The source of make-up air should be located sufficiently away from the dryers to allow an

even airflow to the air intakes of all dryers. Multiple openings should be provided.

The operation of this appliance may affect the operation of gas appliances, which take their

air for safe combustion from the same room. Adequate ventilation must be provided to avoid

back flow of gasses from other appliances in the same room. All gas appliances should be

tested with the Dexter dryer in operation and all the windows and doors closed. If in doubt,

consult the appliance manufacturer(s).

8514-219-001 REV E PAGE 9

4. ELECTRICAL REQUIREMENTS:

The electrical installation must be performed by a qualified electrical technician.

The electrical power requirements necessary to operate the unit satisfactorily are listed on

the serial plate located on the back panel of each dryer. The electrical connection should be

made at the terminal blocks in the control box on the rear of the unit using conductors rated

at 75 C (167 F) and a wire size adequate to handle the amperage and voltage listed on the

serial plate (see table below for recommended minimum sizes). It is absolutely necessary that

the dryer be connected to a known earth (No. 8 AWG copper conductor recommended).

Knockouts are provided for the connection of 1-inch (25 mm) conduit for the power supply

conductors and 3/8-inch (10 mm) conduit for the external earthing conductor. It is absolutely

necessary that the dryer be connected to a good earth connection. The earth connection

resistance should be checked prior to operation. Introduction of supply wiring must not

increase the Ingress Protection (IP) rating.

HEATING ELEMENT

SIZE (kW)

SUPPLY VOLTAGE

(PHASE / V.)

MINIMUM DUAL ELEMENT

TIME DELAY FUSE SIZE AT

FUSED DISCONNECT (A.)

MINIMUM WIRE SIZE FROM FUSED

DISCONNECT TO DRYER TERMINAL

BLOCK (75OC COPPER WIRE)

22 3

400 50 # 6

(

13.3 mm^2

)

24 3 / 415 50 # 6 (13.3 mm^2)

30 3 / 400 60 # 4 (21.1 mm^2)

36 3 / 400 80 # 3 (26.7 mm^2)

The installation must meet the electrical requirements of the country, state, or locality of

installation. The installer must provide a disconnect switch, which will interrupt all lines. It

may be a local or national requirement to provide an electrical interruption switch visible and

accessible from the room in which the dryer is installed. The wiring diagram is located in the

belt guard on the back of the dryer.

For destination countries where CE requirements must be met, individual 400V supply

disconnecting devices for each dryer are required and must be one of the following types:

a. switch-disconnector with fuses per IEC 60947-3 utilization category AC-23B;

b. disconnector with fuses per IEC 60947-3 having an auxiliary contact that in all cases causes

switching devices to break the load circuit before the opening of the main contacts of the

disconnector;

c. a circuit-breaker suitable for isolation per IEC 60947-2;

d. any other switching device in accordance with an IEC product standard for that device and

which meets the isolation requirements of IEC 60947-1 as well as a utilization category defined

in the product standard as appropriate for on-load switching of motors or other inductive loads;

The supply disconnecting devices must

a. provide a means allowing the supply disconnecting devices to be locked in the OFF position;

b. be mounted 0.7 m to 1.7 m above the floor, within 2 m from the dryer, and within 8 m from

the operator position;

c. have a red actuator to indicate that it serves a dual Emergency Stop function;

d. be rated for branch circuit operation;

e. be approved for use in the country where installed;

8514-219-001 REV E PAGE 10

CONTROL TRANSFORMER CONNECTIONS Adjustment for different voltages of supply mains.

IMPORTANT: TRANSIENT VOLTAGE SURGE SUPPRESSORS

Like most electrical equipment your new machine can be damaged or have its life shortened

by voltage surges due to lightning strikes which are not covered by factory warranty. Local

power distribution problems also can be detrimental to the life of electrical components. We

recommend the installation of transient voltage surge suppressors for your new equipment.

These devices may be placed at the power supply panel for the complete installation and don’t

require an individual device for each machine.

These surge protectors help to protect equipment from large spikes and also from small

ongoing spikes in the power that occur on a day to day basis. These smaller surges can

shorten overall life of electrical components of all types and cause their failure at a later date.

Although they can’t protect against all events, these protective devices have a good reputation

for significantly lengthening the useful life of electronic components. Electronic components

are helped to have a longer useful life when they are supplied with the clean stable electrical

power they like.

6. EXHAUST INSTALLATION. (Refer to Figure 3 at the end of section 6.) Exhausting of the

dryer(s) should be planned and constructed so that no air restrictions occur. Any restriction

due to pipe size or type of installation can cause slow drying time, excessive heat, and lint in

the room.

From an operational standpoint, incorrect or inadequate exhausting can cause a cycling of

the high limit thermostat, which shuts off the heating elements and results in inefficient

drying.

Individual exhausting of the dryers is required. All heat, moisture, and lint should be exhaust

outside by attaching a pipe of the proper diameter to the dryer adapter collar and extending it

out through an outside wall. This pipe must be very smooth on the inside, as rough surfaces

tend to collect lint, which will eventually clog the duct and prevent the dryer from exhausting

properly. All elbows must be smooth on the inside. All joints must be made so the exhaust

end of one pipe is inside the next one downstream. The addition of an exhaust pipe tends to

Autres manuels pour T-30

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dexter Laundry Séchoir

Dexter Laundry

Dexter Laundry T-80 Manuel utilisateur

Dexter Laundry

Dexter Laundry T-50X2 Manuel utilisateur

Dexter Laundry

Dexter Laundry C Series Guide de démarrage rapide

Dexter Laundry

Dexter Laundry V Series Manuel

Dexter Laundry

Dexter Laundry B-Series Manuel utilisateur

Dexter Laundry

Dexter Laundry DDAD T-30 2 Series Guide de l'administrateur

Dexter Laundry

Dexter Laundry T-30 Guide de l'administrateur

Dexter Laundry

Dexter Laundry STACK DRYER Manuel utilisateur

Dexter Laundry

Dexter Laundry DDAD50KC Series Manuel utilisateur

Dexter Laundry

Dexter Laundry DCBD 30 Series Manuel utilisateur

Dexter Laundry

Dexter Laundry DN0170 XL Manuel utilisateur

Dexter Laundry

Dexter Laundry C Series Manuel utilisateur

Dexter Laundry

Dexter Laundry COIN COMPACT DRYER Manuel utilisateur

Dexter Laundry

Dexter Laundry T-30 SWD Manuel utilisateur

Dexter Laundry

Dexter Laundry T-30 Manuel utilisateur

Dexter Laundry

Dexter Laundry DDAD30HC-59 Series Dryers Manuel utilisateur

Dexter Laundry

Dexter Laundry DC30X2 Series Instructions de construction

Dexter Laundry

Dexter Laundry T-30 Manuel utilisateur

Dexter Laundry

Dexter Laundry T-30X2 Manuel utilisateur

Dexter Laundry

Dexter Laundry T-30 Manuel utilisateur

Dexter Laundry

Dexter Laundry DC50X2 Manuel utilisateur

Dexter Laundry

Dexter Laundry O Series Guide de démarrage rapide

Dexter Laundry

Dexter Laundry T-30SWD Manuel utilisateur

Dexter Laundry

Dexter Laundry T-120 Guide de démarrage rapide

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
