DeWalt D55141 Manuel utilisateur

D55141

Oil Free Portable Air Compressor

Compresseur d’air portatif sans huile

Compresor de aire sin aceite portátil

INSTRUCTION MANUAL

GUIDE D'UTILISATION

MANUAL DE INSTRUCCIONES

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIOY PÓLIZA

DE GARANTÍA.ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES

DE USAR EL PRODUCTO.

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-800-4-De



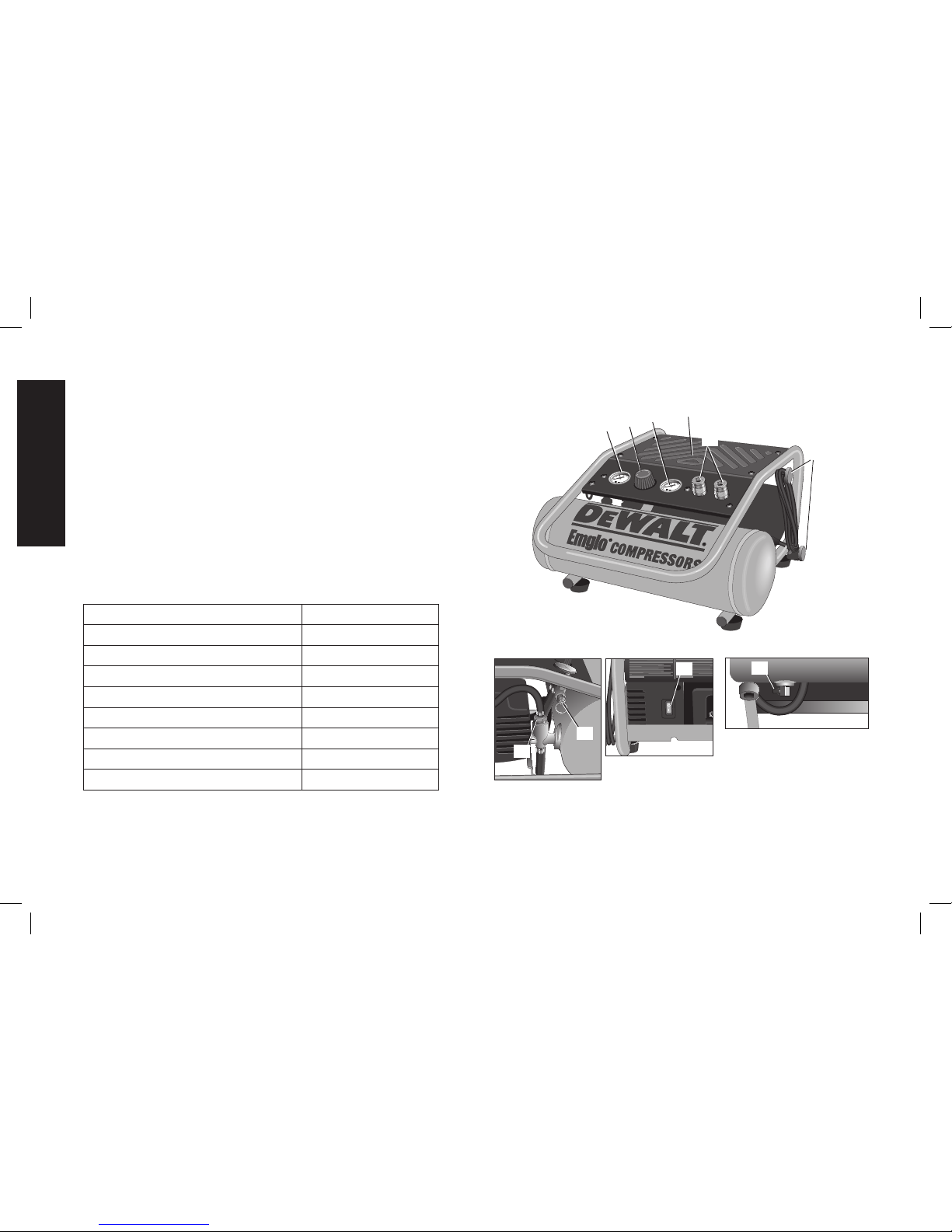

A. On (I) /Off (O) Switch

B. Air Tank Pressure Gauge

C. Regulated Pressure Gauge

D. Pressure Regulator

E. Quick Connects



Voltage: Single 120V

Minimum branch circuit requirement: 15 A

Fuse Type: Time delay



MODEL D55141

WEIGHT 30 lbs. (13.6 kg)

HEIGHT 10.5" (266.7 mm)

WIDTH 19.125" (485.8 mm)

LENGTH 21.375” (542.9 mm)

AIR TANK CAPACITY 2.0 gallons (7.6 liters)

APPROX CUT-IN PRESSURE

120 psi

APPROX. CUT-OUT PRESSURE

150 psi

SCFM @ 100 PSI 1.7



FIG. 1 NOT A

STEP

DRAIN TANK DAILY

F. Check Valve

G. Safety Valve

H. Air Tank Drain Valve

I. Power Cord Wrap





The definitions below describe the level of severity for each

signal word. Please read the manual and pay attention to

these symbols.

DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

injury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

injury.

CAUTION: Indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

injury.

NOTICE: Indicates a practice not related to personal injury

which, if not avoided, may result in property damage.

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT

THIS OR ANY D

WALT TOOL, CALL US TOLL FREE AT:

1-800-4-D

WALT (1-800-433-9258)



WARNING: Do not operate this unit until you read and understand

this instruction manual for safety, operation and maintenance

instructions.

WARNING: This product contains chemicals known to the State

of California to cause cancer, and birth defects or other reproductive

harm. Wash hands after handling.

WARNING: Some dust contains chemicals known to the State of

California to cause cancer, birth defects or other reproductive harm

such as asbestos and lead in lead based paint.



DANGER: RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Itisnormalforelectricalcon-

tacts within the motor and

pressure switch to spark.

 • Alwaysoperatethecompres-

sor in a well ventilated area

free of combustible materials,

gasoline, or solvent vapors.

 • Ifelectricalsparksfrom

compressor come into con-

tact with flammable vapors,

they may ignite, causing fire

or explosion.

 • Ifsprayingflammablemateri-

als, locate compressor at

least 20 feet (6.1 m) away

from spray area. An addi-

tional length of hose may be

required.

 • Storeflammablematerialsin

a secure location away from

compressor.

 • Restrictinganyofthecom-

pressor ventilation openings

will cause serious overheat-

ing and could cause fire.

 • Neverplaceobjectsagainstor

on top of compressor.

 • Operatecompressorin

an open area at least 12"

(30.5 cm) away from any

wall or obstruction that would

restrict the flow of fresh air to

the ventilation openings.

 • Operatecompressorina

clean, dry well ventilated area.

Do not operate unit indoors or

in any confined area.



 • Unattendedoperationof

this product could result in

personalinjuryorproperty

damage. To reduce the risk

of fire, do not allow the

compressor to operate unat-

tended.

 • Alwaysremaininattendance

with the product when it is

operating.

 • Alwaysdisconnectelectrical

power by moving the On/Off

switch in the OFF position

and drain tank daily or after

each use.

DANGER: RISK TO BREATHING (ASPHYXIATION)

WHAT CAN HAPPEN HOW TO PREVENT IT

• Thecompressedairdirectly

from your compressor is not

safe for breathing.The air

stream may contain carbon

monoxide, toxic vapors,

or solid particles from the

air tank.Breathing these

contaminants can cause

seriousinjuryordeath.

• Neveruseairobtaineddirectly

from the compressor to supply

air for human consumption.The

compressor is not equipped

with suitable filters and in-line

safety equipment for human

consumption.

• Exposuretochemicals

in dust created by

power sanding, sawing,

grinding, drilling, and other

construction activities may

be harmful.

• Sprayedmaterialssuchas

paint, paint solvents, paint

remover, insecticides, weed

killers, may contain harmful

vapors and poisons.

• Workinanareawithgood

cross ventilation. Read and

follow the safety instructions

provided on the label or safety

data sheets for the materials

you are spraying. Always use

certified safety equipment:

NIOSH/OSHA respiratory

protection or properly fitting

face mask designed for use

with your specific application.

WARNING: RISK OF BURSTING

Air Tank: On February 26, 2002, the U.S. Consumer Product

Safety Commission published Release # 02-108 concerning air

compressor tank safety:

Air compressor receiver tanks do not have an infinite life. Tank life

is dependent upon several factors, some of which include operating

conditions, ambient conditions, proper installations, field modifica-

tions, and the level of maintenance. The exact effect of these fac-

tors on air receiver life is difficult to predict.

If proper maintenance procedures are not followed, internal corro-

sion to the inner wall of the air receiver tank can cause the air tank

to unexpectedly rupture allowing pressurized air to suddenly and

forcefullyescape,posingriskofinjurytoconsumers.

Your compressor air tank must be removed from service by the end

of the year shown on your tank warning label.

The following conditions could lead to a weakening of the air tank,

and result in a violent air tank explosion:



WHAT CAN HAPPEN HOW TO PREVENT IT

• Failuretoproperlydrain

condensed water from

air tank, causing rust and

thinning of the steel air tank.

• Drainairtankdailyorafter

each use. If air tank develops

a leak, replace it immediately

with a new air tank or replace

the entire compressor.

• Modificationsorattempted

repairs to the air tank. • Neverdrillinto,weld,ormake

any modifications to the air

tank or its attachments. Never

attempt to repair a damaged or

leaking air tank. Replace with a

new air tank.

• Unauthorizedmodificationsto

the safety valve or any other

components which control air

tank pressure.

• Theairtankisdesigned

to withstand specific

operating pressures. Never

makeadjustmentsorparts

substitutions to alter the factory

set operating pressures.

Attachments & accessories:

• Exceedingthepressure

rating of air tools, spray guns,

air operated accessories,

tires, and other inflatables

can cause them to explode or

fly apart, and could result in

seriousinjury.

• Followtheequipment

manufacturers

recommendation and never

exceed the maximum allowable

pressure rating of attachments.

Never use compressor to

inflate small low pressure

objectssuchaschildren’stoys,

footballs, basketballs, etc.

Tires:

• Over inflation of tires could

resultinseriousinjuryand

property damage.

 • Useatirepressuregaugeto

check the tires pressure before

each use and while inflating

tires; see the tire sidewall for

the correct tire pressure.

NOTE: Air tanks, compressors

and similar equipment used to

inflate tires can fill small tires very

rapidly.Adjustpressureregulator

on air supply to no more than the

rating of the tire pressure. Add air

in small increments and frequent-

ly use the tire gauge to prevent

over inflation.

WARNING: RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN HOW TO PREVENT IT

• Your air compressor is

Like any other electrically

powered device, If it is not

used properly it may cause

electric shock.

 • Never operate the compressor

outdoors when it is raining or

in wet conditions.

 • Never operate compressor

with protective covers

removed or damaged.



 • Repairs attempted by

unqualified personnel can

resultinseriousinjuryor

death by electrocution.

 • Any electrical wiring or

repairs required on this

product should be performed

by a DeWALT factory

service center or a DeWALT

authorized service center in

accordance with national and

local electrical codes.

 • Electrical Grounding:

Failure to provide adequate

grounding to this product

couldresultinseriousinjury

or death from electrocution.

See Grounding

Instructions under

Installation.

 • Make certain that the

electrical circuit to which the

compressor is connected

provides proper electrical

grounding, correct voltage and

adequate fuse protection.

WARNING: RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Thecompressedairstream

can cause soft tissue

damage to exposed skin and

can propel dirt, chips, loose

particles,andsmallobjects

at high speed, resulting in

property damage or personal

injury.

• Always wear certified safety

equipment: ANSI Z87.1 eye

protection (CAN/CSA Z94.3)

with side shields when using

the compressor.

• Neverpointanynozzleor

sprayer toward any part of

the body or at other people or

animals.

• Alwaysturnthecompressoroff

and bleed pressure from the

air hose and air tank before

attempting maintenance,

attaching tools or accessories.

WARNING: RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

• Touchingexposedmetalsuch

as the compressor head,

engine head, engine exhaust

or outlet tubes, can result in

serious burns.

 • Nevertouchanyexposed

metal parts on compressor

during or immediately after

operation. Compressor will

remain hot for several minutes

after operation.

 • Donotreacharound

protective shrouds or attempt

maintenance until unit has

been allowed to cool.



WARNING: RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Movingpartssuchasthe

pulley, flywheel, and belt can

causeseriousinjuryifthey

come into contact with you or

your clothing.

• Neveroperatethecompressor

with guards or covers which

are damaged or removed.

• Keepyourhair,clothing,and

gloves away from moving parts.

Looseclothes,jewelry,orlong

hair can be caught in moving

parts.

• Airventsmaycovermoving

parts and should be avoided as

well.

• Attemptingtooperate

compressor with damaged or

missing parts or attempting

to repair compressor with

protective shrouds removed

can expose you to moving

parts and can result in

seriousinjury.

• Anyrepairsrequiredonthis

product should be performed

by a DeWALT factory service

center or a DeWALT authorized

service center.

WARNING: RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

• Unsafeoperationofyourair

compressor could lead to seri-

ousinjuryordeathtoyouor

others.

• Reviewandunderstandall

instructions and warnings in

this manual.

• Becomefamiliarwiththe

operation and controls of the

air compressor.

• Keepoperatingareaclearofall

persons, pets, and obstacles.

• Keepchildrenawayfromtheair

compressor at all times.

• Donotoperatetheproduct

when fatigued or under the

influence of alcohol or drugs.

Stay alert at all times.

• Neverdefeatthesafetyfea

tures of this product.

• Equipareaofoperationwitha

fire extinguisher.

• Donotoperatemachinewith

missing, broken, or unautho-

rized parts.

•Neverstandonthe

compressor.



WARNING: RISK OF FALLING

WHAT CAN HAPPEN HOW TO PREVENT IT

• Aportablecompressorcan

fall from a table, workbench,

or roof causing damage to

the compressor and could

resultinseriousinjuryor

death to the operator.

• Alwaysoperatecompressor

in a stable secure position to

prevent accidental movement

of the unit. Never operate

compressor on a roof or

other elevated position. Use

additional air hose to reach

high locations.

CAUTION: RISK FROM NOISE

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Under some conditions and

duration of use, noise from

this product may contribute

to hearing loss.

 • Alwayswearcertifiedsafety

equipment: ANSI S12.6

(S3.19) hearing protection.







ON (I) / OFF (O) SWITCH

Place this switch (A) in the ON (I) position to A

provide automatic power to the pressure switch

and OFF (O) to remove power at the end of

each use.

PRESSURE SWITCH

The pressure switch automatically starts the

motor when the air tank pressure drops below

the factory set cut-in pressure. It stops the motor when the air tank

pressure reaches the factory set cut-out pressure.

SAFETY VALVE

If the pressure switch does not shut off the air

compressor at its cut-out pressure setting, the

safety valve (G) will protect against high

pressure by popping out at its factory set

pressure (slightly higher than the pressure

switch cut-out setting).

CHECK VALVE

When the air compressor is operating, the

check valve (F) is open, allowing compressed air to enter the air

tank. When the air compressor reaches cut-out pressure, the check

valve closes, allowing air pressure to remain inside the air tank.



TANK PRESSURE GAUGE

The tank pressure gauge (B) indicates C

the reserve air pressure in the tank.

OUTLET PRESSURE GAUGE

The outlet pressure gauge (C)

indicates the air pressure available at

the outlet side of the regulator. This

pressure is controlled by the regulator

and is always less than or equal to the tank pressure.

REGULATOR

The regulator (D) controls the air pressure shown on the outlet

pressure gauge.Turn regulator knob clockwise to increase pressure

and counterclockwise to decrease pressure.

WARNING: Risk of Bursting. Too much air pressure causes a

hazardous risk of bursting. Check the manufacturer’s maximum

pressure rating for air tools and accessories. The regulator outlet

pressure must never exceed the maximum pressure rating.

UNIVERSAL QUICK CONNECT BODIES

The universal Quick Connect body (E) accepts the three most

popular styles of Quick Connect plugs: Industrial, automotive, and

ARO. The two quick connect bodies allow the use of two tools at the

same time.

DRAIN VALVE

The drain valve (H) is located at the base of the air

DRAIN TANK DAILY

tank and is used to drain condensation at the end of

each use.

See Draining Air Tank under

Maintenance.

COOLING SYSTEM

This compressor contains an advanced design cooling system.

It is normal for this fan to blow air through the vent holes in large

amounts. The cooling system is working when air is expelled.

AIR COMPRESSOR PUMP

The pump compresses air into the air tank. Working air is not

available until the compressor has raised the air tank pressure

above that required at the air outlet.

MOTOR OVERLOAD PROTECTOR

The motor has a thermal overload protector. If the motor overheats

for any reason, the overload protector will shut off the motor. The

motor must be allowed to cool down before restarting. To restart:

1. Set the On/Off lever to “Off” and unplug unit.

2. Allow the motor to cool.

3. Plug the power cord into the correct branch circuit receptacle.

4. Set the Auto/Off lever to “On” position.





INSTALLING HOSES

WARNING: Risk of unsafe operation. Firmly grasp hose in hand

when installing or disconnecting to prevent hose whip.

1. Ensure regulated pressure gauge reads 0 psi.

2. Grasp the hose at the Quick Connect plug and push the plug

into the Quick Connect body (E).

3. Grasp the hose and pull to ensure coupler is seated.

DISCONNECTING HOSES

WARNING: Risk of unsafe operation. Firmly grasp hose in hand

when installing or disconnecting to prevent hose whip.



1. Ensure regulated pressure gauge reads 0 psi.

2. Pull coupler on Quick Connect body back to release Quick

Connect plug on hose.



WARNING: Risk of Electrical Shock. In the event of a short

circuit, grounding reduces the risk of shock by providing an escape

wire for the electric current. This air compressor must be properly

grounded.

The portable air compressor is equipped with a cord having a

grounding wire with an appropriate grounding plug.

1. The cord set and plug (J) with this unit

contains a grounding pin (L). This plug

MUST be used with a grounded outlet

(K).

IMPORTANT: The outlet being used must

be installed and grounded in accordance

with all local codes and ordinances.

2. Ensure the outlet being used has the same configuration as the

grounded plug. DO NOT USE AN ADAPTER.

3. Inspect the plug and cord before each use. Do not use if there

are signs of damage.

4. If these grounding instructions are not completely understood, or

if in doubt as to whether the compressor is properly grounded,

have the installation checked by a qualified electrician.

DANGER: Risk of Electrical Shock. IMPROPER GROUNDING

CAN RESULT IN ELECTRICAL SHOCK.

• Do not modify the plug provided.If it does not fit the available outlet,

a correct outlet should be installed by a qualified electrician.

• Repairs to the cord set or plug MUST be made by a qualified

electrician.



If an extension cord must be used, be sure it is:

 • a3wireextensioncordthathasa3bladegroundingplug,and

a 3-slot receptacle that will accept the plug on the product

 • ingoodcondition

 • plugisnotworn

 • nolongerthan50feet(15.2m)

 • 14 gauge (AWG) or larger. (Wire size increases as gauge

number decreases. 12 AWG and 10 AWG may also be used. DO

NOT USE 16 OR 18 AWG.)

NOTICE: Risk of property damage. The use of an undersized

extension cord will cause voltage to drop resulting in power loss

to the motor and overheating. Instead of using an extension cord,

increase the working reach of the air hose by attaching another

length of hose to its end. Attach additional lengths of hose as

needed.



Refer to the Voltage and Minimum Branch Circuit Requirements

under Pump/Motor Specifications.

CAUTION: Certain air compressors can be operated on a

15 amp circuit if the following conditions are met.

• VoltagesupplytocircuitmustcomplywiththeNationalElectrical

Code.

• Circuitisnotusedtosupplyanyotherelectricalneeds.

• Extensioncordscomplywithspecifications.

• Circuit is equipped with a 15 amp circuit breaker or 15 amp

time delay fuse. NOTE: If compressor is connected to a circuit

protected by fuses, use only time delay fuses. Time delay fuses

should be marked “D” in Canada and “T” in the US.

Autres manuels pour D55141

Table des matières

Langues :

Autres manuels DeWalt Compresseur d'air

DeWalt

DeWalt Emglo D55150 Manuel utilisateur

DeWalt

DeWalt XR FLEX VOLT DCC1054 Manuel utilisateur

DeWalt

DeWalt DXCM602 Manuel utilisateur

DeWalt

DeWalt D2002M Manuel utilisateur

DeWalt

DeWalt DXCMWA5591056-CA Manuel utilisateur

DeWalt

DeWalt D55168 Manuel utilisateur

DeWalt

DeWalt DXCMTE6590811 Manuel utilisateur

DeWalt

DeWalt D55684 Manuel utilisateur

DeWalt

DeWalt D55146 Manuel utilisateur

DeWalt

DeWalt D55146 Manuel utilisateur

DeWalt

DeWalt D55270T Manuel utilisateur

DeWalt

DeWalt D55394 Manuel utilisateur

DeWalt

DeWalt D55168 Manuel utilisateur

DeWalt

DeWalt DXCM251 Manuel utilisateur

DeWalt

DeWalt D55167 Manuel utilisateur

DeWalt

DeWalt DXCMLA1983054 Manuel utilisateur

DeWalt

DeWalt XR FLEXVOLT LI-ION DCC1054 Manuel utilisateur

DeWalt

DeWalt Emglo D55151 Manuel utilisateur

DeWalt

DeWalt XR FLEX VOLT DCC1054 Manuel utilisateur

DeWalt

DeWalt DXCMSAC260 Manuel utilisateur

DeWalt

DeWalt DXCMV5048055 Manuel utilisateur

DeWalt

DeWalt D55154 Manuel utilisateur

DeWalt

DeWalt Emglo D55151 Manuel utilisateur

DeWalt

DeWalt DXCM201 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
