DEVA Broadcast DVB Explorer Manuel utilisateur

MAINTENANCE AND OPERATION

INSTRUCTION MANUAL

Publish Date: 08-Apr-2022

DVB Explorer

Advanced DVB-T/T2/C/S/S2 Analyzer

Contents

Introduction........................................................................................................................................ 4

Typographic conventions .................................................................................................................. 5

General Information.......................................................................................................................... 6

Product Features ................................................................................................................................ 7

Technical Specications .................................................................................................................. 8

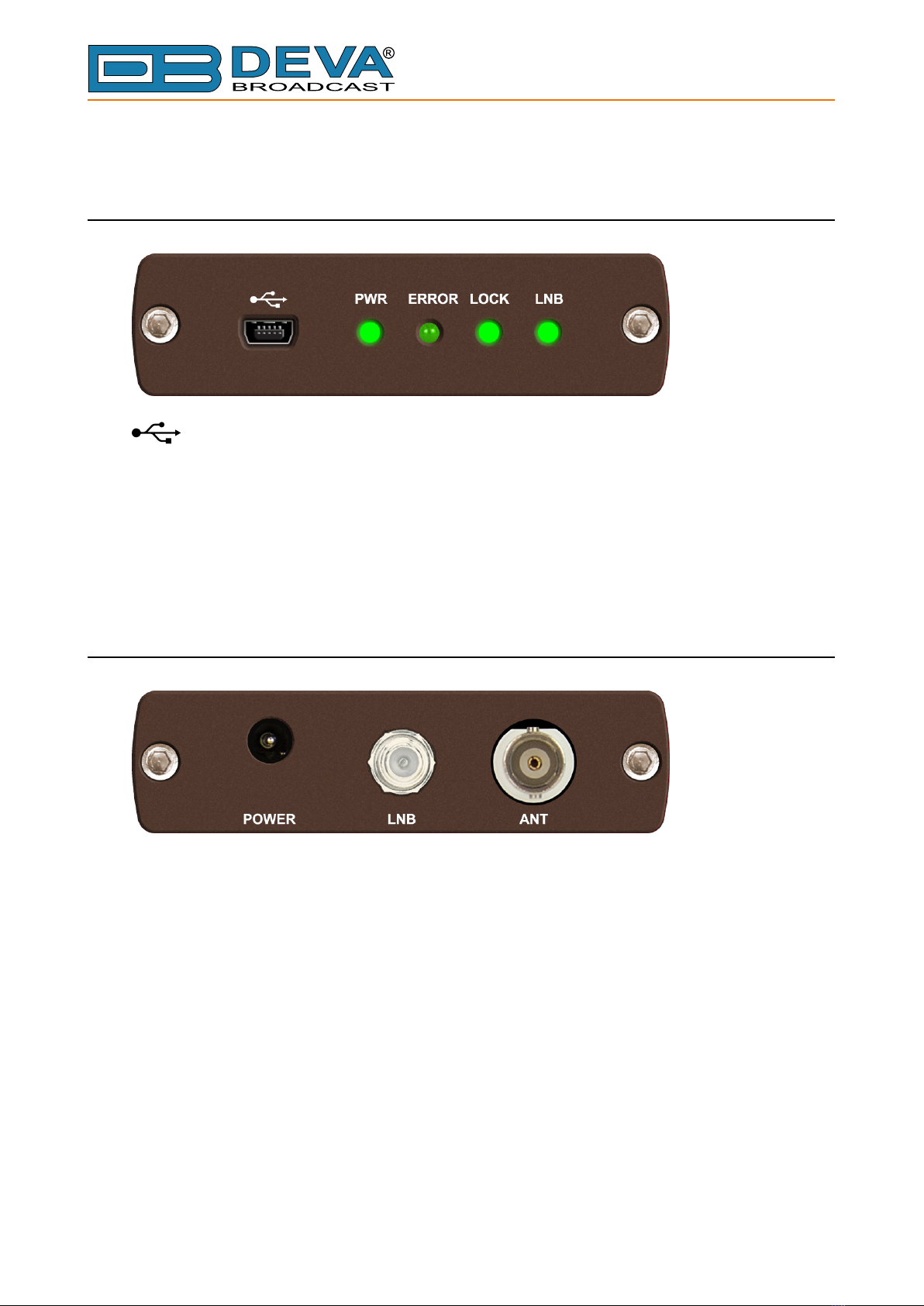

Panel Indicators and Connectors ................................................................................................... 10

Front Panel.................................................................................................................................... 10

Rear Panel..................................................................................................................................... 10

Before you start ................................................................................................................................ 11

Technical Matters.......................................................................................................................... 11

Unpacking and inspection............................................................................................................. 11

Loading and Running The Software .............................................................................................. 12

Minimal System Requirements ...................................................................................................... 12

Installing the Software & Drivers ................................................................................................. 12

Working with DVB explorer ........................................................................................................... 16

Selecting a Conguration ................................................................................................................ 16

Main Window ................................................................................................................................... 19

Management Buttons....................................................................................................................... 20

Settings.............................................................................................................................................. 22

General Settings ............................................................................................................................ 22

Streaming Settings......................................................................................................................... 23

Local group box........................................................................................................................ 23

IP Forwarding group box......................................................................................................... 23

Transport Steam Tree View............................................................................................................. 24

Transport stream tables................................................................................................................. 24

Services ......................................................................................................................................... 25

PIDs............................................................................................................................................... 26

RF Screen.......................................................................................................................................... 27

Indicators ...................................................................................................................................... 27

Constellation..................................................................................................................................... 28

Echoes................................................................................................................................................ 29

Equalizer........................................................................................................................................... 30

FFT (Fast Fourier Transform)........................................................................................................ 31

Bitrate Screen ................................................................................................................................... 32

Service Screen................................................................................................................................... 33

PCR Screen....................................................................................................................................... 34

EIT Screen ........................................................................................................................................ 35

TV Screen.......................................................................................................................................... 36

ETSI TR 101 290 Screen ................................................................................................................. 37

Log Info Screen ................................................................................................................................ 38

Layouts.............................................................................................................................................. 39

Generate Report............................................................................................................................... 40

WARRANTY TERMS AND CONDITIONS................................................................................. 41

Product Registration Card.............................................................................................................. 42

THIS PAGE

IS INTENTIONALLY

LEFT BLANK

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 4 -

Introduction

DEVA Broadcast Ltd. is an international communications and high-technology manufacturing

organization, its corporate headquarters and facility located in Burgas, Bulgaria. The company

serves the broadcast and corporate markets worldwide – from consumers and small businesses to

the largest global organizations. It is dedicated to the research, design, development and provision

of advanced products, systems and services. DEVA Broadcast launched its own brand back in

1997 and has nowadays evolved to become known as a market leader and internationally reputed

manufacturer of user-friendly, cost-eective and innovative broadcast products.

Creativity and innovation are deeply woven into DEVA Broadcast corporate culture. Through

successful engineering, marketing and management our team of dedicated professionals creates

future-oriented solutions to improve customers’ performance. You may rely that all issues

communicated to our crew would be addressed accordingly. We pride ourselves on our pre and

post-sales support and purchase services, which along with the outstanding quality of our radio

gear have won us due respect and the market authority position.

DEVA Broadcast best-of-breed solutions have become the best sellers for our partners. The

strategic partnerships which have been formed with industry leaders during all these years that

we have been operating on the broadcasting market, have proved us a reliable business partner

and a valuable asset, as our dealers worldwide would conrm. In constant pursuit of precision and

long-term satisfaction, DEVA Broadcast enhances the reputation of our partners and clients alike.

Furthermore, we have already a proven merit as a credible partner provider.

Our portfolio oers complete line of high quality and competitive products for FM and Digital

Radio, Radio Networks, Telecommunication Operators and regulation authorities. For almost

two decades of intensive software and hardware development, we have achieved a unique price-

performance and endurance of our product lines. Our company’s multitude of equipment and

services is in line with the latest technologies and key trends. The most recognizable characteristics

attributed to DEVA Broadcast products are their clear-cut, streamlined design, easiness of use and

cost-eectiveness: simplicity of forms but multiplicity of functions.

For us there is no stage when we deem that we have reached the most satisfactory level in

our work. Our engineers are in constant pursuit of new ideas and technologies to be captured in

DEVA Broadcast solutions. Simultaneously, a strict control is being exercised at each step of any

new development. Experience and hard work are our fundament but the continuous improving

process is what we never leave aside. DEVA Broadcast participates on a regular basis in all

landmark broadcasting events, not only to promote its products, but to exchange valuable know-

how and experience. We are also engaged in international large-scale projects involving radio and

audio solutions which makes us even more competitive on the global market.

All DEVA Broadcast products are developed and produced in accordance with the latest ISO

9001 quality control standards.

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 5 -

Typographic conventions

The following table describes important conventions used in the manual.

Convention and Style Description Examples

Menu > Sub Menu >

Menu Command

A menu item(s) and menu

command that you need to click

in sequence

Click Settings > General

[Button] Interface Interactive buttons Press [OK] to save the changes

NOTE Important notes and

recommendations

NOTE: The notication will appear

only once

“Reference Name” on

Page XXX

References and links refer to “New Connection”

(see “Monitoring” on page 56)

Example Used when example text is cited Example for E-mail Notication:

Date: 04 Nov 2013, 07:31:11

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 6 -

General Information

DVB Explorer is a new-generation portable analyzer that provides detailed DVB component

information. It is perfect for use in the eld but what really makes this product one of a kind is the

fact that it covers all DVB standards - T/T2, C and S/S2. It can receive live DVB T/T2, DVB C

and DVB S/S2 signals and ensures complete and advanced MPEG decoding, ETSI TR 101 290

Layers 1,2 & 3 and multi-PLP analysis including PLP allocation, PLP extraction, T2 timestamp,

T2/L1 pre- and post-signaling, BB frame, PID and EIT Tables.

It also supports MPEG transport stream analysis, plus MPEG-2 TS record and playback and

MPEG-2 TS over IP forward. Powerful, practical and ecient, it has a compact and elegant design

coupled with great features which include a selectable wide range IF lter bandwidth, a spectrum

analyzer allowing checks of the RF carrier, constellation and Echo diagram display and precise

measuring of RF, SNR, BER, CBER, PER, MER, SSI, SQI, C/N, Freq oset. All RF measurements

can be stored into a log le for further analysis. This product lets users select between a predened

DVB channels scan or manual tune. PCR graphs and advanced EIT display are also available.

The device supports all modulation schemes from QPSK to 64QAM for DVB-T, QPS to

256QAM for DVB-T2, QAMQPSK to 32APSK for DVB-S/S2 and from 16QAM to 256QAM for

DVB-C. File-based oine analysis is provided as well. The product oers an audio/video player

supporting H.265/HEVC, H.264/MPEG-4 AVC, MPEG-1/2, AAC, MP3, etc. It also provides

multistream support for DVB-S2, as well as support for DVB-T, DVB-T/T2 & T2 Lite.

DVB Explorer is a solution that has no parallel on the market. Easy to power up via the USB

port of your Windows laptop and available at an aordable price, which further increases its appeal,

this versatile multi-standard product is your must-have portable analyzer.

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 7 -

Product Features

• DVB-T/T2/C/S/S2 Compliant Receiver

• High-end Frequency Agile Digital Tuner

• Up to 110 dBµV direct RF Antenna Input

• Advanced MPEG Monitoring and PID Alarms

• Detailed DVB-T/T2 component information

• TR 101 290 Monitoring, Priority 1, 2 and 3

• Predened DVB channels scan or manual tune

• RF Spectrum & Constellation display

• PLP extraction and TS PLP analysis

• Advanced QPSK & QAM Analyzer

• BandScanner and RF Spectrum Analyzer

• SAE - Service Availability Error

• SDE - Service Degradation Error

• Very Intuitive Navigational Menu

• Levels measurement with data history

• Spectrum analyzer allowing checking of the RF Carrier

• Service Availability Error & Service Degradation Error

• Protected access to the device settings

• Firmware updates will ensure improved operation

• Easy Installation and Setup

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 8 -

TECHNICAL SPECIFICATIONS

RF INPUT DVB-T/T2/C

Tuning Range Frequency Agile 40-1000 MHz

Tuning Step 10kHz

Tuner Sensitivity 30 dBμV

Antenna Port BNC Connector, Female, 50Ω

RF input level up to 120 dBμV

Supported Standards DVB-T – ETSI EN 300 744;

DVB-T2 & T2 Lite – ETSI EN 302 755 v1.3.1, ETSI TS 102 831;

T2-MI – ETSI TS 102 773;

DVB-C - 16/64/128/256/1024/4096QAM

DVB-T/T2/C MEASUREMENTS AND ACCURACY

RF input level 30-110 dBμV ±1 dB

MER 0 to 40 dB (±1 dB)

SNR 0 to 40 dB (±1 dB)

BER Before-Viterbi(DVB-T) 1x10-2 to 1x10-5

BER Post-Viterbi(DVB-T) 1x10-2 to 1x10-8

BER (DVB-T2) Before/Post-LDPC, Post-BCH

Signal Lock Lock/Unlock

Modulation parameters L1 signaling in DVB-T2, TPS in DVB-T

SFN Monitor Channel Impulse Response (CIR);

Echoes Delay and Power Level alarms

ETSI TR 101 290 Monitor ETSI TR 101 290 Priority 1, 2 and 3;

MPEG-2 TS Monitor, TS (with MIP packet) Network Delay

T2-MI Monitor Single/Multi-PLP support;

ETSI TR 101 290 T2-MI packet, L1 pre/post signaling;

T2-MI Network Delay;

PLP extraction and TS PLP analysis (ETR 101 290)

QoS SAE (Service Availability Error), SDE (Service Degradation Error)

Round-Robin Logger Monitor sequentially multiple channel frequencies or PLPs

RF Spectrum Display RF Spectrum with SPAN 10 MHz

Constellation Display QPSK, 16QAM, 64QAM, 256QAM

Other Features Audio/Video Freeze Detection, DOCSIS Monitoring

RF INPUT DVB-S/S2

Tuning Range 950 to 2150 MHz (LNB down conversion required)

Antenna Port F Connector, Female, 75Ω

Supported Standards DVB-S, DVB-S2

DVB-S QPSK, code rates: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-S2 CCM, VCM and ACM Modes Support;

QPSK code rates: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10;

8PSK code rates: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10;

16APSK code rates: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10;

32APSK code rates: 3/4, 4/5, 5/6, 8/9, 9/10

Symbol rates DVB-S 65Msps QPSK;

DVB-S2 65Msps QPSK , 60Msps 8PSK, 45Msps 16APSK

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 9 -

DVB-S/S2 MEASUREMENTS AND ACCURACY

RF input level 30-110 dBμV ±1 dB

MER 0 to 40 dB (±1 dB)

CNR up to 40 dB ±0.5 dB

BER (DVB-S) Pre-Viterbi, Post-Viterbi

BER (DVB-S2) Pre-LDPC, Post-LDPC, PER;

Eb/N0, link margin, modulation parameters;

MultiStream support, PLS support

Signal Lock Lock/Unlock

Modulation parameters L1 part 2 signaling in DVB-C

ETSI TR 101 290 Monitor ETSI TR 101 290 Priority 1, 2 and 3;

MPEG-2 TS Monitor

T2-MI Monitor Single/Multi-PLP support;

PLP extraction and TS PLP analysis (ETR 101 290);

SAE (Service Availability Error), SDE (Service Degradation Error);

Monitor sequentially multiple channel frequencies or PLPs

QoS Monitor ETSI TR 101 290 SAE, SDE

Round-Robin Logger up to 40 channels

RF Spectrum Display RF Spectrum with SPAN 10 MHz

Constellation Display QPSK

Other Features Audio/Video Freeze Detection, DOCSIS Monitoring

MEASUREMENT STORAGE

Storage Database

Data formats Microsoft Excel compatible format (csv)

USER INTERFACE

Indicators 4 LEDs, front panel

OPERATING CONDITIONS

Equipment operational

between

-10° and 40°C

EMC immunity 6V/m

COMMUNICATION

Type USB 2.0 compatible

Connector Mini USB, front panel

POWER REQUIREMENT

Power supply USB powered

Connector Mini USB, front panel

SIZE AND WEIGHT

Dimensions (W;H;D) 86 x 25 x 125 mm

Shipping Weight 230 x 70 x 172 mm / 0.533 kg

HS Code 8527212000

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 10 -

Panel Indicators and Connectors

FRONT PANEL

- Mini USB Power Supply - connector Mini-B 5 pins

PWR – The LED will be lit if the unit is connected to a PC trough USB.

ERROR – The LED will light up if an error occurs in the transmission of the transport stream

or the device is not initialized.

LOCK – The LED will light up if the selected TV tuner is locked.

LNB – LNB Error. The LED will light up if LNB is not used.

REAR PANEL

POWER – Power Supply (12V, 2A); used to power LNB.

LNB – LNB input - consumer-standard F connector; used for DVB-S/S2 standard.

ANT – Antenna Input - BNC connector; used for DVB-T/T2/C standard.

Table des matières

Autres manuels DEVA Broadcast Instrument de mesure

DEVA Broadcast

DEVA Broadcast DB4005 Manuel d'instructions

DEVA Broadcast

DEVA Broadcast Band Scanner PRO Manuel d'instructions

DEVA Broadcast

DEVA Broadcast Radio Explorer II Manuel utilisateur

DEVA Broadcast

DEVA Broadcast Radio Explorer III DAB Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
