KAD 340
KAB 3000 Basis Unit
Quad AV Adapting Unit
Notes on the Assembly Instructions.
As well as this supplementary Assembly
Instructions, the Assembly Instructions for the
KAB 3000
apply.
DCT DELTA GmbH
Bodanrückstraße 1
D-78351 Bodman
Phone: +49 (0) 7773 / 936331
Fax: +49 (0) 7773 / 929259
Email: info@dct-delta.de
Internet: http://www.dct-delta.de
- 2 - KAD 340
InhaltsverzeIchnIs
1 Safety regulations ..............................................................................................3
2 General information ..........................................................................................3
2.1 Scope of delivery ............................................................................... 3
2.2 Meaning of the symbols used ............................................................... 4
2.3 Technical data.................................................................................... 4
2.4 Description ........................................................................................ 5
3 Installation ........................................................................................................5
3.1 Installing the module ........................................................................... 5
3.2 Connecting the module ....................................................................... 6
4 Settings .............................................................................................................6
4.1 Audio level regulator .......................................................................... 6
4.2 Programming the modulator module ..................................................... 7
5 Final procedures ................................................................................................7
- 3 - KAD 340
1 safety regulatIons
• The standards IEC/EN/DIN EN 50083 resp. IEC/EN/DIN EN 60728 must
be observed.
• Do not perform installation and service work during thunderstorms.
• Assembly, installation and servicing should be carried out by authorised
electricians.
• Switch off the operating voltage of the system before beginning with assem-
bly or service work.
• Avoid short circuits!
• Observe the relevant country-specific standards, regulations and guidelines
on the installation and operation of antenna systems.
• To ensure electromagnetic compatibility, make sure all connections are tight
and the covers are screwed on securely.
• No liability is accepted for damage caused by faulty connections or inap-
propriate handling of the device.
Check the basis unit KAB 3000 according to the safety instructions listed in
their assembly instruction.
Take precautions to prevent static discharge when working on the device!
Electronic devices should never be disposed of in the household rubbish. In
accordance with directive 2002/96/EC of the European Parliament and the
European Council from January 27, 2003 which addresses old electronic and
electrical devices, such devices must be disposed of at a designated collection
facility. At the end of its service life, please take your device to one of these
public collection facilities for proper disposal.
2 general InformatIon
2.1 scope of delIvery
1 Quad AV Adapting Unit
KAD 340
1 AV cable
1 Brief Assembly Instructions
1 CD (assembly instructions)
- 4 - KAD 340
2.2 meanIng of the symbols used
Important note
—> General note
–
/
–
/
Optional use of the buttons
• Performing works
2.3 technIcal data
The requirements of the following EU directives are met:
2011/65/EU, 2014/30/EU, 2014/35/EU
The product fulfils the guidelines and standards for CE labelling.
Unless otherwise noted all values are specified as “typical”.
Inputs:
Audio
Impedance: .................................................................................. 47 kΩ
Audio level: ............................................................................... 0.5 Vrms
Video
Impedance: ....................................................................................75 Ω
Video level:....................................................................................1 Vpp
Connections:
Audio input: .................................................................... 8 cinch sockets
Video input: .................................................................... 4 cinch sockets
AV output: ...........................................................................
26-pin
socket
- 5 - KAD 340
2.4 descrIptIon
The Quad AV Adapting Unit
KAD 340
is designed for feeding audio and
video signals into the modulator modules
KMM 341
and
KMS 342
.
The audio signals that have been fed in reach the AV interface via the audio
sockets (red = right-hand channel, white = left-hand channel / mono) as well
as the downstream level regulator. The video signals fed in via the video sock-
ets (yellow) are also here. The existing signals are fed to the modulator module
via the AV interface.
3 InstallatIon
3.1 InstallIng the module
– Observe the instructions for installing outlined in chapters 4 and 9 of the
assembly instructions KAB 3000.
– Assemble the Quad AV Adapting Unit left of the corresponding modulator
module in a short, non-numbered groove.
—> The illustration shows, for example, slot 3 (modulator module) and
the slot for the add-on module (Quad AV Adapting Unit) for installa-
tion.
B
A
• Insert the Quad AV Adapting Unit into grooves A and B of the slot to the
left of the corresponding modulator module.
• Push the Quad AV Adapting Unit with a little pressure into the head-end
station until they click into place.
- 6 - KAD 340
3.2 connectIng the module
C
Channel strip ”A“
Audio right
Audio mono / left
Video
Channel strip ”B“
Channel strip ”C“
Channel strip ”D“
• Using the AV cable C, connect the Quad AV Adapting Unit to the modula-
tor module.
•
Connect the Cinch inputs of the
Quad AV Adapting Unit
to the audio and
video signal sources via the intended cable terminals on the
basis unit
.
4 settIngs
4.1 audIo level regulator
• If necessary, adjust the audio input level to the requirements using the level
controllers (factory setting: centre position).
Level control channel strip ”A“
Audio right
Audio left (mono)
Level control channel strip ”B“
Level control channel strip ”C“
Level control channel strip ”D“
- 7 - KAD 340

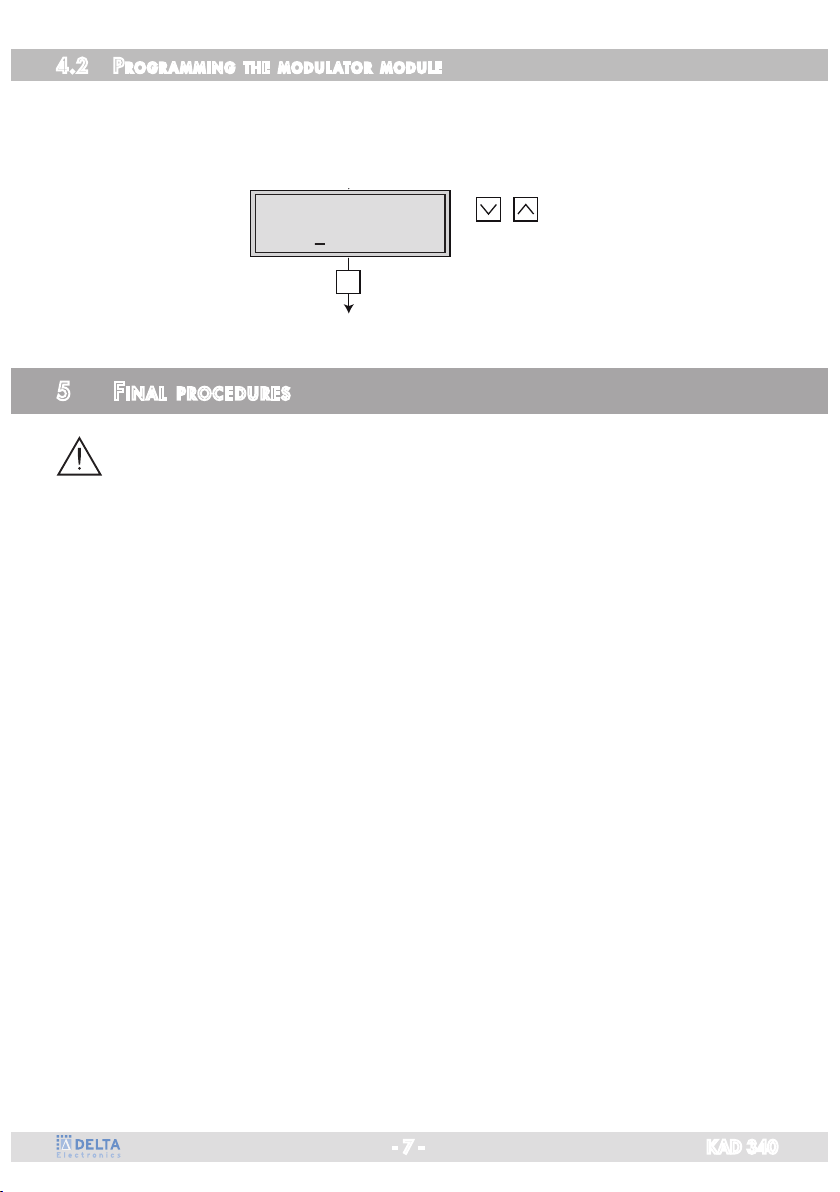

4.2 programmIng the modulator module
If a mono audio signal (white Cinch socket) is fed in, you program the cor-
responding channel strip of the connected mono modulator module to “Mono
L” (assembly instructions
KMM 341 / KMS 342
).
Bx 3A
Mono L
AUDIO
M
M
/
Mono L / L + R
5 fInal procedures
After installing the basis unit, upgrading accessories or installing modules it is
necessary to tighten all cable connections, cable terminals and cover screws in
order to maintain compliance with current EMC regulations.
• Securely tighten the cable connections using an appropriate open-ended
spanner.
• Test the output level of the output collector according to the KAB 3000 as-
sembly instructions and set the output level required for the cable system.
• Mount the base plate and the front cover (see KAB 3000 assembly instruc-
tions).
Service:
Phone: +49 (0) 7773 / 936331, Fax: +49 (0) 7773 / 929259, Email: [email protected]
DCT DELTA GmbH, Bodanrückstraße 1, D-78351 Bodman
Alterations reserved. Technical data E. & O.E. 17022017
