DE’LONGHI

COOKING

INSTALLATION and SERVICE INSTRUCTIONS

USE and CARE INSTRUCTIONS

DEP909M

MULTIFUNCTION BUILT-IN OVEN

distributed by

DeLonghi Australia Pty Ltd

DeLonghi New Zealand Ltd

Dear Customer,

Thank you for having purchased and given your preference

to our product.

The safety precautions and recommendations reported

below are for your own safety and that of others. They

will also provide a means by which to make full use of the

features offered by your appliance.

Please keep this booklet in a safe place. It may be useful

in future, either to yourself or to others in the event that

doubts should arise relating to its operation.

This appliance must be used only for the task it

has explicitly been designed for, that is for cooking

foodstuffs. Any other form of usage is to be considered

as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the

event of damage caused by improper, incorrect or

illogical use of the appliance or be faulty installation.

PRODUCT LABEL

This appliance has been designed and constructed in accordance with the following codes

and specications:

AS/NZS 60335.1 General Requirements for Domestic electrical appliances

AS/NZS 60335.2.6 Particular Requirements for Domestic electrical cooking appliances

AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements.

IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS

IMPORTANT: This appliance is designed and manufactured

solely for the cooking of domestic (household) food and is

not suitable for any non domestic application and therefore

should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used

within a non domestic environment i.e. a semi commercial,

commercial or communal environment.

Read the instructions carefully before installing and using

the appliance.

■After having unpacked the appliance, check to ensure that it is not

damaged and that the oven door closes correctly.

■In case of doubt, do not use it and consult your supplier or a

professionally qualied technician.

■Packing elements (i.e. plastic bags, polystyrene foam, nails, packing

straps, etc.) should not be left around within easy reach of children,

as these may cause serious injuries.

■ Some appliances are supplied with a protective lm on steel and

aluminium parts. This lm must be removed before using the

appliance.

■ IMPORTANT: The use of suitable protective clothing/gloves is

recommended when handling or cleaning this appliance.

■Do not attempt to modify the technical characteristics of the

appliance as this may become dangerous to use. The manufacturer

declines all responsibility for any inconvenience resulting from the

inobservance of this condition.

■Do not operate your appliance by means of an external timer or

separate remote-control system.

■Do not carry out cleaning or maintenance operations on the

appliance without having previously disconnected it from the electric

power supply.

■ WARNING: Ensure that the appliance is switched off before

replacing the oven lamp to avoid the possibility of electric shock.

■Do not use a steam cleaner because the moisture can get into the

appliance therefore making it unsafe.

■Do not touch the appliance with wet or damp hands (or feet).

■Do not use the appliance whilst in bare feet.

■If you should decide not to use this appliance any longer (or

decide to substitute another model), before disposing of it, it is

recommended that it be made inoperative in an appropriate manner

in accordance to health and environmental protection regulations,

ensuring in particular that all potentially hazardous parts be made

harmless, especially in relation to children who could play with

unused appliances.

■The various components of the appliance are recyclable. Dispose

of them in accordance with the regulations in force in your country.

If the appliance is to be scrapped, remove the power cord.

■After use, ensure that the knobs are in the off position.

■Children less than 8 years of age shall be kept away unless

continuously supervised.

■This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance shall not

be made by children without supervision.

■The manufacturer declines all liability for injury to persons or damage

to property caused by incorrect or improper use of the appliance.

■ WARNING: During use the appliance and its accessible parts

become hot; they remain hot for some time after use.

– Care should be taken to avoid touching heating elements inside

the oven.

– The door is hot, use the handle.

– To avoid burns and scalds, young children should be kept away.

■Make sure that electrical cables connecting other appliances in the

proximity of the oven cannot become entrapped in the oven door.

■ WARNING: When correctly installed, your product meets all safety

requirements laid down for this type of product category. However

special care should be taken around the rear or the underneath of

the appliance as these areas are not designed or intended to be

touched and may contain sharp or rough edges, that may cause

injury.

■ FIRST USE OF THE OVEN - it is advised to follow these instructions:

– Furnish the interior of the oven as described in the chapter

“CLEANING AND MAINTENANCE”.

– Switch on the empty oven on max to eliminate grease from the

heating elements.

– Disconnect the appliance from the electrical power supply, let

the oven cool down and clean the interior of the oven with a cloth

soaked in water and neutral detergent; then dry carefully.

■ CAUTION: Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can scratch the

surface, which may result in shattering of the glass.

■Do not line the oven walls with aluminium foil. Do not place baking

trays or the drip tray on the base of the oven chamber.

■ FIRE RISK! Do not store ammable material in the oven.

■Always use oven gloves when removing the shelves and food trays

from the oven whilst hot.

■Do not hang towels, dishcloths or other items on the appliance or its

handle – as this could be a re hazard.

■Clean the oven regularly and do not allow fat or oils to build up in

the oven base or tray. Remove spillages as soon as they occur.

■Do not stand on the open oven door.

■Always stand back from the appliance when opening the oven door

to allow steam and hot air to escape before removing the food.

■ SAFE FOOD HANDLING: Leave food in the oven for as short a time

as possible before and after cooking. This is to avoid contamination

by organisms which may cause food poisoning. Take particular care

during warmer weather.

■ WARNING: Take care NOT to lift the appliance by the door handle.

INSTALLATION

CAUTION:

■This appliance must be installed in accordance with these installation instructions.

■This appliance shall only be serviced by authorised personnel.

■This appliance is to be installed only by an authorised person in compliance

with the current electrical regulations and in observation of the instructions

supplied by the manufacturer.

Failure to comply with this condition will render the guarantee invalid.

■Incorrect installation, for which the manufacturer accepts no responsibility, may

cause personal injury of damage.

■Always disconnect the appliance from mains power supply before carrying out

any maintenance operations or repairs.

FITTING REQUIREMENTS

■ The oven can be tted in standard units, width 90 cm and depth 60 cm.

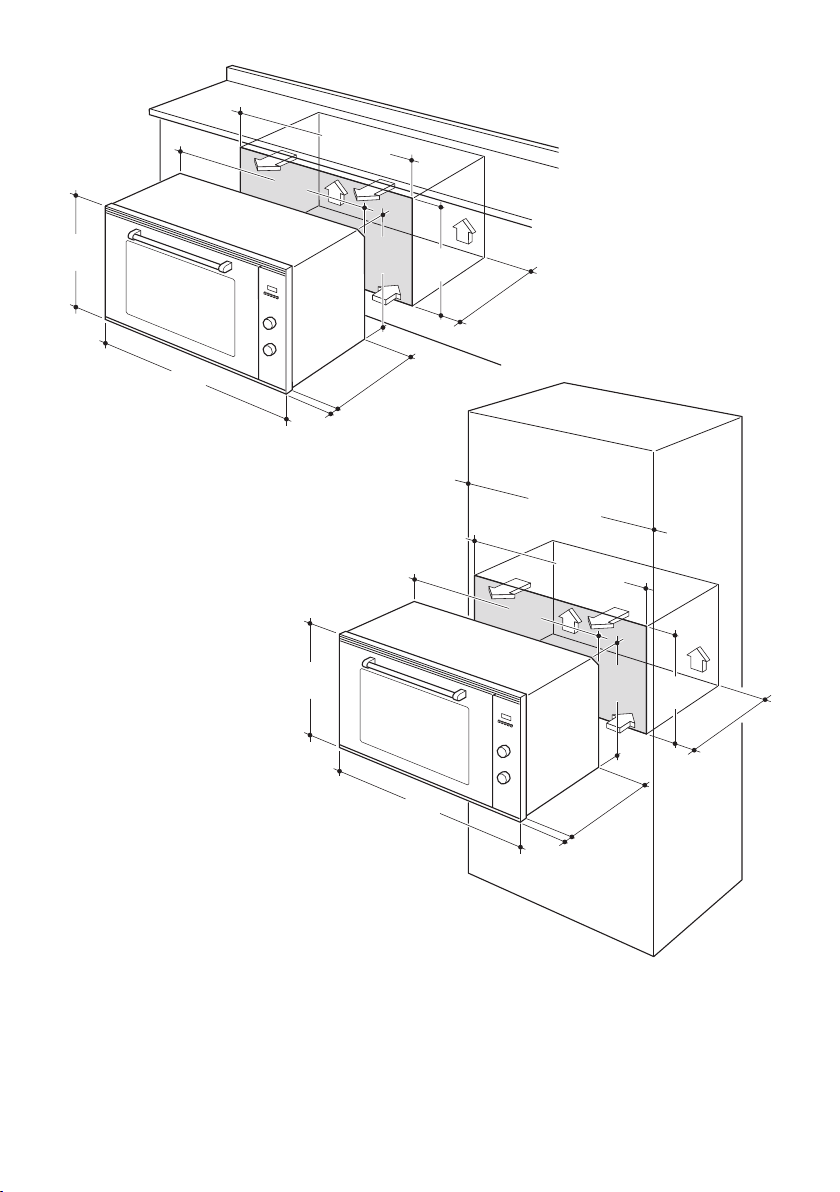

■ Installation requires a compartment as illustrated in gures 1 and 2.

■On the lower side, the oven must lay on supports standing the oven weight.

■Remember the housing should not be free standing but be secured to the wall and/or

adjacent ttings.

■We would point out that the adhesive which bonds the plastic laminate to the

furniture must withstand temperatures not less than 150° C to avoid delamination.

■The walls of the units must be capable of resisting temperatures of 75 °C above

room temperature.

■Do not seal the oven into the cabinetry with silicone or glue; this makes future

servicing difcult. Delonghi will not cover the costs of removing the oven, or of

damage caused by this removal.

■The walls surrounding the oven must be made of heat-resistant material.

■WARNING: Taking care NOT to lift the oven by the door handle.

WARNING

When correctly installed, your product meets all safety requirements laid down for

this type of product category.

However special care should be taken around the rear or the underneath of the

appliance as these areas are not designed or intended to be touched and may

contain sharp or rough edges, that may cause injury.

IMPORTANT

Some environmental factors and cooking habits can cause condensation in and

around the oven during use. To protect surrounding cabinetry from possible damage

caused by frequent or excessive condensation, we recommend moisture-proong

the oven cavity.

853

896

478

544

min. 550

480

467

min. 860

Figure 1

853

896

478

544

min. 550

480

467

min. 860

min. 900

Figure 2

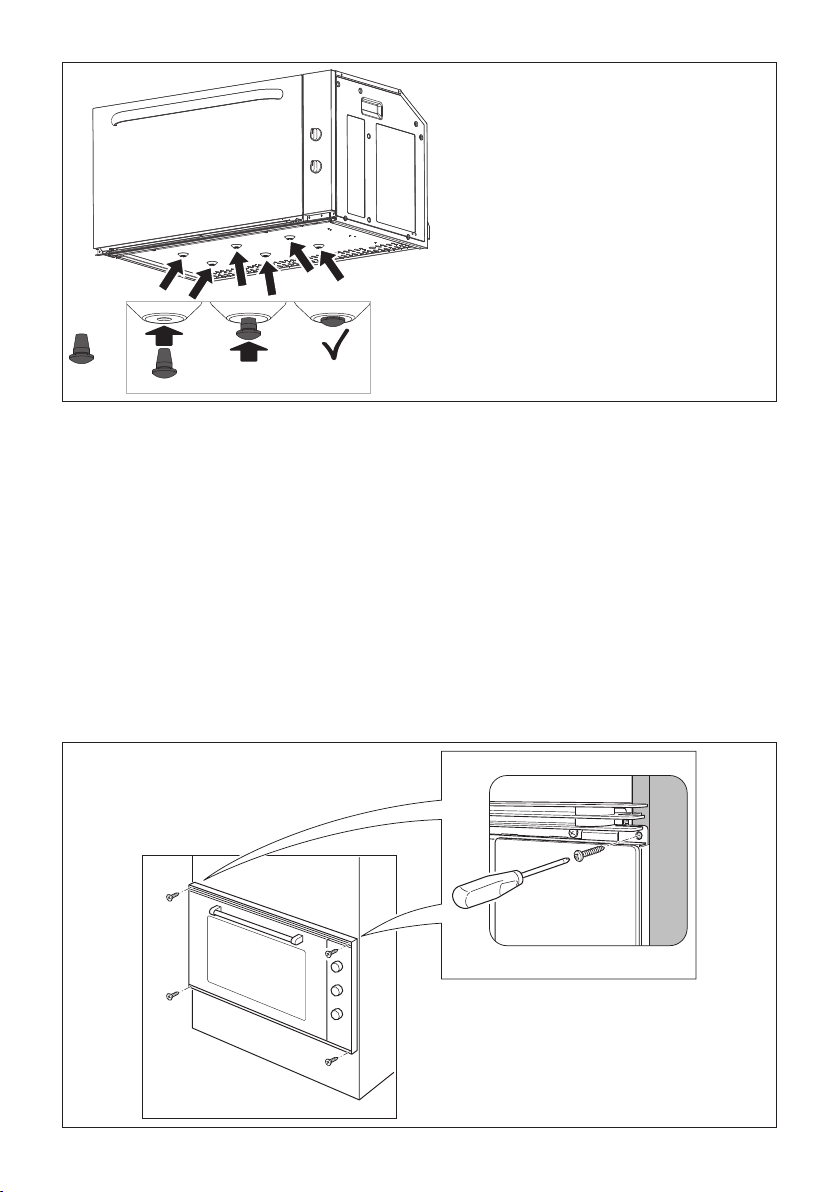

WARNING, VERY IMPORTANT:

The oven is supplied with no.6 rubber spacers xed at the bottom.

DO NOT install the oven without these spacers correctly in place.

If one or more rubber spacers are missing, please use the ones contained in the

separate kit supplied with this appliance and x them to the bottom of the oven as

indicated in the gure 3a on the next page.

Should you require assistance please contact our Customer Service Centre for your

nearest Authorised Delonghi Service Agent.

x 6

FIXING THE OVEN

Introduce the oven into the furniture opening and x it with 4 screws (not supplied) as

gure 3b. It is essential that the oven rests on a surface which will support its weight, as the

screw xing is only complementary.

Note

It is essential that when installing your oven adequate air circulation is allowed for within

the installation. See gures 1 - 2.

Inadequate air circulation may greatly impair the performance of your oven and may effect

adjacent cabinets due to an increase in temperature.

Caution: Do not lift this oven by the door handle.

Adjust the hinges of furniture doors adjacent to the oven to allow a 4-5 mm gap between

the furniture door and the oven frame.

Figure 3b

Figure 3a

Fixing the rubber spacers to the

base of the oven (if they are missing)

by using the ones contained in

the separate kit supplied with this

appliance.

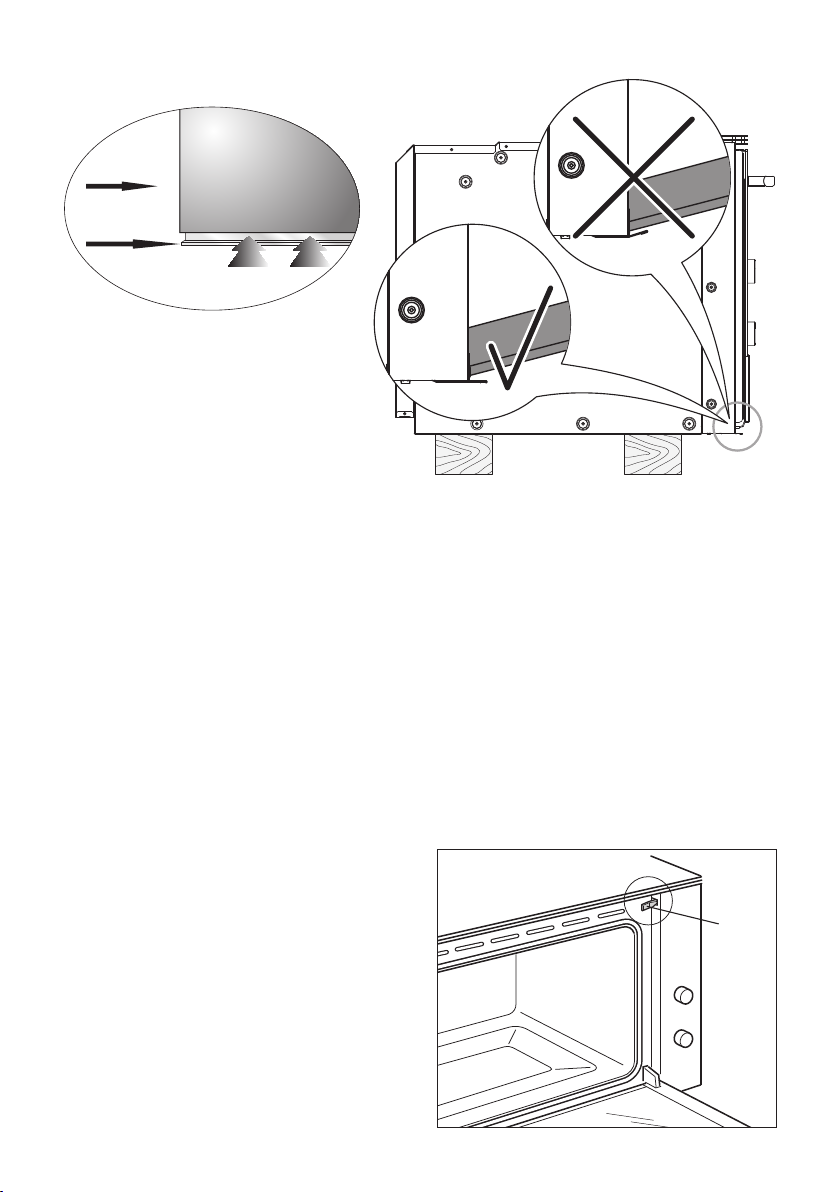

IMPORTANT:

Please take extra care not to damage the lower trim of the oven.

Ensure the oven sits on wooden blocks or similar supports when it is removed from the

carton as shown in above diagram. This will prevent any damage to the lower trim.

Should the lower trim become damaged, straighten the trim and ensure the oven door

opens fully without obstruction from the lower trim.

After installation check the lower trim is still undamaged.

The space between the bottom of the door & the lower trim is important to allow proper air

circulation into the oven.

The oven door should be opened slowly to it’s fully open position ensuring there is adequate

clearance between the bottom of the door and the lower trim.

The manufacturer does not accept responsibility for any damage to the oven

resulting from incorrect installation.

Figure 4

OVEN DOOR

LOWER TRIM

AIR FLOW

IMPORTANT: (SOME MODELS ONLY)

When handling the oven, take care not

to damage the door sensor lever “L”

(near the top right corner of the oven

seal).

Figure 5

ELECTRICAL REQUIREMENTS

■The appliance must be connected to the mains checking that the voltage corresponds

to the value given in the rating plate and that the electrical cable sections can withstand

the load specied on the plate.

■A suitable isolating switch providing full disconnection from the mains power supply

shall be incorporated in the permanent wiring, mounted and positioned to comply with

the local wiring rules and regulations. The isolating switch must be of an approved

type and provide a 3 mm air gap contact separation in all poles (or in all active [phase]

conductors if the local wiring rules allow for this variation of the requirements).

■The isolating switch shall be easily accessible to the customer with the oven installed.

■The power supply cable must not touch the hot parts and must be positioned so that it

does not exceed 75°C above ambient.

■The oven is supplied without a power supply plug and therefore if you are not connecting

directly to the mains, a standardized plug suitable for the load must be tted.

■The plug must be connected to an earthed socket in compliance with safety standards.

■To connect the appliance to the mains electricity supply, do not use adapters, reducers

or branching devices as they can cause overheating and burning.

■Once the appliance has been installed, the switch or socket must always be accessible.

■If the supply cord is damaged it must be replaced by the manufacturer or it’s Service

Agent or a similarly qualied person in order to avoid a hazard.

N.B. The connection of the appliance to earth is mandatory.

If the installation requires alterations to the domestic electrical system call a qualied elec-

trician. He should also check that the domestic electrical system is suitable for the power

drawn by the appliance.

Replacing the power cord must be done by a qualied electrician in accordance with

the instructions supplied by the manufacturer and in compliance with established

electrical regulations.

Table des matières

Autres manuels DeLonghi Four

DeLonghi

DeLonghi EOI406 Manuel utilisateur

DeLonghi

DeLonghi DEIXU620 Manuel

DeLonghi

DeLonghi EOP2046 Manuel utilisateur

DeLonghi

DeLonghi XR640 Manuel

DeLonghi

DeLonghi EO24752 Manuel utilisateur

DeLonghi

DeLonghi DE605MS Guide de référence rapide

DeLonghi

DeLonghi DO2058 Manuel utilisateur

DeLonghi

DeLonghi DMFPSII Guide rapide

DeLonghi

DeLonghi EMFPS 60 B Guide rapide

DeLonghi

DeLonghi EO12012 Manuel utilisateur

DeLonghi

DeLonghi 5718102700GB Manuel

DeLonghi

DeLonghi MULTIFUNCTION BUILT-IN OVENS Guide d'installation

DeLonghi

DeLonghi DO400 Manuel utilisateur

DeLonghi

DeLonghi OVEN WITH ELECTRONIC CONTROLS Manuel utilisateur

DeLonghi

DeLonghi DE60EPS Guide de référence rapide

DeLonghi

DeLonghi DEL6038D Guide rapide

DeLonghi

DeLonghi MULTIFUNCTION BUILT-IN OVENS WITH SIDE OPENING... Guide d'installation

DeLonghi

DeLonghi XR450 Manuel

DeLonghi

DeLonghi EO2060 Manuel utilisateur

DeLonghi

DeLonghi EO 420 Manuel utilisateur

DeLonghi

DeLonghi E014 Series Manuel utilisateur

DeLonghi

DeLonghi DOMFP/S Guide d'installation

DeLonghi

DeLonghi Convection Toaster Oven with Broiler and... Manuel utilisateur

DeLonghi

DeLonghi EO14 Series Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
