DS 61 GW

DUAL FUEL COOKER

Dear Customer,

Thank you for having purchased and given your

preference to our product.

The safety precautions and recommendations reported

below are for your own safety and that of others. They

will also provide a means by which to make full use of

the features offered by your appliance.

Please keep this booklet in a safe place. It may be

useful in future, either to yourself or to others in the

event that doubts should arise relating to its operation.

This appliance must be used only for the task it has

explicitly been designed for, that is for cooking

foodstuffs. Any other form of usage is to be considered

as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the

event of damage caused by improper, incorrect or

illogical use of the appliance or be faulty installation.

PRODUCT LABEL

Important:

This appliance is designed and manufactured solely for the cooking of domestic

(household) food and is not suitable for any non domestic application and there-

fore should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used within a non domes-

tic environment i.e. a semi commercial, commercial or communal environment.

FIRST TIME USE THE OVEN

It is advised to follow these instructions:

■Clean the interior of the oven with cloth soaked in water and detergent

(neutral) then dry carefully.

■Fit the wire racks as described at chapter “Use and care”.

■Insert shelves and tray.

■Switch on the empty oven on max to eliminate grease tracks from the heating

elements.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR

USE OF ELECTRICAL APPLIANCES

Use of any electrical appliance implies the necessity to follow a series of fundamental

rules. In particular:

■Never touch the appliance with wet hands or feet;

■do not operate the appliance barefooted;

■The appliance is not intended for use by young children or infirm persons

with supervision

■Young children should be supervised to ensure they do not play with the

appliance

The manufacturer cannot be held responsible for any damages caused by improper,

incorrect or illogical use of the appliance.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged.

In case of doubt, do not use it and consult your supplier or a professionally qualified techni-

cian.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not

be left around within easy reach of children, as these may cause serious injuries.

■Do not attempt to modify the technical characteristics of the appliance as this may

become dangerous to use.

■Do not carry out cleaning or maintenance operations on the appliance without hav-

ing previously disconnected it from the electric power supply.

■After use, ensure that the knobs are in off position.

■Do not allow children or other incapable people to use the appliance without super-

vision.

■During and after use of the cooker, certain parts will become very hot. Do not touch

hot parts.

■Keep children away from the cooker when it is in use.

■Some appliances are supplied with a protective film on steel and aluminium parts.

This film must be removed before using the appliance.

■Fire risk! Do not store flammable material in the oven, and in the accessory draw-

er.

■Make sure that electrical cables connecting other appliances in the proximity of the

cooker cannot come into contact with the hob or become entrapped in the oven

door.

■Do not line the oven walls with aluminium foil. Do not place baking trays or the drip

tray on the base of the oven chamber.

■The manufacturer declines all liability for injury to persons or damage to property

caused by incorrect or improper use of the appliance.

■IMPORTANT NOTE: This appliance shall not be used as a space heater,

especially if installed in marine craft or caravans.

This cooker has been designed and constructed in accordance with the following

codes and specifications:

AGA101 (AS 4551) Approval Requirements for Domestic Gas cooking appliances

AS/NZS 3350-1 General Requirements for Domestic electrical appliances

AS/NSZ 3350-2-6 Particular Requirements for Domestic electrical cooking appliances

AS/NSZ 1044 Electromagnetic Compatibility Requirements.

CAUTION:

■

This appliance must be installed in accordance with these installation

instructions.

■

This appliance shall only be serviced by authorized personnel.

■

This appliance is to be installed only by an authorised person.

■

Incorrect installation, for which the manufacturer accepts no responsibility,

may cause personal injury of damage.

■

Always disconnect the cooker from mains power supply before carrying out

any maintenance operations or repairs.

■

In the room where the cooker is installed, there must be enough air to

allow the gas to burn correctly, according to the current local regulations.

INSTALLATION

ELECTRICAL REQUIREMENTS

■The appliance must be connected to the mains checking that the voltage corre-

sponds to the value given in the rating plate and that the electrical cable sec-

tions can withstand the load specified on the plate.

■The plug must be connected to an earthed socket in compliance with safety

standards.

■If the appliance is supplied without a plug, fit a standard plug which is suitable

for the power consumed by the appliance.

■The appliance must be connected directly to the mains placing a two pole

switch with minimum opening between the contacts of 3 mm between the

appliance and the mains.

■The power supply cable must not touch the hot parts and must be positioned so

that it does not exceed 50°C above ambient.

■Once the appliance has been installed, the switch or socket must always be

accessible.

■

If the supply cord is damaged it must be replaced by the manufacturer or

it’s Service Agent or a similarly qualified person in order to avoid a haz-

ard.

WARNING: This cooker must be connected to electrical supply using

V105 insulated cable.

N.B. The connection of the appliance to earth is mandatory.

If the installation requires alterations to the domestic electrical system call a qualified

electrician. He should also check that the socket cable section is suitable for the power

drawn by the appliance.

CLEARANCES

Installation clearances and protection of combustible surfaces shall comply with

the current local regulations eg. AG 601 (AS 5601) Gas Installations code.

Installation shall comply with the dimension in Fig 1 bearing in mind that

Overhead Clearances

In no case shall the clearances between the highest part of the cooker be less than

600mm or for an overhead exhaust fan 750mm. AII other downward facing com-

bustible surfaces less than 600mm above the cooker surface shall be protected for the

full width of the cooking surface in accordance with the standards noted above. In no

case shall the clearance be less than 450mm.

Rear and Side Clearances

Where the dimensions from the periphery of the nearest burner to any vertical com-

bustible surface is less than 200mm the surface shall be protected in accordance with

the standards to a height of not less than 150mm above the cooking surface for the

full width or depth of the cooking surface

Where the dimensions from the periphery of the nearest burner to any horizontal com-

bustible surface is less than 200 mm, the horizontal surface shall be greater than 10

mm below the surface of the hob, or the horizontal surface requirement above.

Protection of combustible surfaces.

The standards above specify that where required protection shall ensure that the sur-

face temperature of the combustible surface does not exceed 65°C above room tem-

perature.

If the cooker is located on a pedestal it is necessary to provide safety

measures to prevent falling out.

Figure 1

105 mm

min

500 mm

750 mm

450 mm

Cooker overall dimensions [mm]

• height: min 900 - max 935

• width: 600

• depth: 600

Figure 2

ANTI-TILT BRACKET

Warning:This appliance must be restrained to prevent accidental tipping by fitting a

bracket to the rear of the appliance and securely fixing it to the wall.

Fixing the anti-tilt bracket:

■After you have located where the cooker is to be positioned mark, on the wall,

the place where the 2 screws of the anti-tilt bracket have to be fitted. Please fol-

low the indications given in the drawing below.

■Make two holes of diameter 8mm diameter on the wall and insert the plastic

plugs.

■Attach the anti-tilt bracket loosely by means of 2 screws.

■Move the cooker to the wall and adjust the height of the anti-tilt bracket so that

it can engage in one slot of the cooker back.

■Attach the anti-tilt bracket tight.

■Push the cooker against the wall so that the anti-tilt bracket is fully inserted in

one slot of the cooker back.

35235

60 mm

mn 0

i15

a 140

+ 35

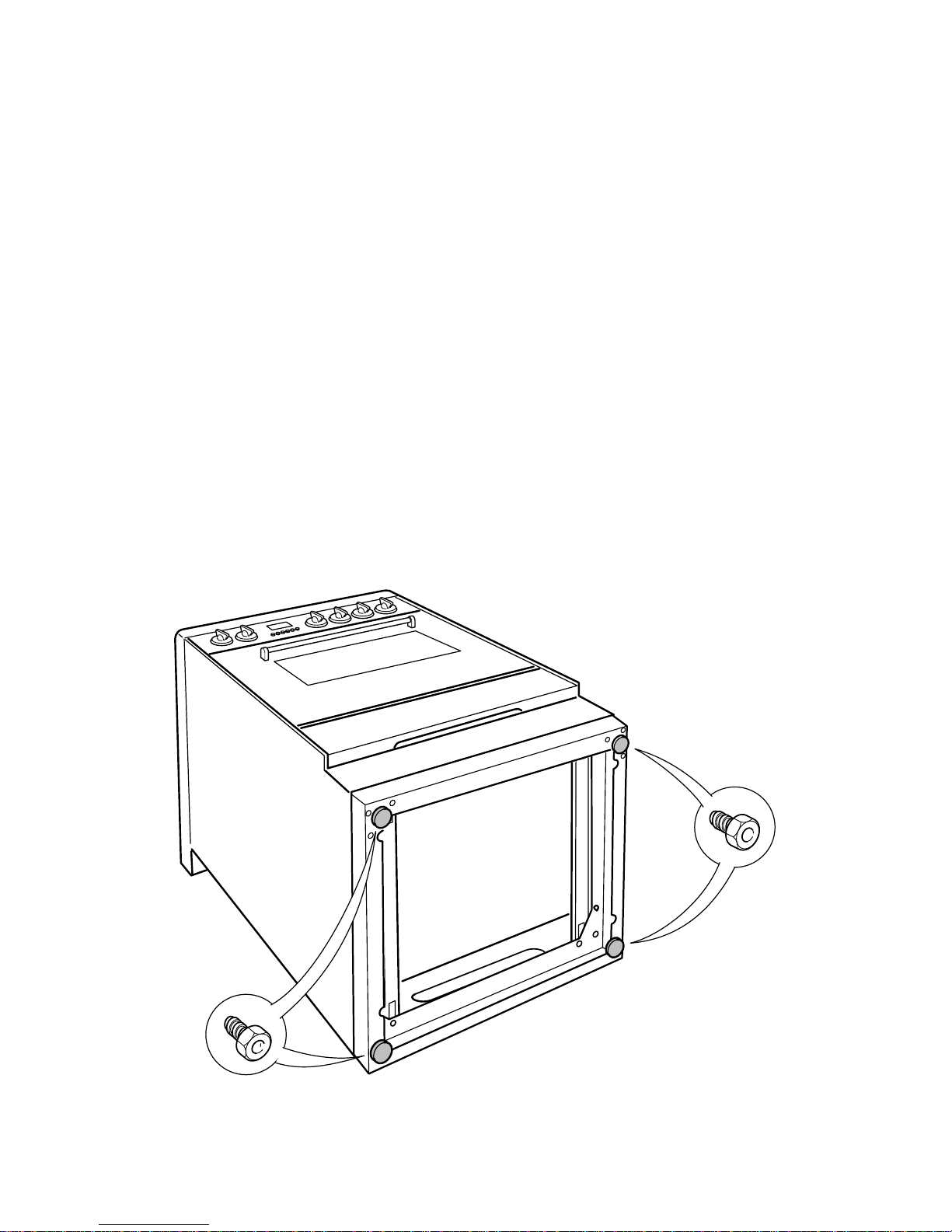

LEVELLING

The cooker is equipped with 4 levelling feet which must be fitted to the base of the

cooker in the following manner:

■Place the cooker on its back as shown in the figure 3.

■Screw the 4 leveling feet to the cooker.

■Stand the cooker and level it by screwing or unscrewing the feet with a span-

ner.

Figure 3

GAS SUPPLY:

■The connection must be performed by an authorised person according to the

relevant standards.

■Before connecting the appliance to the gas main, mount the brass conical adap-

tor onto the gas inlet pipe, upon which the gasket has been placed (figs. 4-5).

Conical adaptor and gasket are supplied with the appliance (packed with con-

version kit for use with Natural gas or Propane gas).

■This appliance is suitable for use with Natural Gas or Propane gas. (Check the

“gas type” sticker attached to the appliance).

■For Natural Gas models the gas supply is connected to the pressure regulator

which is supplied with the appliance (fig. 5). Adjust the regulator to obtain a test

point pressure of 1 kPa with the two semi-rapid (SR) burners operating at maxi-

mum.

■For Propane gas models the gas supply is connected to the test point adaptor

which is supplied with the appliance (fig. 4) and ensure that the supply pressure

is regulated to 2.75 kPa.

■The connection must be made at the rear of appliance (left or right); the pipe

does not cross the cooker.

■The inlet not used must be closed off with the cap and sealing gasket supplied.

■IMPORTANT: Use two spanners to tighten or loosen the connecting pipe (fig. 6)

Gas connection for

PROPANE GAS

Figure 5

Figure 4

Gas connection for

NATURAL GAS

Gas inlet pipe

Nipple

Gasket

Brass conical adaptor

(Thread tight: use

suitable seal)

Gas inlet pipe

Nipple

Gasket

Brass conical adaptor

(Thread tight: use

suitable seal)

Gas regulator

Test point adaptor

Test

point

Test

point

Figure 6 Figure 7

1. After connecting the gas supply, check the piping and connections for leaks using

a soap and water solution. The presence of bubbles indicates a leak, tighten or

replace connections as appropriate.

Warning: Do not use any naked flame to check for leaks.

2. Adjust the test point pressure or supply pressure to the value which is appropriate

for the gas type.

3. The operation of the appliance must be tested when installation is completed.

4. Turn on the appliance gas controls and light each burner individually and in com-

bination. Check for a well defined blue flame without any yellow tipping. If any

abnormality is evident then check that the burner cap is located properly and the

injector nipple is aligned correctly.

5. Check the minimum burner setting by quickly rotating the gas control knob from

the maximum to the minimum position, the flame must not go out. If adjustment is

required carry out the “minimum burner setting adjustment" procedure described

6. If satisfacfory performance cannot be obtained, the installer shall check the installa-

tion and notify the local gas supply authority for a gas supply problem, or if it is an

appliance problem, our Customer Service Centre should be called to obtain the

nearest authorized Delonghi Service Agent.

WARNING, This appliance IS NOT SUITABLE for installation with a hose

assembly.

Plug

Table des matières

Autres manuels DeLonghi Cuisinière

DeLonghi

DeLonghi D3VR 908-DF Manuel utilisateur

DeLonghi

DeLonghi 6140 GG Manuel utilisateur

DeLonghi

DeLonghi GSS603 Instructions de fonctionnement

DeLonghi

DeLonghi DFG 905 Instructions de fonctionnement

DeLonghi

DeLonghi PRO 96 MX ED Manuel utilisateur

DeLonghi

DeLonghi AP 1246 G Guide rapide

DeLonghi

DeLonghi GEMMA 96 M ED Manuel utilisateur

DeLonghi

DeLonghi EMFI Manuel utilisateur

DeLonghi

DeLonghi DSR 927 GX Mode d'emploi

DeLonghi

DeLonghi DTR 906-DF Series Manuel technique

DeLonghi

DeLonghi DEF905GEG Manuel utilisateur

DeLonghi

DeLonghi D926GWF Guide d'installation

DeLonghi

DeLonghi D 90 G Guide rapide

DeLonghi

DeLonghi GDF 603 L Instructions de fonctionnement

DeLonghi

DeLonghi ESS603 Instructions de fonctionnement

DeLonghi

DeLonghi DTR 906 DF CR-1 Instructions de montage

DeLonghi

DeLonghi DFS 090 DO Instructions de fonctionnement

DeLonghi

DeLonghi GSS601 Instructions de fonctionnement

DeLonghi

DeLonghi DEFL605G Guide rapide

DeLonghi

DeLonghi DFS 090 SO Instructions de fonctionnement

DeLonghi

DeLonghi SGGX 554 N ED Manuel utilisateur

DeLonghi

DeLonghi PEMA 96 Instructions de fonctionnement

DeLonghi

DeLonghi DFS 903 Instructions de fonctionnement

DeLonghi

DeLonghi DSR 917 DFM Mode d'emploi

Manuels Cuisinière populaires d'autres marques

Modena

Modena FC 7645 SGM Manuel du propriétaire

Electrolux

Electrolux Insight EKG6049 Manuel utilisateur

Stanley

Stanley Donard 60 Manuel utilisateur

Bartscher

Bartscher 201TC Manuel utilisateur

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuel utilisateur

Siemens

Siemens HK9P00020U Manuel utilisateur

Creda

Creda S150E Mode d’emploi

Creda

Creda HB48309 Manuel utilisateur

Bosch

Bosch HCE743220F Manuel utilisateur

Tricity Bendix

Tricity Bendix SE545P Manuel utilisateur

NEFF

NEFF E1461A2/01 Manuel utilisateur

Zanussi

Zanussi ZCM 700 X Manuel utilisateur

Smeg

Smeg SNL61MA9 Manuel utilisateur

RiverGrille

RiverGrille TF2002501-RG Manuel utilisateur

Vollrath

Vollrath 69504F Manuel utilisateur

Tricity Bendix

Tricity Bendix CSIE500 Manuel utilisateur

AEG

AEG Competence 5731 V Manuel utilisateur

Euromaid

Euromaid ES60 Manuel utilisateur
