DeLonghi D 926 GII Guide rapide

INSTALLATION and SERVICE INSTRUCTIONS

USE and CARE INSTRUCTIONS

distributed by

PAREX

Industries Ltd

D 926 GII

DUAL FUEL COOKER

Dear Customer,

Thank you for having purchased and given your

preference to our product.

The safety precautions and recommendations reported

below are for your own safety and that of others. They

will also provide a means by which to make full use of

the features offered by your appliance.

Please keep this booklet in a safe place. It may be

useful in future, either to yourself or to others in the

event that doubts should arise relating to its operation.

This appliance must be used only for the task it has

explicitly been designed for, that is for cooking

foodstuffs. Any other form of usage is to be considered

as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the

event of damage caused by improper, incorrect or

illogical use of the appliance or be faulty installation.

PRODUCT LABEL

Important:

This appliance is designed and manufactured solely for the cooking of domestic

(household) food and is not suitable for any non domestic application and there-

fore should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used within a non domes-

tic environment i.e. a semi commercial, commercial or communal environment.

FIRST TIME USE THE OVEN

It is advised to follow these instructions:

■Fit the wire racks as described at chapter “Use and care”.

■Insert shelves and tray.

■Switch on the empty oven on max to eliminate grease tracks from the heating

elements.

■Clean the interior of the oven with cloth soaked in water and detergent

(neutral) then dry carefully.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR

USE OF ELECTRICAL APPLIANCES

Use of any electrical appliance implies the necessity to follow a series of fundamental

rules. In particular:

■Never touch the appliance with wet hands or feet;

■do not operate the appliance barefooted;

■The appliance is not intended for use by young children or infirm persons

with supervision

■Young children should be supervised to ensure they do not play with the

appliance

The manufacturer cannot be held responsible for any damages caused by improper,

incorrect or illogical use of the appliance.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged.

In case of doubt, do not use it and consult your supplier or a professionally qualified techni-

cian.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not

be left around within easy reach of children, as these may cause serious injuries.

■Do not attempt to modify the technical characteristics of the appliance as this

may become dangerous to use.

■Do not carry out cleaning or maintenance operations on the appliance without

having previously disconnected it from the electric power supply.

■After use, ensure that the knobs are in off position.

■Do not allow children or other incapable people to use the appliance without

supervision.

■During and after use of the cooker, certain parts will become very hot. Do not

touch hot parts.

■Keep children away from the cooker when it is in use.

■Some appliances are supplied with a protective film on steel and aluminium parts.

This film must be removed before using the appliance.

■Fire risk! Do not store flammable material in the oven, and in the storage

compartment.

■Make sure that electrical cables connecting other appliances in the proximity of

the cooker cannot come into contact with the hob or become entrapped in the

oven door.

■Do not line the oven walls with aluminium foil. Do not place baking trays or the

drip tray on the base of the oven chamber.

■The manufacturer declines all liability for injury to persons or damage to property

caused by incorrect or improper use of the appliance.

■IMPORTANT NOTE: This appliance shall not be used as a space

heater, especially if installed in marine craft or caravans.

This cooker has been designed and constructed in accordance with the following

codes and specifications:

AGA101 (AS 4551) Approval Requirements for Domestic Gas cooking appliances

AS/NZS 3350-1 General Requirements for Domestic electrical appliances

AS/NSZ 3350-2-6 Particular Requirements for Domestic electrical cooking appliances

AS/NSZ 1044 Electromagnetic Compatibility Requirements.

INSTALLATION

CAUTION:

■

This appliance must be installed in accordance with these installation

instructions.

■

This appliance shall only be serviced by authorized personnel.

■

This appliance is to be installed only by an authorised person.

■

Incorrect installation, for which the manufacturer accepts no responsibility,

may cause personal injury of damage.

■

Always disconnect the cooker from mains power supply before carrying out

any maintenance operations or repairs.

■

In the room where the cooker is installed, there must be enough air to

allow the gas to burn correctly, according to the current local regulations.

ELECTRICAL REQUIREMENTS

■The appliance must be connected to the mains checking that the voltage

corresponds to the value given in the rating plate and that the electrical

cable sections can withstand the load specified on the plate.

■The appliance must be connected directly to the mains placing a two pole

switch with minimum opening between the contacts of 3 mm between the

appliance and the mains.

■The power supply cable must not touch the hot parts and must be

positioned so that it does not exceed 50°C above ambient.

■Once the appliance has been installed, the switch or socket must always be

accessible.

■

If the supply cord is damaged it must be replaced by the manufacturer or

it’s Service Agent or a similarly qualified person in order to avoid a haz-

ard.

WARNING: This cooker must be connected to electrical supply using

V105 insulated cable.

N.B. The connection of the appliance to earth is mandatory.

If the installation requires alterations to the domestic electrical system call a qualified

electrician.

He should also check that the socket cable section is suitable for the power drawn by

the appliance.

CLEARANCES

Installation clearances and protection of combustible surfaces shall comply with

the current local regulations eg. AG 601 (AS 5601) Gas Installations code.

Installation shall comply with the dimension in Fig 1 bearing in mind that

Overhead Clearances

In no case shall the clearances between the highest part of the cooker be less than

600mm or for an overhead exhaust fan 750mm. AII other downward facing com-

bustible surfaces less than 600mm above the cooker surface shall be protected for the

full width of the cooking surface in accordance with the standards noted above. In no

case shall the clearance be less than 450mm.

Rear and Side Clearances

Where the dimensions from the periphery of the nearest burner to any vertical com-

bustible surface is less than 200mm the surface shall be protected in accordance with

the standards to a height of not less than 150mm above the cooking surface for the

full width or depth of the cooking surface

Where the dimensions from the periphery of the nearest burner to any horizontal com-

bustible surface is less than 200 mm, the horizontal surface shall be greater than 10

mm below the surface of the hob, or the horizontal surface requirement above.

Protection of combustible surfaces.

The standards above specify that where required protection shall ensure that the sur-

face temperature of the combustible surface does not exceed 65°C above room tem-

perature.

If the cooker is located on a pedestal it is necessary to provide safety

measures to prevent falling out.

750 mm

500 mm

75 mm

100 mm

450 mm

Figure 1

Cooker overall dimensions [mm]

• height: min 900 - max 925

• width: 900

• depth: 600

LEVELLING THE COOKER

The cooker may be levelled by screwing the lower ends of the feet IN or OUT (fig. 4).

Figure 4

Figure 2

FITTING THE ADJUSTABLE FEET

The adjustable feet must be fitted to the base of the cooker before use.

Rest the rear of the cooker an a piece of the polystyrene packaging exposing the

base for the fitting of the feet.

Fit the 4 legs by screwing them tight into the support base as shown in figure 3.

Figure 3

WARNING

When moving cooker to its final posi-

tion DO NOT DRAG (fig. 7).

Lift feet clear of floor (fig. 5).

Figure 6 Figure 7

Figure 5

WARNING

When raising cooker to upright position always ensure two people carry out

this manoeuvre to prevent damage to the adjustable feet (fig. 5).

MOVING THE COOKER

WARNING

Be carefull: do not lift the cooker

by the door handle when raising

to the upright position (fig. 6).

Figure 8

ANTI-TILT BRACKET

Warning:This appliance must be restrained to prevent accidental tipping by fitting a

bracket to the rear of the appliance and securely fixing it to the wall.

Fixing the anti-tilt bracket:

■After you have located where the cooker is to be positioned mark, on the wall,

the place where the 2 screws of the anti-tilt bracket have to be fitted. Please fol-

low the indications given in the drawing below.

■Make two holes of diameter 8mm diameter on the wall and insert the plastic

plugs.

■Attach the anti-tilt bracket loosely by means of 2 screws.

■Move the cooker to the wall and adjust the height of the anti-tilt bracket so that

it can engage in one slot of the cooker back.

■Attach the anti-tilt bracket tight.

■Push the cooker against the wall so that the anti-tilt bracket is fully inserted in

one slot of the cooker back.

160 740

900 mm

min 155

max 180

+ 25

Figure 9

BACKGUARD

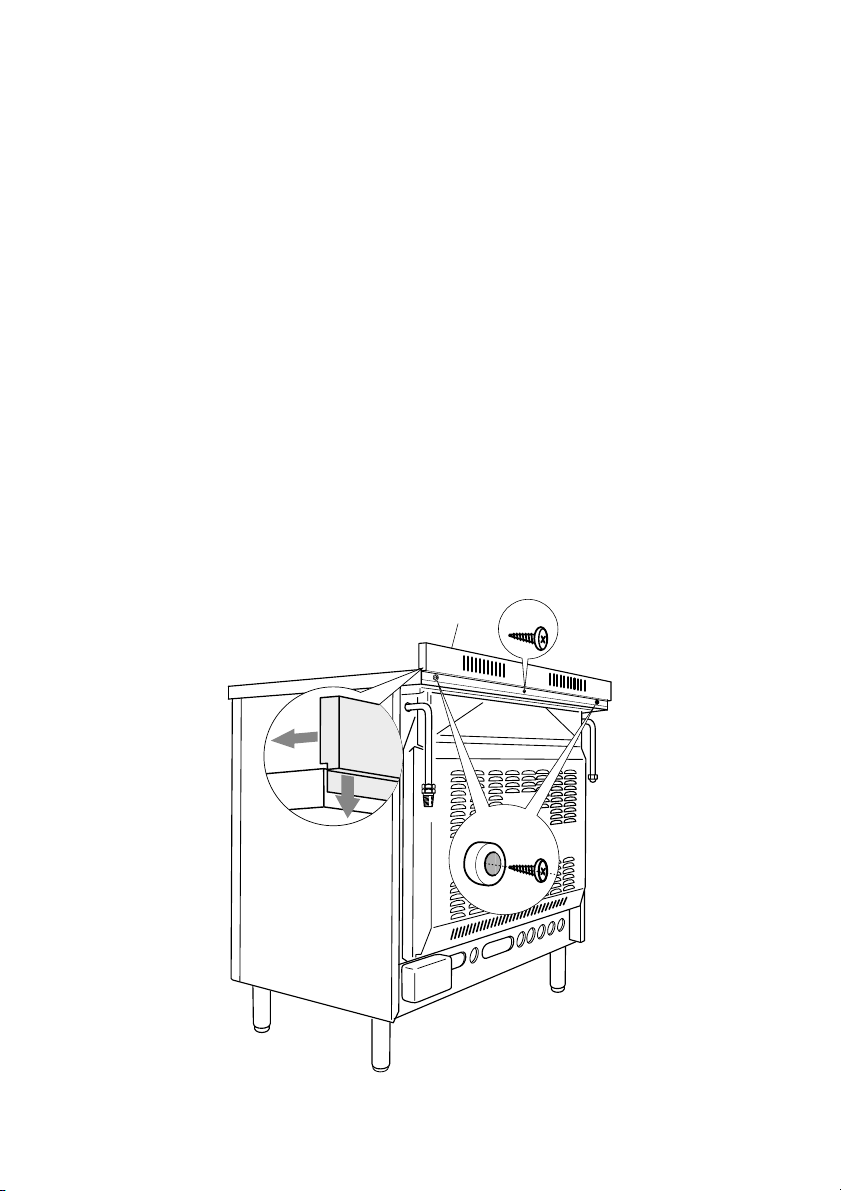

Before installing the cooker, assemble the backguard “C” (fig. 9).

■The backguard “C” can be found packed at the rear of the cooker.

■Before assembling remove any protective film/adhesive tape.

■Remove the two spacers “A” and the screw “B” from the rear of the cooktop.

■Assemble the backguard as shown in figure 9 and fix it by screwing the central

screw “B” and the spacers “A”.
