Dell Networking Z9500

Getting Started Guide

Regulatory Model: Z9500

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you

how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

intellectual property laws. Dell™and the Dell logo are trademarks of Dell Inc. in the United States and/or other

jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2014 - 03

Rev. A00

Getting Started Guide

This document is intended as a Getting Started Guide to get new systems up and running and ready for

configuration. For complete installation and configuration information, refer to the documents listed

below:

Table 1. Z9500 Documents

Information Documentation

Hardware installation and power-up instructions Installing the Z9500 Switch

Software configuration Dell Networking OS Configuration Guide for the

Z9500 Switch

Command line interface Dell Networking OS Command Line Reference

Guide for the Z9500 Switch

Latest updates Dell Networking OS Release Notes for the Z9500

Switch

Introduction

This document provides basic information about the Z9500 switch, including how to install the switch

and perform the initial configuration.

For information about how to configure and monitor switch features, refer to the Dell Networking OS

Configuration Guide for the Z9500 Switch, which is available on the Dell Support website at http://

www.dell.com/support/manuals.

Product Description

The Z9500 is part of Dell Networking's Z-Series family of Data Center Core switches.

The Z9500 switch is a compact 3 RU (Rack Unit), high-performance, and low-latency 10/40–Gigabit

Ethernet switch. It runs the Dell Networking Operating Software (OS) , providing features and capabilities

that are widely deployed.

The Z9500 switch has the following features:

• 132 fixed Quad Small Form-Factor Pluggable (QSFP+) ports on the I/O side of the switch.

• Four slots on the Utility side of the switch for hot swappable power supplies.

• Five slots on the Utility side of the switch for hot swappable fan modules.

• A management and console interface on the I/O side of the switch.

Getting Started Guide 3

Figure 1. I/O Side

Figure 2. Utility Side

1. Fan Trays 2. Power Supllies

Unpacking the Switch

The switch and its accessories are shipped in a single box. The power cords may be shipped in a separate

box. Before unpacking the switch, inspect the container and immediately report any evidence of damage.

Verify that you have received your ordered items, including the following:

WARNING: If any item is missing or damaged, contact your Dell Networking representative or

reseller for instructions.

CAUTION: Always wear an ESD-preventive wrist or heel ground strap when handling the switch

and its components. Ground yourself by using an antistatic wrist strap or other device and

connect it to the ESD grounding jack on the chassis. As with all electrical devices of this type, take

all necessary safety precautions to prevent injury when installing this system.

CAUTION: The system is packaged in one or two separate containers. Use an equipment lift or

pallet jack to lift or install the chassis. Lifting the system by its shelves will cause damage to the

chassis

• Z9500 switch

• Static-Rail kit (#1 and #2 Phillips and flat-tipped screwdrivers required)

4Getting Started Guide

NOTE: One Rail Kit is required for every chassis in a rack.

• Screws for rack installation

• Console cables

• Any optional items ordered

•Getting Started Guide

•Safety and Regulatory Information

•Warranty and Support Information

•Software License Agreement

1. Place the container on a clean, flat surface and cut all straps securing the container.

2. Open the container or remove the container top.

3. Carefully remove all components from the container and place it on a secure and clean surface.

4. Remove all packing material.

5. Inspect the switch and accessories for damage.

Getting Started Overview

To install the switch and perform the initial configuration, follow these steps:

1. Assemble 4–post rack frame.

2. Attach the mounting brackets (supports rack length between 24 and 36 inches).

3. Install the rails system.

4. Mount the chassis into a 4–post rack or cabinet using a lifting device.

5. Secure the chassis ground.

6. Install the fan modules.

7. Install the power supplies

8. Secure the power cables.

9. Install the Cable Management System (OPTIONAL)

10. Install the QSFP+ optics.

11. Supply power and power up the system.

12. Perform the initial configuration.

Before You Start

Before installing the switch, verify that you meet these guidelines:

• Enough clearance to the front of the switch so you can read the LEDs.

• AC power cord reaches from the power outlet to the Utility-panel connector.

• Switch is rack-mounted before you install the power supply modules.

• Cabling is away from sources of electrical noise, such as radios, power lines, and fluorescent lighting.

Make sure that the cabling is safely away from other devices that might damage the cables. If needed,

allow one RU space between devices to provide room for cabling.

• Airflow around the switch and through the vents is unrestricted.

• Temperature around the unit does not exceed 104°F (40°C). If the switch is in a closed or multi-rack

assembly, the temperature might be higher than normal room temperature.

• Humidity around the switch does not exceed 85 percent.

• Altitude at the installation site is below 6600 feet.

Getting Started Guide 5

• The switch is installed in an environment as free as possible from dust and foreign conductive material

(such as metal flakes from construction activities). Cooling mechanisms, such as fans and blowers in

the switch, can draw dust and other particles causing contaminant buildup inside the chassis, which

can result in system malfunction.

• The Z9500 switch does not support installation in a 1070 mm cabinet with a door.

• To install the switch, Dell Networking recommends that you complete the installation procedures in

the order presented below.

NOTE: Always handle the system and its components with care. Avoid dropping the chassis or its

field replaceable units.

NOTE: For proper ventilation, position the chassis in an equipment rack (or cabinet) with a

minimum of 5 inches (12.7 cm) of clearance around exhaust vents. The acceptable ambient

temperature ranges are listed in the Environmental Parameters section.

CAUTION: Always wear an ESD-preventive wrist or heel ground strap when handling the

switch and its components. Ground yourself by using an antistatic wrist strap or other device

and connect it to the ESD grounding jack on the chassis. As with all electrical devices of this

type, take all necessary safety precautions to prevent injury when installing this system.

Assemble 4–Post Rack Frame

The chassis can be installed only in a 4–post rack frame.

Follow the instructions in your rack frame kit to install the 4–post rack frame.

6Getting Started Guide

Attaching the Mounting Brackets

The switch is shipped with static rails mounting brackets (rack ears) and the required screws for rack or

cabinet installation. The brackets are enclosed in a package with the chassis.

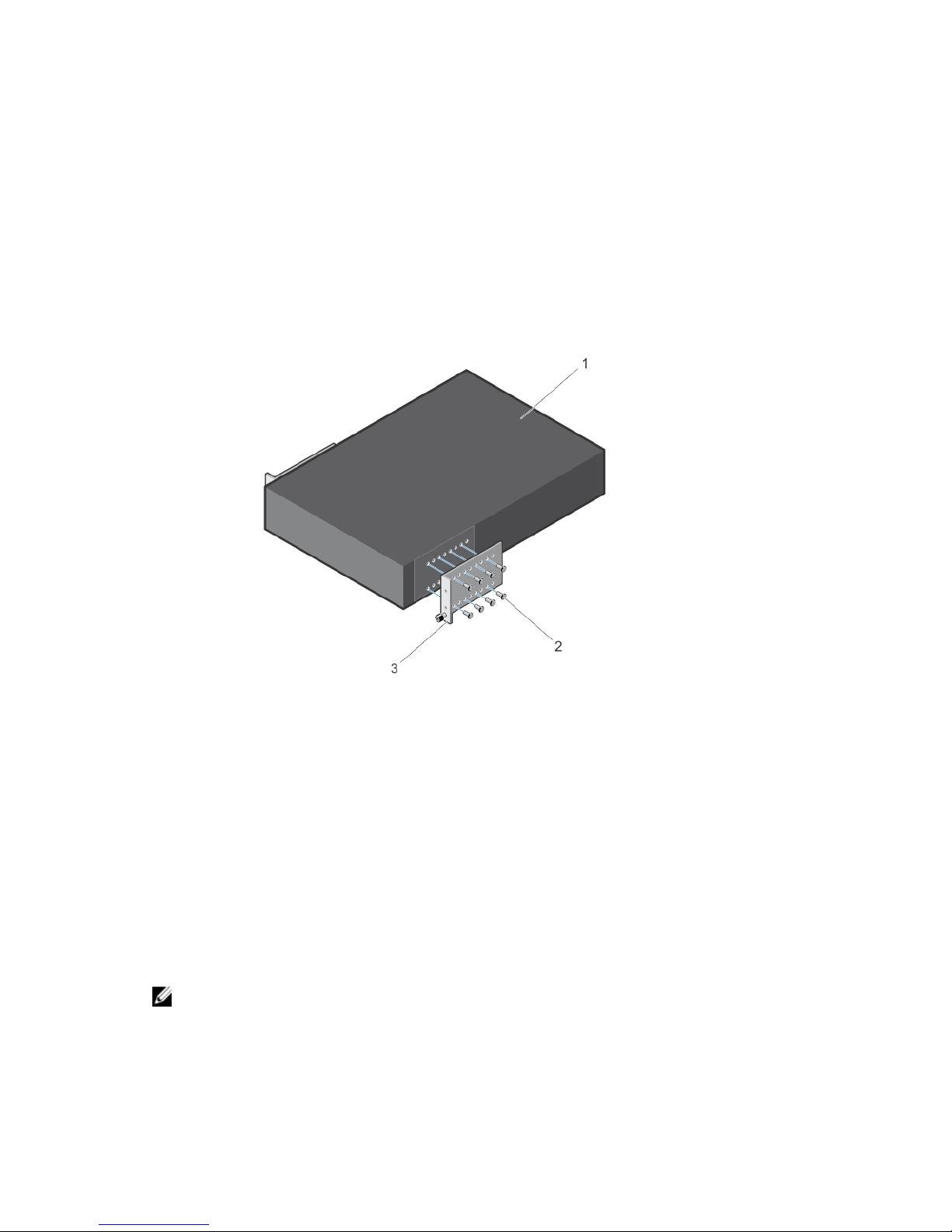

Attaching the Static-Rails Mounting Brackets

1. Take the static-rail mounting brackets and screws out of their packaging.

2. Attach the brackets to the I/O side of the chassis, using eight screws for each bracket.

Attach the bracket so that the “ear” faces to the I/O side and the outside of the chassis.

1. Utility side of the chassis 2. Screws

3. Static-rail mounting bracket

Installing the Dell Static Rails System

Dell Networking provides the Static Rails rack mounting system so you can easily configure a rack to

install the switch.

Identifying the Rail Kit Contents

Locate the components for installing the rail kit assembly:

• Two Dell Static Rails assemblies (1) (2).

NOTE: Supports rack length between 24 and 36 inches.

Getting Started Guide 7

Installing and Removing Tool-less Rails (Square-Hole)

1. Position the left and right rail end pieces FRONT facing inward and orient each end piece to seat in

the holes on the front side of the vertical rack flanges (1).

2. Align each end piece in the bottom and top holes of the desired U spaces (2).

3. Engage the back end of the rail until it fully seats on the vertical rack flange and the latch clicks into

place. Repeat these steps to position and seat the front end piece on the vertical flange.

NOTE: Make sure the blue release latch is closed.

4. To remove the rails, pull on the blue release latch on each end piece and unseat the rail from the

rack.

8Getting Started Guide

Installing and Removing Tooled Rails (Threaded-Hole Racks or Round-Hole

Racks)

1. Remove the pins from the front and rear mounting brackets using a flat-tipped screwdriver (2).

2. Pull on the rail latch subassemblies to remove them from the mounting brackets (1).

3. Attach the left and right mounting rails to the front vertical rack flanges using two pairs of screws.

4. Slide the left and right rear brackets forward against the rear vertical rack flanges and attach them

using two pairs of screws (3).

Getting Started Guide 9

Mounting the Chassis in a Four-Post Rack

Rack Mounting Safety Considerations

WARNING: You must use a lifting device, such as a fork-lift trolley, to lift the chassis.

WARNING: These instructions are a condensed reference. Read the safety instructions in your

Safety, Environmental, and Regulatory information booklet before you begin.

• Rack loading — Overloading or uneven loading of racks may result in shelf or rack failure, which may

damage equipment and cause possible personal injury. Stabilize racks in a permanent location before

loading begins. Mount the components beginning at the bottom of the rack, then work to the top. Do

not exceed your rack load rating.

• Power considerations — Connect only to the power source specified on the unit. When multiple

electrical components are installed in a rack, ensure that the total component power ratings do not

exceed the circuit capabilities. Overloaded power sources and extension cords present fire and shock

hazards.

10 Getting Started Guide
