Dell PowerVault NX3300 Systems

Getting Started Guide

Regulatory Model: E16S Series

Regulatory Type: E16S001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the Dell logo, Dell Precision™, OptiPlex™, Latitude™, PowerEdge™, PowerVault™,

PowerConnect™, OpenManage™, EqualLogic™, Compellent™, KACE™, FlexAddress™, Force10™and Vostro™are trademarks of Dell

Inc. Intel®, Pentium®, Xeon®, Core®and Celeron®are registered trademarks of Intel Corporation in the U.S. and other countries. AMD®

is a registered trademark and AMD Opteron™, AMD Phenom™and AMD Sempron™are trademarks of Advanced Micro Devices, Inc.

Microsoft®, Windows®, Windows Server®, Internet Explorer®, MS-DOS®, Windows Vista®and Active Directory®are either trademarks

or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat®and Red Hat®

Enterprise Linux®are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®and SUSE®are

registered trademarks of Novell Inc. in the United States and other countries. Oracle®is a registered trademark of Oracle Corporation

and/or its affiliates. Citrix®, Xen®, XenServer®and XenMotion®are either registered trademarks or trademarks of Citrix Systems, Inc. in

the United States and/or other countries. VMware®, Virtual SMP®, vMotion®, vCenter®and vSphere®are registered trademarks or

trademarks of VMware, Inc. in the United States or other countries. IBM®is a registered trademark of International Business Machines

Corporation.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their

products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

2012 — 06

Rev. A00

Installation And Configuration

WARNING: Before performing the following procedure, review the safety instructions that came with the system.

Unpacking A Rack System

Unpack your system and identify each item.

Assemble the rails and install the system in the rack following the safety instructions and the rack installation

instructions provided with your system.

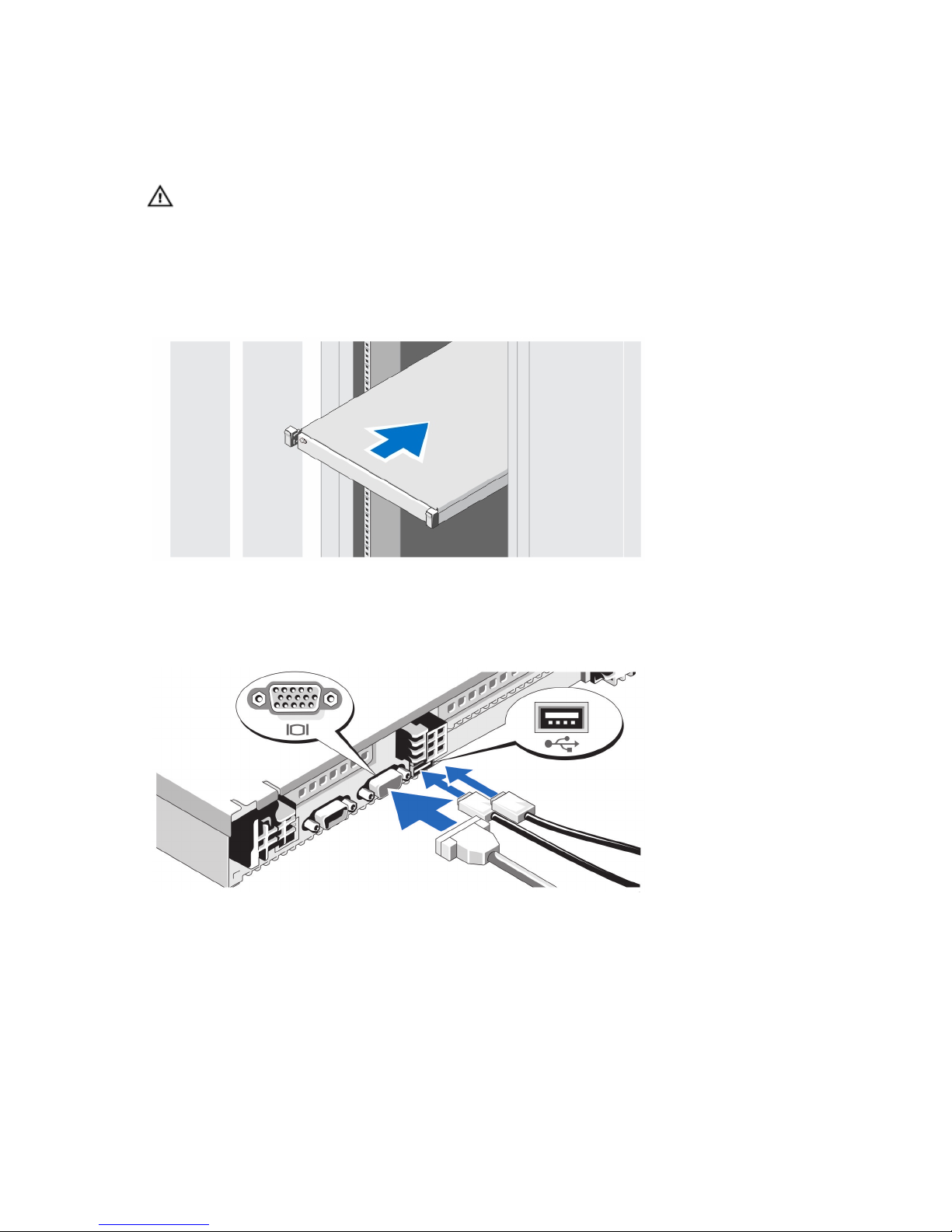

Figure 1. Installing the Rails and System in a Rack

Optional—Connecting the Keyboard, Mouse, and Monitor

Figure 2. Connecting Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable to plug into each connector. Be sure to

tighten the screws (if any) on the monitor's cable connector.

Connecting The Power Cable(s)

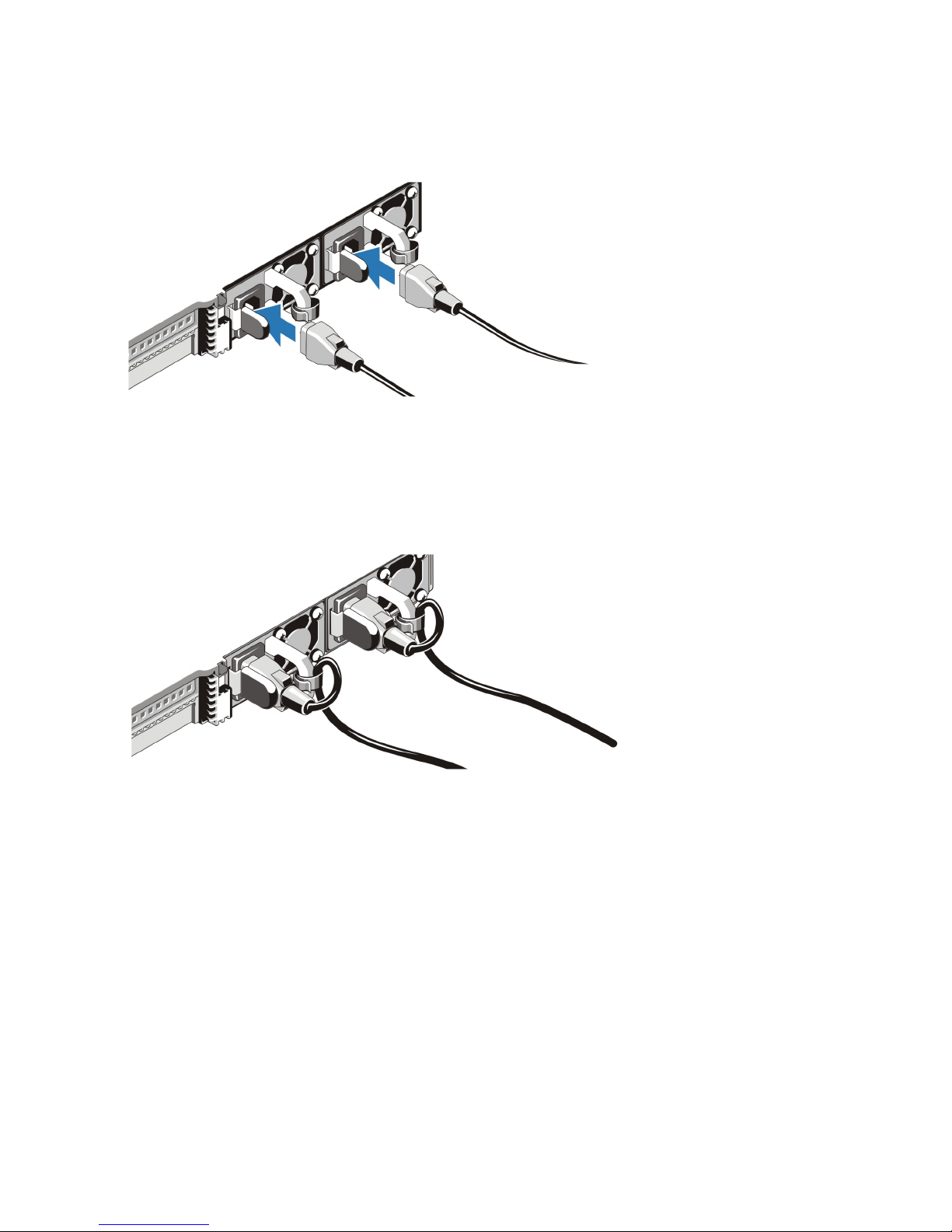

Figure 3. Connecting Power Cable(s)

Connect the system’s power cable(s) to the system and, if a monitor is used, connect the monitor’s power cable to the

monitor.

Securing The Power Cable(s)

Figure 4. Securing Power Cable(s)

Bend the system power cable(s), as shown in the illustration, and attach to the cable strap.

Plug the other end of the power cable(s) into a grounded electrical outlet or a separate power source such as an

uninterruptible power supply (UPS) or a power distribution unit (PDU).

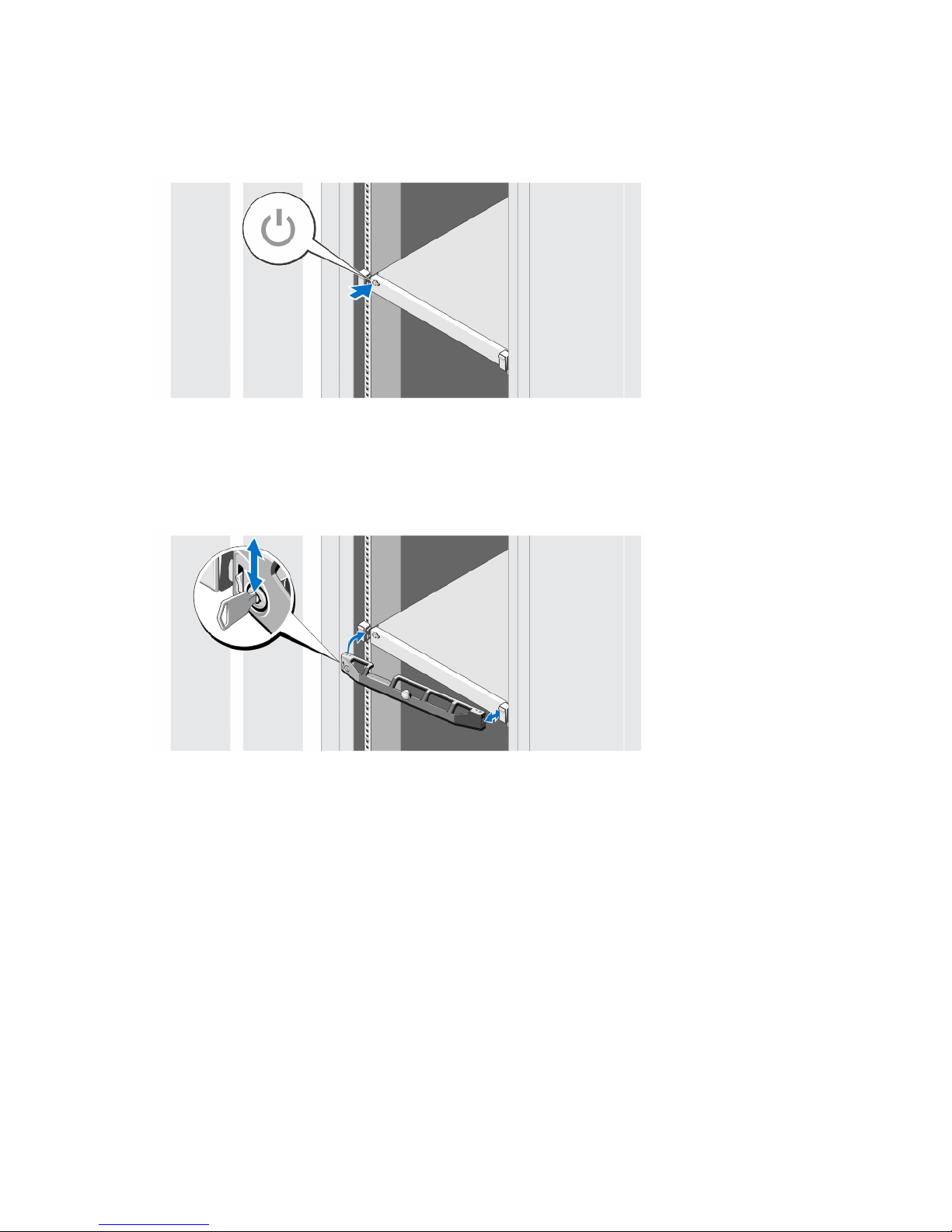

Turning On The System

Figure 5. Turning on the System

Press the power button on the system. The power indicator should light.

Installing The Optional Bezel

Figure 6. Installing the Optional Bezel

Install the bezel (optional).

Dell Software License Agreement

Before using your system, read the Dell Software License Agreement that came with your system. You must consider

any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do

not accept the terms of the agreement, call the customer assistance telephone number. For customers in the United

States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, visit support.dell.com and select

your country or region from the top of the page.

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be

included within this document or as a separate document.

• The

Owner’s Manual

provides information about system features and describes how to troubleshoot the system

and install or replace system components. This document is available online at support.dell.com/manuals.

• The rack documentation included with your rack solution describes how to install your system into a rack, if

required.

• Any media that ships with your system that provides documentation and tools for configuring and managing your

system, including those pertaining to the operating system, system management software, system updates, and

system components that you purchased with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the updates first because they often

supersede information in other documents.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not perform as expected, see your

Owner’s

Manual

. Dell offers comprehensive hardware training and certification. See dell.com/training for more information. This

service may not be offered in all locations.

NOM Information

The following information is provided on the device described in this document in compliance with the requirements of

the official Mexican standards (NOM):

Importer: Dell Inc. de México, S.A. de C.V.

Paseo de la Reforma 2620 -11º Piso

Col. Lomas Altas

11950 México, D.F.

Model number: E16S

Supply voltage: 100–240 V CA (with 495 W, 750 W, and 1100 W AC Power Supply Unit) or -(48–60)

V de CC (with 1100 W DC power supply unit)

Frequency: 50/60 Hz (AC power supply unit)

Current consumption: 12–6.5 A (X 2) (per 1100 W AC power supply unit)

10–5 A (X 2) (per 750 W AC power supply unit)

6.5–3 A (X 2) (per 495 W AC power supply unit)

32 A (X 2) (per 1100 W DC power supply unit)

NOTE: (X #), # = Maximum number of power supplies per system.

Technical Specifications

NOTE: The following specifications are only those required by law to ship with your system. For a complete and

current listing of the specifications for your system, go to support.dell.com.

Power

AC Power Supply (per power supply)

Wattage 495 W, 750 W, or 1100 W

Heat dissipation

NOTE: Heat dissipation is calculated using the

power supply wattage rating.

1908 BTU/hr maximum (495 W power supply)

2891 BTU/hr maximum (750 W power supply)

4100 BTU/hr maximum (1100 W power supply)

Voltage

NOTE: This system is also designed to be

connected to IT power systems with a phase to

phase voltage not exceeding 230 V.

100–240 V AC, autoranging, 50/60 Hz

DC Power Supply (per power supply) (when available)

Wattage 1100 W

Heat dissipation

NOTE: Heat dissipation is calculated using the

power supply wattage rating.

4416 BTU/hour maximum

Voltage -(48–60) V DC

Battery

Coin-cell battery 3 V CR2032 Lithium coin cell

Physical

Height 42.8 mm (1.68 inch)

Width 482.4 mm (18.99 inch) with rack latches.

434 mm (17.08 inch) without rack latches.

Depth 700.5 mm (27.58 inch)

Weight

Maximum Configuration 15.52 kg (34.14 lb)

Empty 8.58 kg (18.92 lb)

Environmental

NOTE: For additional information about environmental measurements for specific system configurations, see

dell.com/environmental_datasheets.

Temperature

Operating Continuous operation: 10 °C to 35 °C (50 °F to 95 °F) at

10% to 80% relative humidity (RH), with 26 °C max dew

point. De-rate maximum allowable dry bulb temperature

at 1 °C/300 m above 900 m (1°F per 550 ft).

Environmental

NOTE: For information on supported expanded

operating temperature range and configurations, see

support.dell.com/manuals.

Storage -40–65 °C -(40–149 °F) with a maximum temperature

gradation of 20 °C per hour

Relative humidity

Operating 10% to 80% (noncondensing) at a maximum wet bulb

temperature of 26 °C (79 °F)

Storage 5% to 95% (noncondensing) at a maximum wet bulb

temperature of 33 °C (91 °F)

Maximum vibration

Operating 0.26 Grms at 5–350 Hz (all operation orientations)

Storage 1.87 Grms at 10–500 Hz for 15 min (all six sides tested)

Maximum shock

Operating One shock pulse in the positive z axis (one pulse on each

side of the system) of 31 G for 2.6 ms in the operational

orientation

Storage Six consecutively executed shock pulses in the positive

and negative x, y, and z axes (one pulse on each side of

the system) of 71 G for up to 2 ms

Six consecutively executed shock pulses in the positive

and negative x, y, and z axes (one pulse on each side of

the system) of 32 G faired square wave pulse with

velocity change at 270 inches/second (685 centimeters/

second)

Altitude

Operating -15.2–3048 m -(50–10,000 ft)

NOTE: For altitudes above 2950 ft, the maximum

operating temperature is derated 1 ºF/550 ft.

Storage -15.2–10,668 m -(50–35,000 ft)

NOTE: The system can be air shipped.

Particulate Contamination

Air Filtration Data center air filtration as defined by ISO Class 8 per

ISO 14644-1 with a 95% upper confidence limit.

NOTE: Air entering the data center must have

MERV11 or MERV13 filtration.

Environmental

NOTE: Applies to data center environments only.

Air filtration requirements do not apply to IT

equipment designed to be used outside a data

center, in environments such as an office or factory

floor.

Conductive Dust

NOTE: Applies to data center and non-data center

environments.

Air must be free of conductive dust, zinc whiskers, or

other conductive particles.

Corrosive Dust

NOTE: Applies to data center and non-data center

environments.

• Air must be free of corrosive dust.

• Residual dust present in the air must have a

deliquescent point less than 60% relative

humidity.

Airborne Contaminant Level

Class G1 as defined by ISA-S71.04-1985.

Gaseous Contamination

Copper Coupon Corrosion Rate <300 Å/month per Class G1 as defined by ANSI/

ISA71.04-1985.

Silver Coupon Corrosion Rate <200 Å/month as defined by AHSRAE TC9.9.
