Getting Started With Your System 5

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

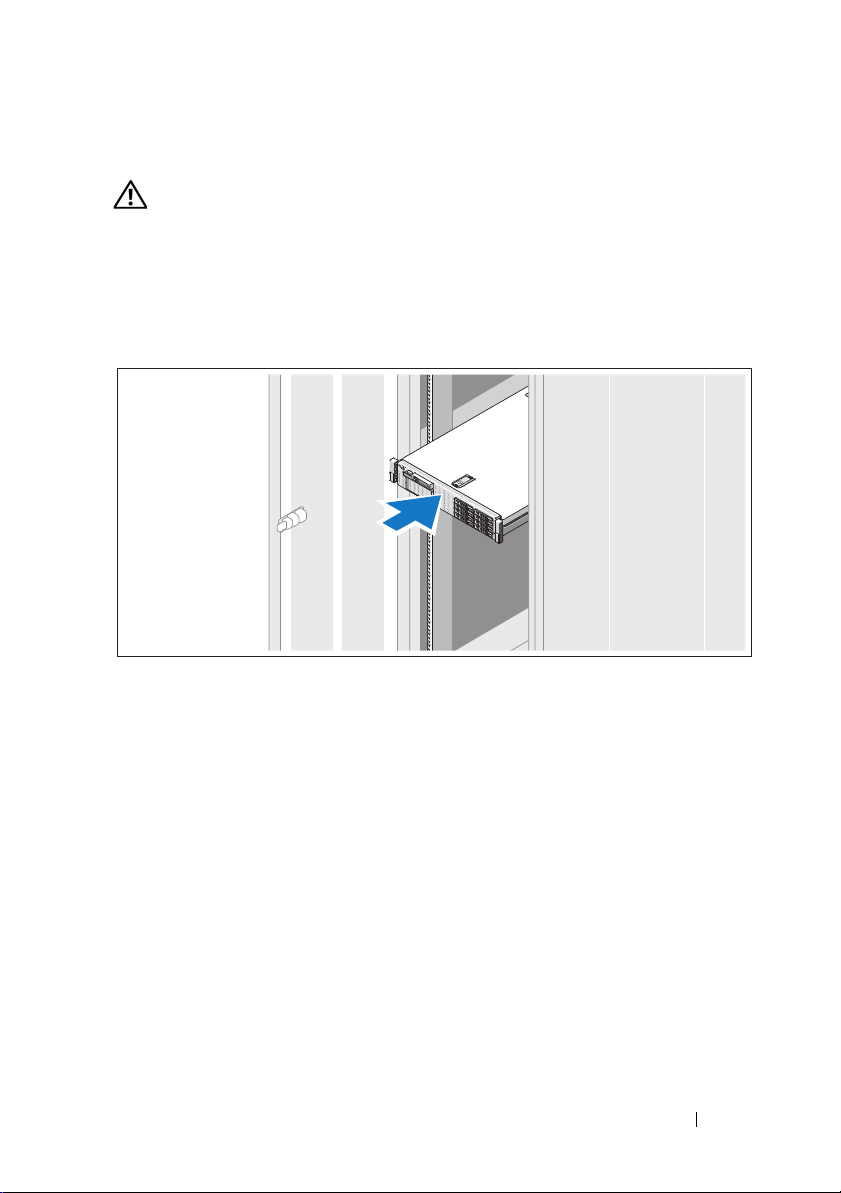

Installing the Rails and System in a Rack

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

6Getting Started With Your System

Optional—Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on the

monitor's cable connector.

Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor.

Getting Started With Your System 7

Securing the Power Cable(s)

Bend the system power cable into a loop as shown in the illustration and

secure the cable to the bracket using the provided strap.

Plug the other end of the power cable into a grounded electrical outlet or

a separate power source such as an uninterruptible power supply (UPS) or

a power distribution unit (PDU).

Turning On the System

Press the power button on the system and the monitor. The power indicators

should light.

8Getting Started With Your System

Installing the Optional Bezel

Install the bezel (optional).

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your

system. Warranty information may be included within this document or as

a separate document.

• The rack documentation included with your rack solution describes how to

install your system into a rack.

•The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components. This document is available online at

support.dell.com/manuals.

• Any media that ships with your system that provides documentation and

tools for configuring and managing your system, including those

pertaining to the operating system, system management software, system

updates, and system components that you purchased with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

Getting Started With Your System 9

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not

perform as expected, see your Hardware Owner’s Manual. Dell™ offers

comprehensive hardware training and certification. See www.dell.com/training

for more information. This service may not be offered in all locations.

NOM Information (Mexico Only)

The following information is provided on the device described in this

document in compliance with the requirements of the official Mexican

standards (NOM):

Technical Specifications

Importer:

Model number: E02S

Supply voltage: 100–240 V AC

Frequency: 50/60 Hz

Current consumption: 7.0–3.5 A

Processor

Processor type One Intel

Xeon

5000 series processor

Expansion Bus

Bus type PCI Express Generation 2

Expansion slots using

riser cards:

Riser 1 (Center Riser)

One full-height, 9.5" length, x4 link (slot 1)

NOTE: This slot can be upgraded to 12.2".

One low-profile, 9.5" length, x4 link (slot 2)

10 Getting Started With Your System

Riser 2 (Left Riser)

Two full-height, 9.5" length, x8 link (slot 3 and 4)

NOTE: Support for up to 25 W is available only on the first

two cards installed in the system; any additional cards

installed in the system must be 15 W or less.

Memory

Architecture 800, 1066, or 1333 MHz DDR3 registered or unbuffered

Error Correcting Code (ECC) DIMMs. Support for

Advanced ECC or Memory Optimized operation

Memory module

sockets

Eighteen 240-pin

Memory module

capacities

1 GB and 2 GB UDIMMs, and 2 GB, 4 GB,

or 8 GB RDIMMs

(single, dual, or quad-rank dependent on capacity)

Minimum RAM 1 GB with a single processor (1 DIMM)

Maximum RAM 96 GB (with quad-rank 8 GB RDIMM), 144 GB

(with dual-rank 8 GB RDIMM), or 24 GB (with 2 GB

UDIMMs)

Drives

Hard drives Up to six 3.5-inch, internal, hot-swappable SAS or SATA

hard drives

Diskette Drive Optional external USB 1.44 MB drive

Optical drive One internal slimline SATA DVD-ROM or

SATA DVD+RW drive

Optional external USB DVD

NOTE: DVD devices are data only.

Flash Drive Optional internal USB

Optional internal Secure Digital (SD) memory card

Optional external SD memory card

Connectors

Back

NIC

Four RJ-45 10/100/1000 Mbps Ethernet

Expansion Bus (continued)
