Dell PowerEdge SC1425 Mode d’emploi

Dell™PowerEdge™SC1425SystemsInstallationandTroubleshooting

Guide

Introduction

Indicators, Messages, and Codes

Finding Software Solutions

Running the System Diagnostics

Troubleshooting Your System

Installing System Components

Installing Drives

Getting Help

Jumpers, Switches, and Connectors

I/O Connectors

Service-Only Parts Replacement Procedures

Notes, Notices, and Cautions

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see the Glossary in your User's Guide.

Information in this document is subject to change without notice.

©2004DellInc.Allrightsreserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, PowerApp, PowerEdge,PowerConnect,PowerVault,DellNet,Axim,Latitude, and Dell

OpenManage are trademarks of Dell Inc.; Intel and Pentium are registered trademarks of Intel Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Initial release: 15 Sept 2004

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Jumpers, Switches, and Connectors

Dell™PowerEdge™SC1425SystemsInstallationandTroubleshootingGuide

Jumpers—A General Explanation

System Board Jumpers

System Board Connectors

Riser Board Connectors

Disabling a Forgotten Password

This section provides specific information about the system jumpers. It also provides some basic information on jumpers and switches and describes the

connectors on the various boards in the system.

Jumpers—A General Explanation

Jumpers provide a convenient and reversible way of reconfiguring the circuitry on a printed circuit board. When reconfiguring the system, you may need to

change jumper settings on circuit boards or drives.



Jumpers

Jumpers are small blocks on a circuit board with two or more pins emerging from them. Plastic plugs containing a wire fit down over the pins. The wire connects

the pins and creates a circuit. To change a jumper setting, pull the plug off its pin(s) and carefully fit it down onto the pin(s) indicated. FigureA-1 shows an

example of a jumper.

Figure A-1. Example Jumper

A jumper is referred to as open or unjumpered when the plug is pushed down over only one pin or if there is no plug at all. When the plug is pushed down

over two pins, the jumper is referred to as jumpered. The jumper setting is often shown in text as two numbers, such as 1–2. The number 1 is printed on the

circuitboardwithatrianglesothatyoucanidentifyeachpinnumberbasedonthelocationofpin1.

FigureA-2 shows the location and default settings of the server-module jumper blocks. See TableA-1 for the designations, default settings, and functions of

the jumpers.

System Board Jumpers

FigureA-2 shows the location of the configuration jumpers on the system board. TableA-1 lists the jumper settings.

Figure A-2. System Board Jumpers

Table A-1.SystemBoardJumperSettings

System Board Connectors

See FigureA-3 and TableA-2 for the location and description of the system board connectors.

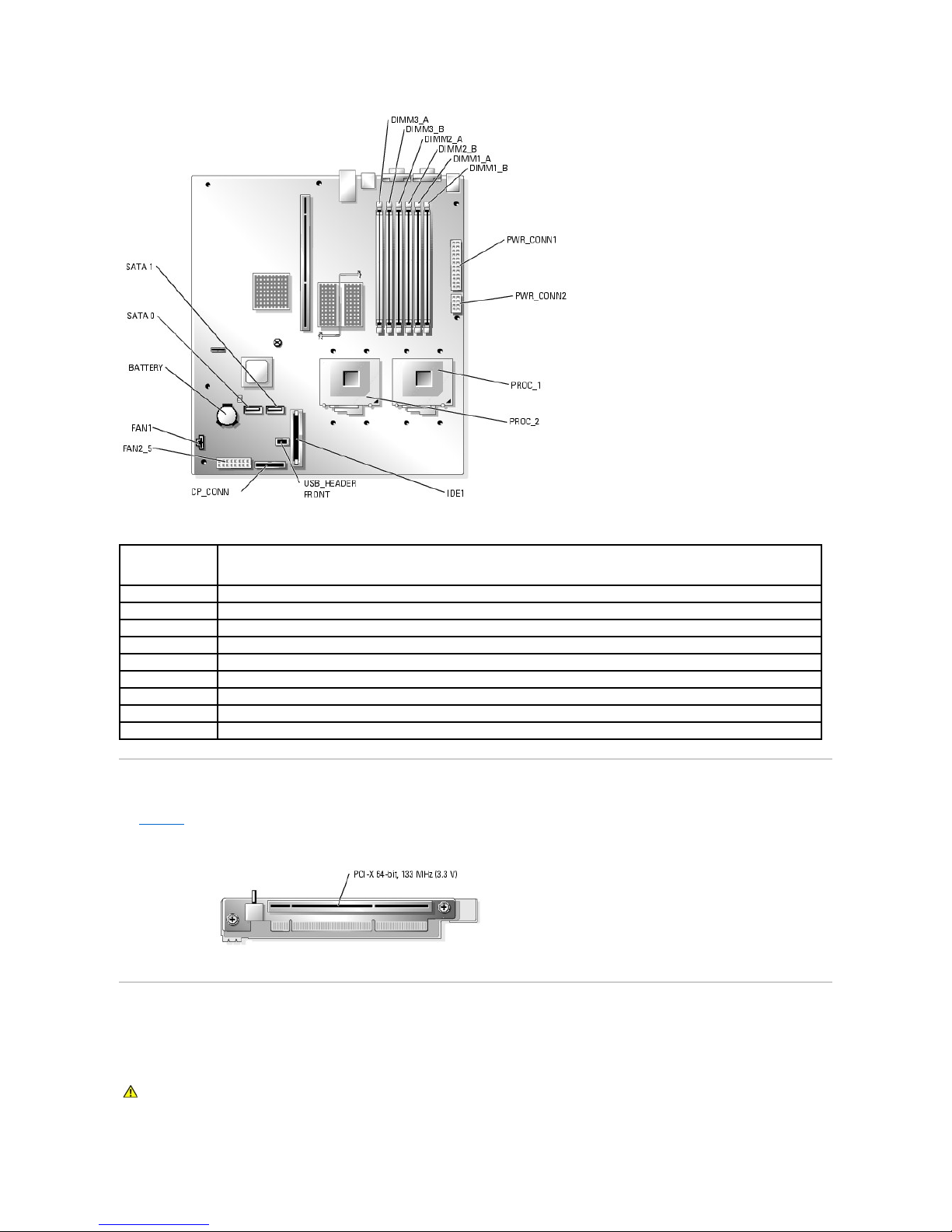

Figure A-3. System Board Connectors



Jumper



Setting



Description

PASSWD

(default)

The password feature is enabled.

The password feature is disabled.

NVRAM_CLR

(default)

The configuration settings in NVRAM are retained at system boot.

The configuration settings in NVRAM are cleared at next system boot.

jumpered unjumpered

Table A-2.SystemBoardConnectors

Riser Board Connectors

See FigureA-4 for the location and description of the riser card connectors.

Figure A-4. Standard PCI-X Riser Card

Disabling a Forgotten Password

The system's software security features include a system password and a setup password, which are discussed in detail in "Using the System Setup Program"

in your User's Guide.Thepasswordjumperenablesthesepasswordfeaturesordisablesthemandclearsanypassword(s)currentlyinuse.



Connector



Description

BATTERY

Connector for the 3.0 V coin battery

CP_CONN

Control panel connector

DIMMn_ x

Memory module connector (6)

FAN_n

FAN1 is the connector for the expansion card fan module, and FAN2-5 is the connector for the processor and memory fan modules (4)

IDE1

IDE device connector

PROC_n

Processor connector (2)

PWR_CONNn

Power supply connector (2)

SATA_n

SATA device connectors

USB_HEADER FRONT

USB device connector

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as

authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not

authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.



1. Turn off the system and attached peripherals, and disconnect the system from the electrical outlet.



2. Open the system. See "Opening the System" in "Troubleshooting Your System."



3. Remove the password jumper plug.

See FigureA-2 to locate the password jumper on the system board.

If necessary, remove the riser card insulator to improve access to the jumper. See "Removing the Riser Card" in "Installing System Components."



4. If you removed the riser card insulator in step 3, reinstall it now. See "Installing the Riser Card" in "Installing System Components."



5. Close the system. See "Closing the System" in "Troubleshooting Your System."



6. Reconnect the system to the electrical outlet, and turn on the system.

The existing passwords are not disabled (erased) until the system boots with the password jumper plug removed. However, before you assign a new

system and/or setup password, you must install the jumper plug.



7. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.



8. Open the system. See "Opening the System" in "Troubleshooting Your System."



9. Install the password jumper plug.

See FigureA-2 to locate the password jumper on the system board.

If necessary, remove the riser card insulator to improve access to the jumper, then reinstall the riser card insulator.



10. Close the system, reconnect the system to the electrical outlet, and turn on the system. See "Closing the System" in "Troubleshooting Your System."



11. Assign a new system and/or setup password.

To assign a new password using the System Setup program, see "Using the System Setup Program" in your User's Guide.

Back to Contents Page



NOTE: If you assign a new system and/or setup password with the jumper plug still removed, the system disables the new password(s) the next

time it boots.

Back to Contents Page

I/O Connectors

Dell™PowerEdge™SC1425SystemsInstallationandTroubleshootingGuide

Serial Connector

PS/2-Compatible Keyboard and Mouse Connectors

Video Connector

USB Connectors

Integrated NIC Connectors

Network Cable Requirements

I/O connectors are the gateways that the system uses to communicate with external devices, such as a keyboard, mouse, printer, or monitor. This section

describes the various connectors on your system. If you reconfigure the hardware connected to the system, you may also need the pin number and signal

information for these connectors. FigureB-1 illustrates the connectors on the system.

Figure B-1. I/O Connectors

TableB-1 shows the icons used to label the connectors on the system.

Table B-1. I/O Connector Icons

Serial Connector

Serial connectors support devices such as external modems, printers, and mice that require serial data transmission. The serial connector is also used by the

BMC to provide remote access to the system. The serial connector uses a 9-pin D-subminiature connector.



Serial Connector Autoconfiguration

The default designation of the integrated serial connector is COM1. When you add an expansion card containing a serial connector that has the same

designation as the integrated connector, the system's autoconfiguration feature remaps (reassigns) the integrated serial connector to the next available

designation. Both the new and the remapped COM connectors share the same IRQ setting. COM1 and COM3 share IRQ4, while COM2 and COM4 share IRQ3.

Before adding a card that remaps the COM connectors, check the documentation that came with the software to make sure that the software can

accommodate the new COM connector designation.

FigureB-2 illustrates the pin numbers for the serial connector and TableB-2 defines the pin assignments for the connector.

Figure B-2. Serial Connector Pin Numbers



Icon



Connector

Serial connector

Mouse connector

Keyboard connector

Video connector

USB connector

NIC connector

NOTE: If two COM connectors share an IRQ setting, you may not be able to use them both at the same time. In addition, if you install one or more

expansion cards with serial connectors designated as COM1 and COM3, the integrated serial connector is disabled.

Table B-2.SerialConnectorPinAssignments

PS/2-Compatible Keyboard and Mouse Connectors

The PS/2-compatible keyboard and mouse cables attach to 6-pin, miniature DIN connectors. FigureB-3 illustrates the pin numbers for these connectors and

TableB-3 defines the pin assignments for these connectors.

Figure B-3. PS/2-Compatible Keyboard and Mouse Connector Pin Numbers

Table B-3. Keyboard and Mouse Connector Pin Assignments

Video Connector

You can attach a VGA-compatible monitor to the system's integrated video controller using a 15-pin high-density D-subminiature connector on the system front

or back panel. FigureB-4 illustrates the pin numbers for the video connector and TableB-4 defines the pin assignments for the connector.

Figure B-4. Video Connector Pin Numbers

Table B-4. Video Connector Pin Assignments



Signal



I/O



Definition

DCD

Data carrier detect

SIN

Serial input

SOUT

Serial output

DTR

Data terminal ready

GND

N/A

Signal ground

DSR

Data set ready

RTS

Request to send

CTS

Clear to send

Ring indicator

Shell

N/A

Chassis ground



Signal



I/O



Definition

KBDATA or MFDATA

I/O

Keyboard data or mouse data

N/A

No connection

GND

N/A

Signal ground

FVcc

N/A

Fused supply voltage

KBCLK or MFCLK

I/O

Keyboard clock or mouse clock

N/A

No connection

Shell

N/A

Chassis ground

NOTE: Installing a video card automatically disables the system's integrated video controller.

USB Connectors

The system's USB connectors support USB-compliant peripherals such as keyboards, mice, and printers and may also support USB-compliant devices such as

diskette drives and optical drives. FigureB-5 illustrates the pin numbers for the USB connector and TableB-5 defines the pin assignments for the connector.

Figure B-5. USB Connector Pin Numbers

Table B-5. USB Connector Pin Assignments

Integrated NIC Connectors

Each of the system's integrated NICs function as a separate network expansion card while providing fast communication between servers and workstations.

FigureB-6 illustrates the pin numbers for the NIC connector and TableB-6 defines the pin assignments for the connectors.

Figure B-6. NIC Connector

Table B-6. NIC Connector Pin Assignments



Signal



I/O



Definition

RED

Red video

GREEN

Green video

BLUE

Blue video

N/A

No connection

5–8, 10

GND

N/A

Signal ground

VCC

N/A

Vcc

N/A

No connection

DDC data out

Monitor detect data

HSYNC

Horizontal synchronization

VSYNC

Vertical synchronization

N/A

No connection

NOTICE: Do not attach a USB device or a combination of USB devices that draw a maximum current of more than 500 mA per channel or +5 V. Attaching

devices that exceed this threshold may cause the USB connectors to shut down. See the documentation that accompanied the USB devices for their

maximum current ratings.



Signal



I/O



Definition

Vcc

N/A

Supply voltage

DATA

Data in

+DATA

Data out

GND

N/A

Signal ground



Signal



I/O



Definition

Network Cable Requirements

The NIC supports a UTP Ethernet cable equipped with a standard RJ45-compatible plug.

Observe the following cabling restrictions.

lUse Category 5 or greater wiring and connectors.

lDo not exceed a cable run length (from a workstation to a hub) of 100 m (328 ft).

For detailed guidelines on operation of a network, see "Systems Considerations of Multi-Segment Networks" in the IEEE 802.3 standard.

Back to Contents Page



TD+

Data out (+)

TD–

Data out (–)

RD+

Data in (+)

N/A

No connection

N/A

No connection

RD–

Data in (–)

N/A

No connection

N/A

No connection

NOTICE: To avoid line interference, voice and data lines must be in separate sheaths.

Back to Contents Page

Service-Only Parts Replacement Procedures

Dell™PowerEdge™SC1425SystemsInstallationandTroubleshootingGuide

Recommended Tools

Control Panel Assembly

System Board

Recommended Tools

You may need the following items to perform the procedures in this section:

lKey to the system keylock

lWrist grounding strap

l#2 Phillips screwdriver

Control Panel Assembly



Removing the Control Panel Assembly



1. Open the system. See "Opening the System" in "Troubleshooting Your System."



2. Disconnect the control panel cables. See FigureC-1.



3. Using a #2 Phillips screwdriver, remove the two screws that secure the control panel assembly to the chassis. See FigureC-1.



4. Carefully lift the back of the control panel assembly to clear the chassis mounting studs, and remove the assembly from the system.

Figure C-1. Control Panel Assembly Removal



Installing the Control Panel Assembly



1. Align the control panel assembly's mounting holes with the chassis mounting studs, and lower the assembly over the studs. See FigureC-1.



2. Using a #2 Phillips screwdriver, install the two screws that secure the control panel assembly to the chassis. See FigureC-1.

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as

authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not

authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as

authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not

authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

Autres manuels pour PowerEdge SC1425

Table des matières

Autres manuels Dell Serveur

Dell

Dell PowerEdge M620 Manuel utilisateur

Dell

Dell POWEREDGE R515 Manuel utilisateur

Dell

Dell DX6000 Manuel utilisateur

Dell

Dell FORCE10 Open Automation Guide rapide

Dell

Dell PowerEdge E31S Series Manuel utilisateur

Dell

Dell PowerEdge 1655MC Manuel

Dell

Dell PowerEdge C1100 Manuel utilisateur

Dell

Dell PowerVault DL4000 Manuel utilisateur

Dell

Dell PowerVault NX3100 Manuel utilisateur

Dell

Dell PowerEdge R910 Manuel utilisateur

Dell

Dell PowerEdge 6850 Manuel technique

Dell

Dell poweredge VRTX Manuel utilisateur

Dell

Dell PowerEdge 2850 Manuel utilisateur

Dell

Dell PowerEdge M1000e Manuel utilisateur

Dell

Dell PowerEdge 600SC Manuel technique

Dell

Dell Force10 S25-01-GE-24P Manuel utilisateur

Dell

Dell 6100 Mode d’emploi

Dell

Dell PowerEdge R410 Manuel utilisateur

Dell

Dell PowerEdge 8450 Manuel technique

Dell

Dell PowerEdge C6100 Manuel utilisateur

Dell

Dell PowerEdge C2100 Manuel utilisateur

Dell

Dell PowerEdge T620 Guide de démarrage rapide

Dell

Dell PowerEdge C6145 Guide de démarrage rapide

Dell

Dell PowerEdge 1600SC Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur

Lenovo

Lenovo ThinkSystem SR635 V3 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX900 Manuel utilisateur

Asus

Asus RS700DA-E6 PS4 Manuel utilisateur
