Dell 1710n Laser Printer

Hardware Quick Tips

Revised 11/06

►Printer Setup

1. The printer by default will be setup in the following

manner:

►Printer Status Panel

1. This printer has a status panel located on top of the

printer.

2. The ‘Continue’ button is used to continue the

printing of a print job once a printer jam is

removed. It also is used to start the printing of

manual feed items (e.g. envelopes) once they are

loaded into the manual feed tray.

3. The ‘Cancel’ button cancels the current print job.

4. The ‘Ready|Data’ light indicates if the printer is

ready to start printing. When the ‘Ready|Data’ light

is blinking, the printer is processing data from the

computer to print, or the printer is warming up.

5. The ‘Toner Low’ light indicates that the current

printer toner is low. If the light starts flashing, that

indicates that the printer drum also needs to be

replaced.

6. The ‘Load|Remove Paper’ light indicates that one of

the paper trays needs paper loaded into it.

7. The ‘Paper Jam’ light indicates that there is a paper

jam in the printer.

8. The ‘Error’ light indicates that the printer has an

error. Turn the printer off and back on to clear the

error.

►Removing Paper Jams

NOTE: A paper jam may occur in one or more

locations.

1. Push the button (as indicated by the red arrow) on

the left side of the printer to open the front cover of

the printer.

2. Pull out the printer drum assembly from the inside

of the printer by pulling on the blue handle (as

indicated by the red arrow).

Manual Pa

Feed

Legal Paper Tray

Letter Paper Tray

Dell 1710n Laser Printer

Hardware Quick Tips

Revised 11/06

3. Remove any paper jam from the inside of the

printer.

4. Paper may also be jammed in the back of the

printer. Pull open the back door of the printer (as

indicated by the red arrow).

5. Remove the jammed paper and close the back door.

6. Paper may also be jammed in the paper trays. Open

the paper trays and remove any paper jams.

Dell 1710n Laser Printer

Hardware Quick Tips

Revised 11/06

7. After all the paper jams have been removed, reinsert

the paper trays and the printer drum assembly back

into the printer. Push the ‘Continue’ button on top

of the printer for the printer to continue printing

again.

►Turning the Printer Off

1. The power button is located on the back of the

printer as indicated below in the red circle.

2. Push the switch toward the ‘o’ symbol to turn the

printer off. To turn it back on, push the switch

towards the ‘-’ symbol.

►Changing the Toner Cartridge

NOTE: Toner cartridges can only be ordered

directly from Dell.

1. Open the front of the printer. Push the button (as

indicated by the red circle) and pull up on the blue

handle.

2. Unpack the new toner cartridge. Remove the toner

from the plastic bag and pull off the black material

around it.

IMPORTANT: Do not to remove the yellow sticker

off the toner cartridge (as shown below) when

removing the packaging off the toner cartridge.

Dell 1710n Laser Printer

Hardware Quick Tips

Revised 11/06

3. Place the new toner cartridge into the printer and

close the front cover of the printer.

4. Place the old toner cartridge into the plastic bag and

put it into the box.

5. Place the enclosed return UPS shipping (pictured

below) label on the top of the box and deliver to a

UPS drop box or location.

►Changing the Printer Drum

NOTE: Printer drums can only be ordered

directly from Dell.

1. The printer drum will need to be replaced after the

use of 5 – 10 toner cartridges depending on the

capacity of the print jobs. For example, if you print

documents with graphics or pictures the drum will

need to be replaced sooner than if you only print

documents that do not contain graphics or pictures.

To change the printer drum, open the front cover of

the printer. Remove both the toner cartridge and the

printer drum from the printer by pulling on the blue

handle.

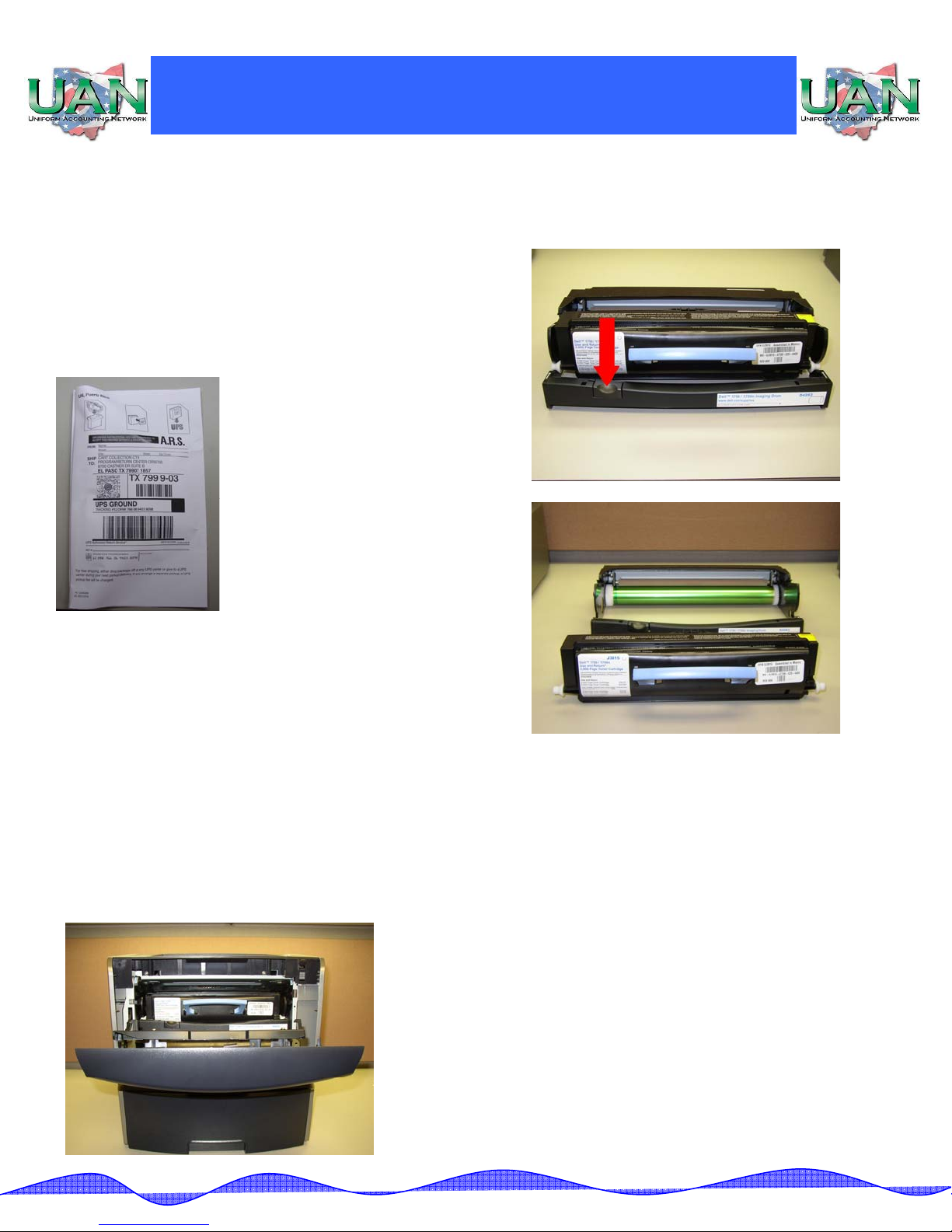

2. Remove the toner cartridge from the printer drum

by pushing the button (as indicated by the red arrow

below) and pulling on the blue handle.

3. Unpack the new printer drum and remove all the

packaging from it.

4. Insert the toner cartridge into the new printer drum.

Insert the toner and new printer drum into the

printer and close the front cover of the printer.
