Dell Alienware Manuel utilisateur
Mouse Model: AW310M
Regulatory Model: AW310M/UD2002
Alienware 310M Wireless Gaming Mouse
User Guide
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other
trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of
their respective owners.
2019 – 08
Rev. A00
|3
Contents
What’s in the box................................4
Features .......................................5
Adjustable DPI . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setting up your gaming mouse ....................6
Installing the battery . . . . . . . . . . . . . . . . . . . . . . 6
Removing the USB wireless dongle . . . . . . . . . . . . . . 7
Connecting the USB Wireless Dongle. . . . . . . . . . . . . 8
Turning on the mouse . . . . . . . . . . . . . . . . . . . . . . 9
Alienware Command Center (AWCC) Application ..10
Installing AWCC through Windows Update . . . . . . . . .10
Installing AWCC from the Dell Support website . . . . . .10
Troubleshooting................................11
4 |What’s in the box
What’s in the box
1
2
3
4
5
1. Mouse 2. AA-type battery
3. USB wireless dongle extension
cable
4. USB wireless dongle (USB 2.0)
5. Documents
Features |5
Features
1
24
5
Top
36
7
8
9
Bottom
10 11
Side
1. Left button 2. Scroll wheel
3. DPI/battery indicator 4. Right button
5. DPI adjustment slider 6. Battery compartment
7. Power button 8. USB wireless dongle compartment
9. Battery cover 10. Forward button
11. Backward button
Adjustable DPI
Press the DPI adjustment button to instantly change the mouse sensor resolution.
DPI setting is indicated by the DPI indicator color. The three default DPI
settings available are as follows:
• 800: Blue ( )
• 1800: Yellow ( ) (Out-of-box default)
• 12000: Red ( )
You can change the default DPI settings and customize the DPI stages and LED
colors with the Alienware Command Center (AWCC) application.
6 |Setting up your gaming mouse
Setting up your gaming mouse

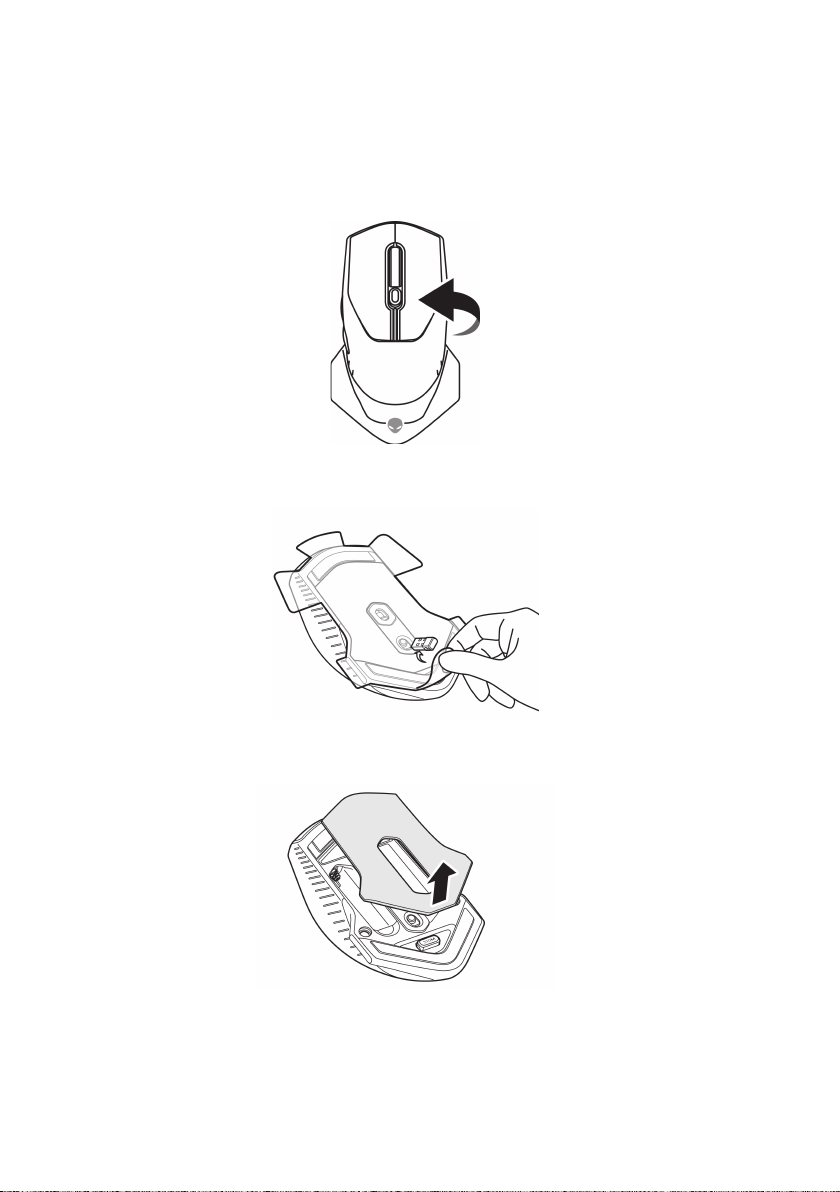

Installing the battery
1. Turn the mouse over.
2. Remove the protective sheet.
3. Lift the battery cover.
Setting up your gaming mouse |7
4. Install the AA battery into the battery compartment.
NOTE: Replace with new battery when the battery LED indicator starts
flashing amber ( ).
5. Place the battery cover back.
Removing the USB wireless dongle
1. Lift the battery cover.
8 |Setting up your gaming mouse
2. Remove the USB wireless dongle from USB wireless dongle compartment.
3. Place the battery cover back.
Connecting the USB Wireless Dongle
Laptop
Connect the USB wireless dongle to a USB port on your laptop.
Setting up your gaming mouse |9
Desktop
1. Connect the USB wireless dongle extension cable to the USB port on your
desktop.
2. Insert the USB wireless dongle to the USB-A receptacle.
Turning on the mouse
Slide the power button down to turn on the mouse.
10 |Alienware Command Center (AWCC) Application
Alienware Command Center (AWCC)
Application
Alienware Command Center (AWCC) application provides a single interface to
customize and enhance the gaming experience.
NOTE: For more information, see the Alienware Command Center
(AWCC) application Online Help.
Installing AWCC through Windows Update
1. Connect your Alienware peripheral to your computer through the USB
port. The AWCC application is downloaded and installed automatically.
AWCC installation may take up to 10 minutes to complete.
2. Navigate to the program folder to ensure that the AWCC installation is
complete.
3. Launch AWCC and perform the following steps to download the
additional software components:
• In the Settings window, click Windows Update, and then click Check
for updates to check the Alienware driver update progress.
• If the driver update is not responding in your computer, install AWCC
from the Dell Support website.
Installing AWCC from the Dell Support website
1. Download the latest version of the following applications from
www.dell.com/support/drivers.
• Alienware Command Center
• Alienware Gaming Peripheral driver
2. Navigate to the folder where you saved the setup les.
3. Double-click the setup le and follow the on-screen instructions to install
the application.
NOTE: You can customize the mouse features and lighting effects by
using the Alienware Command Center (AWCC) application.
