Dell™ 1907FPV Flat Panel Monitor User's Guide

About Your Monitor

Front View

Back View

Side View

Bottom View

Monitor Specifications

Cleaning Your Monitor

Using Your Adjustable Monitor Stand

Attaching the Stand

Organizing Your Cables

Using the Tilt, Swivel, and Vertical Extension

Removing the Stand

Setting Up Your Monitor

Connecting Your Monitor

Using the Front Panel

Using the OSD

Setting the Optimal Resolution

Using the Dell Soundbar (Optional)

Rotating Your Monitor

Changing the Rotation of Your Monitor

Rotating Your Operating System

Solving Problems

Troubleshooting Your Monitor

General Problems

Product Specific Problems

USB Problems

Troubleshooting Your Soundbar

Appendix

Safety Information

FCC Notice (U.S. Only)

Contacting Dell

Your Monitor Setup Guide

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerVault, PowerApp, and

Dell OpenManage are trademarks of Dell Inc; Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation; Adobe is a

trademark of Adobe Systems Incorporated, which may be registered in certain jurisdictions. ENERGY STAR is a registered trademark of the U.S.

Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for

energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model 1907FPV

November 2006 Rev. A02

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

Back to Contents Page

About Your Monitor

Dell™ 1907FPV Flat Panel Monitor User's Guide

Front View

Back View

Bottom View

Side View

Monitor Specifications

Cleaning Your Monitor

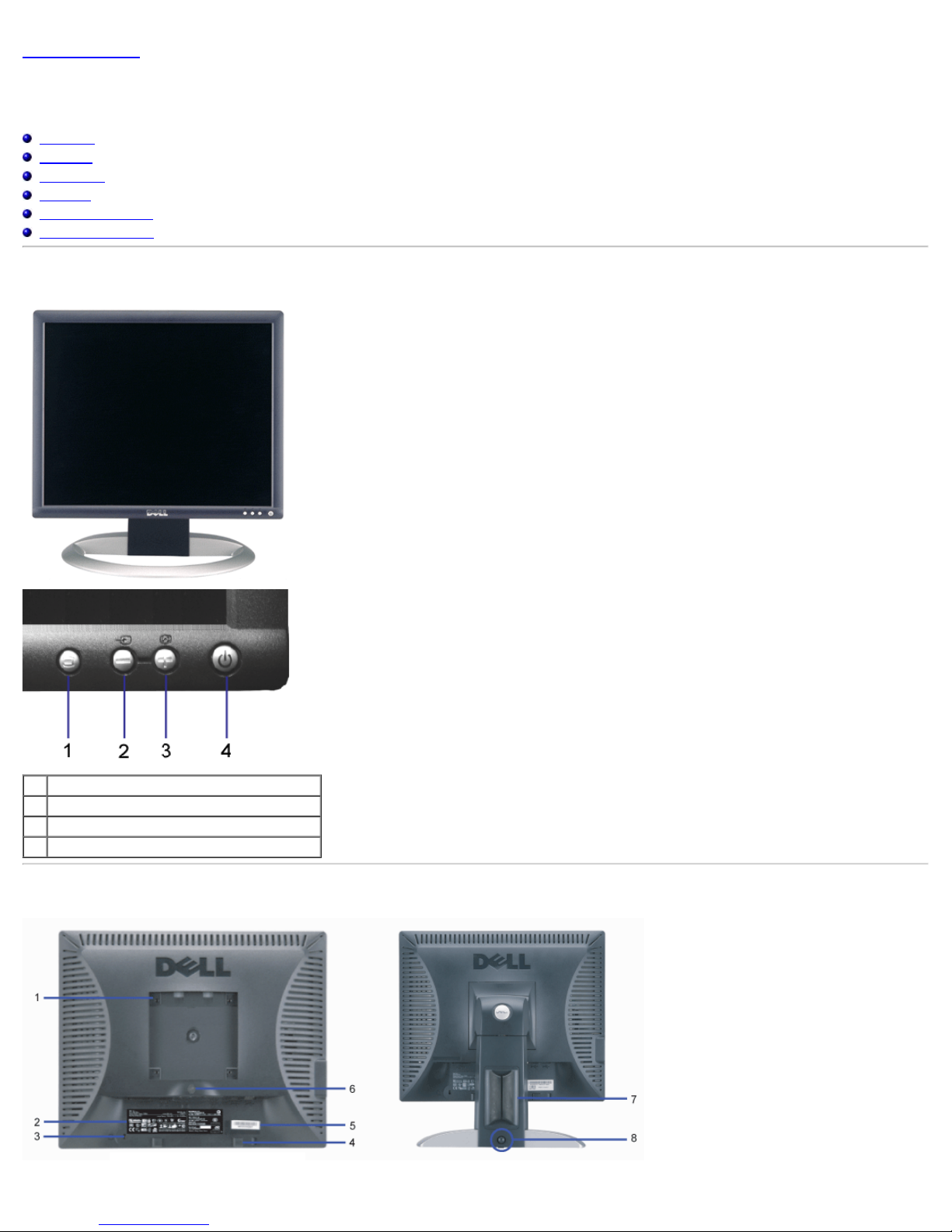

Front View

1. OSD menu / select button

2. Video input select / Down button

3. Auto-adjust / Up button

4. Power button (with power light indicator)

Back View

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

1VESA mounting holes (100mm) (Behind

attached base plate) Use to mount the monitor.

2Regulatory rating label List the regulatory approvals.

3Security lock slot Use a security lock with the slot to help secure your monitor.

4Dell Soundbar mounting brackets Attach the optional Dell Soundbar.

5Barcode serial number label Refer to this label if you need to contact Dell for technical support.

6Stand removal button Press to release the stand.

7Cable holder Help organize cables by placing them in the holder.

8Lock down/release button Push the monitor down, press the button to unlock the monitor, and then

lift the monitor to the desired height.

Bottom View

1 Power

connector Insert the power cable.

2Dell Soundbar

power

connector

Connect the power cord for the Soundbar (optional).

3DVI connector Connect your computer DVI cable.

4 VGA

connector Connect your computer VGA cable.

5USB upstream

connector Connect the USB cable that came with your monitor to the monitor and the computer.

Once this cable is connected you can use the USB connectors on the side and bottom of the

monitor.

6 USB

connector Connect your USB devices.

NOTE: You can use this connector only after you connect the USB cable to the computer and the USB upstream connector on the monitor.

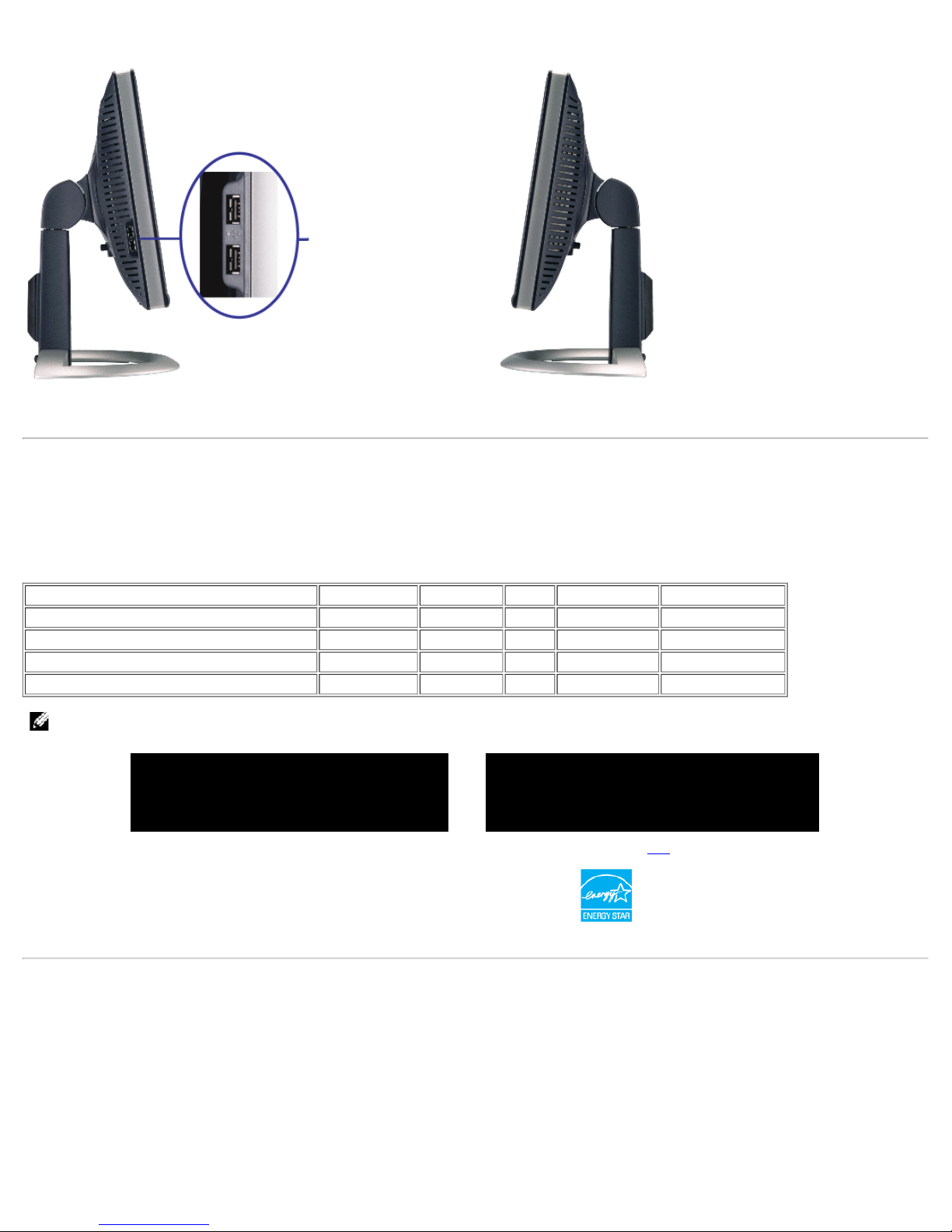

Side View

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

USB connectors (downstream)

Left side Right side

Monitor Specifications

Power Management Modes

If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is

referred to as 'Power Save Mode'*. If input from keyboard, mouse, or other input devices is detected by the computer, the monitor automatically 'wakes up'. The following

table shows the power consumption and signaling of this automatic power saving feature:

VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption

Normal operation (with Dell Soundbar and USB active) Active Active Active Green 65 W (maximum)

Normal operation Active Active Active Green 32 W (typical)

Active-off mode Inactive Inactive Blanked Amber Less than 2 W

Switch off - - - Off Less than 1 W

NOTE: The OSD will only function in the 'normal operation' mode. One of the following messages will appear when the “menu” or “plus” buttons are pressed when in

Active-off mode.

1. Analog Input

In Power Save Mode

Press Computer Power Button

or Any Key on Keyboard or Move Mouse

2. Digital Input

In Power Save Mode

Press Computer Power Button

or Any Key on Keyboard or Move Mouse

Activate the computer and 'wake up' the monitor to gain access to the OSD.

This monitor is ENERGY STAR®-compliant as well as TCO '99 / TCO '03 power management compatible.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

Pin Assignments

15-pin D-Sub connector

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

Pin Number Monitor Side of the 15-pin Side Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 GND

5 DDC-GND

6 GND-R

7 GND-G

8 GND-B

9DDC +5V

10 Self Test

11 GND

12 DDC data

13 H-sync

14 V-sync

15 DDC clock

24-pin Digital-only DVI Connector

NOTE: Pin 1 is at the top right.

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment

1T.M.D.S. Data 2- 9T.M.D.S. Data 1- 17 T.M.D.S. Data 0-

2T.M.D.S. Data 2+ 10 T.M.D.S. Data 1+ 18 T.M.D.S. Data 0+

3T.M.D.S. Data 2/4 Shield 11 T.M.D.S. Data 1/3 Shield 19 T.M.D.S. Data 0/5 Shield

4No Connect 12 No Connect 20 No Connect

5No Connect 13 No Connect 21 No Connect

6DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield

7DDC Data 15 Self Test 23 T.M.D.S. Clock +

8No Connect 16 Hot Plug Detect 24 T.M.D.S. Clock -

Universal Serial Bus (USB) Interface

This monitor supports High-Speed Certified USB 2.0 interface.

Data Rate Power Consumption

High speed 480 Mbps 2.5W (Max., each port)

Full speed 12 Mbps 2.5W (Max., each port)

Low speed 1.5 Mbps 2.5W (Max., each port)

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

USB ports:

1 upstream - rear

4 downstream - 2 on rear; 2 on left side

NOTE: USB 2.0 capability requires 2.0-capable computer.

NOTE: The USB interface of the monitor works ONLY when monitor is powered ON (or in Power Save Mode). Switching your monitor OFF and then ON would re-

enumerate its USB interface; attached peripherals may take a few seconds to resume normal functionality.

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data

(EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can

select different settings, if desired.

General

Model number 1907FPV

Flat Panel

Screen type Active matrix - TFT LCD

Screen dimensions 19 inches (19-inch viewable image size)

Preset display area:

Horizontal 376 mm (14.8 inches)

Vertical 301 mm (11.85 inches)

Pixel pitch 0.294 mm

Viewing angle 170° (vertical) typ, 170° (horizontal) typ

Luminance output 250 CD/m ²(typ)

Contrast ratio 1000 to 1 (typ)

Faceplate coating Antiglare with hard-coating 3H

Backlight CCFL (4) edgelight system

Response Time 20 ms typical

Resolution

Horizontal scan range 30 kHz to 81 kHz (automatic)

Vertical scan range 56 Hz to 76 Hz (automatic)

Optimal preset resolution 1280 x 1024 at 60 Hz

Highest preset resolution 1280 x 1024 at 75 Hz

Preset Display Modes

Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock

(MHz) Sync Polarity

(Horizontal/Vertical)

VESA, 720 x 400 31.5 70.0 28.3 -/+

VESA, 640 x 480 31.5 60.0 25.2 -/-

VESA, 640 x 480 37.5 75.0 31.5 -/-

VESA, 800 x 600 37.9 60.3 49.5 +/+

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

VESA, 800 x 600 46.9 75.0 49.5 +/+

VESA, 1024 x 768 48.4 60.0 65.0 -/-

VESA, 1024 x 768 60.0 75.0 78.8 +/+

VESA, 1152 x 864 67.5 75.0 108 +/+

VESA, 1280 x 1024 64.0 60.0 135.0 +/+

VESA, 1280 x 1024 80.0 75.0 135.0 +/+

Electrical

Video input signals Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance

Digital DVI-D TMDS, 600mV for each differential line, positive polarity at 50 ohm input impedance

Synchronization input signals Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on green)

AC input voltage / frequency / current 100 to 240 VAC / 50 or 60 Hz +3 Hz / 1.5A

Inrush current 120V:42A (Max.)

240V:80A (Max.)

Physical Characteristics

Connector type 15-pin D-subminiature, blue connector; DVI-D, white connector

Signal cable type Digital: Detachable, DVI-D, Solid pins, shipped detached from the monitor

Analog: Detachable, D-Sub, 15pins, shipped attached to the monitor

Dimensions (with stand):

Height (Compressed) 16.4 inches (416.75 mm)

Height (Extended) 21.5 inches (546.75 mm)

Width 16.35 inches (415.3 mm)

Depth 8.62 inches (218.9 mm)

Dimensions: (without stand)

Height 13.45 inches (341.6 mm)

Width 16.35 inches (415.3 mm)

Depth 2.81 inches (71.43 mm)

Stand dimensions:

Height (Compressed) 13.56 inches (344.56 mm)

Height (Extended) 18.54 inches (471.06 mm)

Width 11.84 inches (300.8 mm)

Depth 8.39 inches (213.1 mm)

Weight with packaging 21.1 lbs (9.55 kg)

Weight with stand assembly and cables 17.3 lbs (7.85 kg)

Weight without stand assembly

(For wall mount or VESA mount considerations - no cables)

11 lbs (5 kg)

Weight of stand assembly 5.2 lbs (2.35 kg)

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

Environmental

Temperature:

Operating 5° to 35°C (41° to 95°F)

Nonoperating Storage: -20° to 60°C (-4° to 140°F)

Shipping: -20° to 60°C(-4° to 140°F)

Humidity:

Operating 10% to 80% (noncondensing)

Nonoperating Storage: 5% to 90% (noncondensing)

Shipping: 5% to 90%(noncondensing)

Altitude:

Operating 3,657.6m (12,000 ft) max

Nonoperating 12,192 m (40,000 ft) max

Thermal dissipation 211.937 BTU/hour (maximum)

109.261 BTU/hour (typical)

Cleaning Your Monitor

CAUTION: Read and follow the safety instructions before cleaning the monitor.

CAUTION: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

To clean your antistatic screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the antistatic

coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.

Use a slightly-dampened, warm cloth to clean the plastics. Avoid using detergent of any kind as some detergents leave a milky film on the plastics.

If you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.

Handle your monitor with care as darker-colored plastics may scratch and show white scuff marks more than lighter-colored monitor.

To help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.

Back to Contents Page

Using Your Adjustable Monitor Stand: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/stand.htm[8/7/2012 10:06:42 AM]

Back to Contents Page

Using Your Adjustable Monitor Stand

Dell™ 1907FPV Flat Panel Monitor User's Guide

Attaching the Stand

Organizing Your Cables

Using the Tilt, Swivel, and Vertical Extension

Removing the Stand

Attaching the Stand

NOTE: The stand is detached and extended when the monitor is shipped from the factory.

1. Fit the groove on the monitor to the three tabs on the stand.

2. Lower the monitor until it locks in to place on the stand.

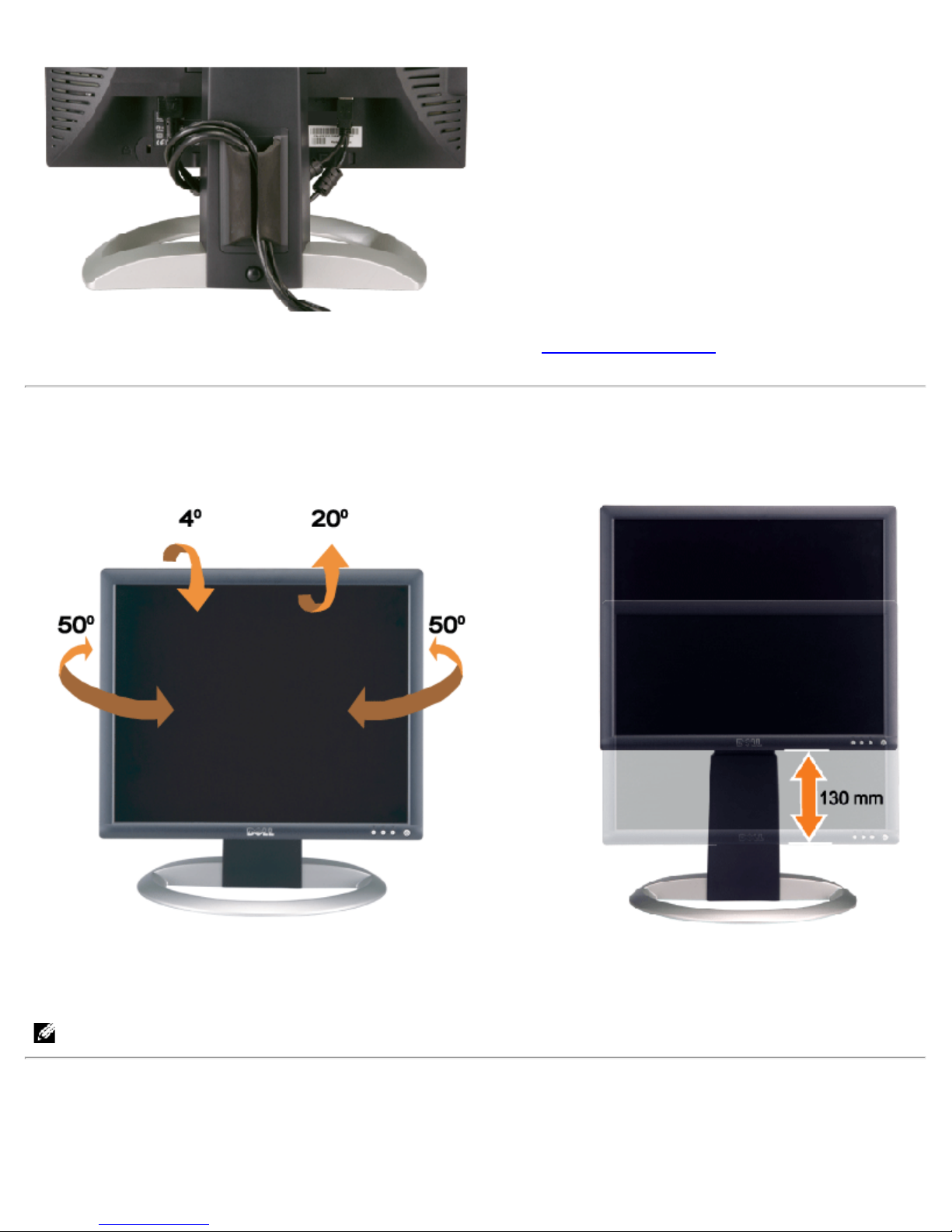

Organizing Your Cables

Using Your Adjustable Monitor Stand: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/stand.htm[8/7/2012 10:06:42 AM]

After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use

the cable holder to neatly organize all cables as shown above.

Using the Tilt, Swivel, and Vertical Extension

Adjusting Your Monitor Using Tilt, Swivel, and Vertical Extension. You can adjust your monitor to best fit your viewing needs.

You can adjust the stand vertically, up to 5.12 inches (130mm) using the stand lock/release button. You can adjust the

monitor to the desired position by sliding the monitor up and down the stand.

NOTE: Before you move the monitor to a new location, lock the stand by lowering monitor until in clicks in to place.

Removing the Stand

Autres manuels pour UltraSharp 1907FPV

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Moniteur

Dell

Dell OptiPlex 7070 Ultra Manuel utilisateur

Dell

Dell P2714H Manuel utilisateur

Dell

Dell C5519QA Manuel utilisateur

Dell

Dell 2007FP - UltraSharp - 20.1" LCD Monitor Manuel utilisateur

Dell

Dell C8618QT Manuel utilisateur

Dell

Dell UltraSharp U2713HM Fiche technique

Dell

Dell G2410H Manuel utilisateur

Dell

Dell S2318Nc Manuel utilisateur

Dell

Dell UltraSharp U3419W Manuel utilisateur

Dell

Dell UltraScan P780 Manuel utilisateur

Dell

Dell 2000FP Manuel utilisateur

Dell

Dell D1918H Manuel utilisateur

Dell

Dell 2007FP - UltraSharp - 20.1" LCD Monitor Instructions d'utilisation

Dell

Dell 2407WFP-HC - UltraSharp - 24" LCD Monitor Manuel utilisateur

Dell

Dell SE198WFP - 19" LCD Monitor Manuel utilisateur

Dell

Dell UltraSharp UP3017A Manuel utilisateur

Dell

Dell S2421HGF Manuel utilisateur

Dell

Dell P2721Q Instructions d'utilisation

Dell

Dell 3007WFP-HC - UltraSharp - 30" LCD Monitor Manuel utilisateur

Dell

Dell 210-AVKX Manuel utilisateur

Dell

Dell E1913 Manuel utilisateur

Dell

Dell 1908FPC Manuel utilisateur

Dell

Dell S2421HSX Manuel utilisateur

Dell

Dell UltraSharp 27 UP2715K Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Philips

Philips 107C64 Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur

Sceptre

Sceptre D40 Manuel utilisateur

Hunt Electronic

Hunt Electronic HCD-15AH Manuel utilisateur
