Dell SE2216Hf Manuel utilisateur

Regulatory model: SE2216Hf / SE2216HVf

User‘s Guide

Dell SE2216H

Dell SE2216HV

Contents

About Your Monitor ..................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Identifying Parts and Controls. . . . . . . . . . . . . . . . . . . . . . . . . 7

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . . . . . . . . . 16

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting Up the Monitor...................................17

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . . . 20

Operating the Monitor .................................. 21

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . 21

Using the On-Screen Display (OSD) Menu. . . . . . . . . . . . . . . . . 23

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . 43

Using the Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Troubleshooting .......................................46

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Product-Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . . . 51

Appendix .............................................. 52

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

FCC Notices (U.S. Only) and Other Regulatory Information. . . . . . 52

Contact Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

About Your Monitor 5

About Your Monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you

have received all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

•Monitor

•Stand Riser

•Stand Base

•Power Cable (varies with countries)

•VGA Cable

•Drivers and Documentation media

•Quick Setup Guide

•Safety and Regulatory Information

6About Your Monitor

Product Features

The Dell SE2216H / SE2216HV flat-panel display has an active matrix, Thin-Film

Transistor, Liquid Crystal Display and LED backlight. The monitor’s features include:

•SE2216H / SE2216HV: 54.61 cm (21.5 inches) diagonal viewable image size,

1920 x 1080 resolution, plus full-screen support for lower resolutions.

•Wide viewing angle to allow viewing from a sitting or standing position, or while

moving from side-to-side.

•Tilt adjustment capability.

•Plug and play capability if supported by your system.

•On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

•Software and documentation media which includes an information file (INF), Image

Color Matching File (ICM), and product documentation.

•Dell Display Manager Software

•ENERGY STAR-compliant.

•Security lock slot.

•Capability to switch from wide aspect to standard aspect ratio while maintaining

the image quality.

•Asset Management Capability.

•EPEAT Sliver rating.

•CECP (for China).

•RoHS compliant.

•BFR/PVC- Reduced.

•TCO Certified Displays.

•High Dynamic Contrast Ratio (8,000,000:1).

•Energy Gauge shows the energy level being consumed by the monitor in real time.

•0.3 W standby power when in the sleep mode.

•Analog backlight dimming control for flicker free display.

NOTE: The Dell SE2216H / SE2216HV monitor is ENERGY STAR®-compliant in all

regions except the Asia Pacific.

DELL registers products in the EPEAT environmental performance rating system.

EPEAT registration varies by country.

About Your Monitor 7

Identifying Parts and Controls

Front View

1. Function buttons (For more information, see Operating the Monitor)

2 Power On/Off button (with LED indicator)

NOTE: For displays with glossy bezels the user should consider the placement of

the display as the bezel may cause disturbing reflections from surrounding light

and bright surfaces.

Back View

Back View with Monitor Stand

Label Description Use

1 Security lock slot Secures monitor with security lock

(security lock not included).

2 Barcode serial number label Refer to this label if you need to contact

Dell for technical support.

3 Cable management slot Use to organize cables by placing them

through the slot.

8About Your Monitor

Side View

Bottom View

Label Description Use

1 AC power connector To connect the monitor power cable.

2 HDMI connector Connect your computer with HDMI cable.

3 VGA connector To connect your computer to the monitor using

a VGA cable.

4 Regulatory rating label Lists the regulatory approvals.

Label Description Use

1 AC power connector To connect the monitor power cable.

2 VGA connector To connect your computer to the monitor using

a VGA cable.

3 Regulatory rating label Lists the regulatory approvals.

About Your Monitor 9

Monitor Specifications

The following sections give you information about the various power management

modes and pin assignments for the various connectors of your monitor.

Power Management Modes

If you have VESA’s DPM compliance display card or software installed in your PC, the

monitor automatically reduces its power consumption when not in use. This is referred

to as Power Save Mode. If the computer detects input from keyboard, mouse, or other

input devices, the monitor automatically resumes functioning. The following table

shows the power consumption and signaling of this automatic power-saving feature:

VESA Modes Horizontal

Sync

Vertical

Sync Video Power

Indicator

Power

Consumption

Normal operation Active Active Active White 24 W (Maximum)**

18 W (Typical)

Active-off mode Inactive Inactive Blank Glowing

white

Less than 0.3 W

Switch off - - Off Less than 0.3 W *

SE2216H:

Energy Star Power Consumption

PON 15.1 W***

ETEC 48.6 kWh***

SE2216HV:

Energy Star Power Consumption

PON 15.5 W***

ETEC 49.8 kWh***

NOTE:

PON : Power consumption of on mode as defined in Energy Star 6.0 version.

ETEC : Total energy consumption in KWh as defined in Energy Star 7.0 version.

The OSD will only function in the normal operation mode. When any button except

power button is pressed in Active-off mode, the following messages will be displayed:

10 About Your Monitor

Activate the computer and monitor to gain access to the OSD.

NOTE: The Dell SE2216H / SE2216HV monitor is ENERGY STAR®-compliant in all

regions except the Asia Pacific.

DELL registers products in the EPEAT environmental performance rating system.

EPEAT registration varies by country.

* Zero-power consumption in OFF mode can only be achieved by disconnecting the

main cable from the monitor.

** Maximum power consumption with max luminance and contrast.

***This document is informational only and reflects laboratory performance. Your

product may perform differently, depending on the software, components and

peripherals you ordered and shall have no obligation to update such information.

Accordingly, the customer should not rely upon this information in making

decisions about electrical tolerances or otherwise. No warranty as to accuracy or

completeness is expressed or implied.

About Your Monitor 11

Pin Assignments

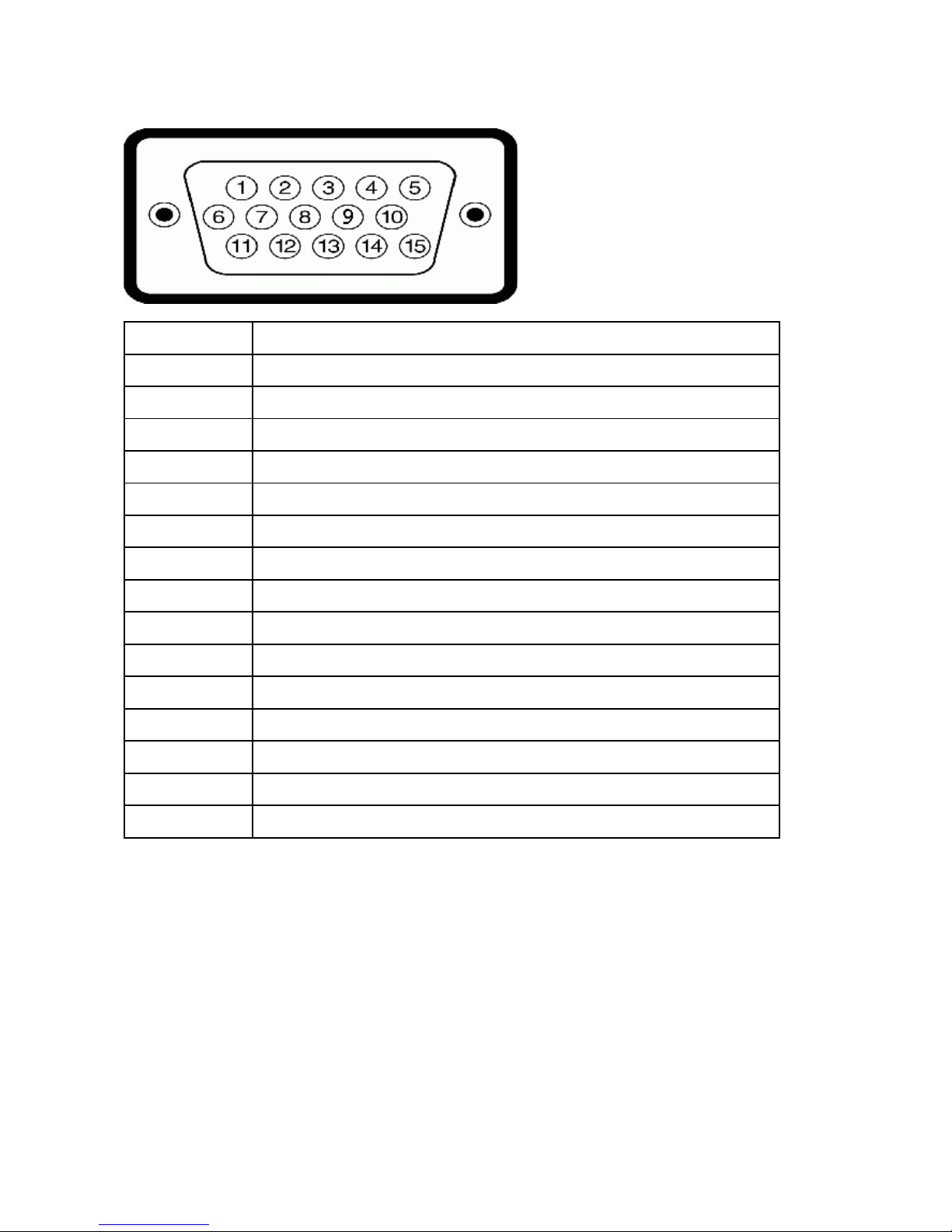

15-pin D-Sub connector

Pin Number Monitor Side of the 15-pin Side Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 GND

5 Self-test

6 GND-R

7 GND-G

8 GND-B

9 DDC +5 V

10 GND-sync

11 GND

12 DDC data

13 H-sync

14 V-sync

15 DDC clock
