Dell™E2010H/E2210H/E2310H Flat Panel Monitor User's Guide

Notes, Notices, and Cautions



Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo aretrademarksofDellInc.;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in

the United States and/or other countries.ENERGYSTAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has

determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model E2010Hc/E2210Hc/E2310Hc/E2010Ht/E2210Hf/E2310Hf

May2009Rev.A00



About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix



NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page

About Your Monitor

Dell™E2010H/E2210H/E2310HFlatPanelMonitorUser'sGuide

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

LCD Monitor Quality & Pixel Policy

Maintenance Guidelines

Package Contents

Your monitor ships with all the components shown below. Ensure that you have received all the components and ContactDell™ if anything is missing.



NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.

lMonitor

lStand

lPower Cable

lDVI Cable



Product Features

The Dell™E2010H/E2210H/E2310H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features

include:

■E2010H: 20 inch (508.0 mm) viewable area display. 1600x900 resolution, plus full-screen support for lower resolutions.

■E2210H: 21.5 inch (546.0 mm) viewable area display. 1920x1080 resolution, plus full-screen support for lower resolutions.

■E2310H: 23 inch (584.0 mm) viewable area display. 1920x1080 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt adjustment capability.

■Removable stand and Video Electronics Standards Association (VESA) 100mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media which includes an information file (INF), Image Color Matching File (ICM) and product documentation.

■Energy Saver feature for ENERGY STAR®compliance.

■Security lock slot.

■Halogen Reduced.

■EPEAT Gold Rating.

■Stand lock.

Identifying Parts and Controls

Front View

lVGA Cable (attached to the monitor)

lDrivers and Documentation media

lQuick Setup Guide

lSafety Information





Back View

Shortcut Key 1

Shortcut Key 2

OSD Menu

Exit

Power On/Off



Side View

Label

Description

Use

Regulatory rating label

List the regulatory approvals.

Barcode serial number label

Refer to this label if you need to contact Dell for technical support.

VESA mounting holes (100 mm)

To mount the monitor.

Security lock slot

Use a security lock with the slot to help secure your monitor.

Dell soundbar mounting brackets

To attach the optional Dell Soundbar.

Stand release button

Press to release the stand.

Bottom View



Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor.

Power Management Modes

If you have VESA's DPM compliance display card or software installed

in your PC, the monitor automatically reduces its power consumption when not in use. This is referred to as

the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this

automatic power saving feature:

E2010H

E2210H

E2310H



Left Side



Right Side





Label

Description

Use

AC power connector

To connect the monitor power cable.

VGA connector

To connect your computer to the monitor using a VGA cable.

DVI connector

To connect your computer to the monitor using a DVI cable

Stand lock

Disable stand release button and lock stand assembly with fastening a

M3 machine screw.

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation

Active

Blue

26 W

Active-off mode

Inactive

Blank

Amber

Less than 1 W

Switch off

Off

Less than 1 W

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation

Active

Blue

27 W

Active-off mode

Inactive

Blank

Amber

Less than 1 W

Switch off

Off

Less than 1 W



The OSD will only function in the normal operation mode. When any button except power button is pressed in Active-

off mode, the following messages will be displayed:

Activate the computer and monitor to gain access to the OSD.

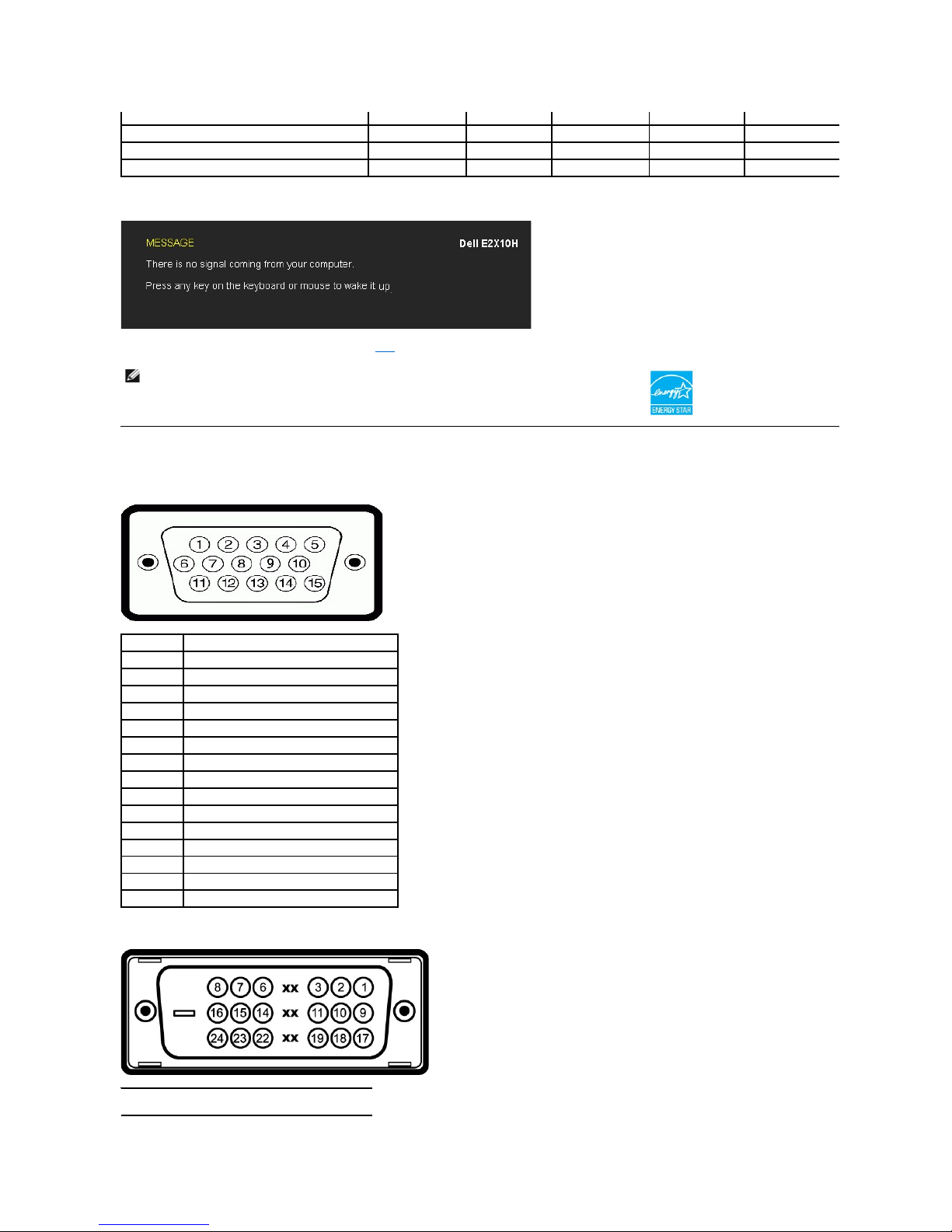

Pin Assignments

15-pin D-Sub connector

DVI connector

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation

Active

Blue

29 W

Active-off mode

Inactive

Blank

Amber

Less than 1 W

Switch off

Off

Less than 1 W

NOTE: Dell E2010H/E2210H/E2310H Flat Panel monitor is TC003 and ENERGY STAR®-compliant.

Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.



Pin Number

Monitor Side of the 15-pin Side Signal Cable

Video-Red

Video-Green

Video-Blue

GND

Self-test

GND-R

GND-G

GND-B

DDC +5V

GND-sync

GND

DDC data

H-sync

V-sync

DDC clock

Number

24-pin Side of the Connected Signal Cable

Plug and Play Capability

You can install the monitor in any Plug and Play-

compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data Channel

(DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can select different settings if required.

TMDS RX2-

TMDS RX2+

TMDS Ground

Floating

DDC Clock

DDC Data

Floating

TMDS RX1-

TMDS RX1+

TMDS Ground

Floating

+5V/+3.3V power

Selftest

Hot Plug Detect

TMDS RX0-

TMDS RX0+

TMDS Ground

Floating

TMDS Ground

TMDS Clock+

TMDS Clock-

Flat Panel Specifications

*Dell E2010H/E2210H/E2310H Flat Panel monitor color gamut (typical) is based on CIE 1976 (83%) and CIE1931 (72%) test standards.

Model number

Dell E2010H Flat Panel Monitor

Dell E2210H Flat Panel Monitor

Dell E2310H Flat Panel Monitor

Screen type

Active matrix -TFT LCD

Panel Type

Screen dimensions

20.0 inches

(20.0-inch wide viewable image size)

21.5 inches

(21.5-inch wide viewable image size)

23 inches

(23-inch wide viewable image size)

Preset display area:

lHorizontal

lVertical



442.8 mm (17.4 inches)

249.0 mm (9.8 inches)



476.6 mm (18.8 inches)

268.1 mm (10.6 inches)



509.8 mm (20.1 inches)

286.7 mm (11.3 inches)

Pixel pitch

0.277 mm

0.248 mm

0.266 mm

Viewing angle:

lHorizontal

lVertical



170°typical

160°typical



170°typical

160°typical



170°typical

160°typical

Luminance output

250 CD/m²(typical)

Contrast ratio

1000 to 1 (typical)

Faceplate coating

Anti-glare

Backlight

2 CCFL edgelight system

Response Time

5ms typical

Color Gamut

72% (typical)

Resolution Specifications

Electrical Specifications

Model number

Dell E2010H/E2210H/E2310H Flat Panel

Monitor

Scan range

lHorizontal

lVertical



30 kHz to 83 kHz (automatic)

50 Hz to 75 Hz (automatic)

Maximum preset resolution

1600 x 900 at 60 Hz (For E2010H)

1920 x 1080 at 60 Hz (For E2210H/E2310H)

Model number

Dell E2010H/E2210H/E2310H Flat Panel

Monitor

Video input signals

Analog RGB: 0.7 Volts +/-5%, 75 ohm input

impedance

Synchronization input signals

Separate horizontal and vertical

synchronizations, polarity-free TTL level.

AC input voltage / frequency / current

100 to 240 VAC/50 or 60 Hz +3 Hz/1.6A (Max.)

Inrush current

120V:30A (Max.)

240V:60A (Max.)

Preset Display Modes

The following table lists the preset modes for which Dell guarantees image size and centering:

Display Mode

Horizontal Frequency

(kHz)

Vertical Frequency

(Hz)

Pixel Clock (MHz)

Sync Polarity

(Horizontal/Vertical)

VESA, 720 x 400

31.5

70.0

28.3

-/+

VESA, 640 x 480

31.5

60.0

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.0

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA, 1280 x 1024

(For E2210H/E2310H)

64.0

60.0

108.0

+/+

VESA, 1280 x 1024

(For E2210H/E2310H)

80.0

75.0

135.0

+/+

VESA, 1600 x 900

(For E2010H)

55.5

60.0

97.8

+/-

VESA, 1920 x 1080

(For E2210H/E2310H)

67.5

60.0

148.5

+/+

Physical Characteristics

The following table lists the monitor physical characteristics:

Model Number

Dell E2010H Flat Panel Monitor

Dell E2210H Flat Panel Monitor

Dell E2310H Flat Panel Monitor

Connector type

15-pin D-subminiature, blue connector; DVI-D,

white connector

15-pin D-subminiature, blue connector;DVI-D,

white connector

15-pin D-

subminiature, blue connector; DVI

white connector

Signal cable type

Analog: Detachable, D-Sub, 15pins, shipped

attached to the monitor

Digital: Detachable, DVI-D, Solid pins, shipped

detached from the monitor

Analog: Detachable, D-Sub, 15pins, shipped

attached to the monitor

Digital: Detachable, DVI-D, Solid pins, shipped

detached from the monitor

Analog:

Detachable, D

attached to the monitor

Digital: Detachable, DVI

detached from the monitor

Dimensions: (with stand)

lHeight

lWidth



363.2 mm (14.30 inches)

481.2 mm (18.94 inches)



381.0 mm (15.00 inches)

515.0 mm (20.28 inches)



401.8 mm (15.82 inches)

548.8 mm (21.61 inches)

LCD Monitor Quality & Pixel Policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a fixed pixel that appears as an extremely tiny

dark or bright discolored spot.When the pixel remains permanently lit, it is known as a “bright dot.”When the pixel remains black, it is known as a “dark dot.”

Inalmosteverycase,thesefixedpixelsarehardtoseeanddonotdetractfromdisplayqualityorusability.Adisplaywith1to5fixedpixelsisconsiderednormalandwithincompetitivestandards.

For more information, see Dell Support site at: support.dell.com.



lDepth

151.9mm(5.98inches)

158.9mm(6.26inches)

164.0mm(6.46inches)

Dimensions: (without stand)

lHeight

lWidth

lDepth



287.6 mm (11.32 inches)

481.2 mm (18.94 inches)

60.0mm(2.36inches)



306.5 mm (12.07 inches)

515.0mm(20.28inches)

64.5mm(2.54inches)



325.7 mm (12.82 inches)

548.8mm(21.61inches)

63.5mm(2.50inches)

Stand dimensions:

lHeight

lWidth

lDepth



289.3mm(11.39inches)

250.9 mm (9.88 inches)

158.9mm(6.26inches)



298.3mm(11.74inches)

258.9mm(10.19inches)

158.9mm(6.26inches)



310.8mm(12.24inches)

265.9mm(10.47inches)

164.0mm(6.46inches)

Weight with packaging

6.35kg(14.00lbs)

6.54kg(14.38lbs)

6.76

kg(14.87lbs)

Weight with stand assembly and cables

4.85kg(10.67lbs)

5.11kg(11.24lbs)

5.76kg(12.67lbs)

Weight without stand assembly

(For wall mount or VESA mount

considerations -no cables)

3.50kg(7.7lbs)

3.59kg(7.90lbs)

4.10kg(9.02lbs)

Weight of stand assembly

0.94kg (2.07 lbs)

1.00kg(2.20lbs)

1.14kg(2.51lbs)

Environmental Characteristics

The following table lists the environmental conditions for your monitor:

Model Number

Dell E2010H/E2210H/E2310H Flat

Panel Monitor

Temperature

lOperating

lNon-operating



0°to40°C(32°to104°F)

Storage: -20°to60°C(-4°to140°F)

Shipping: -20°to60°C(-4°to140°F)

Humidity

lOperating

lNon-operating



10% to 80% (non-condensing)

Storage: 5% to 90% (non-condensing)

Shipping: 5% to 90%(non-condensing)

Altitude

lOperating

lNon-operating



3,657.6 m (12,000 ft) max

12,192 m (40,000 ft) max

Thermal dissipation

E2010H:

102.5 BTU/hour (maximum)

88.8 BTU/hour (typical)

E2210H:

130.0 BTU/hour (maximum)

106.0 BTU/hour (typical)

E2310H:

136.8 BTU/hour (maximum)

112.8 BTU/hour (typical)



Maintenance Guidelines

Caring for Your Monitor

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:

lTo clean your antistatic screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-

cleaning tissue or solution suitable for the antistatic coating. Do not use benzene,

thinner, ammonia, abrasive cleaners, or compressed air.

lUseaslightlydampened,warmclothtocleantheplastics.Avoidusingdetergentofanykindassomedetergentsleaveamilkyfilmontheplastics.

lIf you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.

lHandleyourmonitorwithcareasadarker-colored monitor may scratch and show white scuff marks more than a lighter-coloredmonitor.

lTo help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.



Back to Contents Page

CAUTION: Read and follow the safety instructionsbeforecleaningthemonitor.

CAUTION:Beforecleaningthemonitor,unplugthemonitorpowercablefromtheelectricaloutlet.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Moniteur

Dell

Dell S2722QC Manuel utilisateur

Dell

Dell PowerEdge Rack Console 17FP Manuel utilisateur

Dell

Dell E193FP Instructions d'utilisation

Dell

Dell UltraSharp UP2716DA Manuel utilisateur

Dell

Dell D2720DS Manuel utilisateur

Dell

Dell E177FPc Manuel utilisateur

Dell

Dell UltraSharp U2412M Manuel utilisateur

Dell

Dell E1910H - 19" LCD Monitor Manuel utilisateur

Dell

Dell Ultrasharp U2724DB Manuel utilisateur

Dell

Dell P3221D Manuel utilisateur

Dell

Dell S3422DW Manuel utilisateur

Dell

Dell ST2420L Instructions d'utilisation

Dell

Dell U4320Q Manuel utilisateur

Dell

Dell U2312HM Manuel utilisateur

Dell

Dell ST2010B Manuel utilisateur

Dell

Dell KX7P0 Manuel utilisateur

Dell

Dell 2407WFP - UltraSharp - 24" LCD Monitor Manuel utilisateur

Dell

Dell 1707FP - UltraSharp - 17" LCD Monitor Manuel utilisateur

Dell

Dell P1911 Instructions d'utilisation

Dell

Dell 2405FPW - UltraSharp - 24" LCD Monitor Instructions d'utilisation

Dell

Dell MR2217 Manuel utilisateur

Dell

Dell P2210 Manuel utilisateur

Dell

Dell 2405FPW - UltraSharp - 24" LCD Monitor Manuel utilisateur

Dell

Dell SE2717H? SE2717HX Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Philips

Philips 107C64 Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur

Sceptre

Sceptre D40 Manuel utilisateur

Hunt Electronic

Hunt Electronic HCD-15AH Manuel utilisateur
