Dell UltraSharp 1704FPV Manuel utilisateur

Dell™ 1704FPV Flat Panel Monitor

About Your Monitor

Front View

Back View

Side View

Bottom View

Monitor Specifications

Dell Soundbar (Optional) Specifications

Caring for Your Monitor

Using Your Adjustable Monitor Stand

Attaching the Stand

Organizing Your Cables

Using the Tilt, Swivel, Vertical Extension

Removing the Stand

Setting Up Your Monitor

Connecting Your Monitor

Using the Front Panel Buttons

Using the OSD

Setting the Optimal Resolution

Using the Dell Soundbar (Optional)

Rotating Your Monitor

Changing the Rotation of Your Monitor

Rotating Your Operating System

Solving Problems

Troubleshooting Your Monitor

General Problems

Product Specific Problems

USB Problems

Troubleshooting Your Soundbar

Appendix

Warranty

Safety Information

Contacting Dell

Regulatory Notices

Recycling

Your Monitor Set-up Guide

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, PowerEdge™, PowerConnect™, PowerVault™, Dell™ Dimension™, Inspiron™, OptiPlex™, Latitude™, Dell

Precision™ and Dell | EMC are trademarks of Dell Inc; Microsoft, Windows and Windows NT are registered trademarks of Microsoft

Corporation; Adobe is a trademark of Adobe Systems Incorporated, which may be registered in certain jurisdictions. ENERGY STAR is a registered

trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY

STAR guidelines for energy efficiency. EMC is a registered trademark of EMC Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

August 2004

Back to Contents Page

About Your Monitor

Dell™ 1704FPV Flat Panel Monitor

Front View

Back View

Bottom View

Side View

Monitor Specifications

Dell Soundbar (Optional) Specifications

Caring for Your Monitor

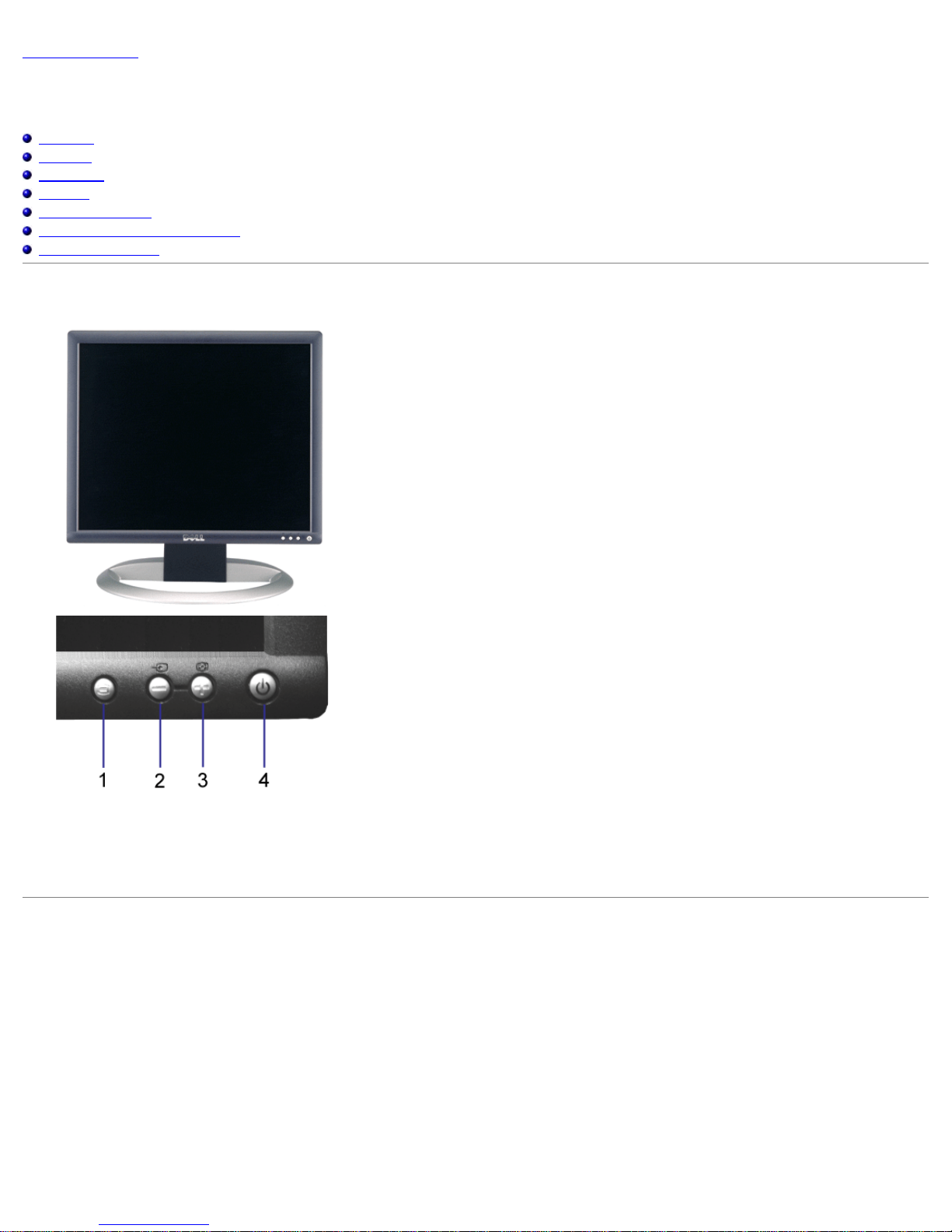

Front View

1. OSD menu / select button

2. Input select / down button

3. Auto-adjust / up button

4. Power button (with power light indicator)

Back View

1. Dell Soundbar mounting brackets — Attach the optional Dell Soundbar.

2. Security lock slot — Attach a lock to secure your monitor.

3. Stand removal button — Press to release the stand.

4. VESA mounting holes (100mm [Behind attached base plate]) — Use to mount the monitor.

5. Barcode serial number label — Refer to this label if you need to contact Dell for technical support

6. Lock down/release button — Push the monitor down, press the button to unlock the monitor, and then lift the monitor to the desired height.

7. Regulatory rating label — Lists the regulatory approvals.

8. Cable holder — Help organize cables by placing them in the holder.

Bottom View

1. Power connector - Connect the power cable

2. Dell Soundbar power connector - Connect the power cord for the Soundbar (optional)

3. DVI connector - Connect your computer DVI cable

4. VGA connector - Connect your computer VGA cable

5. USB upstream connector - Connect the USB cable that came with your monitor to the monitor and the computer. Once this cable is connected you can use the USB

connectors on the side and bottom of the monitor.

6. USB connector - Connect your USB devices. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on

the monitor.

Side View

USB connectors (downstream)

Left side Right side

Monitor Specifications

Power Management Modes

If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is

referred to as 'Power Save Mode'*. If input from keyboard, mouse or other input devices is detected by the computer, the monitor will automatically "wake up". The following

table shows the power consumption and signaling of this automatic power saving feature:

VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption

Normal operation( with Dell Soundbar and USB active) Active Active Active Green 65 W (maximum)

Normal operation Active Active Active Green 32 W (typical)

Active-off mode Inactive Inactive Blanked Amber Less than 3 W

Switch off - - - Off Less than 1 W

NOTE: The OSD will only function in the 'normal operation' mode. Otherwise one of the following messages will

appear when the “menu” or “plus” buttons are pressed when in Active-off mode.

1. Analog Input

In Power Save Mode

Press Any Key on Keyboard or Move Mouse or 2. Digital Input

In Power Save Mode

Press Any Key on Keyboard or Move Mouse

Activate the computer and 'wake up' the monitor to gain access to the OSD.

This monitor is ENERGY STAR®-compliant as well as TCO '99 / TCO '03 power management compatible.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, DELL has determined that this product meets the ENERGY STAR® guidelines for energy

efficiency.

Pin Assignments

15-pin D-Sub connector:

Pin Number Monitor Side of the 15-Pin Side Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 GND

5 GND

6 GND-R

7 GND-G

8 GND-B

9DDC +5V

10 Sync/self-test

11 GND

12 DDC data

13 H-sync

14 V-sync

15 DDC clock

24 pin digital-only DVI connector:

Note: Pin 1 is at the top right.

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment

1T.M.D.S. Data 2- 9T.M.D.S. Data 1- 17 T.M.D.S. Data 0-

2T.M.D.S. Data 2+ 10 T.M.D.S. Data 1+ 18 T.M.D.S. Data 0+

3T.M.D.S. Data 2 Shield 11 T.M.D.S. Data 1 Shield 19 T.M.D.S. Data 0 Shield

4No Pin 12 No Pin 20 No Pin

5No Pin 13 No Pin 21 No Pin

6DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield

7DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock +

8No Connect 16 Hot Plug Detect 24 T.M.D.S. Clock -

Universal Serial Bus (USB) Interface

This monitor supports High-Speed Certified USB 2.0 interface.*

Data Rate Power Consumption

High speed 480 Mbps 2.5W (Max., each port)

Full speed 12 Mbps 2.5W (Max., each port)

Low speed 1.5 Mbps 2.5W (Max., each port)

USB ports:

1 upstream - rear

4 downstream - 2 on rear; 2 on left side

NOTE: USB 2.0 capability requires 2.0 capable computer

NOTE: Monitor's USB interface works ONLY when monitor is Powered ON (or in Power Save Mode). Switching your monitor OFF and then ON would re-

enumerate its USB interface; attached peripherals may take a few seconds to resume normal functionality.

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data

(EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. If desired, the user can select different settings, but in

most cases monitor installation is automatic.

General

Model number 1704FPV

Flat Panel

Screen type Active matrix - TFT LCD

Screen dimensions 17 inches (17-inch viewable image size)

Preset display area:

Horizontal 337 mm (13.3 inches)

Vertical 270 mm (10.6 inches)

Pixel pitch 0.264 mm

Viewing angle 178° (vertical) typ, 178° (horizontal) typ

Luminance output 280 CD/m ²(typ)

Contrast ratio 1000 to 1 (typ)

Faceplate coating Antiglare with hard-coating 3H

Backlight CCFL (4) edgelight system

Response Time 25ms typical

Resolution

Horizontal scan range 30 kHz to 81 kHz (automatic)

Vertical scan range 56 Hz to 76 Hz (automatic)

Optimal preset resolution 1280 x 1024 at 60 Hz

Highest preset resolution 1280 x 1024 at 75 Hz

Preset Display Modes

Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (Horizontal/Vertical)

VESA, 720 x 400 31.5 70.0 28.3 -/+

VESA, 640 x 480 31.5 60.0 25.2 -/-

VESA, 640 x 480 37.5 75.0 31.5 -/-

VESA, 800 x 600 37.9 60.3 49.5 +/+

VESA, 800 x 600 46.9 75.0 49.5 +/+

VESA, 1024 x 768 48.4 60.0 65.0 -/-

VESA, 1024 x 768 60.0 75.0 78.8 +/+

VESA, 1152 x 864 67.5 75.0 108 +/+

VESA, 1280 x 1024 64.0 60.0 135.0 +/+

VESA, 1280 x 1024 80.0 75.0 135.0 +/+

Electrical

Video input signals Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance

Digital DVI-D TMDS, 600mV for each differential line, positive polarity at 50 ohm input

impedance

Synchronization input signals Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC

on green)

AC input voltage / frequency / current 100 to 240 VAC / 50 or 60 Hz +3 Hz / 2.0A (Max.)

Inrush current 120V:42A (Max.)

240V:80A (Max.)

Physical Characteristics

Connector type 15-pin D-subminiature, blue connector; DVI-D, white connector

Signal cable type Analog: Detachable, D-sub, 15pin, shipped attached to the monitor

Digital: Detachable, DVI-D, Solid pins, shipped detached from the monitor

Dimensions (with stand):

Height (fully extended in portrait mode) 548.21 mm (21.58 inches)

Height (compressed/locked in landscape mode) 384.36 mm (15.13 inches)

Width 376 mm (14.8 inches)

Depth 213.79 mm (8.42 inches)

Weight (monitor only) 6.12 Kg (13.48 lb)

Weight (with packaging) 8.3 Kg (18.28 lb)

Environmental

Temperature:

Operating 5° to 35°C (41° to 95°F)

Nonoperating Storage: -20° to 60°C (-4° to 140°F)

Shipping: -20° to 60°C(-4° to 140°F)

Humidity:

Operating 10% to 80% (noncondensing)

Nonoperating Storage: 5% to 90% (noncondensing)

Shipping: 5% to 90%(noncondensing)

Altitude:

Operating 3,657.6m (12,000 ft) max

Nonoperating 12,192 m (40,000 ft) max

Thermal dissipation 221.937 BTU/hour (maximum)

109.261 BTU/hour (typical)

Dell Soundbar (Optional) Specifications

System Frequency Response 95 Hz to 20 kHz @ 10 dB below avg. SPL

Total Power Output 14 W continuous average power (all speakers operating) @ 10% (THD+N), 1 kHz (FTC rated)

Headphone Jack

Output Power 40 mW continuous average power (RL = 32Ω) @ 10% (THD+N), 1 kHz

Input Sensitivity for

Rated Output 500 ± 50 mVrms @ 1 kHz

Input Impedance >10kΩ

Maximum Input Signal

Voltage 2 Vrms

Controls Power On/Off Volume Control

Input Cables 3.0 m ± 0.1 m AWG26 black cable attached to enclosure, with 3.5 mm lime green stereo plug

Power Requirements DC12V, 1.5A +/-10%

Power Cord Length 305 mm ± 15 mm AWG22 black cable attached to enclosure, with DC plug (5.5 x 2.1 x 12 mm)

Operating Temperature Range 10°C to 40°C

Humidity, Non-condensing 95% RH @ 40 °C

Caring for Your Monitor

CAUTION: Read and follow the safety instructions before cleaning the monitor.

CAUTION: Before cleaning the monitor, unplug the monitor from the electrical outlet.

To clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the antistatic

coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.

Use a lightly-dampened, warm cloth to clean the plastics. Avoid using detergent of any kind as some detergents leave a milky film on the plastics.

If you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.

Handle your monitor with care as darker-colored plastics may scratch and show white scuff marks more than lighter-colored monitor.

Back to Contents Page

Using Your Adjustable Monitor Stand

Dell™ 1704FPV Flat Panel Monitor

Attaching the Stand

Organizing Your Cables

Using the Tilt, Swivel, and Vertical Extension

Removing the Stand

Attaching the Stand

NOTE: The stand is detached and extended when the monitor is shipped from the factory.

1. Fit the groove on the of the monitor onto the three teeth on stand.

2. Lower the monitor until it locks in to place on the stand.

Organizing Your Cables

After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use

the cable holder to neatly organize all cables as shown above.

Using the Tilt, Swivel, and Vertical Extension

Adjusting Your Monitor Using Tilt, Swivel, and Vertical Extension. You can adjust your monitor to best fit your viewing needs.

You can adjust the stand vertically, up to 5.12 inches (130mm) using the stand lock/release button. Press the stand

lock/release button on the back of the monitor and then lift or lower the stand to the desired position.

NOTE: Before you move the monitor to a new location, lock the stand by lowering monitor until in clicks in

to place.

Autres manuels pour UltraSharp 1704FPV

Table des matières

Autres manuels Dell Moniteur

Dell

Dell E2020HB Manuel utilisateur

Dell

Dell S2319H Manuel utilisateur

Dell

Dell E1709W Manuel utilisateur

Dell

Dell SE2422H Instructions d'installation

Dell

Dell E2209WFP Manuel utilisateur

Dell

Dell UltraSharp 1800FP Manuel utilisateur

Dell

Dell P2422HE Manuel utilisateur

Dell

Dell 1707FPV - UltraSharp - 17" LCD Monitor Manuel utilisateur

Dell

Dell E157FPc Manuel utilisateur

Dell

Dell U2410 - UltraSharp - 24" LCD Monitor Manuel utilisateur

Dell

Dell SE2716H Manuel utilisateur

Dell

Dell SE2219H Manuel utilisateur

Dell

Dell S1709W - 17" LCD Monitor Manuel utilisateur

Dell

Dell U2312HM Manuel de la liste des pièces

Dell

Dell E1910H - 19" LCD Monitor Manuel utilisateur

Dell

Dell IN1910NWFP Manuel utilisateur

Dell

Dell D825TM Manuel utilisateur

Dell

Dell E2723HN Manuel utilisateur

Dell

Dell IN1910N - 18.5" LCD Monitor Manuel utilisateur

Dell

Dell E2418HN Manuel utilisateur

Dell

Dell UltraSharp U2412M Manuel utilisateur

Dell

Dell SX2210T Instructions d'utilisation

Dell

Dell U2421E Manuel utilisateur

Dell

Dell UltraSharp U2417H Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Philips

Philips 107C64 Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur

Sceptre

Sceptre D40 Manuel utilisateur

Hunt Electronic

Hunt Electronic HCD-15AH Manuel utilisateur
