Dell™ S1909WX Flat Panel Monitor User's Guide

About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to

avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo, are trademarks of Dell Inc.; Microsoft and Windows are either trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries. ENERGY STAR is a registered trademark of the U.S. Environmental

Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model S1909WXf

August 2008 Rev. A00

Back to Contents Page

About Your Monitor

Dell™ S1909WX Flat Panel Monitor User's Guide

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

Package Contents

Your monitor comes with all the items shown below. Ensure that you have all the items, contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

Monitor with stand

Power Cable

VGA Cable(attached to the monitor)

DVI Cable(Optional)

Drivers and Documentation Media

Quick Setup Guide

Safety Information

Product Features

The S1909WX flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■19-inch (482.6mm) viewable area display.

■1440x900 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt capability.

■Removable pedestal and Video Electronics Standards Association (VESA) 100mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media which includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for ENERGY STAR® compliance.

■Security lock slot.

Identifying Parts and Controls

Front view

1. OSD menu button

2. Brightness and Contrast/Up ( ) button

3. Auto adjust/Down ( ) button

4. Input select/Enter button

5. Power On/Off button (with LED indicator)

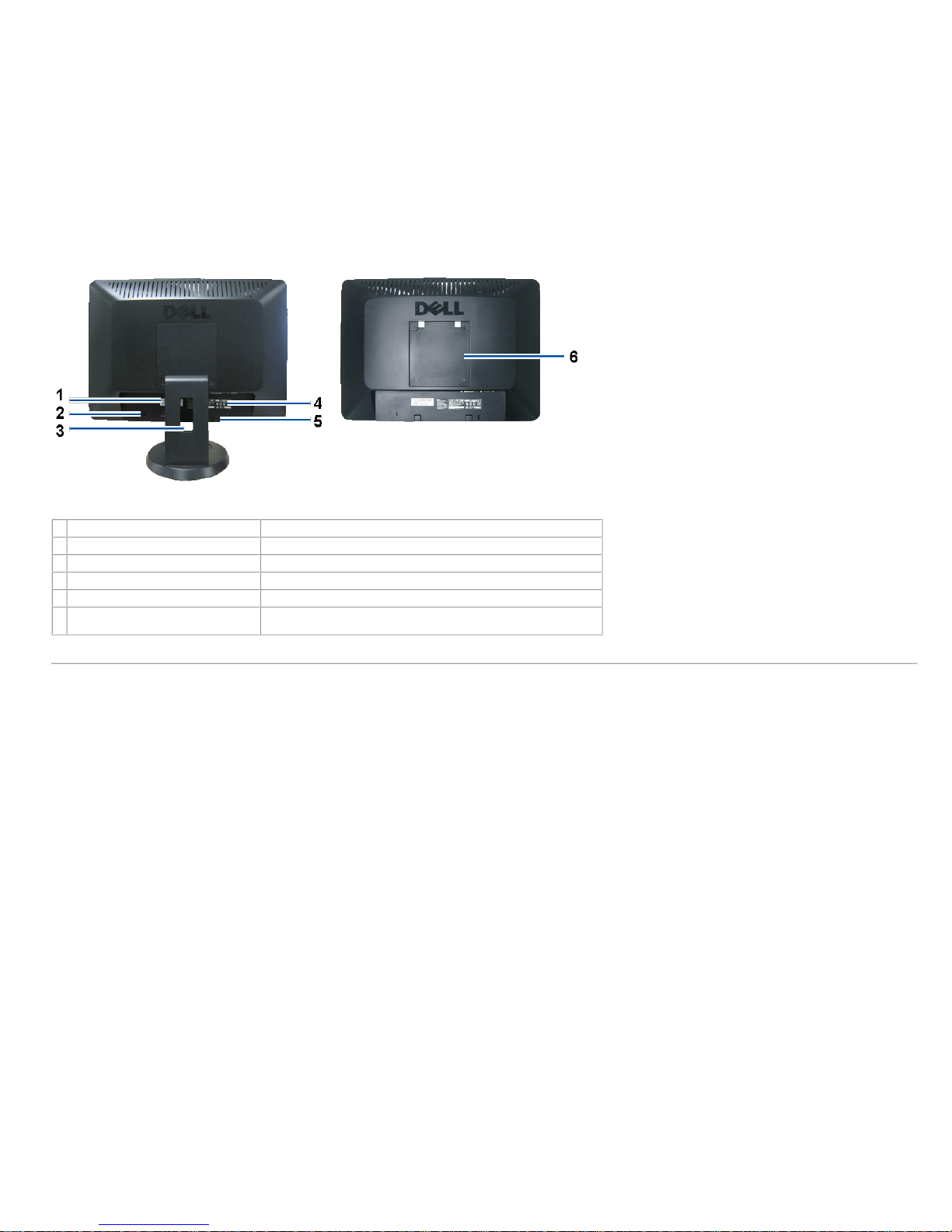

Back View

1Barcode serial number label Refer to this label if you need to contact Dell for technical support.

2Security lock slot Use a security lock with the slot to help secure your monitor.

3Cable holder Helps organize cables by placing them through the holder.

4Regulatory rating label Lists the regulatory approvals.

5Dell Soundbar mounting brackets Use to attach the optional Dell Soundbar.

6VESA mounting holes (100mm) (Behind

attached base plate) Use to mount the monitor.

Bottom View

1Power connector Insert the power cable.

2DVI connector Connect the DVI cable of your computer.

3VGA connector Connect the VGA cable of your computer.

Side View

Left side Right side

Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for various connectors of your monitor.

Power Management Modes

If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use. This is referred to as Power Save

Mode. The monitor automatically resumes functioning when the system detects input from the keyboard, mouse or other input devices.The following table shows the power consumption and

signaling of this automatic power saving feature:

VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption

Normal operation Active Active Active White 37 W (maximun)

Active-off mode Inactive Inactive Blanked Amber Less than 2 W

Switch off - - - Off Less than 1 W

NOTE: The OSD only functions in the normal operation mode. One of the following messages appears when the Menu or Plus buttons are pressed when in Active-off

mode.

Activate the computer and the monitor to gain access to the OSD.

This monitor is ENERGY STAR®-compliant .

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

Pin Assignments

15-pin D-Sub connector

Pin Number Monitor Side of the 15-pin Side Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 GND

5 Self-test

6 GND-R

7 GND-G

8 GND-B

9DDC +5V

10 GND-sync

11 GND

12 DDC data

13 H-sync

14 V-sync

15 DDC clock

24-pin Digital-only DVI Connector

Note: Pin 1 is at the top right.

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment

1T.M.D.S. Data 2- 9T.M.D.S. Data 1- 17 T.M.D.S. Data 0-

2T.M.D.S. Data 2+ 10 T.M.D.S. Data 1+ 18 T.M.D.S. Data 0+

3T.M.D.S. Data 2 Shield 11 T.M.D.S. Data 1 Shield 19 T.M.D.S. Data 0 Shield

4No Pin 12 No Pin 20 No Pin

5No Pin 13 No Pin 21 No Pin

6DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield

7DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock +

8No Connection 16 Hot Plug Detect 24 T.M.D.S. Clock -

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data

Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can select different settings if required.

Specifications

Model number S1909WX

Screen type Active matrix - TFT LCD

Screen dimensions 19 inches wide (19-inch wide viewable image size)

Preset display area: Horizontal 408.24mm / 16.07 inches (minimum)

Preset display area: Vertical 255.15mm / 10.05 inches (minimum)

Pixel pitch 0.2835mm

Viewing angle 160° (vertical) typ, 160° (horizontal) typ

Luminance output 300 CD/m²(typ)

Contrast ratio 1000 to 1 (typ)

Faceplate coating Anti-Glare with hard-coating 3H

Backlight CCFL edgelight system

Response Time 5ms typical

Horizontal scan range 30 kHz to 83 kHz (automatic)

Vertical scan range 56 Hz to 75 Hz (automatic)

Optimal preset resolution 1440 x 900 at 60 Hz

Highest preset resolution 1440 x 900 at 75 Hz

Video Display Capabilities (DVI HD Playback) 480i/576i/1080i/480p/576p/720p/1080p (Supports HDCP)

Video input signals Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance

Digital DVI-D TMDS, 600mV for each differential line, positive polarity at 50 ohm

input impedance

Synchronization input signals Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG

(Composite SYNC on green)

AC input voltage / frequency / current 100 to 240 VAC / 50 or 60 Hz +3 Hz / 1.5A (Max.)

Inrush current 120V:30A (Max.)

240V:60A (Max.)

Color depth 16.7M colors

Color Gamut 85% typical

*Dell S1909WX Flat Panel monitor color gamut (typical) is based on CIE 1976 (85%) and CIE1931 (72%) test standards.

Preset Display Modes

The following table lists the preset modes for which Dell guarantees image size and centering:

Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock

(MHz) Sync Polarity

(Horizontal/Vertical)

VESA, 720 x 400 31.5 70.0 28.3 -/+

VESA, 640 x 480 31.5 60.0 25.2 -/-

VESA, 640 x 480 37.5 75.0 31.5 -/-

VESA, 800 x 600 37.9 60.3 49.5 +/+

VESA, 800 x 600 46.9 75.0 49.5 +/+

VESA, 1024 x 768 48.4 60.0 65.0 -/-

VESA, 1024 x 768 60.0 75.0 78.8 +/+

VESA, 1152 x 864 67.5 75.0 108 +/+

VESA, 1280 x 1024 64.0 60.0 135.0 +/+

VESA, 1280 x 1024 80.0 75.0 135.0 +/+

VESA, 1440 x 900 55.9 60.0 106.5 -/+
