Dell S3422DW Manuel utilisateur

Monitor Model: S3422DW

Regulatory Model: S3422DWc

Dell S3422DW

User’s Guide

2 │

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2021 – 04

Rev. A01

│3

Contents

Safety instructions.......................... 6

About your monitor ..........................7

Package contents . . . . . . . . . . . . . . . . . . . . . . 7

Product features . . . . . . . . . . . . . . . . . . . . . . .8

Identifying parts and controls . . . . . . . . . . . . . . . 10

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Monitor specifications . . . . . . . . . . . . . . . . . . . 14

Resolution specifications . . . . . . . . . . . . . . . . . . . . . . 15

Supported video modes . . . . . . . . . . . . . . . . . . . . . . . 16

Preset display modes . . . . . . . . . . . . . . . . . . . . . . . . 16

Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . 17

Physical characteristics. . . . . . . . . . . . . . . . . . . . . . . 18

Environmental characteristics . . . . . . . . . . . . . . . . . . . 19

Plug and play capability . . . . . . . . . . . . . . . . . . . . . . . 20

LCD monitor quality and pixel policy . . . . . . . . . . . 20

Ergonomics. . . . . . . . . . . . . . . . . . . . . . . . . 21

Handling and moving your display . . . . . . . . . . . . . 23

Maintenance guidelines . . . . . . . . . . . . . . . . . . 24

Cleaning your monitor. . . . . . . . . . . . . . . . . . . . . . . . 24

4 │

Setting up the monitor ...................... 25

Connecting the stand . . . . . . . . . . . . . . . . . . . 25

Connecting your monitor . . . . . . . . . . . . . . . . . 26

Connecting the HDMI and USB 3.0 cable. . . . . . . . . . . . . .26

Organizing cables . . . . . . . . . . . . . . . . . . . . . 27

Securing your monitor using Kensington/Noble lock

(optional) . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Removing the stand . . . . . . . . . . . . . . . . . . . . 28

Wall mounting (optional) . . . . . . . . . . . . . . . . . 29

Operating your monitor ......................31

Power on the monitor . . . . . . . . . . . . . . . . . . . 31

Using the control buttons . . . . . . . . . . . . . . . . . 31

Control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

OSD controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the On-Screen Display (OSD) menu . . . . . . . . 34

Accessing the OSD menu . . . . . . . . . . . . . . . . . . . . . . 34

Menu and Power button lock . . . . . . . . . . . . . . . . . . . . 45

OSD warning messages . . . . . . . . . . . . . . . . . . . . . . . 47

Setting up your monitor . . . . . . . . . . . . . . . . . . 50

Setting the maximum resolution . . . . . . . . . . . . . . . . . . 50

If you have a Dell desktop or a Dell portable computer with internet

access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

If you have a non Dell desktop, portable computer, or graphics card

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Using the tilt and vertical extension. . . . . . . . . . . . 52

Tilt Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

│5

Vertical Extension . . . . . . . . . . . . . . . . . . . . . . . . . .52

Troubleshooting ........................... 53

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Built-in diagnostics . . . . . . . . . . . . . . . . . . . . 55

Common problems . . . . . . . . . . . . . . . . . . . . . 57

Product-specific problems . . . . . . . . . . . . . . . . 60

Appendix..................................61

Safety Instructions. . . . . . . . . . . . . . . . . . . . . 61

FCC notices (U.S. Only) and other regulatory information 61

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . 62

Stability Hazard. . . . . . . . . . . . . . . . . . . . . . . 63

6 │Safety instructions

Safety instructions

CAUTION: Use of controls, adjustments, or procedures other than

those specified in this documentation may result in exposure to shock,

electrical hazards, and/or mechanical hazards.

∞Place the monitor on a solid surface and handle it carefully. The screen is fragile

and can be damaged if dropped or hit sharply.

∞Always be sure that your monitor is electrically rated to operate with the AC

power available in your location.

∞Keep the monitor in room temperature. Excessive cold or hot conditions can have

an adverse effect on the liquid crystal of the display.

∞Do not subject the monitor to severe vibration or high impact conditions. For

example, do not place the monitor inside a car trunk.

∞Unplug the monitor when it is going to be left unused for an extended period of

time.

∞To avoid electric shock, do not attempt to remove any cover or touch the inside

of the monitor.

About your monitor │7

About your monitor

Package contents

Your monitor ships with the components shown below. Ensure that you have

received all the components and see Contacting Dell for more information if

something is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Some features or media may not be available in certain countries.

Monitor

Stand riser

Stand base

Power cable (varies by

countries)

HDMI 2.0 cable

8 │About your monitor

USB 3.0 upstream cable

(enables the USB ports on the

monitor)

∞Quick Setup Guide

∞Safety and Regulatory

Information

Product features

The Dell S3422DW monitor has an active matrix, Thin-Film Transistor (TFT), Liquid

Crystal Display (LCD), anti-static, and LED backlight. The monitor features include:

∞86.42 cm (34.0 in.) viewable area display (measured diagonally). 3440 x 1440

resolution, with full-screen support for lower resolutions.

∞Compatible with (AMD FreeSync™ or No Sync), high refresh rates and a rapid

response time of 4 ms.

∞Supports 48 Hz to 144 Hz (HDMI) and 48 Hz to 164 Hz (DP) in Freesync Mode.

∞Build-in Speaker (5 W) x 2

∞Color gamut of 99% sRGB.

∞Digital connectivity with DP and HDMI.

∞Equipped with 1 USB upstream port and 2 USB downstream ports.

∞Plug and play capability if supported by your computer.

∞On-Screen Display (OSD) adjustments for ease of setup and screen optimization.

∞Removable stand and Video Electronics Standards Association (VESA™) 100 mm

mounting holes for flexible mounting solutions.

∞Tilt and height adjustment capabilities.

∞Security-lock slot.

∞≤0.3 W in the Standby Mode

∞Dell Display Manager Software included.

∞Optimize eye comfort with a flicker-free screen.

WARNING:The possible long-term effects of blue light emission from

About your monitor │9

the monitor may cause damage to the eyes, including eye fatigue, digital

eye strain, and so on. ComfortView feature is designed to reduce the

amount of blue light emitted from the monitor to optimize eye comfort.

WARNING:If provided with a 3-pin attachment plug on the power

cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable

the power cord grounding pin, for example, by attaching a 2-pin adapter.

The grounding pin is an important safety feature.

WARNING:The possible long-term effects of blue light emission from

the monitor may cause damage to the eyes, including eye fatigue, digital

eye strain, and so on. ComfortView feature is designed to reduce the

amount of blue light emitted from the monitor to optimize eye comfort.

WARNING:Please confirm the distribution system in building

installation shall provide the circuit breaker rated 120/240V, 20A

(maximum).

10 │About your monitor

Identifying parts and controls

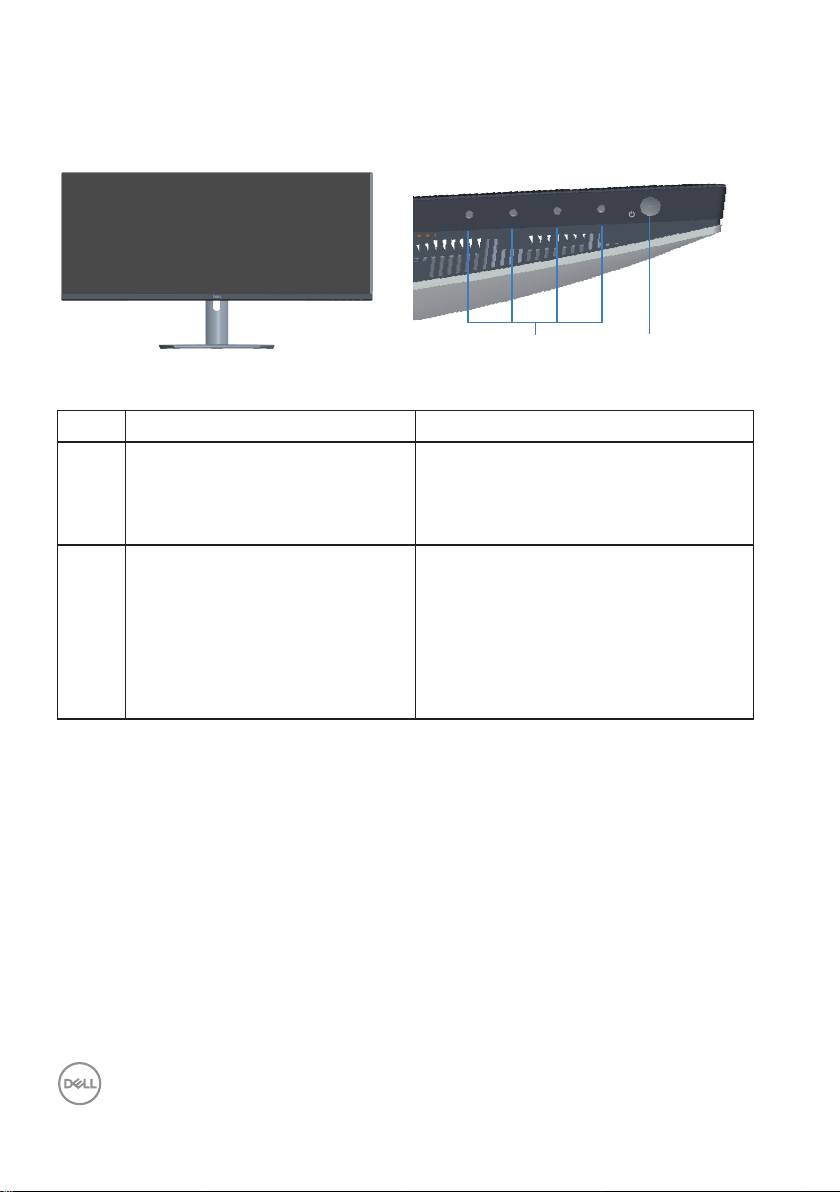

Front view

1 2

Control buttons

Label Description Use

1Function buttons Press the function buttons to adjust

items in the OSD menu. (For more

information, see Using the control

buttons)

2Power On/Off button Press the power button to turn the

monitor on and off.

Solid white light indicates the monitor

is turned on and functioning normally.

Blinking white light indicates the

monitor is in Standby Mode.
