Dell S1909WFP Manuel utilisateur

Dell™S1909WFlatPanelMonitorUser'sGuide

Notes, Notices, and Cautions



Information in this document is subject to change without notice.

©2008DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo aretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in

theUnitedStatesand/orothercountries;Adobe is a trademark of Adobe Systems Incorporated, which may be registered in certain jurisdictions.ENERGYSTAR is a registered

trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy

efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model S1909Wb

August2008Rev.A00



About Your Monitor

Setting Up the Monitor

Operating the Monitor

Solving Problems

Appendix

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page



AboutYourMonitor

Dell™S1909WFlatPanelMonitorUser'sGuide

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

LCD Monitor Quality & Pixel Policy

Maintenance Guidelines

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

lMonitor with stand

lPower Cable



lVGA Cable



lDVI Cable (Optional)



Product Features

The S1909W flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■18.5-inch (469.9 mm) viewable area display.

■1366 x 768 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side to side.

■Tilt adjustment capability.

■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation CD which includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

Identifying Parts and Features

Front View

Back View

lDrivers and Documentation media

lQuick Setup Guide

lSafety Information



Front View

Front panel controls

Label

Description

OSD Menu/Exit

Brightness/Contrast ( )/Up ( )

Auto-adjust ( )/Down ( )

Input Source Select/Select

Power button (with power light indicator)



Side View



Bottom View



Backview

Label

Description/Use

VESA mounting holes (100mm)

(Behind attached base plate)

To mount the monitor.

Barcode serial number label

To contact Dell for technical support.

Security lock slot

To help secure your monitor.

Dell Soundbar mounting brackets

To attach the optional Dell Soundbar.

Regulatory rating label

Lists the regulatory approvals.

Rightside

Left side

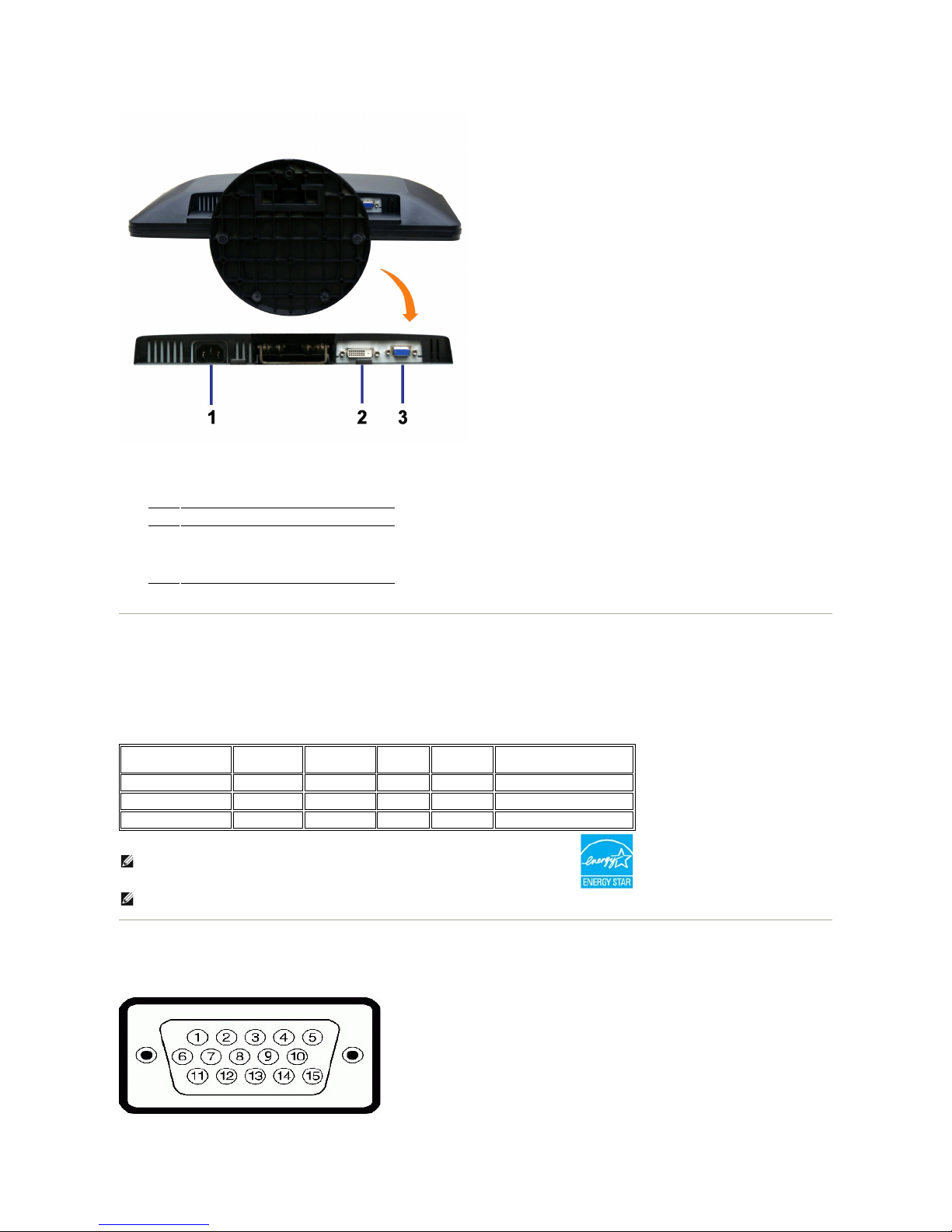

Bottom view



Monitor Specifications

Power Management Modes

IfyouhaveVESA'sDPMS™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotin

use. This is referred to as Power Save Mode. If input from a keyboard, mouse or other input devices is detected by the computer, the monitor will automatically

"wake up". The following table shows the power consumption and signaling of this automatic power-savingfeature:

Pin Assignments

VGA Connector

Label

Description

AC power cord connector

DVI connector

VGA connector

VESA Modes

Horizontal

Sync

Vertical Sync

Video

Power

Indicator

Power Consumption

Normal operation

Active

White

20 W (maximum)

Active-off mode

Inactive

Blanked

Amber

Less than 2 W

Switch off

Off

Less than 1 W

NOTE: This monitor is ENERGY STAR®-compliant.

NOTE: Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the

monitor.

DVIConnector

Number

15-pin Side of the

Connected Signal Cable

Video-Red

Video-Green

Video-Blue

GND

Self-test

GND-R

GND-G

GND-B

Computer 5V/3.3V

GND-sync

GND

DDC data

H-sync

V-sync

DDC clock

Number

24-pin Side of the Connected Signal

Cable

TMDS RX2-

TMDS RX2+

TMDS Ground

Floating

DDC Clock

DDC Data

Floating

TMDS RX1-

TMDS RX1+

TMDS Ground

Floating

+5V/+3.3V power

Selftest

Hot Plug Detect

TMDS RX0-

TMDS RX0+

TMDS Ground

Flat Panel Specifications

* S1909W Color Gamut (Typical) is based on CIE1976 (85%) and CIE1931 (72%).

Resolution

Video Supported Modes

Preset Display Modes

Floating

TMDS Ground

TMDS Clock+

TMDS Clock-

Screen type

Active matrix -TFT LCD

Screen dimensions

18.5 inches (18.5-inch viewable image size)

Preset display area:

Horizontal

409.8 mm (16.1 inches)

Vertical

230.4 mm (9.1 inches)

Pixel pitch

0.30 mm

Viewing angle

160°(vertical)typical,170°(horizontal)typical

Luminance output

300 CD/m ²(typical)

Contrast ratio

1000 to 1 (typical)

Faceplate coating

Antiglare with hard-coating 3H

Backlight

CCFL edgelight system

Response Time

5 ms typical

Color Gamut

85 %*

Horizontal scan range

30 kHz to 83 kHz (automatic)

Vertical scan range

56Hzto75Hz(automatic)

Optimal preset resolution

1366 x 768 at 60 Hz

Highest preset resolution

1366 x 768 at 75 Hz

Video display capabilities (DVI playback)

480i/480p/576i/576p/720p/1080i/1080p (Supports HDCP)

Display Mode

Horizontal

Frequency

(kHz)

Vertical

Frequency (Hz)

Pixel Clock

(MHz)

Sync Polarity

(Horizontal/Vertical)

VGA, 720 x 400

31.5

70.0

28.3

-/+

VGA, 640 x 480

31.5

60.0

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.3

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1366 x 768 -Analog

47.7

59.8

85.5

+/+

VESA, 1366 x 768 - Digital

47.7

59.8

85.5

+/+

Electrical

Physical Characteristics

Environmental

Video input signals

Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input

impedance

Digital DVI-D TMDS, 600mV for each differential line, positive

polarity at 50 ohm input impedance

Synchronization input signals

Separate horizontal and vertical synchronizations, polarity-free

TTL level, SOG (Composite SYNC on green)

AC input voltage/frequency/current

100 to 240 VAC/50 or 60 Hz +3 Hz/2.0A (Max.)

Inrush iso surge current

120 V: 30 A (Max.)

240 V: 60 A (Max.)

Connector type

lD-sub: blue connector

lDVI-D: white connector

Signal cable type

lD-sub: Detachable, Analog, 15pin, shipped attached to

the monitor

lDVI-D (optional): Detachable, Digital, 24pin, shipped

detached from the monitor

Dimensions (with stand)

Height

344.33 mm (13.56 inches)

Width

453.25 mm (17.86 inches)

Depth

204.83 mm (8.06 inches)

Dimensions (without stand)

Height

273.85 mm (10.78 inches)

Width

453.75 mm (17.86 inches)

Depth

57.57 mm (2.27 inches)

Stand dimensions

Height

129.10 mm (5.08 inches)

Width

204.83 mm (8.06 inches)

Depth

204.83 mm (8.06 inches)

Weight

Weight with packaging

5.23kg( 11.51 lb)

Weight with stand assembly and cables

4.06kg( 8.94 lb)

Weight without stand assembly

(For wall mount or VESA mount considerations -

no cables)

3.28 kg ( 7.23 lb)

Weight of stand assembly

0.31 kg (0.67 lb)

Temperature



Operating

0°to50°C(32°to122°F)

Non-operating

Storage: -20°to60°C(-4°to140°F)

Shipping: -20°to60°C(-4°to140°F)

Humidity



Operating

5% to 90% (non-condensing)

Non-operating

Storage: 5% to 90% (non-condensing)

Shipping: 5% to 90% (non-condensing)

Altitude



Operating

3,048 m (10,000 ft) max

Non-operating

9,144 m (30,000 ft) max

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display

Identification Data (EDID) using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. If required,

the user can select different settings, but in most cases monitor installation is automatic.

LCD Monitor Quality & Pixel Policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a fixed

pixel that appears as an extremely tiny dark or bright discolored spot. When the pixel remains permanently lit, it is known as a "bright dot." When the pixel

remains black, it is known as a "dark dot."

In almost every case, these fixed pixels are hard to see and do not detract from display quality or usability. A display with 1 to 5 fixed pixels is considered

normalandwithincompetitivestandards.Formoreinformation,seeDellSupportsiteat:support.dell.com.

Maintenance Guidelines

Caring for Your Monitor

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:

lTo clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the

antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.

lUse a lightly-dampened,warmclothtocleanthemonitor.Avoidusingdetergentofanykindassomedetergentsleaveamilkyfilmonthemonitor.

lIf you notice a white powder when you unpack your monitor, wipe it off with a cloth.

lHandleyourmonitorwithcareasdark-colored monitors may scratch and show white scuff marks more than lighter-coloredmonitors.

lTo help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.

Back to Contents Page



Thermal dissipation

256.08 BTU/hour (maximum)

119 BTU/hour (typical)

CAUTION: Read and follow the Safety Instructions before cleaning the

monitor.

CAUTION: Before cleaning the monitor, unplug the monitor from the electrical

outlet.

Back to Contents Page



Appendix

Dell™S1909WFlatPanelMonitorUser'sGuide

Safety Instructions

FCC Notice (U.S. Only) and Other Regulatory Information

Contacting Dell



CAUTION: Safety Instructions

For information on safety instructions, see the Safety Information that ships with your monitor.

FCC Notice (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be

available in your area. To contact Dell for sales, technical support, or customer service issues:

1. Visit support.dell.com.

2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.

3. Click Contact Us on the left side of the page.

4. Select the appropriate service or support link based on your need.

5. Choose the method of contacting Dell that is convenient for you.

Back to Contents Page



CAUTION: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,

electrical hazards, and/or mechanical hazards.

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product

catalog.
